12A-385A084 - Yard Machines Walk-Behind Mower (1998) (Fred Meyer) General Assembly (Model Series 380 Thru 389) Parts Diagram

Walk-Behind Mower

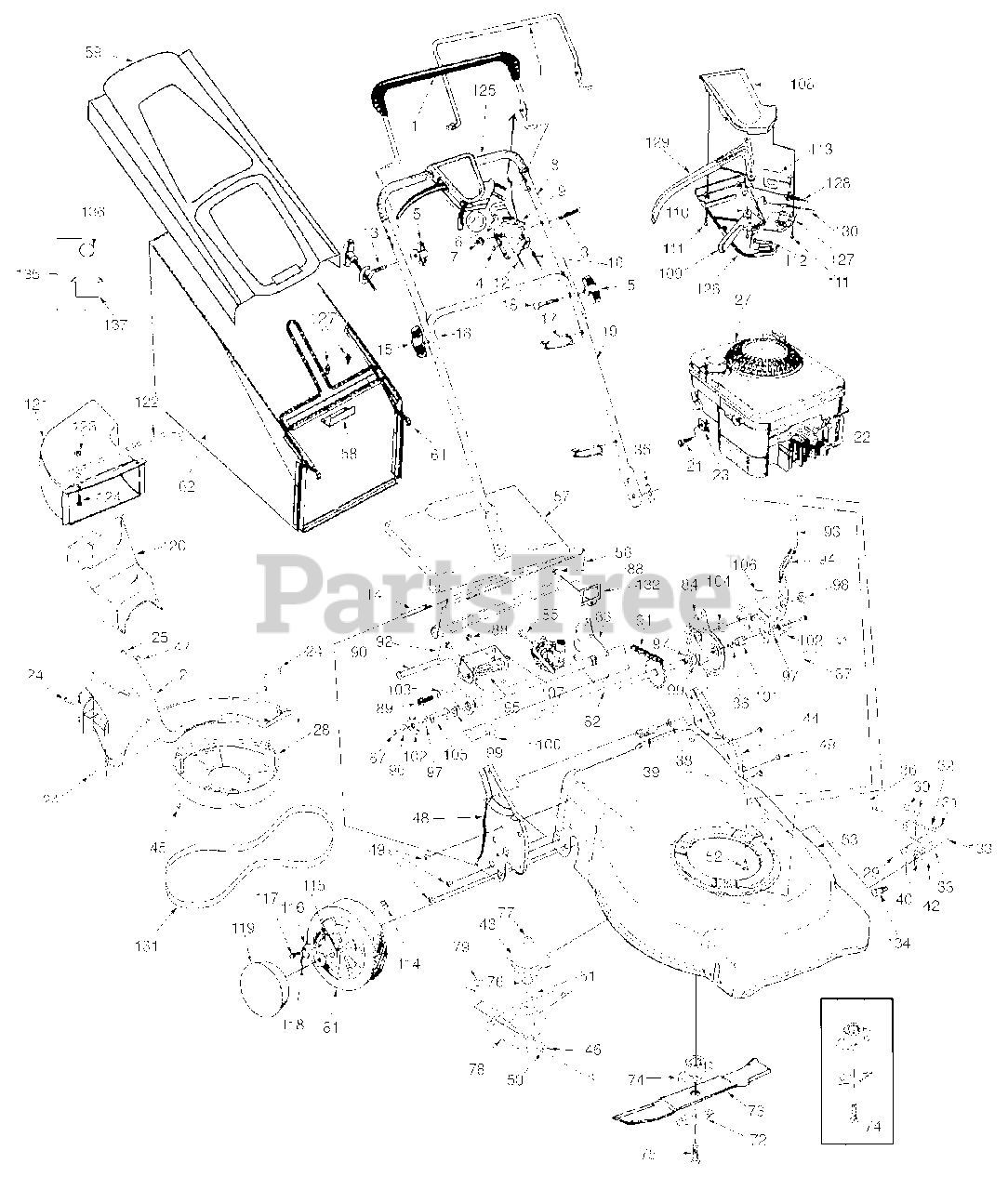

General Assembly (Model Series 380 Thru 389) Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y
(Superseded to 747-0824B-0637)

Note: (Std)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

2

MTD 731-1639

Baffle

$

$

Not available

3

MTD 710-0605

Oval C-Sunk Mach.-Scr.

$4.49

$

In Stock, only 3 left!

0

4

MTD 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

5

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

6

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

7

MTD 712-0324

Hex L-Nut 1/4-20

$3.99

$

In Stock, Qty 17

0

8

MTD 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

9

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

12

MTD 746-0843

Throttle Control Wire-55"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0848

Throttle Control Wire-47"
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

MTD 746-0841

Throttle Control Wire-60"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

13

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 3 left!

0

14

MTD 732-0700

Wire-47" Lg.
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

15

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

16

MTD 746-0554

Control Cable-40.5"
(Superseded to 946-0554)

$21.99

$

In Stock, only 4 left!

0

MTD 746-0555

Control Cable-55"
(Superseded to 946-0555)

$26.99

$

In Stock, only 4 left!

0

MTD 746-0551

Control Cable-43"
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

17

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

18

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

19

MTD 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

20

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 3, 4, 6, 7, 9)

$36.99

$

In Stock, only 1 left!

0

21

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62" Lg. (B&S)

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Sems Scr. #10-32 x .3" Lg. (Tec.)

$

$

Not available

22

MTD 735-0639

Spark Plug Boot

$

$

Not available

23

MTD 751B213146

Cable Clamp (B&S)
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

MTD 7510007775

Cable Clamp (Tec.)
(Superseded to TC-27793)

$1.99

$

In Stock, only 2 left!

0

24

MTD 710-1220

Screw H.L. 12-24

$4.99

$

In Stock, only 4 left!

0

25

MTD 710-0351

Screw Mach. B Tapp.

$4.49

$

In Stock, only 2 left!

0

27

Engine

$

$

Not available

28

MTD 731-1714A

Belt Cover

$

$

Not available

29

MTD 710-0167

Scr. 1/4-20: .50 Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

30

MTD 710-0896

Scr.:AB 1/4-20: .625 Lg.

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-0287

Hex Nut: 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

32

MTD 736-0270

Bell Wash. .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

33

MTD 736-0329

Lock Wash. 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

35

MTD 714-0104

Int. Cotter Pin 5/15" Dia.

$4.49

$

In Stock, Qty 20+

0

36

UNKNOWN

$

$

Not available

37

MTD 747-0922

Pivot Rod

$

$

Not available

38

MTD 750-1068

Shoulder Spacer
(Superseded to 950-1068)

$

$

Not available

39

MTD 732-0809

Torsion Spring L.H.
(Superseded to 932-0809)

$18.99

$

Usually ships in 3-6 days

0

40

MTD 756-0625

Roller Cable

$9.49

$

In Stock, Qty 16

0

?41

MTD 782-7574

6 Sp. Cable Adj. Bracket
(Superseded to 782-7574A-0637)

Variations

MTD 782-7574-0498

Cable Adjusting Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-7574-0637

Cable Adjusting Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 782-7574-0665

Cable Adjusting Bracket - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

MTD 782-7575

6 Sp. Cable Mtg. Bracket
(Superseded to 782-7575-0637)

Variations

MTD 782-7575-0498

BRACKET-CABLE MTG - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-7575-0637

BRACKET-CABLE MTG - POWDER BLACK (0637)

$

$

Not available

MTD 782-7575-0665

BRACKET-CABLE MTG - YARDMAN GREEN (0665)

$

$

Not available

$

$

43

MTD 656-0613

Pulley Assembly
(Superseded to 956-0613A)

$72.99

$

In Stock, only 1 left!

0

44

MTD 782-3029

Handle Brkt. Ass'y - L.H.

Variations

MTD 782-3029-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 782-3029-0638

No Longer Available BRACKET HA - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-3029-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

45

MTD 710-0653

Screw, Tap 1/4-20

$4.49

$

In Stock, Qty 13

0

46

MTD 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

47

MTD 712-0400

U-Nut
(Superseded to 912-0400)

$5.99

$

Usually ships in 3-6 days

0

48

MTD 782-3030

Handle Brkt. Ass'y - R.H.

Variations

MTD 782-3030-0637

No Longer Available BRACKET HA - POWDER BLACK (0637)

$

$

Not available

MTD 782-3030-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-3030-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

49

MTD 710-1348

Screw AB 1/4-20

$6.99

$

In Stock, only 3 left!

0

50

MTD 732-0807

Torsion Spring
(Superseded to 932-0807)

$7.49

$

Usually ships in 3-6 days

0

51

MTD 736-0526

Wv. Wash. 1.38 O.D. x .88 I.D: .029

$6.99

$

Usually ships in 3-6 days

0

52

MTD 710-0654A

Hx L-Wash Hd. Scr. 3/8-16 : 1" Lg.

$4.49

$

In Stock, only 3 left!

0

53

MTD 682-0037

21" Deck Ass'y w/ Icon

Variations

MTD 682-0037-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0037-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0037-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0037-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0037-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

MTD 682-0075

21" Deck Ass'y w/o Icon

Variations

MTD 682-0075-0483

No Longer Available DECK ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0075-0629

No Longer Available DECK ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0075-0638

No Longer Available DECK ASM- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0075-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 682-0075-0662

No Longer Available DECK ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0075-0665

No Longer Available DECK ASM- - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0075-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-0075-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 682-0075-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 682-0075-0691

DECK ASSY-21" - BLACK JACK (0691)

$

$

Not available

MTD 682-0075-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 682-0075-0716

DECK ASSY-21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

56

MTD 731-1236

Rear Flap 17.77 Lg.
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 6

0

57

MTD 782-7599A

Rear Chute Door
(Superseded to 782-7599B-0637)

Variations

MTD 782-7599A-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

58

MTD 782-9050

Brkt. Mtg. Grassbag - Black
(Superseded to 782-9050-0637)

Variations

MTD 782-9050-0637

BRACKET-MTG - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 731-0068

Hdtop Bag Cover

$

$

Not available

MTD 731-0066

Hdtop Bag Cover w/MTD Logo

$

$

Not available

MTD 731-0077

Hdtop Bag Cover w/Flo Ind.

$

$

Currently unavailable

MTD 731-0078

Hdtop Bag Cover w/Flo Ind. / Logo.

$

$

Currently unavailable

61

MTD 747-0919

Catcher Frame
(Superseded to 747-0919-0637)

Variations

MTD 747-0919-0637

FRAME GRASSCTCHR - POWDER BLACK (0637)

$111.99

$

Usually ships in 3-6 days

0

$111.99

$

Usually ships in 3-6 days

0

62

MTD 664-0080

Grass Bag - Black

$

$

Not available

MTD 664-0079

Grassbag- Soft top w/ Logo

$

$

Not available

72

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

73

MTD 742-0741

21" Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

74

MTD 753-0609

Blade Adaptor Kit w/Star

$40.99

$

In Stock, Qty 12

0

75

MTD 710-1257

Hex Bolt 3/8-24 x 2.5 Lg.

$7.99

$

In Stock, only 2 left!

0

76

MTD 750-1070

Spacer - Sleeve
(Superseded to 950-1070)

$5.99

$

In Stock, Qty 9

0

77

MTD 750-1071

Spacer - Sleeve
(Superseded to 950-1071)

$4.49

$

In Stock, Qty 5

0

78

MTD 782-7596

6 Sp. Control Arm
(Superseded to 782-7596A)

Variations

MTD 782-7596-0637

ARM CONTROL: 6 SPD - POWDER BLACK (0637)

$

$

Not available

$

$

79

MTD 782-7597

6 Sp. Pivot Bracket

Variations

MTD 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

81

Wheel Assembly

$

$

Not available

MTD 634-0020

Front/Rear Wheel 8" x 1.75" Bar Tread

$39.99

$

In Stock, Qty 6

0

MTD 734-1268

Front Wheel 8" x 1.75" "T" Tread

Note: (Uses bearing 741-0484)

$71.99

$

Usually ships in 3-6 days

0

MTD 734-1412

Rear Wheel 8" x 1.75" "T" Tread

$

$

Not available

MTD 734-1790

Front Wheel 8" x 2" "S" Wave (Yellow Rim)

Note: (Uses bearing 741-0484)

$

$

Not available

MTD 734-1791

Rear Wheel 8" x 2" "S" Wave (Yellow Rim)

$

$

Not available

MTD 734-1821

Front Wheel 8" x 2" "S" Wave
(Superseded to 753-08093)

Note: (Uses bearing 741-0484)

$45.99

$

In Stock, Qty 5

0

MTD 734-1826

Front/Rear Wheel 8" x 2" "S" Wave

$33.99

$

In Stock, only 2 left!

0

MTD 734-1819

Front Wheel 8" x 2" Linked Tread
(Superseded to 734-1978)

Note: (Uses bearing 741-0484)

$48.99

$

Usually ships in 3-6 days

0

MTD 734-1824

Rear Wheel 8" x 2" Linked Tread
(Superseded to 734-1979)

$31.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Front Wheel Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

82

MTD 638-0005

Axle Ass'y: RR

$

$

Not available

83

MTD 682-7518

Axle Ass'y: Trans.
(Superseded to 682-7518-0637)

Variations

MTD 682-7518-0637

AXLE: ASM. CHAIN - POWDER BLACK (0637)

$

$

Not available

$

$

84

MTD 682-7524

Cover Ass'y - Chain

Variations

MTD 682-7524-0483

COVER ASS'Y-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-7524-0638

No Longer Available COVER ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-7524-0650

No Longer Available COVER ASM - RED METALLIC (0650)

$

$

Not available

MTD 682-7524-0662

No Longer Available COVER ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 682-7524-0665

COVER ASS'Y-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-7524-0691

COVER ASS'Y-CHAIN - BLACK JACK (0691)

$

$

Not available

MTD 682-7524-0716

No Longer Available COVER ASM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

85

MTD 710-0604

Scr. TT 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

86

MTD 710-0653

Scr. TT 1/4-20

$4.49

$

In Stock, Qty 13

0

87

MTD 710-0751

Hx Cap Screw 1/4-20

$3.99

$

In Stock, Qty 20+

0

88

MTD 710-0896

Scr. AB 1/4-20

$4.49

$

In Stock, Qty 20+

0

89

MTD 710-1315

Scr 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

90

MTD 711-0835

Pin - Clv. .500 Dia. x .4.62 Lg.
(Superseded to 911-0835)

$12.99

$

Usually ships in 3-6 days

0

91

MTD 713-0421

Chain: Endless 48: .500P x 22L
(Superseded to 913-0421)

$

$

Not available

92

MTD 714-0474

Pin - Cotter .125 O.D. x .75

$4.99

$

In Stock, Qty 14

0

93

MTD 720-0230

Grip - Foam

$7.49

$

In Stock, only 3 left!

0

94

MTD 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

95

MTD 732-0818

Torsn Spring

$

$

Not available

96

MTD 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

97

MTD 736-0369

Wash. - Fl .508 I.D. x 1.0 O.D. x.020

$4.49

$

In Stock, Qty 8

0

98

MTD 738-0529

Nut - Shoulder .625 x .165 Lg.
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

99

MTD 741-0324

Bearing - Flg Hex
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

100

MTD 741-0522

Bearing - Flg. Hex

$

$

Not available

101

MTD 741-0978

Bearing - Sleeve

$4.99

$

In Stock, only 3 left!

0

102

MTD 748-0318

Rachet Wheel
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

103

MTD 750-0807

Spacer - .385 x .625 x .700

$6.49

$

Usually ships in 3-6 days

0

104

MTD 750-1056

Spacer - Shoulder .385 I.D. x .715 Lg.
(Superseded to 950-1056)

$7.49

$

Usually ships in 3-6 days

0

105

MTD 750-1075

Spacer Sleeve .520 I.D. x .950 Lg.

$

$

Not available

106

MTD 782-0566

Pivot Arm
(Superseded to 782-0566B-0637)

$44.99

$

In Stock, only 1 left!

0

107

MTD 782-0568

Spring Bracket
(Superseded to 782-0568B-0637)

Variations

MTD 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

108

MTD 731-0904

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

109

MTD 731-0924

6 Speed Shift Lever

$

$

Not available

110

MTD 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

111

MTD 710-0841

C-Sunk Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

112

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

113

MTD 16864

6 Sp. Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

114

MTD 712-0414

Weld Top L. 1/4-20

$4.49

$

In Stock, only 4 left!

0

115

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

116

MTD 748-0381

Pawl R.H.

$11.99

$

In Stock, only 1 left!

0

MTD 748-0188B

Pawl L.H.
(Superseded to 948-0188B)

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

117

MTD 738-0137A

Shldr Scr. .340 x .285

$10.99

$

In Stock, Qty 10

0

118

MTD 10622B

Spring, Rachet

$5.49

$

In Stock, Qty 20+

0

119

Hub Cap

$

$

Not available

MTD 720-0249

Gray (3-1/2" Dia.)
(Superseded to 920-0249)

$

$

Not available

MTD 731-0354

Black (4-1/4" Dia.)

$

$

Not available

MTD 731-0355A

Gray (4-1/4" Dia.)

$

$

Not available

MTD 731-0981A

Gray (5-1/2" Dia.)
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

MTD 731-1426

Yellow (5-1/2" Dia.)
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

120

MTD 731-1685

Mulch Plug
(Superseded to 931-1685)

$

$

Not available

121

MTD 731-1461

Chute Deflector
(Superseded to 931-1461)

$

$

Not available

122

MTD 747-0958

Chute Mounting Rod

$

$

Not available

123

MTD 712-0324

Hex-L-Nut 1/4-20 thd.

$3.99

$

In Stock, Qty 17

0

124

MTD 710-0924

Mach. Scr. 1/4-20

$4.49

$

In Stock, Qty 20+

0

125

MTD 720-0294

Foam Grip
(Superseded to 720-0294A)

Note: (Optional)

$7.49

$

In Stock, Qty 5

0

126

MTD 731-0905

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

127

MTD 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

128

MTD 746-0711A

S.P. Cable
(Superseded to 946-0711B)

$32.99

$

Usually ships in 3-6 days

0

129

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

130

MTD 746-0939

6 Speed Cable - 53" Lg.
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

131

MTD 754-0271

Belt
(Superseded to 954-0271)

$28.99

$

Usually ships in 3-6 days

0

132

MTD 782-7018

Pulley Cover
(Superseded to 782-7018-0637)

Variations

MTD 782-7018-0637

WINDOW/INSPECTION - POWDER BLACK (0637)

$

$

Not available

$

$

133

MTD 712-0138

Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

134

MTD 738-0924

Sh. Scr. 1/4-28: .375 Lg.
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

135

MTD 631-0060

Flo Indicator Ass'y
(Superseded to 931-0060)

$

$

Not available

136

MTD 731-1644

Flo Indicator Ball

$

$

Not available

137

MTD 731-1738

Flo Indicator Housing
(Superseded to 931-0060)

$

$

Not available
