12A-378Q795 - MTD Pro Walk-Behind Mower (2004) Handle, Grass Catcher, Cutting Deck Parts Diagram

Pro Walk-Behind Mower

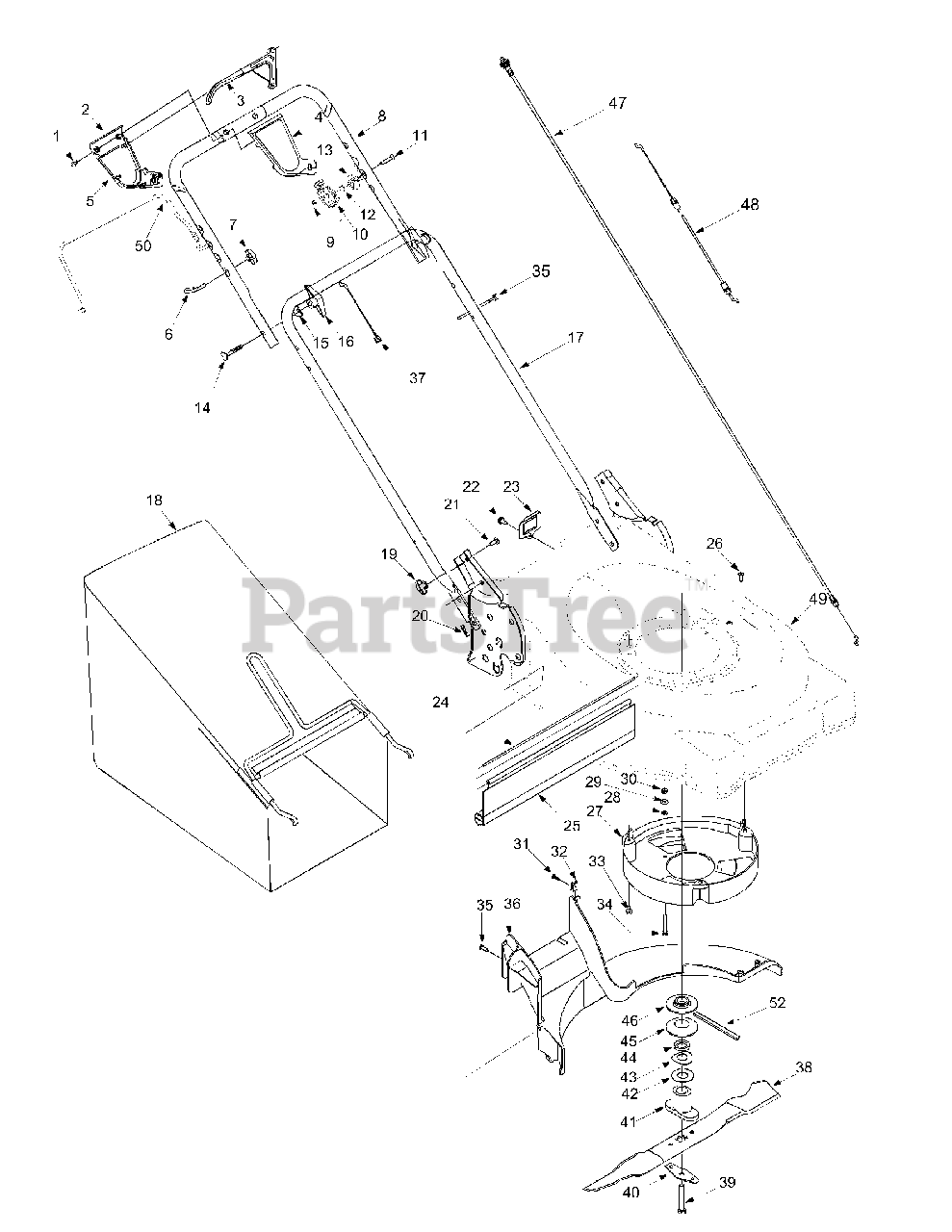

Handle, Grass Catcher, Cutting Deck Parts Diagram

  • Title

1

MTD 710-1667A

Hi-Lo Screw

$4.49

$

In Stock, Qty 13

0

2

MTD 753-0833

Control Housing: Lower

$50.99

$

In Stock, only 2 left!

0

3

MTD 731-0620A

Drive Control Lever

$15.99

$

In Stock, only 1 left!

0

4

MTD 753-0833

Control Housing: Upper

$50.99

$

In Stock, only 2 left!

0

5

MTD 753-0833

Mounting Cap: SP Cable

$50.99

$

In Stock, only 2 left!

0

6

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

7

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

8

MTD 749-0439E-0637

Upper Handle

$47.99

$

In Stock, only 1 left!

0

9

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

10

MTD 946-0875

Throttle Housing

$9.49

$

In Stock, only 3 left!

0

11

MTD 710-0605

Machine Screw 1/4-20 x 1.825"

$4.49

$

In Stock, only 2 left!

0

12

MTD 936-0501

Spring Washer

$6.99

$

Usually ships in 3-6 days

0

13

MTD 946-0876

Throttle Lever

$8.49

$

In Stock, only 3 left!

0

14

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0"

$7.49

$

In Stock, Qty 20+

0

15

MTD 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

16

MTD 920-0284

Knob Assembly
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

17

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

18

MTD 964-0080

Grasscatcher Assembly

$

$

Not available

19

MTD 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

20

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-0703

Hex Bolt

$4.49

$

In Stock, Qty 15

0

22

MTD 710-1652

TT Screw 1/4-20 x 0.625"

$4.49

$

In Stock, Qty 20+

0

23

MTD 782-7018-0637

Pulley Cover

$

$

Not available

24

MTD 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

25

MTD 731-04998

Trailshield

$31.99

$

In Stock, Qty 7

0

26

MTD 710-1220

Hi-Lo Screw #12-14 x 0.750"

$4.99

$

In Stock, only 4 left!

0

27

MTD 731-1714A

Belt Cover

$

$

Not available

28

MTD 936-3020

Flat Washer
(Superseded to 736-3020)

$

$

Not available

29

MTD 936-0329

Lock Washer

$4.49

$

In Stock, Qty 11

0

30

MTD 912-0287

Hex Nut 1/4-20

$4.99

$

In Stock, only 1 left!

0

31

MTD 710-0351

B Screw #10-16 x 0.5"

$4.49

$

Usually ships in 3-6 days

0

32

MTD 912-0400

U Nut

$5.99

$

Usually ships in 3-6 days

0

33

MTD 710-0653

TT Screw 1/4-20 x 0.375"

$4.49

$

In Stock, Qty 8

0

34

MTD 710-1026

TT Screw 1/4-20 x 1.75"

$6.99

$

In Stock, Qty 13

0

35

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

36

MTD 731-1639

Rear Baffle

$

$

Not available

37

MTD 946-0713A

S.P. Cable

$29.99

$

In Stock, only 1 left!

0

38

MTD 942-0741

Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

MTD 710-1257

Hex Bolt 3/8-24 x 2.5"

$7.99

$

In Stock, only 1 left!

0

40

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 3 left!

0

41

MTD 748-0377E

Blade Adapter

$19.99

$

In Stock, only 3 left!

0

42

MTD 936-0514

Flat Washer
(Superseded to 736-0514)

$

$

Not available

43

MTD 936-0513

Spring Washer

$

$

Not available

44

MTD 748-0358

Engine Spacer

$

$

Not available

45

MTD 956-0979

Pulley Half

$

$

Not available

46

MTD 756-0962

Pulley Half: Upper

$

$

Not available

47

MTD 746-04131

Choke Cable

$15.99

$

Usually ships in 3-6 days

0

48

MTD 946-0557

Control Cable

$26.99

$

In Stock, only 1 left!

0

49

MTD 782-0075A

Cutting Deck Assembly

$

$

Currently unavailable

50

MTD 747-0824B-0637

Blade Control Bail

$65.99

$

In Stock, only 1 left!

0

51

MTD 782-5014

Front Baffle

$

$

Currently unavailable

52

MTD 954-0271

Belt 3/8 x 39"

$28.99

$

Usually ships in 3-6 days

0
