12A-375G143 - Yard Machines Walk-Behind Mower (1999) (Eagle Hardware) General Assembly Parts Diagram

Walk-Behind Mower

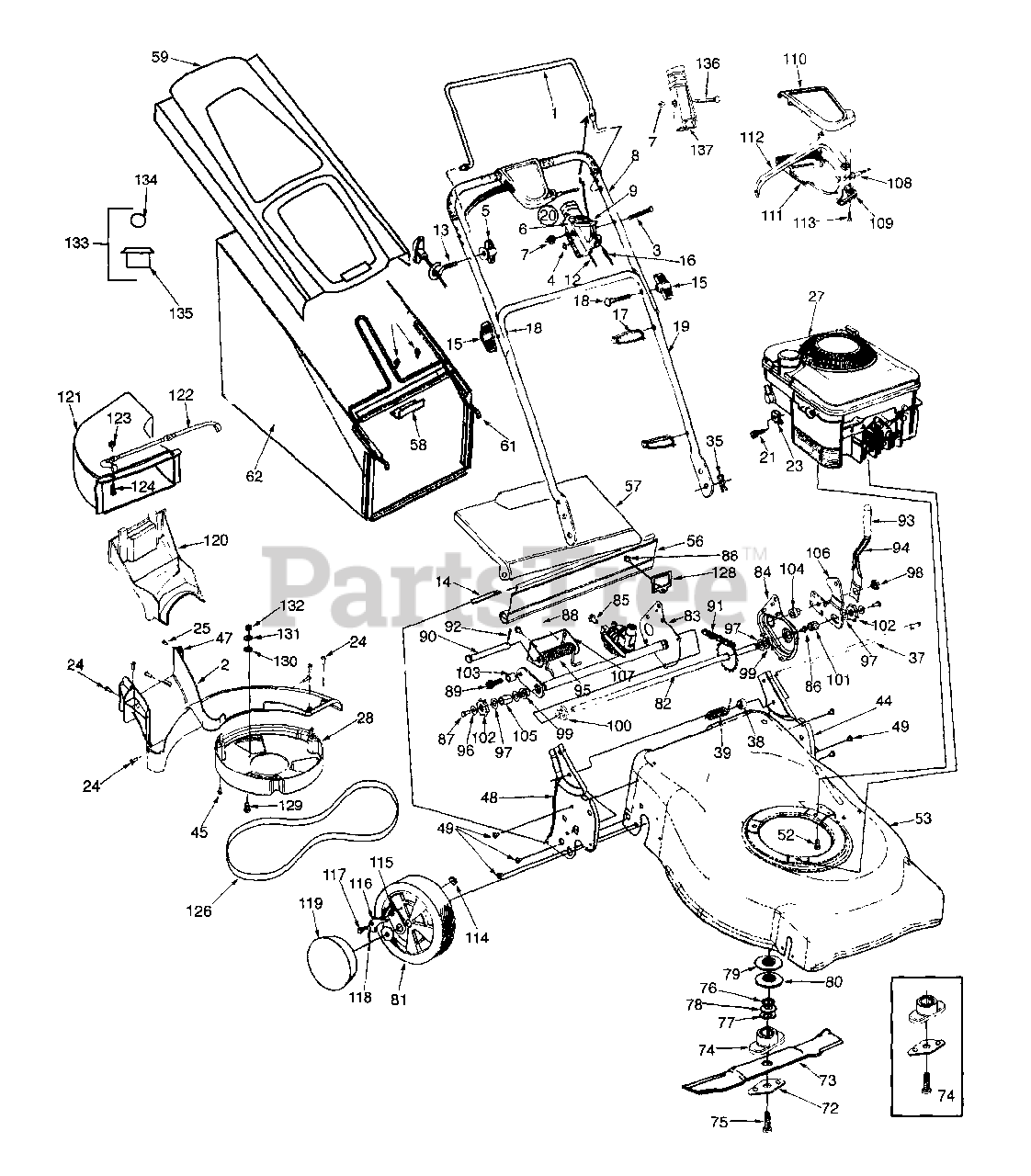

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

2

MTD 731-1639

Baffle

$

$

Not available

3

MTD 710-0605

Oval C-Sunk Mach - Screw

Note: (Optional)

$4.49

$

In Stock, only 3 left!

0

4

MTD 736-0501

Spring Washer .66" ID
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

5

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

6

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

Note: (Optional)

$9.49

$

In Stock, only 4 left!

0

7

MTD 712-0324

Hex L-Nut 1/4-20

$3.99

$

In Stock, Qty 17

0

8

MTD 749-0439B

Upper Handle
(Superseded to 749-0439E-0637)

Variations

MTD 749-0439B-0637

Short Upper Handle, Black - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

9

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

12

MTD 746-0843

Throttle Control Wire - 55"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0848

Throttle Control Wire - 47"
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

MTD 746-0841

Throttle Control Wire - 60"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

13

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 3 left!

0

14

MTD 732-0700

Wire-47" Lg.
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

15

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

16

MTD 746-0555

Control Cable-55"
(Superseded to 946-0555)

$26.99

$

In Stock, only 4 left!

0

MTD 746-0551

Control Cable-43"
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

17

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

18

MTD 710-1174

Cr.Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

19

MTD 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

20

MTD 811-00185

Throttle Ass'y Comp
(Superseded to 811-0185)

Note: (Incl. 3,4,6,7,9). (Optional)

$36.99

$

In Stock, only 1 left!

0

21

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62"

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Sems Scr. #10-32 x .3" Lg.

Note: (Optional)

$

$

Not available

?22

MTD 735-0639

Spark Plug Boot

$

$

Not available

23

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

Note: (B&S). (Optional)

$5.49

$

In Stock, only 1 left!

0

MTD 7510007775

Cable Clamp
(Superseded to TC-27793)

Note: (TEC). (Optional)

$1.99

$

In Stock, only 2 left!

0

24

MTD 710-1220

Screw H.L. 12-24

$4.99

$

In Stock, only 4 left!

0

25

MTD 710-0351

Screw Mach. B Tapp.

$4.49

$

In Stock, only 2 left!

0

27

Engine

$

$

Not available

28

MTD 731-1714A

Belt Cover

$

$

Not available

35

MTD 714-0104

Int. Cotter Pin 5/15" Dia.

$4.49

$

In Stock, Qty 20+

0

37

MTD 747-0922

Pivot Rod

$

$

Not available

38

MTD 750-1068

Spacer .385 I.D.
(Superseded to 950-1068)

$

$

Not available

39

MTD 732-0809

Torsion Spring L.H.
(Superseded to 932-0809)

$18.99

$

Usually ships in 3-6 days

0

44

MTD 782-3029

Handle Brkt. Ass'y - L.H.

Variations

MTD 782-3029-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 782-3029-0638

No Longer Available BRACKET HA - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-3029-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

45

MTD 710-0653

Screw, Tap 1/4-20

$4.49

$

In Stock, Qty 13

0

47

MTD 712-0400

U-Nut
(Superseded to 912-0400)

$5.99

$

Usually ships in 3-6 days

0

48

MTD 782-3030

Handle Brkt. Ass'y - R.H.

Variations

MTD 782-3030-0637

No Longer Available BRACKET HA - POWDER BLACK (0637)

$

$

Not available

MTD 782-3030-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-3030-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

49

MTD 710-1348

Screw AB 1/4-20

$6.99

$

In Stock, only 3 left!

0

52

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1"

$4.49

$

In Stock, only 3 left!

0

53

MTD 682-0037

21" Deck Ass'y w/o MTD Icon

Variations

MTD 682-0037-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0037-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0037-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0037-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0037-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

MTD 682-0075

21" Deck Ass'y W/MTD Icon

Variations

MTD 682-0075-0483

No Longer Available DECK ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0075-0629

No Longer Available DECK ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0075-0638

No Longer Available DECK ASM- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0075-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 682-0075-0662

No Longer Available DECK ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0075-0665

No Longer Available DECK ASM- - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0075-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-0075-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 682-0075-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 682-0075-0691

DECK ASSY-21" - BLACK JACK (0691)

$

$

Not available

MTD 682-0075-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 682-0075-0716

DECK ASSY-21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

56

MTD 731-1236

Rear Flap 17.77 Lg.
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 6

0

57

MTD 782-7599A

Rear Chute Door
(Superseded to 782-7599B-0637)

Variations

MTD 782-7599A-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

58

MTD 782-9050

Brkt. Mtg. Grassbag - Black
(Superseded to 782-9050-0637)

Variations

MTD 782-9050-0637

BRACKET-MTG - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 731-0068

Hdtop Bag Cover

$

$

Not available

MTD 731-0066

Hdtop Bag Cover w/Icon

$

$

Not available

MTD 631-0077

Hdtop Bag Cover w/Flo Ind.

$

$

Not available

MTD 631-0078

Hdtop Bag Cover w/Flo Ind. / Icon
(Superseded to 731-0066)

$

$

Not available

61

MTD 747-0919

Catcher Frame
(Superseded to 747-0919-0637)

Variations

MTD 747-0919-0637

FRAME GRASSCTCHR - POWDER BLACK (0637)

$111.99

$

Usually ships in 3-6 days

0

$111.99

$

Usually ships in 3-6 days

0

62

MTD 664-0080

Grass Bag - Black

$

$

Not available

MTD 664-0079

Grassbag - Soft top w/MTD Logo

$

$

Not available

72

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

73

MTD 742-0741

21" Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

MTD 742-0641

21" Std. Blade W/Star
(Superseded to 942-0641)

$29.99

$

Usually ships in 3-6 days

0

74

MTD 753-0609

Blade Adaptor Kit w/Star

$40.99

$

In Stock, Qty 12

0

75

MTD 710-1257

Hex Bolt 3/8-24 x 2.5 Lg.

$7.99

$

In Stock, only 2 left!

0

76

MTD 748-0358

Spacer

$

$

Not available

77

MTD 736-0514

Fl. Wash. .885 x 1.85 x .06

$

$

Not available

78

MTD 736-0513

Spr. Wash. .890 x .7 x .04
(Superseded to 936-0513)

$

$

Not available

79

MTD 756-0962

Pulley Half - Upper

$

$

Not available

80

MTD 756-0979

Pulley Half - Lower
(Superseded to 956-0979)

$

$

Not available

81

MTD 634-0020

Front Wheels 8" x 1.75"

Note: Bar Tread. Wheel Assembly

$39.99

$

In Stock, Qty 6

0

MTD 634-0020

Rear Wheels 8" x 1.75"

Note: Bar Tread. Wheel Assembly

$39.99

$

In Stock, Qty 6

0

MTD 734-1268

Front Wheels 8" x 1.75"

Note: "T" Tread. Wheel Assembly

$71.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Bearings 8" x 1.75"
(Superseded to 941-0484)

Note: "T" Tread

$7.49

$

In Stock, only 1 left!

0

MTD 734-1412

Rear Wheels 8" x 1.75"

Note: "T" Tread. Wheel Assembly

$

$

Not available

MTD 734-1790

Front Wheels 8" x 2"

Note: "S" Wave. Wheel Assembly

$

$

Not available

MTD 741-0484

Bearings 8" x 2"
(Superseded to 941-0484)

Note: "S" Wave

$7.49

$

In Stock, only 1 left!

0

MTD 734-1791

Rear Wheels 8" x 2"

Note: "S" Wave. Wheel Assembly

$

$

Not available

MTD 734-1821

Front Wheels 8" x 2" (Yellow Rim)
(Superseded to 753-08093)

Note: "S" Wave. Wheel Assembly

$45.99

$

In Stock, Qty 5

0

MTD 741-0484

Bearings 8" x 2" (Yellow Rim)
(Superseded to 941-0484)

Note: "S" Wave

$7.49

$

In Stock, only 1 left!

0

MTD 734-1826

Rear Wheels 8" x 2" (Yellow Rim)

Note: "S" Wave. Wheel Assembly

$33.99

$

In Stock, only 2 left!

0

MTD 734-1826

Front Wheels 8" x 2" (Yellow Rim)

Note: "S" Wave

$33.99

$

In Stock, only 2 left!

0

MTD 734-1826

Rear Wheels 8" x 2" (Yellow Rim)

Note: "S" Wave. Wheel Assembly

$33.99

$

In Stock, only 2 left!

0

MTD 734-1819

Front Wheels 8" x 2" (Yellow Rim)
(Superseded to 734-1978)

Note: Link Tread

$48.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Bearings 8" x 2" (Yellow Rim)
(Superseded to 941-0484)

Note: Link Tread

$7.49

$

In Stock, only 1 left!

0

MTD 734-1824

Rear Wheels 8" x 2" (Yellow Rim)
(Superseded to 734-1979)

Note: Link Tread

$31.99

$

Usually ships in 3-6 days

0

82

MTD 638-0005

Axle Assy: RR

$

$

Not available

83

MTD 682-7518

Axle Assy: Trans.
(Superseded to 682-7518-0637)

Variations

MTD 682-7518-0637

AXLE: ASM. CHAIN - POWDER BLACK (0637)

$

$

Not available

$

$

84

MTD 682-7524

Cover Ass'y - Chain

Variations

MTD 682-7524-0483

COVER ASS'Y-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-7524-0638

No Longer Available COVER ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-7524-0650

No Longer Available COVER ASM - RED METALLIC (0650)

$

$

Not available

MTD 682-7524-0662

No Longer Available COVER ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 682-7524-0665

COVER ASS'Y-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-7524-0691

COVER ASS'Y-CHAIN - BLACK JACK (0691)

$

$

Not available

MTD 682-7524-0716

No Longer Available COVER ASM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

85

MTD 710-0604

Scr. TT 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

86

MTD 710-0653

Scr. TT 1/4-20

$4.49

$

In Stock, Qty 13

0

87

MTD 710-0751

Hx Cap Screw 1/4-20

$3.99

$

In Stock, Qty 20+

0

88

MTD 710-1652

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

89

MTD 710-1315

Scr 3/8 - 16 x 1.25

$4.49

$

In Stock, only 3 left!

0

90

MTD 711-0835

Pin - Clv. .500 Dia. x .4.62 Lg.
(Superseded to 911-0835)

$12.99

$

Usually ships in 3-6 days

0

91

MTD 713-0421

Chain: Endless 48:.500P x 22 Lg.
(Superseded to 913-0421)

$

$

Not available

92

MTD 714-0474

Pin-Cotter .125 O.D. x .75

$4.99

$

In Stock, Qty 14

0

93

MTD 720-0230

Grip-Foam

$7.49

$

In Stock, only 3 left!

0

94

MTD 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

95

MTD 732-0818

Torsion Spring

$

$

Not available

96

MTD 736-0270

Bell Washer .265 x 75 x .062

$3.99

$

In Stock, Qty 20+

0

97

MTD 736-0369

Wash.Flat .508 I.D. x 1.0 O.D.:.020

$4.49

$

In Stock, Qty 8

0

98

MTD 738-0529

Nut - Shoulder .625 x .165 Lg.
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

99

MTD 741-0324

Bearing-Flg Hex
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

100

MTD 741-0522

Bearing-Flg. Hex

$

$

Not available

101

MTD 741-0978

Bearing-Sleeve

$4.99

$

In Stock, only 3 left!

0

102

MTD 748-0318

Ratchet Wheel
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

103

MTD 750-0807

Spacer - .385 x .625 x .700

$6.49

$

Usually ships in 3-6 days

0

104

MTD 750-1056

Spacer-Shld. .385 I.D. x .715 Lg.
(Superseded to 950-1056)

$7.49

$

Usually ships in 3-6 days

0

105

MTD 750-1075

Spacer Slv. .520 I.D. x .950 Lg.

$

$

Not available

106

MTD 782-0566A

Pivot Arm
(Superseded to 782-0566B-0637)

Variations

MTD 782-0566A-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$44.99

$

In Stock, only 1 left!

0

$44.99

$

In Stock, only 1 left!

0

107

MTD 782-0568

Spring Bracket
(Superseded to 782-0568B-0637)

Variations

MTD 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

108

MTD 746-0713

S.P. Cable 52.5"
(Superseded to 946-0713A)

$29.99

$

In Stock, only 1 left!

0

109

MTD 731-1059

Mounting Cap
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

110

MTD 731-1057

Control Cover - Upper
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

111

MTD 731-1058

Control Cover - Lower
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

112

MTD 731-0620

Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

113

MTD 710-1667

Screw #10-16 x .625
(Superseded to 710-1667A)

$4.49

$

In Stock, Qty 13

0

114

MTD 712-0414

Weld Top L. 1/4-20

$4.49

$

In Stock, only 4 left!

0

115

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

116

MTD 748-0188B

Pawl L.H.
(Superseded to 948-0188B)

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

MTD 748-0381

Pawl R.H.

$11.99

$

In Stock, only 1 left!

0

117

MTD 738-0137A

Shldr. Scr. .340 x .285

$10.99

$

In Stock, Qty 10

0

118

MTD 10622B

Spring, Ratchet

$5.49

$

In Stock, Qty 20+

0

119

MTD 720-0249

Hub Cap, Gray (3-1/2" Dia.)
(Superseded to 920-0249)

Note: (Optional)

$

$

Not available

MTD 731-0354

Hub Cap, Black (4-1/4" Dia.)

Note: (Optional)

$

$

Not available

MTD 731-0355A

Hub Cap, Gray (4-1/4" Dia.)

Note: (Optional)

$

$

Not available

MTD 731-0981A

Hub Cap, Gray (5-1/2" Dia.)
(Superseded to 731-0981C)

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0

MTD 731-1426

Hub Cap, Yellow (5-1/2" Dia.)
(Superseded to 731-1426B)

Note: (Optional)

$8.99

$

Usually ships in 3-6 days

0

120

MTD 731-1685

Mulch Plug
(Superseded to 931-1685)

$

$

Not available

121

MTD 731-1461

Chute Deflector
(Superseded to 931-1461)

$

$

Not available

122

MTD 747-0958

Chute Mounting Rod

$

$

Not available

123

MTD 712-0324

Hex-L-Nut 1/4-20 thd.

$3.99

$

In Stock, Qty 17

0

124

MTD 710-0924

Mach. Scr. 1/4-20

$4.49

$

In Stock, Qty 20+

0

?125

MTD 720-0294

Foam Grip
(Superseded to 720-0294A)

Note: (Optional)

$7.49

$

In Stock, Qty 5

0

126

MTD 754-0271

Belt
(Superseded to 954-0271)

$28.99

$

Usually ships in 3-6 days

0

128

MTD 782-7018

Pulley Cover
(Superseded to 782-7018-0637)

Variations

MTD 782-7018-0637

WINDOW/INSPECTION - POWDER BLACK (0637)

$

$

Not available

$

$

129

MTD 710-1026

Scr. TT-1/4-20:1.750 Hx IndWash

$6.99

$

In Stock, Qty 13

0

130

MTD 736-0329

Lockwasher 1/4" Reg.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

131

MTD 736-3020

Fl. Wash. .271 x ..630 x .065

$6.99

$

In Stock, Qty 9

0

132

MTD 712-0287

Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

133

MTD 631-0060

Flo Indicator Ass'y
(Superseded to 931-0060)

$

$

Not available

134

MTD 731-1644

Flo Indicator Ball

$

$

Not available

135

MTD 731-1738

Flo Indicator Housing
(Superseded to 931-0060)

$

$

Not available

136

MTD 710-1270

Scr. 1/4-20:1.31 Lg.

$4.49

$

Usually ships in 3-6 days

0

137

MTD 746-0883

Housing (w/o Throttle)

$16.99

$

In Stock, only 4 left!

0

?138

MTD 710-1652

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0
