12A-289W722 - MTD Gold Walk-Behind Mower (2004) General Assembly Parts Diagram

Gold Walk-Behind Mower

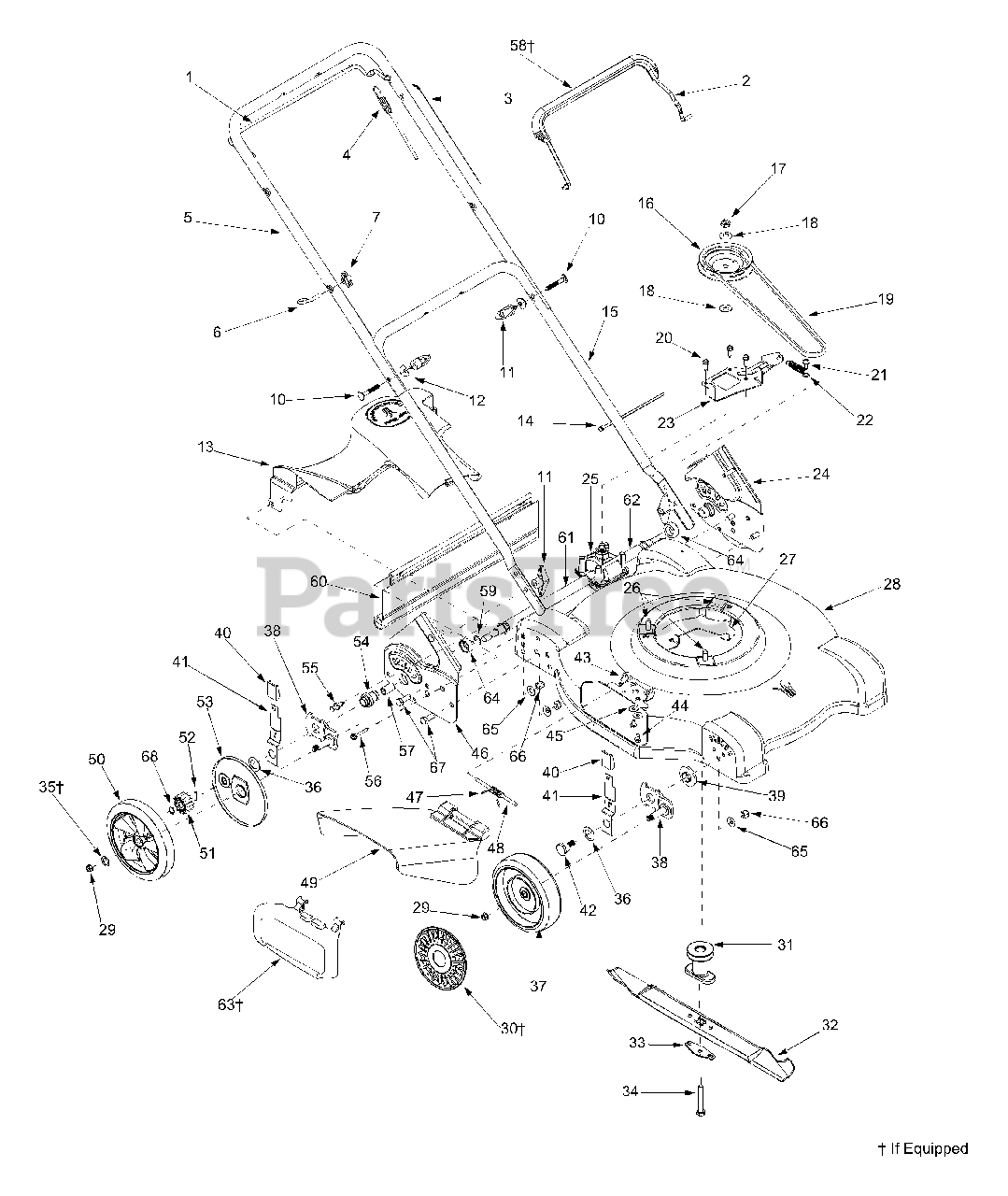

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control Handle

$22.99

$

In Stock, Qty 5

0

2

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 3 left!

0

$13.99

$

In Stock, only 3 left!

0

3

MTD 746-1113

Blade Control Cable - 37.75"
(Superseded to 946-1113A)

$19.99

$

In Stock, Qty 20+

0

MTD 746-1132

Blade Control Cable - 40.75"
(Superseded to 946-1132)

$22.99

$

In Stock, Qty 5

0

MTD 746-1114

Blade Control Cable - 50.56"
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

4

MTD 746-1093A

Drive Control Cable
(Superseded to 946-1093A)

$

$

Not available

5

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

6

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

7

MTD 720-0279

Wing Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

11

MTD 720-0284

Wing Nut 5/16-18

$6.99

$

In Stock, Qty 20+

0

12

MTD 736-0451

Shoulder Washer.320 ID x.93 OD

$4.49

$

In Stock, Qty 11

0

13

MTD 731-0074

Transmission Cover

$

$

Not available

14

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

15

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 6

0

$53.99

$

In Stock, Qty 6

0

16

MTD 756-1169

Transmission Pulley

$

$

Not available

17

MTD 712-0240

Jam Nut 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0407

Bell Washer.45 ID x 1.00 OD

$3.99

$

In Stock, Qty 12

0

19

MTD 754-0484

V-Belt
(Superseded to 954-0484)

$

$

Not available

20

MTD 710-0642

Hex Washer Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

21

MTD 738-1002

Shoulder Screw.375 x.25

$4.49

$

In Stock, only 1 left!

0

22

MTD 732-0993

Extension Spring

$

$

Not available

23

MTD 782-9061

Transmission Belt Bracket

$

$

Not available

24

MTD 682-3073

Handle Bracket Assembly - LH

Variations

MTD 682-3073-0638

BRACKET ASM-HANDLE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-3073-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3073-0709

BRACKET ASM-HANDLE LH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

25

MTD 618-0607A

Transmission Assembly
(Superseded to 918-0607A)

$

$

Not available

26

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

27

MTD 782-9063

Engine Belt Keeper Bracket
(Superseded to 782-9063B-0637)

$26.99

$

Usually ships in 3-6 days

0

28

MTD 687-02049

22" Deck Assembly

Variations

MTD 687-02049-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-02049-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$

$

Not available

MTD 687-02049-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

MTD 687-02049-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

29

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

30

MTD 731-0981A

Hub Cap If equipped
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

31

MTD 748-04016A

One Piece Blade Adapter

$58.99

$

In Stock, Qty 5

0

32

MTD 742-0742A

22" Mulching Blade
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

33

MTD 736-0524A

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 7

0

34

MTD 710-1044

Hex Cap Screw 3/8-24 x 2.5

$3.99

$

Usually ships in 3-6 days

0

35

MTD 736-3013

Flat Washer 1/2 x 1.00 x.030 If equipped

$4.49

$

In Stock, only 3 left!

0

36

MTD 736-0741

Bell Washer.401 ID x.870 OD

$4.99

$

Usually ships in 3-6 days

0

37

MTD 734-1980

Front Wheel 7 x 2 Link Black BB

$46.99

$

Usually ships in 3-6 days

0

MTD 734-1988

Front Wheel 7 x 1.8 Spoke Bar Gray

$20.99

$

In Stock, only 4 left!

0

38

MTD 687-02094

Pivot Arm Assembly
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

39

MTD 741-0751

Height Adjuster Bearing

$8.99

$

Usually ships in 3-6 days

0

40

MTD 720-0426

Height Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

41

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

42

MTD 738-1172

Shoulder Screw 3/8-16

$5.99

$

Usually ships in 3-6 days

0

43

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

44

MTD 710-0599

Hex Washer Screw 1/4-20 x.50

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

46

MTD 682-3072

Handle Bracket Assembly - RH

Variations

MTD 682-3072-0638

BRACKET ASM-HANDLE RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-3072-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3072-0709

No Longer Available BRACKET AS - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

47

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

48

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

49

MTD 731-1034B

Side Discharge Chute Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

50

MTD 734-1983A

Rear Wheel 8 x 2 Link Black
(Superseded to 734-04223A)

$55.99

$

In Stock, Qty 20+

0

MTD 634-0190

Rear Wheel 8 x 1.8 Spoke Bar Gray
(Superseded to 634-0190A)

$40.99

$

In Stock, Qty 17

0

51

MTD 717-1762

Spur Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

MTD 717-1761

Spur Gear 14T LH

$13.99

$

In Stock, only 4 left!

0

52

MTD 715-0221

Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

53

MTD 731-04643

Wheel Cover

$8.49

$

In Stock, only 1 left!

0

54

MTD 748-0455

Bearing Support

$18.99

$

Usually ships in 3-6 days

0

55

MTD 728-0199

Plastic Rivet

$4.49

$

In Stock, Qty 14

0

56

MTD 710-1802

Screw 1/4-20

$

$

Not available

57

MTD 741-0710

Sleeve Bearing

$6.49

$

Usually ships in 3-6 days

0

58

MTD 731-2626

Deluxe Bail Cover If equipped

$11.99

$

In Stock, only 2 left!

0

59

MTD 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

60

MTD 731-04019

Trail Shield

$21.99

$

In Stock, Qty 12

0

61

MTD 750-1210

Sleeve Spacer.550 ID x 9.0 OD

$

$

Not available

62

MTD 750-1209

Sleeve Spacer.550 ID x 2.44 OD

$

$

Not available

63

MTD 631-04045

Snap Mulching Plug If equipped

$19.99

$

In Stock, only 4 left!

0

64

MTD 748-0390

Bearing Spacer

$5.99

$

In Stock, Qty 10

0

65

MTD 736-0105

Bell Washer.401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

66

MTD 712-0130

Hex Lock Nut 3/8-16

$3.99

$

In Stock, Qty 11

0

67

MTD 710-0514

Hex Cap Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

68

MTD 716-0865

Snap Ring.500

$4.49

$

In Stock, only 1 left!

0
