12A-289B205 - Ranch King Walk-Behind Mower (2000) General Assembly Parts Diagram

Walk-Behind Mower

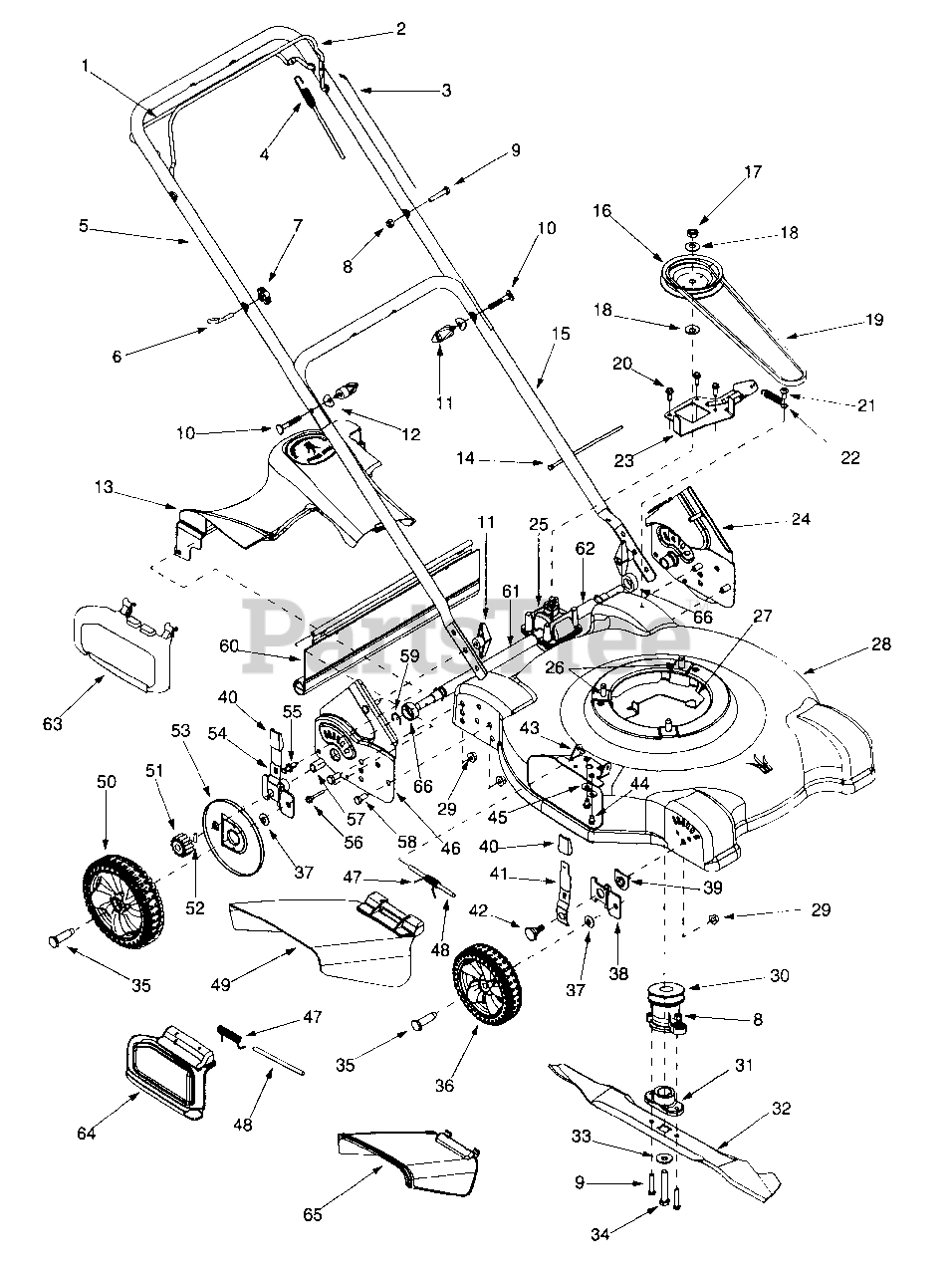

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control Handle

$22.99

$

In Stock, Qty 5

0

2

MTD 747-1161

Blade Control Handle
(Superseded to 747-1161A-0637)

$13.99

$

In Stock, only 3 left!

0

3

MTD 746-1113

Blade Control Cable - B&S
(Superseded to 946-1113A)

$19.99

$

In Stock, Qty 20+

0

MTD 746-1114

Blade Control Cable - Tec
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

4

MTD 746-1093

Drive Control Cable
(Superseded to 946-1093A)

$

$

Not available

5

MTD 749-1092

Upper Handle
(Superseded to 749-1092A)

Variations

MTD 749-1092-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

6

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

7

MTD 720-0279

Wing Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

9

MTD 710-0606

Hex Cap Screw 1/4-20 x 1.5

$5.49

$

In Stock, Qty 10

0

10

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

11

MTD 720-0241

Wing Nut 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

12

MTD 736-0451

Shoulder Washer .320 ID x .93 OD

$4.49

$

In Stock, Qty 11

0

13

MTD 731-0074

Transmission Cover

$

$

Not available

14

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

15

MTD 749-1093

Lower Handle
(Superseded to 749-04037)

Variations

MTD 749-1093-0637

Long Lower Handle - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 6

0

$53.99

$

In Stock, Qty 6

0

16

MTD 756-1169

Transmission Pulley

$

$

Not available

17

MTD 712-0240

Jam Nut 7/16-20
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0407

Bell Washer .45 ID x 1.00 OD

$3.99

$

In Stock, Qty 12

0

19

MTD 754-0484

V-Belt
(Superseded to 954-0484)

$

$

Not available

20

MTD 710-1276

Hex Washer Screw 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

21

MTD 738-1002

Shoulder Screw .375 x.25

$4.49

$

In Stock, only 1 left!

0

22

MTD 732-0993

Extension Spring

$

$

Not available

23

MTD 782-9061

Transmission Belt Bracket

$

$

Not available

24

MTD 682-3073

Handle Bracket Asm - LH

Variations

MTD 682-3073-0638

BRACKET ASM-HANDLE LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-3073-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3073-0709

BRACKET ASM-HANDLE LH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

25

MTD 618-0391

Transmission Assembly
(Superseded to 918-0607A)

$

$

Not available

26

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

27

MTD 782-9063

Engine Belt Keeper Bracket
(Superseded to 782-9063B-0637)

$26.99

$

Usually ships in 3-6 days

0

28

MTD 682-0111

Deck Assembly 22"
(Superseded to 687-02049)

Variations

MTD 682-0111-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$

$

Not available

$

$

29

MTD 712-3005

Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

30

MTD 756-1163

Engine Pulley

$48.99

$

Usually ships in 3-6 days

0

31

MTD 748-0426

Blade Adapter

$24.99

$

Usually ships in 3-6 days

0

32

MTD 742-0642

Blade 22"
(Superseded to 942-0642A)

$26.99

$

In Stock, only 1 left!

0

MTD 742-0742

Mulching Blade 22"
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

33

MTD 736-0452

Bell Washer .396 ID x 1.140 OD

$4.99

$

In Stock, Qty 7

0

34

MTD 710-1257

Hex Cap Screw 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

35

MTD 738-0102

Shoulder Screw 3/8-16

$9.99

$

In Stock, Qty 10

0

36

MTD 734-1988

Front Wheel Comp 7 x 1.8

$20.99

$

In Stock, only 4 left!

0

37

MTD 736-0105

Bell Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

38

MTD 682-0143

Pivot Arm Assembly

$

$

Not available

39

MTD 741-1102

Height Adjuster Bearing

$

$

Not available

40

MTD 720-0190

Height Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

41

MTD 732-0969

Spring Lever

$

$

Not available

42

MTD 738-1126

Shoulder Screw 3/8-16

$12.99

$

Usually ships in 3-6 days

0

43

MTD 731-1035A

Chute Hinge
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

44

MTD 710-0599

Hex Washer Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

46

MTD 682-3072

Handle Bracket Assembly - RH

Variations

MTD 682-3072-0638

BRACKET ASM-HANDLE RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-3072-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-3072-0709

No Longer Available BRACKET AS - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

47

MTD 732-0593

Torsion Spring - Side Discharge
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

MTD 732-0981

Torsion Spring - Mulching Baffle

$

$

Currently unavailable

48

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

49

MTD 731-1034A

Side Discharge Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

50

MTD 634-0190

Rear Wheel Comp 8 x 1.8
(Superseded to 634-0190A)

$40.99

$

In Stock, Qty 17

0

51

MTD 717-1534

Spur Gear 147 RH

$

$

Not available

MTD 717-1533

Spur Gear 14T LH

$12.99

$

In Stock, only 3 left!

0

52

MTD 715-0221

Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

53

MTD 731-2249

Wheel Cover

$

$

Not available

54

MTD 682-0586

Spring Lever Assembly - RH

$

$

Not available

MTD 682-0587

Spring Lever Assembly - LH

$

$

Not available

55

MTD 728-0199

Plastic Rivet

$4.49

$

In Stock, Qty 14

0

56

MTD 710-1802

Screw 1/4-20

$

$

Not available

57

MTD 741-0710

Sleeve Bearing

$6.49

$

Usually ships in 3-6 days

0

58

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

59

MTD 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

60

MTD 731-2322

Trail Shield
(Superseded to 731-04019)

$21.99

$

In Stock, Qty 12

0

61

MTD 750-1210

Sleeve Spacer .550 ID x 9.0 OD

$

$

Not available

62

MTD 750-1209

Sleeve Spacer .550 ID x 2.44 OD

$

$

Not available

63

MTD 731-1386A

Snap Mulching Plug
(Superseded to 731-1386D)

Note: (If Equipped)

$

$

Not available

64

MTD 631-0098

Mulching Baffle

Note: (If Equipped)

$

$

Currently unavailable

65

MTD 731-2230

Snap Discharge Chute

Note: (If Equipped)

$

$

Not available

66

MTD 748-0390

Bearing Spacer

$5.99

$

In Stock, Qty 10

0
