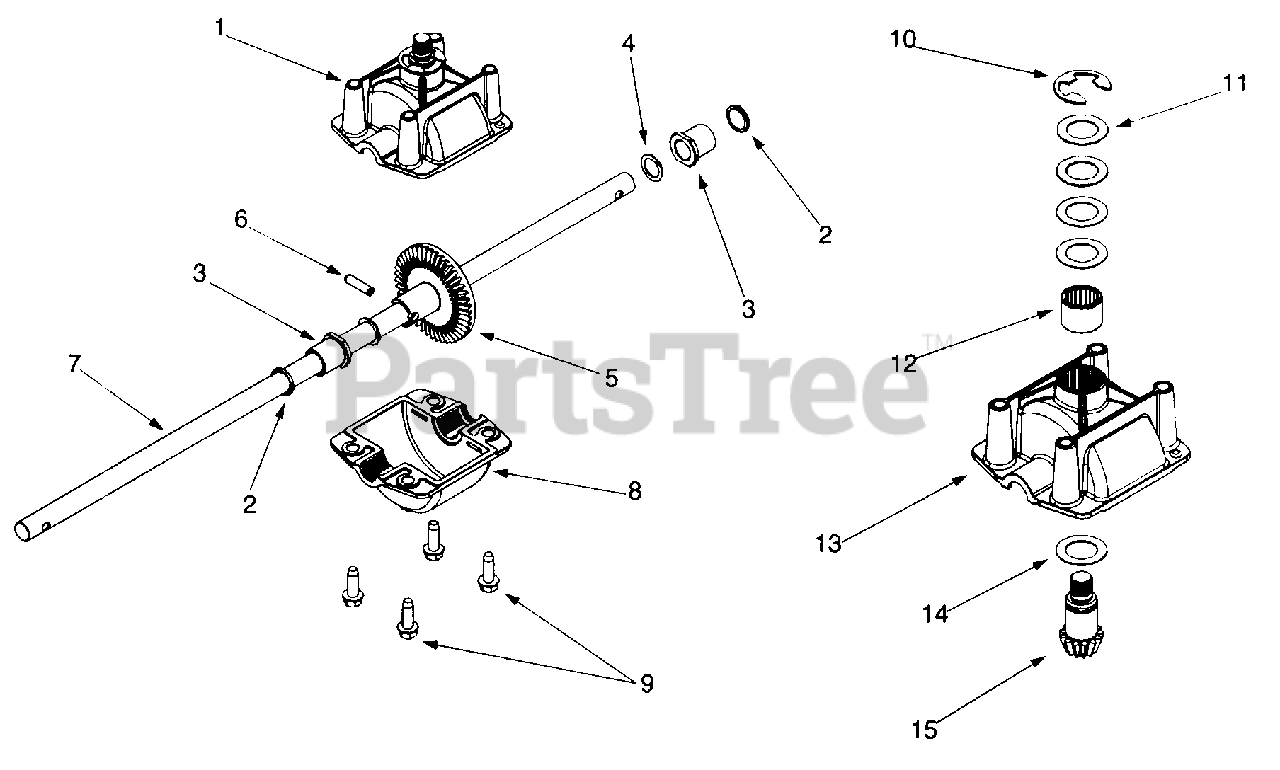

12A-284A205 - Ranch King Walk-Behind Mower (2000) Transmission Assembly Parts Diagram

Walk-Behind Mower

Transmission Assembly Parts Diagram

  • Title

1

MTD 618-0392

Upper Housing Assembly

$

$

Not available

2

MTD 721-0329

Oil Seal .500 ID x .687 OD
(Superseded to 921-0329)

$10.99

$

Usually ships in 3-6 days

0

3

MTD 741-0673

Flange Bearing .503 ID x .689 OD
(Superseded to 941-0673)

$6.49

$

In Stock, only 2 left!

0

4

MTD 736-0520

Flat Washer .504 ID x .700 OD x .030
(Superseded to 936-0520)

$5.99

$

Usually ships in 3-6 days

0

MTD 736-0711

Flat Washer.504 ID x.700 OD x.035

$

$

Not available

MTD 736-0712

Flat Washer .504 ID x .700 OD x .040

$

$

Not available

MTD 736-0713

Flat Washer .504 ID x .700 OD x .045

$

$

Not available

5

MTD 717-1596

Bevel Gear 44T

$

$

Not available

6

MTD 715-0139

Roll Pin
(Superseded to 915-0247)

$

$

Not available

7

MTD 711-1388

Output Shaft

$

$

Not available

8

MTD 719-0538

Lower Housing

$

$

Not available

9

MTD 710-1276

Hex Washer Screw 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

10

MTD 716-0231

E-Ring .750

$3.99

$

In Stock, Qty 20+

0

11

MTD 736-0336

Flat Washer .625 ID x 1.0 OD x.030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

MTD 736-0337

Flat Washer .625 ID x 1.0 OD

$4.49

$

In Stock, Qty 9

0

MTD 736-0349

Flat Washer .63 ID x 1.0 OD x .020

$4.49

$

In Stock, Qty 20+

0

MTD 736-0494

Flat Washer .632 ID x 1.0 OD x .035

$4.99

$

In Stock, only 4 left!

0

MTD 736-0495

Flat Washer.632 ID x 1.0 OD x.035

$4.49

$

In Stock, only 2 left!

0

12

MTD 741-0735

Needle Bearing .625 x .813

$17.99

$

Usually ships in 3-6 days

0

13

MTD 719-0537

Upper Housing

$

$

Not available

14

MTD 736-0336

Flat Washer .625 ID x 1.0 OD x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

MTD 736-0494

Flat Washer .632 ID x 1.0 OD x .035

$4.99

$

In Stock, only 4 left!

0

15

MTD 711-1390

Input Shaft
(Superseded to 711-1390A)

$

$

Not available
