12A-26M7001 - Yard-Man Walk-Behind Mower (2009) General Assembly Parts Diagram

Walk-Behind Mower

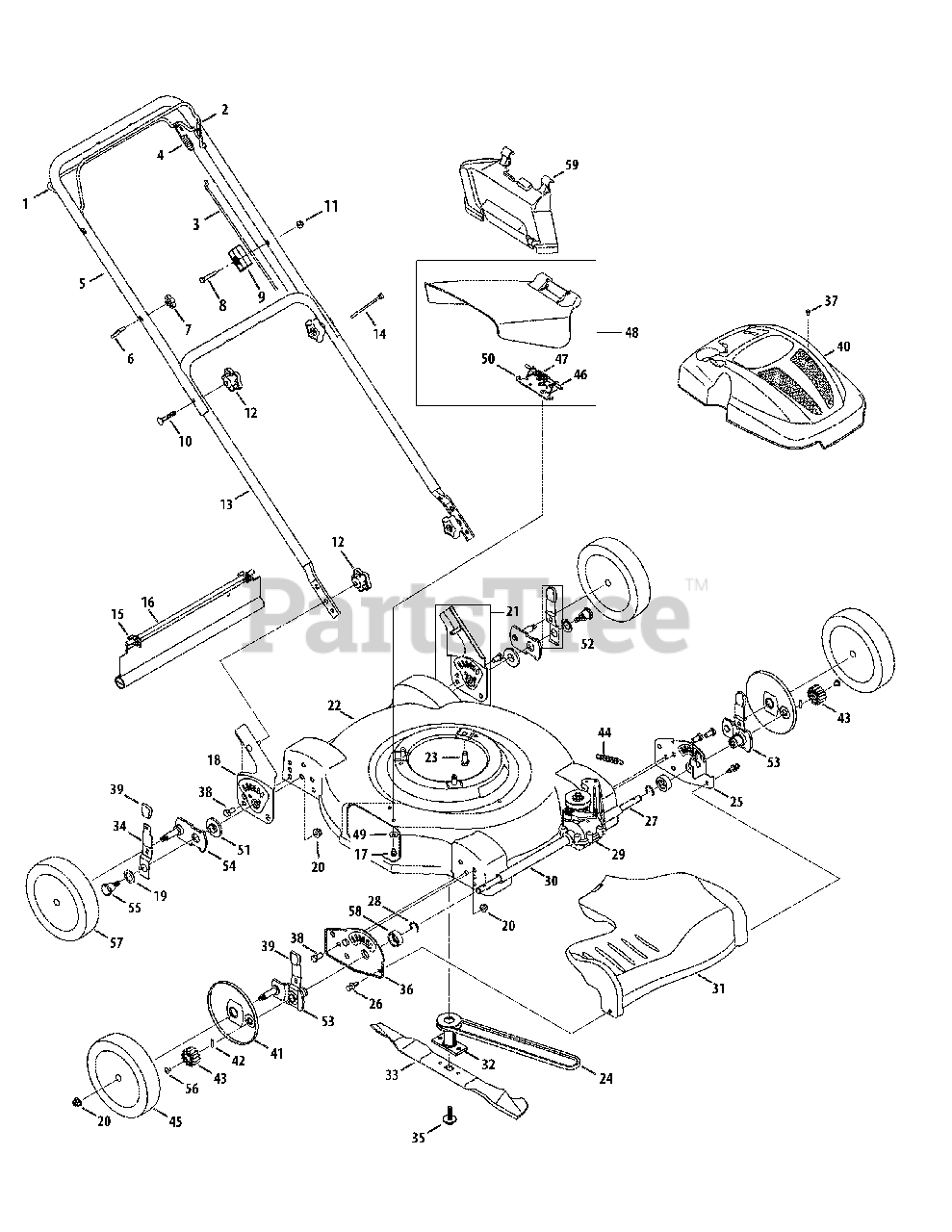

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

2

MTD 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 4 left!

0

3

MTD 746-04300

Blade Control Cable
(Superseded to 946-04300)

$34.99

$

In Stock, only 1 left!

0

4

MTD 746-04304

Drive Control Cable
(Superseded to 946-04304)

$36.99

$

In Stock, only 1 left!

0

5

MTD 749-1092A-0637

Upper Handle

$48.99

$

In Stock, only 1 left!

0

6

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 1 left!

0

7

MTD 720-0279

Wing Nut, 1/4-20

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 9

0

9

MTD 731-06749

Cable Mount

$5.49

$

In Stock, Qty 12

0

10

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

11

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

13

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 6

0

$53.99

$

In Stock, Qty 6

0

14

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

15

MTD 17098P

Hinge Clip

$

$

Not available

16

MTD 731-04019

Trail Shield

$21.99

$

In Stock, Qty 12

0

17

MTD 710-0599

Hex Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

18

MTD 682-3064-0637

Handle Bracket Assy - RH

$

$

Not available

19

MTD 736-0741

Bell Washer, .760 x 1.25 x.041

$4.99

$

Usually ships in 3-6 days

0

20

MTD 712-04065

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

MTD 682-3065-0637

Handle Bracket Assembly - LH

$39.99

$

Usually ships in 3-6 days

0

22

MTD 687-02046-0665

22" Deck Assembly

$209.99

$

Usually ships in 3-6 days

0

23

MTD 710-0654A

Hex Washer Scr., 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

24

MTD 954-04100

V-Belt, 3L x 32.90

$20.99

$

In Stock, only 1 left!

0

25

MTD 782-0585A-0637

Forward Height Adj. Plate - LH

$20.99

$

Usually ships in 3-6 days

0

26

MTD 728-0199

Rivet

$4.49

$

In Stock, Qty 15

0

27

MTD 750-04407

Sleeve Spacer, .550 ID x 2.22

$

$

Not available

28

MTD 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

29

MTD 918-04375A

Transmission Assy. Comp.
(Superseded to 918-04375B)

$

$

Not available

30

MTD 750-04406A

Sleeve Spacer, .550 ID x 8.51

$

$

Not available

31

MTD 931-04636

Transmission Cover

$

$

Not available

32

MTD 687-02196A

Blade Adapter
(Superseded to 753-06336)

$

$

Not available

33

MTD 942-0642A

22" Mulching Blade

$26.99

$

In Stock, only 1 left!

0

34

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

35

MTD 710-04694

Sems Screw, 3/8-24 x 1.5

$

$

Not available

36

MTD 782-0584-0637

Forward Hght. Adj. Plate - RH

$24.99

$

Usually ships in 3-6 days

0

37

MTD 710-04744

Screw, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0

38

MTD 710-0216

Hex Cap Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 16

0

39

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

40

MTD 731-05401

Engine Shroud

$

$

Not available

41

MTD 731-04643

Wheel Dust Cover

$8.49

$

In Stock, only 1 left!

0

42

MTD 915-0221

Pin

$4.49

$

In Stock, Qty 13

0

43

MTD 717-1762

Spur Gear 14T - RH

$13.99

$

In Stock, only 3 left!

0

43

MTD 717-1761

Spur Gear 14T - LH

$13.99

$

In Stock, only 4 left!

0

44

MTD 732-04049

Ext. Spring, .47 OD x 2.50

$4.99

$

In Stock, only 1 left!

0

45

MTD 634-04100

Front Wheel, 8 x 1.8
(Superseded to 634-04100A)

$39.99

$

In Stock, Qty 17

0

46

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

47

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

48

MTD 931-1034B

Side Discharge Assembly

$72.99

$

In Stock, Qty 6

0

49

MTD 736-0270

Bell Washer, .265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

50

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

51

MTD 741-04242

Height Adjustment Bearing

$7.49

$

Usually ships in 3-6 days

0

52

MTD 987-02051

Rear Hgt. Adj. Lever Assembly
(Superseded to 687-02051)

$

$

Not available

53

MTD 987-02140A

Front Lever Assembly - LH

$49.99

$

Usually ships in 3-6 days

0

53

MTD 987-02141A

Front Lever Assembly - RH

$49.99

$

Usually ships in 3-6 days

0

54

MTD 687-02342

Rear Pivot Arm Assembly

$15.99

$

In Stock, only 2 left!

0

55

MTD 738-1173

Shoulder Screw, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

56

MTD 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

57

MTD 734-04087

Rear Wheel, 8 x 1.8

$27.99

$

In Stock, Qty 5

0

58

MTD 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 10

0
