12A-266A766 - Troy-Bilt Tuff-Cut Walk-Behind Mower (2004) General Assembly Parts Diagram

Tuff-Cut Walk-Behind Mower

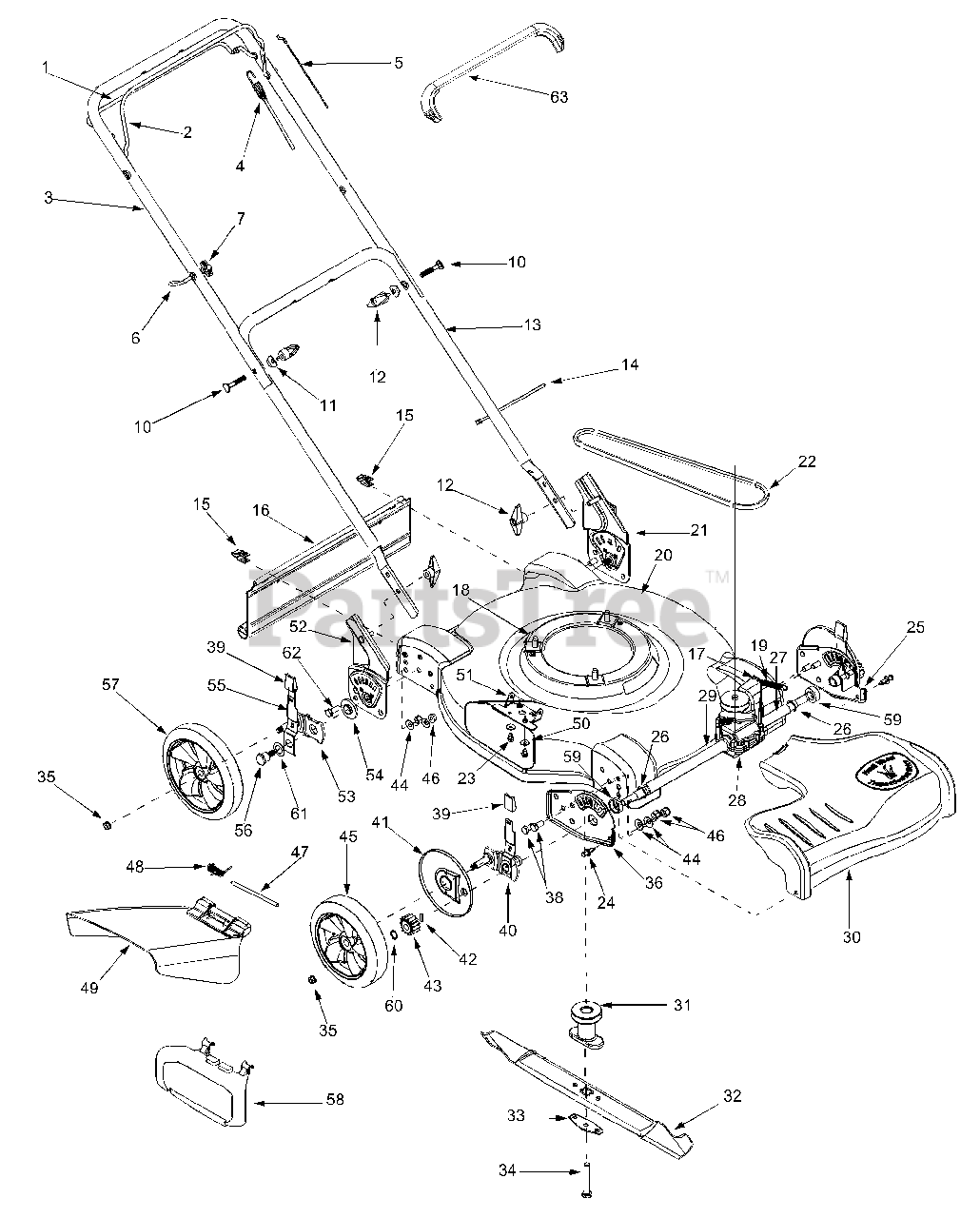

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 747-1214

Drive Control Handle

$22.99

$

In Stock, Qty 5

0

2

Troy-Bilt 747-1161A

Blade Control Handle

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 749-1092A

Upper Handle

Variations

Troy-Bilt 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

Troy-Bilt 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 746-04048

Drive Control Cable
(Superseded to 946-04048A)

$39.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 746-1132

Blade Control Cable - 40.75"
(Superseded to 946-1132)

$22.99

$

In Stock, Qty 5

0

6

Troy-Bilt 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 720-0279

Wing Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-0451

Shoulder Washer.320 ID x.93 OD

$4.49

$

In Stock, Qty 11

0

12

Troy-Bilt 720-0284

Wing Nut 5/16-18

$6.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 749-04037

Lower Handle

Variations

Troy-Bilt 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

14

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

16

Troy-Bilt 731-04019

Trail Shield

$21.99

$

In Stock, Qty 12

0

17

Troy-Bilt 710-04121

Screw

Note: (Included with Item #28)

$

$

Not available

18

Troy-Bilt 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

19

Troy-Bilt 732-04049

Spring.47 OD x 2.50

$4.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 687-02046

Deck Assembly

Variations

Troy-Bilt 687-02046-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$209.99

$

Usually ships in 3-6 days

0

Troy-Bilt 687-02046-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

Troy-Bilt 687-02046-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 687-02046-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 687-02046-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 687-02046-0717

DECK ASM-22" SIDE DISCHARGE - SILVER MIST (0717)

$

$

Not available

$182.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 682-3065

Handle Bracket Assembly - LH
(Superseded to 682-3065-0637)

Variations

Troy-Bilt 682-3065-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 754-04003

V-Belt
(Superseded to 954-04003A)

$21.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 710-0599

Hex Washer Screw 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 728-0199

Rivet

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 782-0585A

Forward Height Adjustment Plate - LH
(Superseded to 782-0585A-0637)

Variations

Troy-Bilt 782-0585A-0637

Height Adjust Plate - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

27

Troy-Bilt 750-04120

Sleeve Spacer.550 ID X 3.30

$

$

Not available

28

Troy-Bilt 618-04025

Transmission Assembly Complete
(Superseded to 918-04025)

$217.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 750-04119

Sleeve Spacer.550 ID x7.95

$

$

Not available

30

Troy-Bilt 731-0073

Transmission Cover

$37.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 748-04016A

Blade Adapter, One Piece

$58.99

$

In Stock, Qty 5

0

32

Troy-Bilt 742-0742A

Mulching Blade 22"
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 736-0524A

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 712-0431

Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 782-0584

Forward Height Adjustment Plate - RH
(Superseded to 782-0584-0637)

Variations

Troy-Bilt 782-0584-0637

Height Adjust Plate - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 710-0514

Hex Cap Screw 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

40

MTD 687-02104

Spring Lever Assembly - RH (FWD)

$

$

Not available

Troy-Bilt 687-02105

Spring Lever Assembly - LH (FWD)

$

$

Not available

41

Troy-Bilt 731-04643

Wheel Dust Cover

$8.49

$

In Stock, only 1 left!

0

42

Troy-Bilt 715-0221

Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 717-1762

Spur Gear 14T - RH

$13.99

$

In Stock, only 3 left!

0

Troy-Bilt 717-1761

Spur Gear 14T - LH

$13.99

$

In Stock, only 4 left!

0

44

Troy-Bilt 736-0105

Bell Washer.401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 734-04018A

Front Wheel Assembly 8 x 2.125
(Superseded to 734-04018C)

$19.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 712-0130

Hex Lock Nut 3/8-16

$3.99

$

In Stock, Qty 11

0

47

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 731-1034B

Side Discharge Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

50

Troy-Bilt 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

52

Troy-Bilt 682-3064

Handle Bracket Assembly - RH
(Superseded to 682-3064-0637)

Variations

Troy-Bilt 682-3064-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$

$

Not available

$

$

53

Troy-Bilt 687-02094

Pivot Arm Assembly
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 741-0751

Height Adjustment Bearing

$8.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

56

Troy-Bilt 738-1173

Shoulder Screw 3/8-16

$6.99

$

Usually ships in 3-6 days

0

57

Troy-Bilt 734-04033

Rear Wheel 8 x 2
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

58

Troy-Bilt 631-04045

Snap Mulching Plug

$19.99

$

In Stock, Qty 10

0

59

Troy-Bilt 748-0390

Bearing Spacer

$5.99

$

In Stock, Qty 10

0

60

Troy-Bilt 716-0865

Snap Ring.500

$4.49

$

In Stock, Qty 20+

0

61

Troy-Bilt 736-0741

Bell Washer.760 ID x 1.25 OD

$4.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 710-0514

Hex Cap Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 731-04204

Deluxe Bail Cover

$11.99

$

In Stock, only 4 left!

0
