12A-264G200 - Yard Machines Walk-Behind Mower (2007) General Assembly Parts Diagram

Walk-Behind Mower

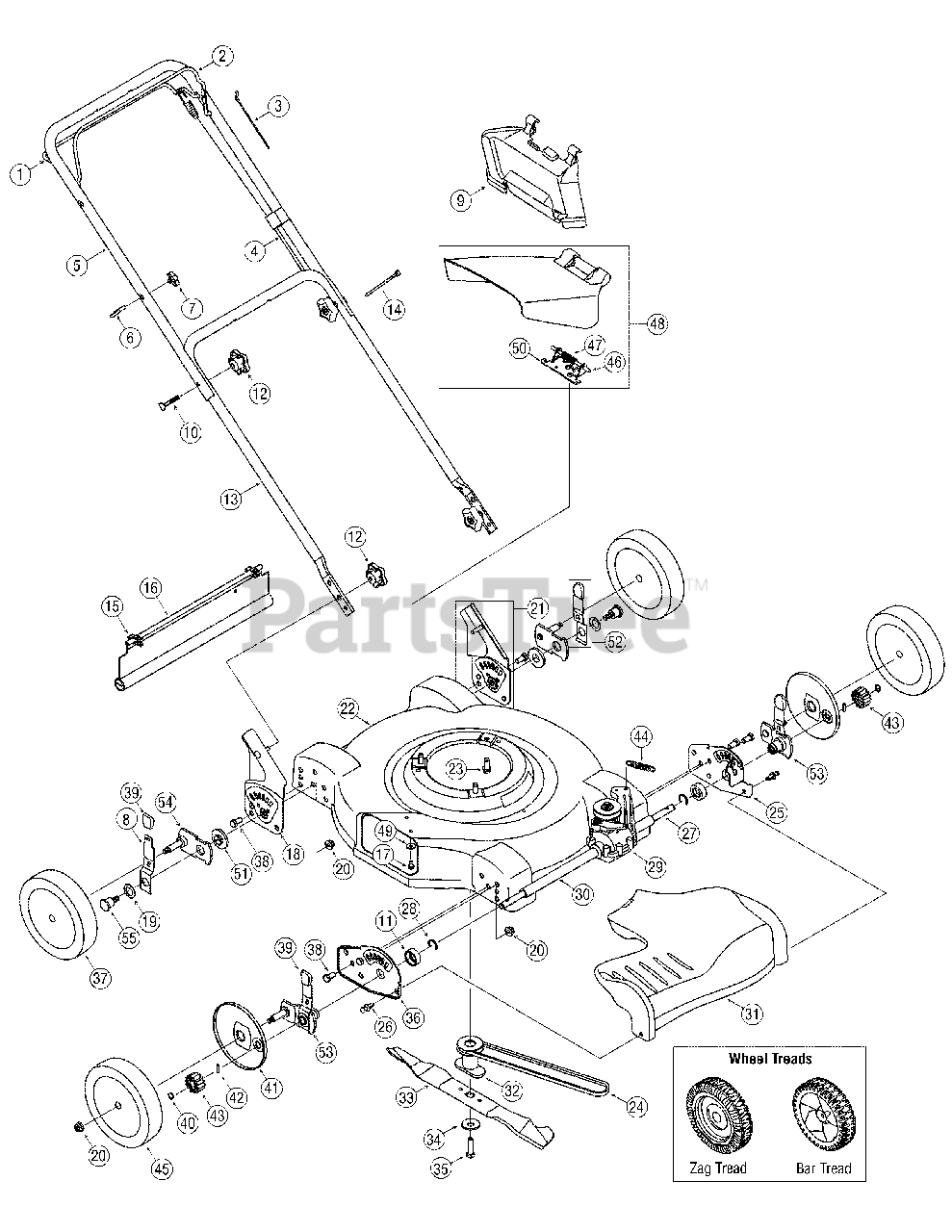

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

2

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

3

MTD 746-1113

Blade Control Cable
(Superseded to 946-1113A)

$19.99

$

In Stock, Qty 20+

0

4

MTD 746-04204

Drive Control Cable
(Superseded to 946-04204)

$45.99

$

In Stock, Qty 5

0

5

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

6

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 1 left!

0

7

MTD 720-0279

Wing Nut, 1/4-20

$4.49

$

Usually ships in 3-6 days

0

8

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

9

MTD 631-04045

Mulching Baffle

$19.99

$

In Stock, only 4 left!

0

10

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

11

MTD 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 10

0

12

MTD 720-04072

Wing Nut
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

13

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 6

0

$53.99

$

In Stock, Qty 6

0

14

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

15

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

16

MTD 731-04019

Trail Shield

$21.99

$

In Stock, Qty 12

0

17

MTD 710-0599

Hex Screw, 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

18

MTD 682-3064

Handle Bracket Assy - RH
(Superseded to 682-3064-0637)

Variations

MTD 682-3064-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 736-0741

Bell Washer, .760 x 1.25 x.041

$4.99

$

Usually ships in 3-6 days

0

20

MTD 712-04065

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

MTD 682-3065

Handle Bracket Assembly - LH
(Superseded to 682-3065-0637)

Variations

MTD 682-3065-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

22

MTD 687-02046

22" Deck Assembly

Variations

MTD 687-02046-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$209.99

$

Usually ships in 3-6 days

0

MTD 687-02046-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

MTD 687-02046-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-02046-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

MTD 687-02046-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 687-02046-0717

DECK ASM-22" SIDE DISCHARGE - SILVER MIST (0717)

$

$

Not available

$182.99

$

Usually ships in 3-6 days

0

23

MTD 710-0654A

Hex Washer Scr., 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

24

MTD 754-04100

V-Belt, 3L x 32.90
(Superseded to 954-04100)

$20.99

$

In Stock, only 1 left!

0

25

MTD 782-0585A

Forward Height Adj. Plate - LH
(Superseded to 782-0585A-0637)

Variations

MTD 782-0585A-0637

Height Adjust Plate - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

26

MTD 728-0199

Rivet

$4.49

$

In Stock, Qty 15

0

27

MTD 750-04407

Sleeve Spacer, .550 ID x 2.22

$

$

Not available

28

MTD 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

29

MTD 618-04375A

Transmission Assy. Comp.
(Superseded to 918-04375B)

$

$

Not available

30

MTD 750-04406A

Sleeve Spacer, .550 ID x 8.51

$

$

Not available

31

MTD 731-0073

Transmission Cover

$37.99

$

Usually ships in 3-6 days

0

32

MTD 748-04016A

Blade Adapter

$58.99

$

In Stock, Qty 5

0

33

MTD 742-0742A

22" Mulching Blade
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

34

MTD 736-0452

Washer, Bell, .396 x 1.140 x .095

$4.99

$

In Stock, Qty 7

0

35

MTD 710-1044

Hex Cap Screw, 3/8-24 x 1.5

$3.99

$

In Stock, Qty 9

0

36

MTD 782-0584

Forward Hght. Adj. Plate - RH
(Superseded to 782-0584-0637)

Variations

MTD 782-0584-0637

Height Adjust Plate - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

37

MTD 734-1987

Rear Wheel, 8 x 1.8, Bar

$23.99

$

In Stock, Qty 5

0

38

MTD 710-0216

Hex Cap Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 16

0

39

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

40

MTD 710-04531

Screw 1/4-20 X .39

Note: Image shows Snap Ring, but should be a Screw

$5.49

$

In Stock, Qty 20+

0

41

MTD 731-04643

Wheel Dust Cover

$8.49

$

In Stock, only 1 left!

0

42

MTD 715-0221

Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 13

0

43

MTD 717-1762

Spur Gear 14T - RH

$13.99

$

In Stock, only 3 left!

0

43

MTD 717-1761

Spur Gear 14T - LH

$13.99

$

In Stock, only 4 left!

0

44

MTD 732-04049

Ext. Spring, .47 OD x 2.50

$4.99

$

In Stock, only 1 left!

0

45

MTD 634-0190

Front Wheel, 8 x 1.8, Bar
(Superseded to 634-0190A)

$40.99

$

In Stock, Qty 17

0

46

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

47

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

48

MTD 731-1034B

Side Discharge Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

49

MTD 736-0270

Bell Washer, .265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

50

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

51

MTD 741-0751

Height Adjustment Bearing

$8.99

$

Usually ships in 3-6 days

0

52

MTD 687-02051

Rear Hgt. Adj. Lever Assembly

$9.49

$

Usually ships in 3-6 days

0

53

MTD 987-02140A

Front Lever Assembly

Note: Shown for RH on this model and application

$49.99

$

Usually ships in 3-6 days

0

53

MTD 987-02141A

Front Lever Assembly

Note: Shown for LH on this model and application

$49.99

$

Usually ships in 3-6 days

0

54

MTD 687-02094

Rear Pivot Arm Assembly
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

55

MTD 738-1173

Shoulder Screw, 3/8-16

$6.99

$

Usually ships in 3-6 days

0
