12A-263F800 - Yard Machines Walk-Behind Mower (2006) General Assembly Parts Diagram

Walk-Behind Mower

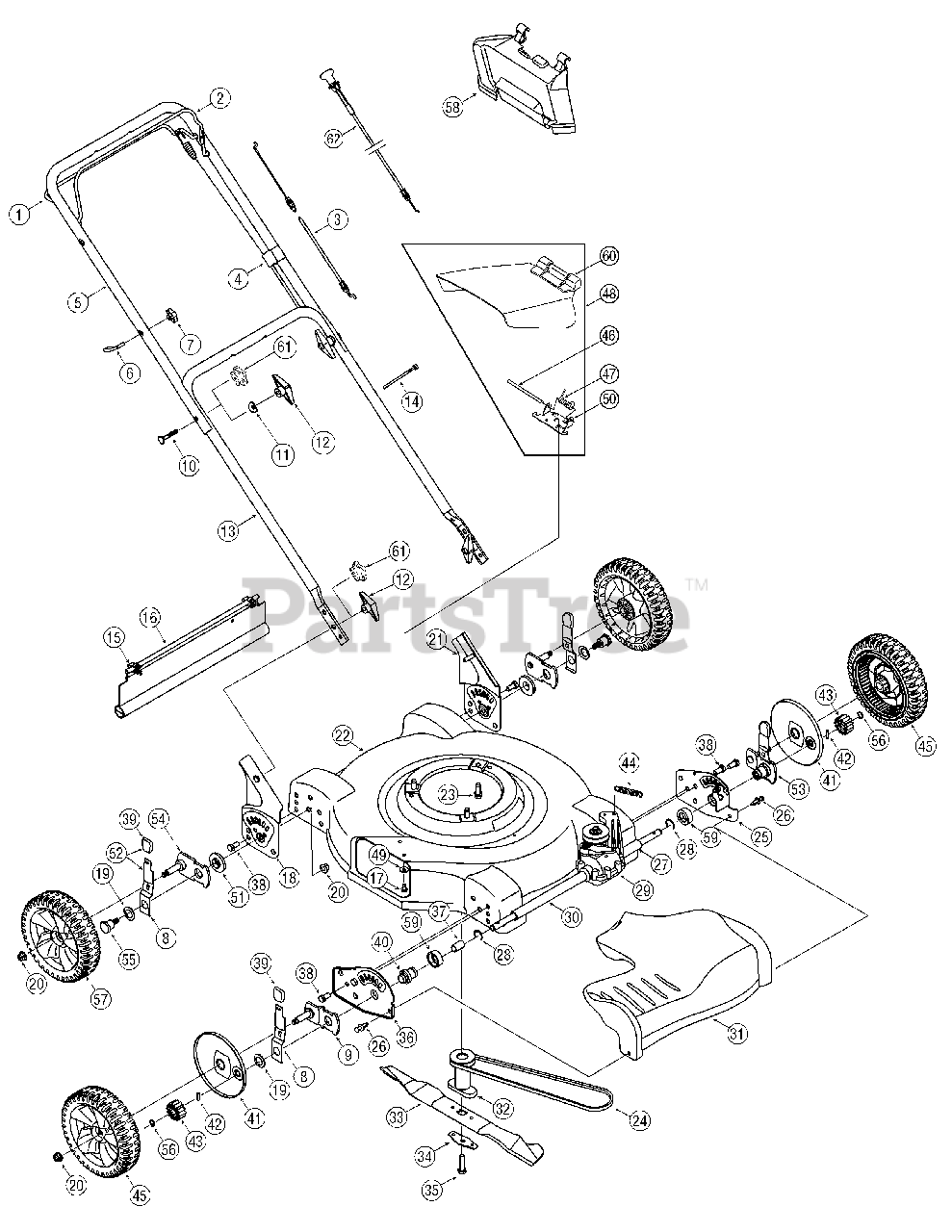

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control Handle

$22.99

$

In Stock, Qty 5

0

2

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

3

MTD 746-1114

Blade Control Cable 50.56" Lg.
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

4

MTD 746-04204

Drive Control Cable
(Superseded to 946-04204)

$45.99

$

In Stock, only 4 left!

0

5

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

6

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

7

MTD 720-0279

Knob - ERS Guide 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

9

MTD 687-02139

Pivot Arm Assembly
(Superseded to 987-02139)

$

$

Not available

10

MTD 710-1174

Carriage Bolt 5/16-18 x2.0

$7.49

$

In Stock, Qty 20+

0

11

MTD 736-0451

Saddle Washer .32 ID x .93 OD x .06

$4.49

$

In Stock, Qty 11

0

12

MTD 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

13

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

14

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

15

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

16

MTD 731-04019

Trail Shield

$21.99

$

In Stock, Qty 12

0

17

MTD 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

18

MTD 682-3064

Handle Bracket Assembly
(Superseded to 682-3064-0637)

Variations

MTD 682-3064-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 736-0741

Cupped Washer .760 ID x 1.25 OD x .041

$4.99

$

Usually ships in 3-6 days

0

20

MTD 712-04065

Flanged Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

MTD 682-3065

Handle Bracket Assembly LH
(Superseded to 682-3065-0637)

Variations

MTD 682-3065-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

22

MTD 687-02046

Deck Assembly

Variations

MTD 687-02046-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$209.99

$

Usually ships in 3-6 days

0

MTD 687-02046-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

MTD 687-02046-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-02046-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

MTD 687-02046-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 687-02046-0717

DECK ASM-22" SIDE DISCHARGE - SILVER MIST (0717)

$

$

Not available

$182.99

$

Usually ships in 3-6 days

0

23

MTD 710-0654A

Hex Wash HD Tap Screw 3/8-16 x .88

$4.49

$

In Stock, Qty 20+

0

24

MTD 754-04100

V-Belt
(Superseded to 954-04100)

$20.99

$

In Stock, only 1 left!

0

25

MTD 782-0585A

Forward Height Adjustment -LH
(Superseded to 782-0585A-0637)

Variations

MTD 782-0585A-0637

Height Adjust Plate - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

26

MTD 728-0199

Plastic Rivet

$4.49

$

In Stock, Qty 20+

0

27

MTD 750-04407

Sleeve Spacer .550 ID x 2.22 OD

$

$

Not available

28

MTD 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

29

MTD 618-04375

Transmission Assembly Complete
(Superseded to 918-04375B)

$

$

Not available

30

MTD 750-04406A

Sleeve Spacer .550 ID x 8.51 OD

$

$

Not available

31

MTD 731-0073

Transmission Cover

$37.99

$

Usually ships in 3-6 days

0

32

MTD 748-04016A

Blade Adapter

$58.99

$

In Stock, Qty 5

0

33

MTD 742-0742A

Mulching Blade 22"
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

34

MTD 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

35

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" LG (Grade 8)

$3.99

$

In Stock, Qty 8

0

36

MTD 782-0584

Forward Height Adjustment RH
(Superseded to 782-0584-0637)

Variations

MTD 782-0584-0637

Height Adjust Plate - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

37

MTD 741-0710

Sleeve Brg. .502 x .627 x 1.0

$6.49

$

Usually ships in 3-6 days

0

38

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

39

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

40

MTD 748-0455

Bearing Support

$18.99

$

Usually ships in 3-6 days

0

41

MTD 731-04643

Dust Wheel Cover

$8.49

$

In Stock, only 1 left!

0

42

MTD 715-0221

Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

43

MTD 717-1762

Spur Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

43

MTD 717-1761

Spur Gear 14T LH

$13.99

$

In Stock, only 4 left!

0

44

MTD 732-04049

Ext. Spring .47 OD 50 x 2.50

$4.99

$

In Stock, only 1 left!

0

45

MTD 634-0190

Wheel Assembly Comp. 8 x 1.8 Spoke bar
(Superseded to 634-0190A)

$40.99

$

In Stock, Qty 17

0

46

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

47

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

48

MTD 731-1034B

Side Discharge Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

49

MTD 736-0270

Cupped Washer .25 ID x .88 OD x .062

$3.99

$

In Stock, Qty 20+

0

50

MTD 17032A

Chute Adapter

$10.99

$

In Stock, only 2 left!

0

51

MTD 741-0751

Height Adjuster Bearing

$8.99

$

Usually ships in 3-6 days

0

52

MTD 687-02051

Lever Assembly

$9.49

$

Usually ships in 3-6 days

0

53

MTD 987-02140A

Spring Lever Assembly

Note: RH on this model and application

$49.99

$

Usually ships in 3-6 days

0

53

MTD 987-02141A

Spring Lever Assembly

Note: Shown for LH on this model and application

$49.99

$

Usually ships in 3-6 days

0

54

MTD 687-02094

Pivot Arm Assembly
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

55

MTD 738-1173

Shoulder Screw 3/8-16

$6.99

$

Usually ships in 3-6 days

0

56

MTD 710-04531

Screw 1/4-20 X .39

Note: Image shows Snap Ring, but should be a Screw

$5.49

$

In Stock, Qty 20+

0

57

MTD 734-1987

Wheel Assembly Comp. 8 x 1.8

$23.99

$

In Stock, Qty 5

0

58

MTD 631-04045

Snap Mulching Plug

$19.99

$

In Stock, Qty 9

0

59

MTD 748-0390

Bearing Spacer

$5.99

$

In Stock, Qty 10

0

60

MTD 731-1035B

Chute Deflector
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

61

MTD 720-04072

Knob - Star 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

62

MTD 746-1114

Control Cable
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0
