12A-263F800 - Yard Machines Walk-Behind Mower (2005) General Assembly Parts Diagram

Walk-Behind Mower

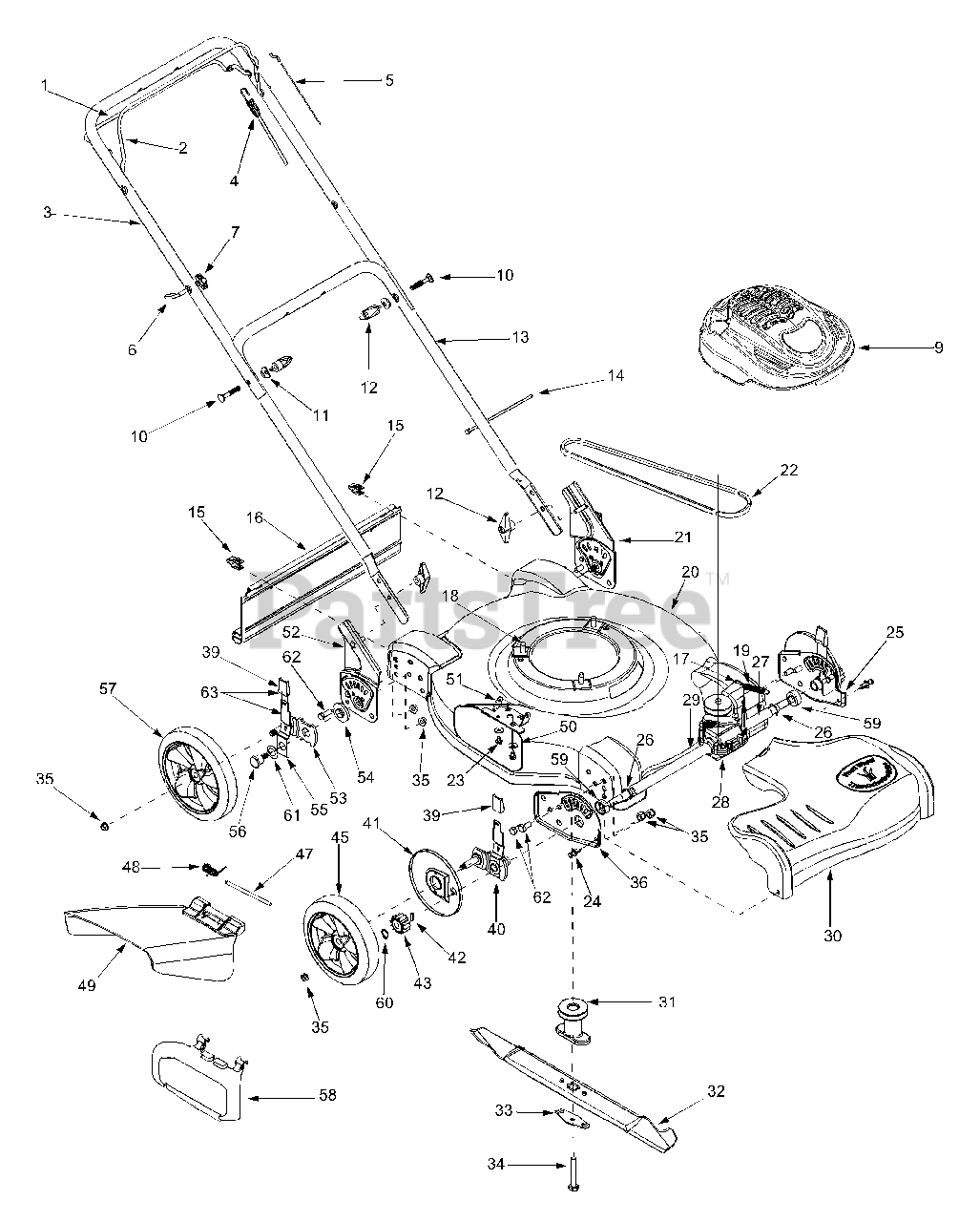

General Assembly Parts Diagram

  • Title

1

MTD 747-1214

Drive Control Handle

$22.99

$

In Stock, Qty 5

0

2

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 3 left!

0

$13.99

$

In Stock, only 3 left!

0

3

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

4

MTD 746-04048

Drive Control Cable
(Superseded to 946-04048A)

$39.99

$

In Stock, only 1 left!

0

5

MTD 746-1114

Blade Control Cable 50.56" Lg.
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

6

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

7

MTD 720-0279

Knob - ERS Guide 1/4-20

$4.49

$

In Stock, Qty 20+

0

9

MTD 7511682114

Engine Shroud

$

$

Not available

10

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

11

MTD 736-0451

Saddle Washer .320 ID x .93 OD x .06

$4.49

$

In Stock, Qty 11

0

12

MTD 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

13

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 6

0

$53.99

$

In Stock, Qty 6

0

14

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

15

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

16

MTD 731-04019

Trail Shield

$21.99

$

In Stock, Qty 12

0

17

MTD 710-04121

Screw

Note: (Incl. w/ref. no. 28)

$

$

Not available

18

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 3 left!

0

19

MTD 732-04049

Spring .47 OD x 2.5

$4.99

$

In Stock, only 1 left!

0

20

MTD 687-2046

Deck Ass'y

$

$

Currently unavailable

21

MTD 682-3065

Handle Bracket Ass'y LH
(Superseded to 682-3065-0637)

Variations

MTD 682-3065-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

22

MTD 754-04003A

V-Belt
(Superseded to 954-04003A)

$21.99

$

Usually ships in 3-6 days

0

23

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

24

MTD 728-0199

Plastic Rivet

$4.49

$

In Stock, Qty 14

0

25

MTD 782-0585A

Forward Height Adjustment plate - LH
(Superseded to 782-0585A-0637)

Variations

MTD 782-0585A-0637

Height Adjust Plate - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

26

MTD 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

27

MTD 750-04120

Sleeve Spacer .550 ID x 3.30 OD

$

$

Not available

28

MTD 618-04025

Transmission Assembly Complete
(Superseded to 918-04025)

$217.99

$

Usually ships in 3-6 days

0

29

MTD 750-04119

Sleeve Spacer .550 ID x 7.95 OD

$

$

Not available

30

MTD 731-0073

Transmission Cover

$37.99

$

Usually ships in 3-6 days

0

31

MTD 748-04016A

Blade Adapter

$58.99

$

In Stock, Qty 5

0

32

MTD 742-0742A

Mulching Blade 22"
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

33

MTD 736-0524A

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 7

0

34

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Grade 8)

$3.99

$

Usually ships in 3-6 days

0

35

MTD 712-0431

Flanged Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

36

MTD 782-0584

Forward Height Adjustment plate - RH
(Superseded to 782-0584-0637)

Variations

MTD 782-0584-0637

Height Adjust Plate - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

39

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

40

MTD 687-02105

Spring Lever Assembly (LH)

$

$

Not available

MTD 687-02104

Spring Lever Assembly (RH)

$

$

Not available

41

MTD 731-04643

Dust Wheel Cover

$8.49

$

In Stock, only 1 left!

0

42

MTD 715-0221

Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

43

MTD 717-1762

Spur Gear 14T RH

$13.99

$

In Stock, only 3 left!

0

MTD 717-1761

Spur Gear 14T LH

$13.99

$

In Stock, only 4 left!

0

45

MTD 634-0190

Wheel Ass'y Comp. 8 x 1.8 Spoke Bar
(Superseded to 634-0190A)

$40.99

$

In Stock, Qty 17

0

MTD 734-1983A

Wheel Ass'y Comp. 8 x 2 Link Blk (w/ball brgs)
(Superseded to 734-04223A)

$55.99

$

In Stock, Qty 20+

0

47

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

48

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

49

MTD 731-1034B

Side Discharge Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

50

MTD 736-0270

Cupped Washer .25 ID x .88 OD X .062

$3.99

$

In Stock, Qty 20+

0

51

MTD 17032A

Chute Adapter

$10.99

$

In Stock, only 2 left!

0

52

MTD 682-3064

Handle Bracket Ass'y RH
(Superseded to 682-3064-0637)

Variations

MTD 682-3064-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$

$

Not available

$

$

53

MTD 687-02094

Pivot Arm Assembly
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

54

MTD 741-0751

Height Adjuster Bearing

$8.99

$

Usually ships in 3-6 days

0

55

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

56

MTD 738-1173

Shoulder Screw 3/8-16

$6.99

$

Usually ships in 3-6 days

0

57

MTD 734-1987

Wheel Ass'y Comp. 8 x 1.8

$23.99

$

In Stock, Qty 5

0

MTD 737-1978

Wheel Ass'y Comp. 8 x 2 Link Blk

$

$

Currently unavailable

58

MTD 731-04045

Snap Mulching Plug

$

$

Currently unavailable

59

MTD 748-0390

Bearing Spacer

$5.99

$

In Stock, Qty 10

0

60

MTD 716-0865

Snap Ring

$4.49

$

In Stock, only 1 left!

0

61

MTD 736-0741

Cupped Washer .401 ID x .870 OD

$4.99

$

Usually ships in 3-6 days

0

62

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

63

MTD 687-02051

Spring Lever Ass'y

$9.49

$

Usually ships in 3-6 days

0
