12A-263E701 - Yard-Man Walk-Behind Mower (2005) General Assembly 1 Parts Diagram

Walk-Behind Mower

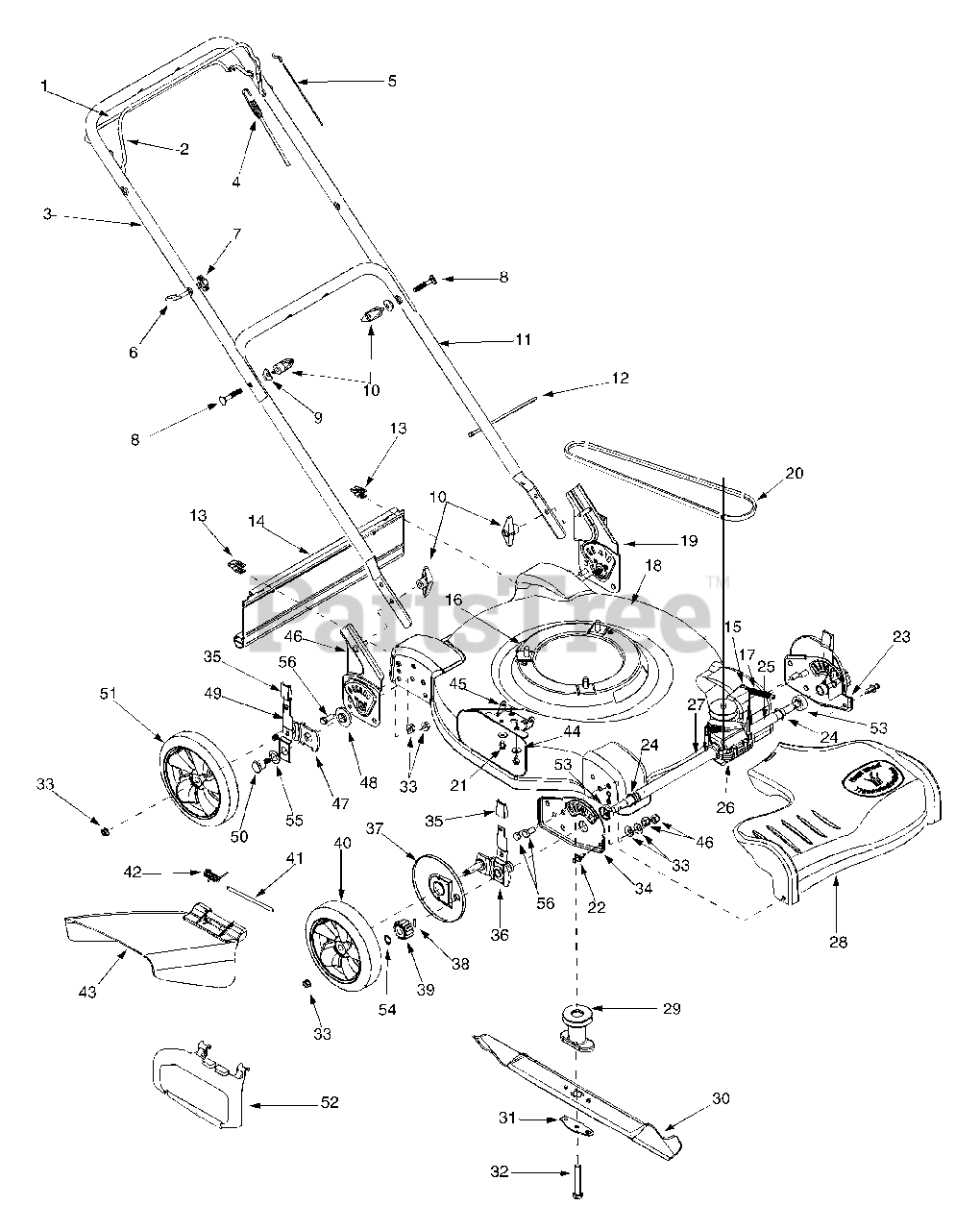

General Assembly 1 Parts Diagram

  • Title

1

MTD 747-1214

Drive Control Handle

$22.99

$

In Stock, Qty 5

0

2

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

3

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

4

MTD 746-04048

Drive Control Cable
(Superseded to 946-04048A)

$39.99

$

In Stock, only 1 left!

0

5

MTD 746-1132

Blade Control Cable - 40.75"
(Superseded to 946-1132)

$22.99

$

In Stock, only 4 left!

0

5

MTD 746-1114

Blade Control Cable - 50.56"
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

6

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

7

MTD 720-0279

Wing Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

9

MTD 736-0451

Shoulder Washer.320 ID x.93 OD

$4.49

$

In Stock, Qty 11

0

10

MTD 720-0284

Wing Nut 5/16-18

$6.99

$

In Stock, Qty 20+

0

11

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

12

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

13

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

14

MTD 731-04019

Trail Shield

$21.99

$

In Stock, Qty 12

0

15

MTD 710-04121

Screw (Included with Item No. 28)

$

$

Not available

16

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

17

MTD 732-04049

Spring.47 OD x 2.50

$4.99

$

In Stock, only 1 left!

0

18

MTD 687-02046

Deck Assembly

Variations

MTD 687-02046-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$209.99

$

Usually ships in 3-6 days

0

MTD 687-02046-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

MTD 687-02046-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-02046-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

MTD 687-02046-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 687-02046-0717

DECK ASM-22" SIDE DISCHARGE - SILVER MIST (0717)

$

$

Not available

$182.99

$

Usually ships in 3-6 days

0

19

MTD 682-3065

Handle Bracket Assembly - LH
(Superseded to 682-3065-0637)

Variations

MTD 682-3065-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

20

MTD 754-04003A

V-Belt
(Superseded to 954-04003A)

$21.99

$

Usually ships in 3-6 days

0

21

MTD 710-0599

Hex Washer Screw 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

22

MTD 728-0199

Rivet

$4.49

$

In Stock, Qty 20+

0

23

MTD 782-0585A

Forward Height Adjustment Plate - LH
(Superseded to 782-0585A-0637)

Variations

MTD 782-0585A-0637

Height Adjust Plate - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

24

MTD 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

25

MTD 750-04120

Sleeve Spacer.550 ID X 2.22

$

$

Not available

26

MTD 618-04025

Transmission Assembly Complete
(Superseded to 918-04025)

$217.99

$

Usually ships in 3-6 days

0

27

MTD 750-04119

Sleeve Spacer.550 ID x7.42

$

$

Not available

28

MTD 731-04636

Transmission Cover
(Superseded to 931-04636)

$

$

Not available

29

MTD 748-04016A

Blade Adapter, One Piece

$58.99

$

In Stock, Qty 5

0

30

MTD 742-0742A

Mulching Blade 22"
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

31

MTD 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

32

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, Qty 8

0

33

MTD 712-0431

Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

34

MTD 782-0584

Forward Height Adjustment Plate - RH
(Superseded to 782-0584-0637)

Variations

MTD 782-0584-0637

Height Adjust Plate - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

35

MTD 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

36

MTD 687-02141A

Spring Lever Assembly - LH Not Pictured
(Superseded to 987-02141A)

Note: Part number correct in this application

$49.99

$

Usually ships in 3-6 days

0

36

MTD 687-02140A

Spring Lever Assembly - RH Pictured
(Superseded to 987-02140A)

Note: Part number correct in this application

$49.99

$

Usually ships in 3-6 days

0

37

MTD 731-04643

Wheel Dust Cover

$8.49

$

In Stock, only 1 left!

0

38

MTD 715-0221

Pin
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

39

MTD 717-1762

Spur Gear 14T - RH

$13.99

$

In Stock, only 3 left!

0

39

MTD 717-1761

Spur Gear 14T - LH

$13.99

$

In Stock, only 4 left!

0

40

MTD 634-04100

Front Wheel Assembly 8 x 1.8
(Superseded to 634-04100A)

$39.99

$

In Stock, Qty 17

0

41

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

42

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

43

MTD 731-1034B

Side Discharge Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

44

MTD 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

45

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

46

MTD 682-3064

Handle Bracket Assembly - RH
(Superseded to 682-3064-0637)

Variations

MTD 682-3064-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$

$

Not available

$

$

47

MTD 687-02094

Pivot Arm Assembly
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

48

MTD 741-0751

Height Adjustment Bearing

$8.99

$

Usually ships in 3-6 days

0

49

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

50

MTD 738-1173

Shoulder Screw 3/8-16

$6.99

$

Usually ships in 3-6 days

0

51

MTD 734-04087

Rear Wheel 8 x 1.8

$27.99

$

In Stock, Qty 5

0

52

MTD 631-04045

Snap Mulching Plug

$19.99

$

In Stock, Qty 9

0

53

MTD 748-0390

Bearing Spacer

$5.99

$

In Stock, Qty 10

0

54

MTD 716-0865

Snap Ring.500

$4.49

$

In Stock, Qty 20+

0

55

MTD 736-0741

Bell Washer.760 ID x 1.25 OD

$4.99

$

Usually ships in 3-6 days

0

56

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0
