12A-263D701 - Yard-Man Walk-Behind Mower (2006) General Assembly Parts Diagram

Walk-Behind Mower

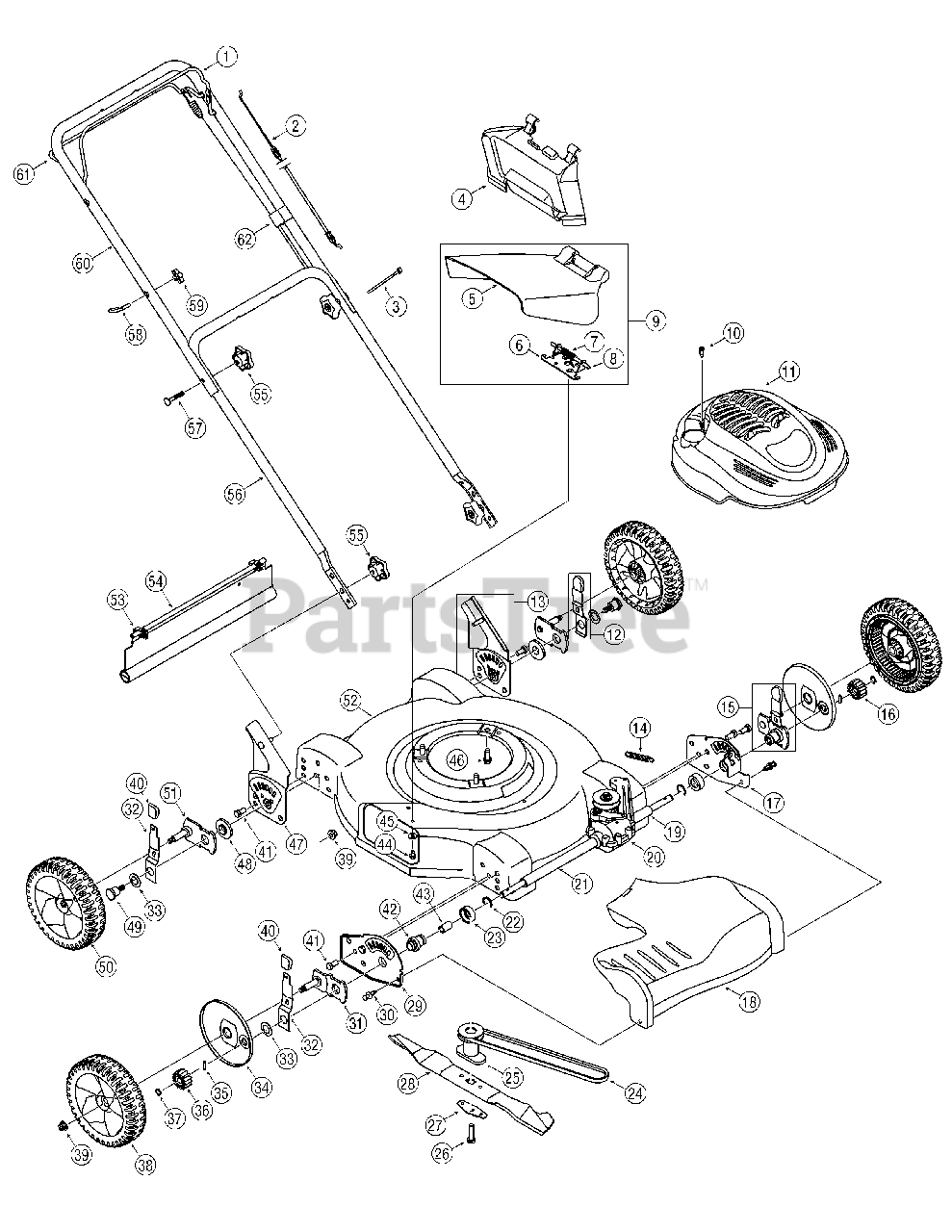

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 1 left!

0

2

MTD 746-1114

Control Cable 50.56-inch
(Superseded to 946-1114)

$23.99

$

In Stock, Qty 7

0

3

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

4

MTD 631-04045

Mulch Plug

$19.99

$

In Stock, Qty 10

0

5

MTD 731-1035B

Side Discharge Chute
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

6

MTD 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

7

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

8

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

9

MTD 931-1034B

Side Discharge Chute Assy

$72.99

$

In Stock, Qty 5

0

10

MTD 7510042823

Shoulder Screw #10 x .457

$

$

Not available

11

MTD 731-04525

Engine Shroud
(Superseded to 931-04525)

$51.99

$

Usually ships in 3-6 days

0

12

MTD 687-02051

Lever Assembly

$9.49

$

Usually ships in 3-6 days

0

13

MTD 682-3065

Handle Bracket Assy - LH
(Superseded to 682-3065-0637)

Variations

MTD 682-3065-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

14

MTD 732-04049

Extension Spring

$4.99

$

In Stock, only 1 left!

0

15

MTD 987-02141

Lever Assembly - Pictured
(Superseded to 987-02141A)

Note: Part number correct in this application

$49.99

$

Usually ships in 3-6 days

0

15

MTD 987-02140

Lever Assembly - Not Pictured
(Superseded to 987-02140A)

Note: Part number correct in this application

$49.99

$

Usually ships in 3-6 days

0

16

MTD 717-1761

Spur Gear - LH

$13.99

$

In Stock, only 4 left!

0

17

MTD 782-0585A

Height Adjustment Plate - LH
(Superseded to 782-0585A-0637)

Variations

MTD 782-0585A-0637

Height Adjust Plate - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

18

MTD 731-04636

Transmission Cover
(Superseded to 931-04636)

$

$

Not available

19

MTD 750-04407

Sleeve Spacer .550 x 2.22

$

$

Not available

20

MTD 618-04375

Transmission 22-inch
(Superseded to 918-04375B)

$

$

Not available

21

MTD 750-04406A

Sleeve Spacer .550 x 8.51

$

$

Not available

22

MTD 716-0198

Retention Ring

$4.99

$

In Stock, Qty 10

0

23

MTD 748-0390

Bearing Spacer

$5.99

$

In Stock, Qty 10

0

24

MTD 754-04100

V-Belt
(Superseded to 954-04100)

$20.99

$

In Stock, only 1 left!

0

25

MTD 748-04016A

Blade Adapter

$58.99

$

In Stock, Qty 5

0

26

MTD 710-1044

HH Cap Screw 3/8-24 x 1.50

$3.99

$

In Stock, only 2 left!

0

27

MTD 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

28

MTD 742-0742A

22-inch Mulching Blade
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

29

MTD 782-0584

Height Adjustment Plate - RH
(Superseded to 782-0584-0637)

Variations

MTD 782-0584-0637

Height Adjust Plate - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

30

MTD 728-0199

Plastic Rivet

$4.49

$

In Stock, Qty 20+

0

31

MTD 687-02139

Pivot Arm Assembly
(Superseded to 987-02139)

$

$

Not available

32

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

33

MTD 736-0741

Bell Washer .760 x 1.25 X .041

$4.99

$

Usually ships in 3-6 days

0

34

MTD 731-04643

Wheel Dust Cover

$8.49

$

In Stock, only 1 left!

0

35

MTD 715-0221

Dowel Pin 3/16 x .75
(Superseded to 915-0221)

$4.49

$

In Stock, Qty 20+

0

36

MTD 717-1762

Spur Gear - RH

$13.99

$

In Stock, only 3 left!

0

37

MTD 710-04531

Screw 1/4-20 X .39

Note: Image shows Snap Ring, but should be a Screw

$5.49

$

In Stock, Qty 20+

0

38

MTD 634-04100

Wheel 8 x 1.8 SPK BAR Fwd
(Superseded to 634-04100A)

$39.99

$

In Stock, Qty 17

0

39

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

40

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

41

MTD 710-0216

HH Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

42

MTD 748-0455

Bearing Support

$18.99

$

Usually ships in 3-6 days

0

43

MTD 741-0710

Sleeve Bearing 502 x .627

$6.49

$

Usually ships in 3-6 days

0

44

MTD 710-0599

TT Screw 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

46

MTD 710-0654A

TT Screw 3/8-16 x 1

$4.49

$

In Stock, Qty 20+

0

47

MTD 682-3064

Handle Bracket Assy - RH
(Superseded to 682-3064-0637)

Variations

MTD 682-3064-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$

$

Not available

$

$

48

MTD 741-0751

Height Adjustment Bearing

$8.99

$

Usually ships in 3-6 days

0

49

MTD 738-1173

Shoulder Screw .75 x .625

$6.99

$

Usually ships in 3-6 days

0

50

MTD 734-04087

Wheel 8 x 1.8 SPOKE Bar

$27.99

$

In Stock, Qty 5

0

51

MTD 687-02094

Pivot Arm Assembly
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

52

MTD 687-02046

22-inch Side Discharge Deck

Variations

MTD 687-02046-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$209.99

$

Usually ships in 3-6 days

0

MTD 687-02046-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

MTD 687-02046-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-02046-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

MTD 687-02046-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 687-02046-0717

DECK ASM-22" SIDE DISCHARGE - SILVER MIST (0717)

$

$

Not available

$182.99

$

Usually ships in 3-6 days

0

53

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

54

MTD 731-04019

Trailshield

$21.99

$

In Stock, Qty 12

0

55

MTD 720-0408

Star Knob

$

$

Currently unavailable

56

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

57

MTD 710-1174

Carriage Bolt 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

58

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

59

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

60

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

61

MTD 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0
