12A-234A016 - Statesman Walk-Behind Mower (1999) (Southern States) General Assembly Parts Diagram

Walk-Behind Mower

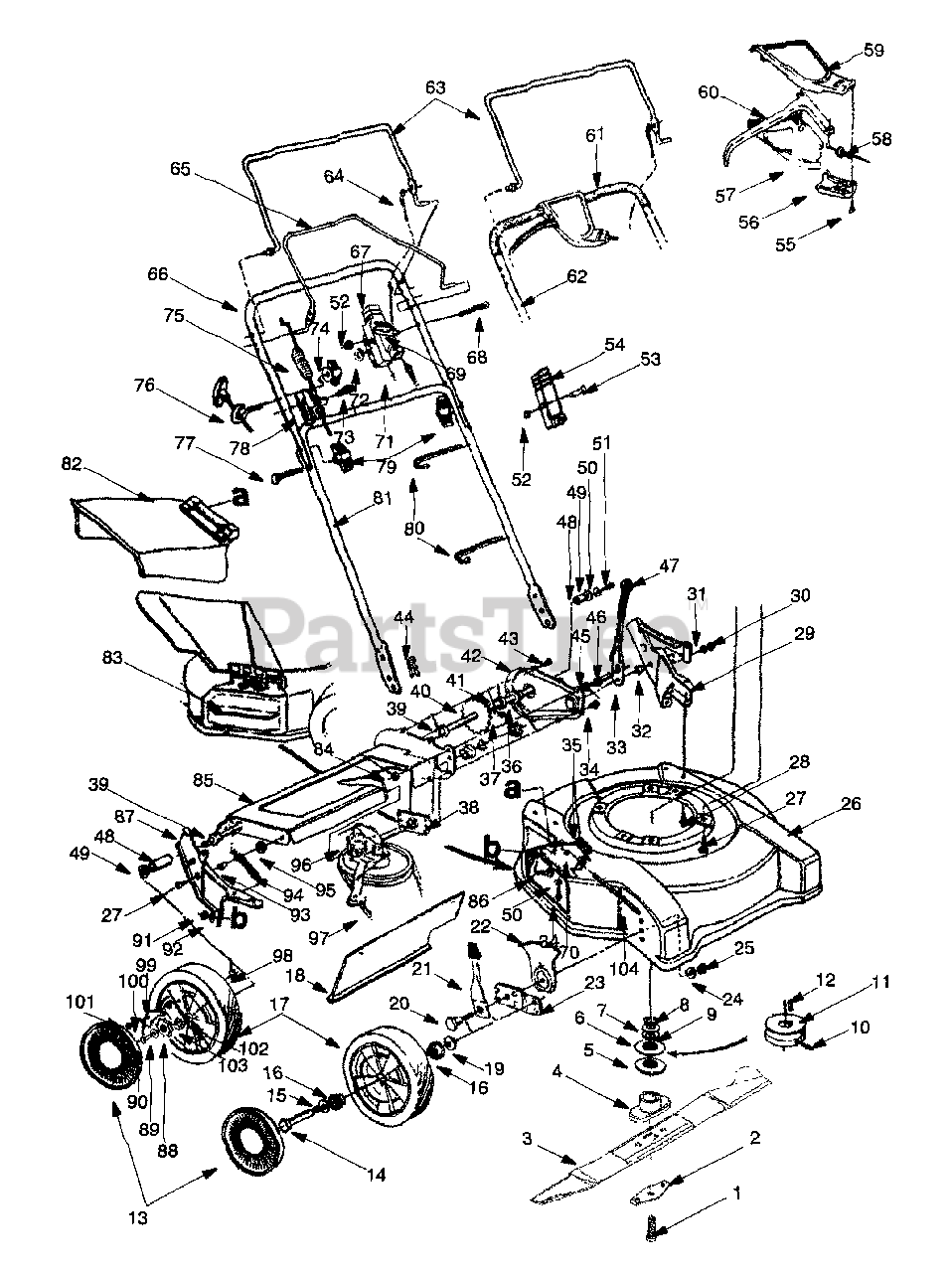

General Assembly Parts Diagram

  • Title

1

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 8

0

2

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

3

MTD 742-0642

22" Blade
(Superseded to 942-0642A)

$26.99

$

In Stock, only 1 left!

0

MTD 742-0742

Mulching Blade
(Superseded to 942-0742A)

Note: (Optional)

$24.99

$

In Stock, only 1 left!

0

4

MTD 748-0376C

Blade Adapter w/star
(Superseded to 748-0376E)

$20.99

$

In Stock, only 3 left!

0

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

5

MTD 756-0961

Lower Pulley Half

$

$

Not available

6

MTD 756-0962

Upper Pulley Half

$

$

Not available

7

MTD 736-0513

Spr. Wash. .89 I.D.
(Superseded to 936-0513)

$

$

Not available

8

MTD 748-0358

Crankshaft Spacer

$

$

Not available

9

MTD 736-0514

Fl-Wash. .885 I.D.

$

$

Not available

10

MTD 710-0497

Set Scr. #10-32 x .25" Lg.

Note: (model 234)

$

$

Currently unavailable

11

MTD 756-0554

Keyed Pulley (234)

$

$

Not available

12

MTD 714-3009

Sq. Key, Square, 3/16 x 1/2

Note: (model 234)

$3.99

$

Usually ships in 3-6 days

0

13

MTD 720-0249

Hub Cap, Euro, Grey 3-1/2" Dia.
(Superseded to 920-0249)

$

$

Not available

14

MTD 738-0102

Shld. Bolt .498" Dia. x 1.45"

$9.99

$

In Stock, Qty 10

0

15

MTD 736-0504

Wave Wash. .51" I.D. x.78"
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

16

MTD 741-0484

Wheel Bearing
(Superseded to 941-0484)

Note: (Optional)

$7.49

$

In Stock, only 1 left!

0

17

MTD 634-0020

Wheel Assembly

$39.99

$

In Stock, Qty 6

0

18

MTD 731-1483

Rear Flap

$

$

Not available

19

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

20

MTD 738-0507B

Shld. Bolt .5" Dia. x .357

$4.49

$

In Stock, Qty 20+

0

21

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

MTD 720-0190

Knob Only
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

22

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

23

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

24

MTD 736-0356

Bell Wash. .39 I.D. x 1.38 O.D.
(Superseded to 936-0356)

$

$

Not available

25

MTD 712-0798

Hex Nut 3/8" x 16

$4.49

$

In Stock, Qty 6

0

26

MTD 682-0001A

22" Deck Ass'y.

Variations

MTD 682-0001A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0001A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-0001A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

27

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0607

Hex Wash. Hd. 8-Tap Scr. 5/16-18

$6.99

$

In Stock, Qty 9

0

29

MTD 16137C

L.H. Handle Wheel Brkt. Ass'y.

Variations

MTD 16137C-0637

L.H. Handle Wheel Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

31

MTD 736-0300

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

32

MTD 750-0624

Shld. Spacer .5" Dia.

$

$

Not available

33

MTD 732-0726

Height Adj. Lever

$

$

Not available

34

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

35

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

36

MTD 741-0324

Hex Flange Bearing
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

37

MTD 713-0353

#48 Chain .5" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

38

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

39

MTD 741-0522

Hex Flange Bearing

$

$

Not available

40

MTD 738-0719A

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

41

MTD 736-0160

Fl-Wash. .531" I.D. x .93"

$4.49

$

In Stock, only 2 left!

0

42

MTD 17053A

Chain Cover

Variations

MTD 17053A-0480

No Longer Available COVER-CHAI - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17053A-0483

No Longer Available COVER-CHAI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17053A-0637

No Longer Available COVER-CHAI - POWDER BLACK (0637)

$

$

Not available

MTD 17053A-0638

No Longer Available COVER-CHAI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17053A-0650

No Longer Available COVER-CHAI - RED METALLIC (0650)

$

$

Not available

MTD 17053A-0662

No Longer Available COVER-CHAI - OYSTER GRAY (0662)

$

$

Not available

MTD 17053A-0665

No Longer Available COVER-CHAI - YARDMAN GREEN (0665)

$

$

Not available

MTD 17053A-0674

No Longer Available COVER-CHAI - YARDMAN YELLOW (0674)

$

$

Not available

$

$

43

MTD 710-0653

Hex Tap Scr. 1/4 x .38" Lg.

$4.49

$

In Stock, Qty 7

0

44

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

46

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

47

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

48

MTD 748-0190

Spacer .513" I.D. x .703"

$6.49

$

In Stock, Qty 11

0

49

MTD 736-0160

Fl-Wash. .531" I.D. x .93"

$4.49

$

In Stock, only 2 left!

0

50

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

51

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.(Grade 5)

$3.99

$

In Stock, Qty 20+

0

52

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

53

MTD 710-1270

Machine Screw 1/4" x 20

$4.49

$

Usually ships in 3-6 days

0

54

MTD 746-0883

Cable Housing w/o Throttle

$16.99

$

In Stock, only 3 left!

0

55

MTD 710-1667

Screw #10-16 x .625"
(Superseded to 710-1667A)

$4.49

$

In Stock, Qty 13

0

56

MTD 731-1059

Mounting Cap
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

57

MTD 731-1058

Control Cover-Lower Half
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

58

MTD 746-0710A

S.P. Cable (Single Bail)
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

59

MTD 731-1057

Control Cover-Upper Half
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

60

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

61

MTD 720-0294

Foam Grip
(Superseded to 720-0294A)

Note: (2 Required)

$7.49

$

In Stock, only 3 left!

0

62

MTD 749-0539C

Upper Handle (Single Bail)
(Superseded to 749-0539C-0637)

Variations

MTD 749-0539C-0637

HANDLE-UPPER - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

63

MTD 747-0824

Control Handle Assembly (Std.)
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

64

MTD 746-0550

Control Cable 39" Lg.
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

65

MTD 747-0854

S.P. Bail Ass'y.
(Superseded to 747-0854-0637)

Variations

MTD 747-0854-0637

LEVER-DRIVE CONTRO - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 749-0538C

Upper Handle (Dual Bail)
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

67

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

Note: (Optional)

$9.49

$

In Stock, only 3 left!

0

68

MTD 710-0605

Oval C-Sunk Screw

Note: (Optional)

$4.49

$

In Stock, only 2 left!

0

69

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

70

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

71

MTD 746-0843

Throttle Cable 55" Lg.
(Superseded to 946-0671A)

Note: (Optional)

$14.99

$

In Stock, only 3 left!

0

72

MTD 736-0501

Spring Washer .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

73

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

74

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

75

MTD 746-0594

Drive Cable-41.5" Lg. (Dual Bail)

$

$

Not available

76

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

77

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

78

MTD 16309A

Cable Bracket

$

$

Not available

79

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 8

0

80

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

81

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

82

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

MTD 731-1035

Chute Deflector Only
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

83

MTD 731-1386A

Mulching Baffle
(Superseded to 731-1386D)

Note: (Optional)

$

$

Not available

84

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

85

MTD 17055B

Chain-Axle Ass'y.

Variations

MTD 17055B-0483

No Longer Available Axle ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17055B-0498

No Longer Available AXLE ASM- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17055B-0629

No Longer Available Axle ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

MTD 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17055B-0648

No Longer Available AXLE ASM- - TECH GRAY (0648)

$

$

Not available

MTD 17055B-0650

No Longer Available AXLE ASM- - RED METALLIC (0650)

$

$

Not available

MTD 17055B-0662

No Longer Available Axle ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 17055B-0665

AXLE ASSY-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

MTD 17055B-0667

No Longer Available AXLE ASM- - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17055B-0691

No Longer Available AXLE ASM- - BLACK JACK (0691)

$

$

Not available

$

$

86

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

87

MTD 16136C

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

Variations

MTD 16136C-0637

R.H. Handle Wheel Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

88

MTD 16855

Ratchet Plate

$6.49

$

In Stock, Qty 7

0

89

MTD 736-0270

Bell Washer .265 ID x .75

$3.99

$

In Stock, Qty 20+

0

90

MTD 710-0751

Cap Screw HH 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

91

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

92

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

93

MTD 750-0736

Spacer .383" I.D. x .503"
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

94

MTD 732-0481

Ext. Spring .5" O.D. x 3.8" Lg.
(Superseded to 932-0481)

$

$

Not available

95

MTD 736-0258

Fl-Wash. .385" I.D. x 1" O.D.

$4.49

$

In Stock, only 4 left!

0

96

MTD 717-0417B

Transmission Comp
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0

97

MTD 754-0369

"V"-Belt
(Superseded to 954-0369)

$28.99

$

In Stock, Qty 5

0

98

MTD 712-0414

Weld L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

99

MTD 748-0381

Pawl-R.H.

$11.99

$

Usually ships in 3-6 days

0

MTD 748-0188B

Pawl-L.H.
(Superseded to 948-0188B)

Note: (Not Shown)

$

$

Not available

100

MTD 10622B

Spring-Nylon

$5.49

$

In Stock, Qty 20+

0

101

MTD 738-0137A

Shld. Scr. .342" Dia. x .268"

$10.99

$

In Stock, Qty 10

0

102

MTD 741-0484

Sleeve Brg. 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

103

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 7

0

104

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0
