12A-18M7002 - Yard-Man Walk-Behind Mower (2010) (Sears) General Assembly 12A-18M7 Parts Diagram

Walk-Behind Mower

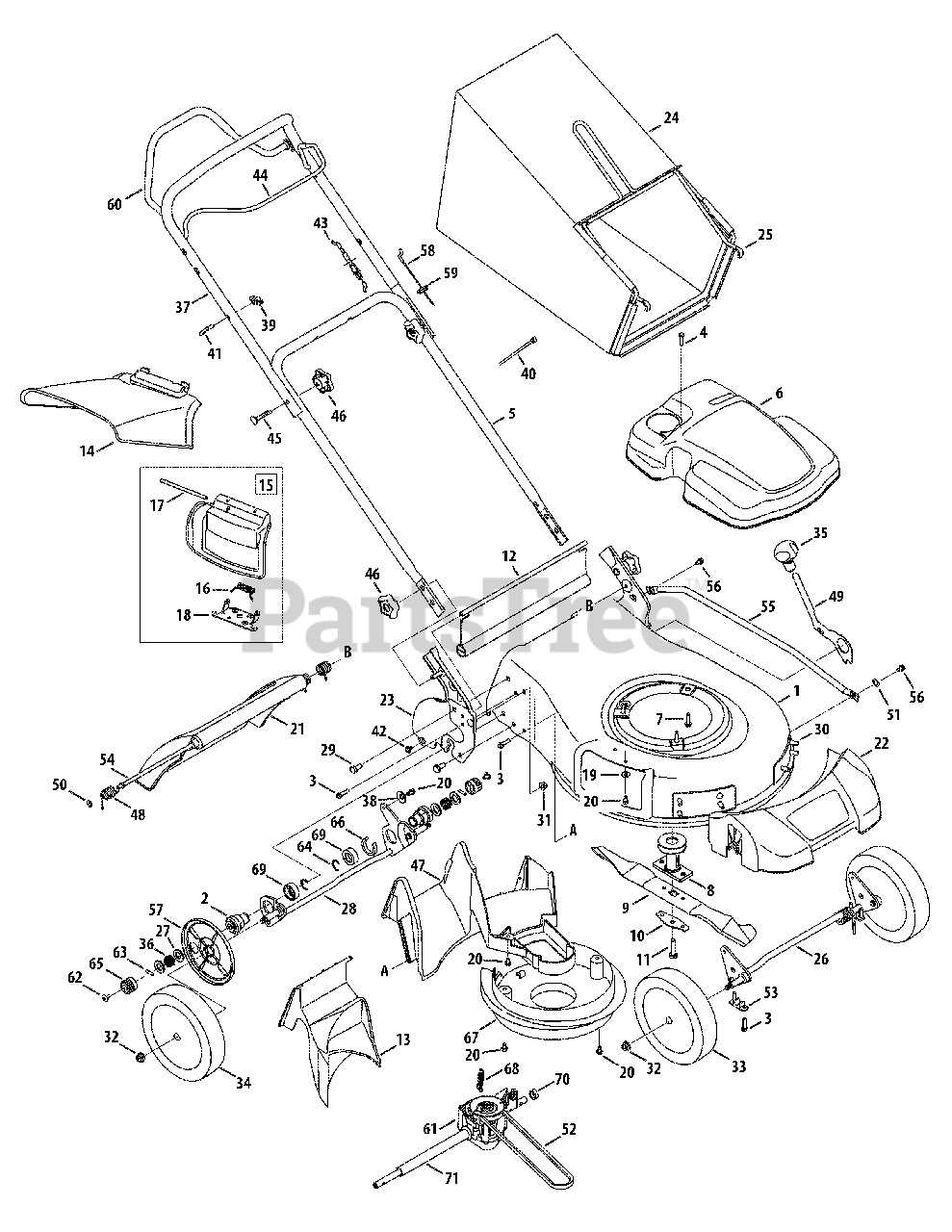

General Assembly 12A-18M7 Parts Diagram

  • Title

1

MTD 787-01629-0709

19" Deck

$

$

Not available

2

MTD 687-02415

Transmission Support Bearing

$23.99

$

In Stock, only 3 left!

0

3

MTD 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 19

0

4

MTD 710-04744

Screw, HL, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0

5

MTD 749-04556

Lower Handle

$47.99

$

Usually ships in 3-6 days

0

6

MTD 931-04462

Engine Shroud

$

$

Not available

7

MTD 710-0654A

Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 3 left!

0

8

MTD 687-02555

Blade Adapter

$37.99

$

In Stock, only 1 left!

0

9

MTD 942-0739

Mulching Blade

$23.99

$

In Stock, Qty 20+

0

10

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

11

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 9

0

12

MTD 731-05639A

Trailing Shield

$19.99

$

In Stock, only 4 left!

0

13

MTD 731-05746

Rear Mulch Plug

$

$

Not available

14

MTD 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

15

MTD 987-02055

Mulch Plug (Incl. 16-18)

$27.99

$

In Stock, Qty 8

0

16

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

17

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

18

MTD 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

19

MTD 736-0270

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

21

MTD 931-05686

Rear Door

$43.99

$

Usually ships in 3-6 days

0

22

MTD 931-05634

Front Cover

$67.99

$

Usually ships in 3-6 days

0

23

MTD 687-02323-0637

Handle Bracket - RH

$

$

Not available

23

MTD 687-02322-0637

Handle Bracket - LH
(Superseded to 687-02322)

$

$

Not available

24

MTD 964-04134

Grass Bag

$74.99

$

Usually ships in 3-6 days

0

25

MTD 647-04082-0637

Grass Bag Frame

$61.99

$

Usually ships in 3-6 days

0

26

MTD 687-02225-0637

Front Bracket Assembly

$52.99

$

In Stock, only 1 left!

0

27

MTD 936-0369

Washer, Flat, .508 x 1.00 x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 8

0

28

MTD 687-02304-0637

Self Propelled Bracket Ass’y

$132.99

$

In Stock, only 4 left!

0

29

MTD 710-3025

Hhcs, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

30

MTD 710-1242

Screw, 5/16-14 x .750

$4.99

$

In Stock, Qty 19

0

31

MTD 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

MTD 734-1988

Front Wheel

$20.99

$

In Stock, only 4 left!

0

34

MTD 634-04363

Rear Wheel

$50.99

$

Usually ships in 3-6 days

0

35

MTD 720-04096

Knob

$6.49

$

In Stock, only 1 left!

0

36

MTD 732-04650

Wave Spring

$10.99

$

In Stock, only 2 left!

0

37

MTD 749-04550

Upper Handle

$47.99

$

Usually ships in 3-6 days

0

38

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

39

MTD 720-0279

Knob

$4.49

$

Usually ships in 3-6 days

0

40

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

41

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 1 left!

0

42

MTD 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

43

MTD 946-04637

Control Cable

$45.99

$

In Stock, only 1 left!

0

44

MTD 747-04995

Blade Control

$28.99

$

Usually ships in 3-6 days

0

45

MTD 710-1174

Bolt Carriage, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

46

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

47

MTD 731-06190

Rear Baffle

$

$

Not available

48

MTD 732-04534

Door Torsion Spring - RH

$4.99

$

Usually ships in 3-6 days

0

48

MTD 732-04535

Door Torsion Spring - LH

$4.99

$

Usually ships in 3-6 days

0

49

MTD 732-04338C

Spring Lever

$

$

Not available

50

MTD 726-0101

Nut, Spd

$

$

Currently unavailable

51

MTD 736-04413

Wshr, Wave, .385 ID x .598 OD

$3.99

$

In Stock, Qty 5

0

52

MTD 954-04158

V-Belt

$18.99

$

In Stock, Qty 8

0

53

MTD 741-0492A

Bushing, Lock, .505 Dia. X .62

$6.49

$

In Stock, Qty 9

0

54

MTD 747-04589

Rear Door Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

55

MTD 749-04307-0637

Cross Bracket

$24.99

$

Usually ships in 3-6 days

0

56

MTD 738-04278

Scr., Shldr., 1/4-20 x .50

$6.99

$

In Stock, Qty 7

0

57

MTD 731-06974

Wheel Dust Cover

$6.99

$

Usually ships in 3-6 days

0

58

MTD 946-04519B

Drive Cable

$46.99

$

In Stock, only 2 left!

0

59

MTD 735-04059

Grommet

$4.99

$

In Stock, Qty 11

0

60

MTD 747-04994A

Drive Control
(Superseded to 747-05548)

$31.99

$

In Stock, only 1 left!

0

61

MTD 918-04463A

Transmission

$

$

Not available

61

MTD 732-04347

Guide Wire

Note: (Not Shown)

$9.49

$

Usually ships in 3-6 days

0

62

MTD 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

63

MTD 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 13

0

64

MTD 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

65

MTD 917-04192C

Spur Gear - RH

$7.49

$

In Stock, only 3 left!

0

65

MTD 917-04184C

Spur Gear - LH

$9.49

$

In Stock, only 3 left!

0

66

MTD 731-05872

Spacer, Clip

$6.99

$

In Stock, only 4 left!

0

67

MTD 731-06164

Engine Baffle

$31.99

$

In Stock, only 1 left!

0

68

MTD 932-04262

Exten. Spring, .429OD x 2.515

$9.49

$

Usually ships in 3-6 days

0

69

MTD 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 10

0

70

MTD 750-04870

Sleeve Spacer, .550ID x .340 Lg.

$6.49

$

Usually ships in 3-6 days

0

71

MTD 750-04853

Sleeve Spacer, .550ID x 7.97 Lg.

$

$

Not available
