12A-148L098 - Wizard Walk-Behind Mower (1997) (Western Auto) General Assembly Parts Diagram

Walk-Behind Mower

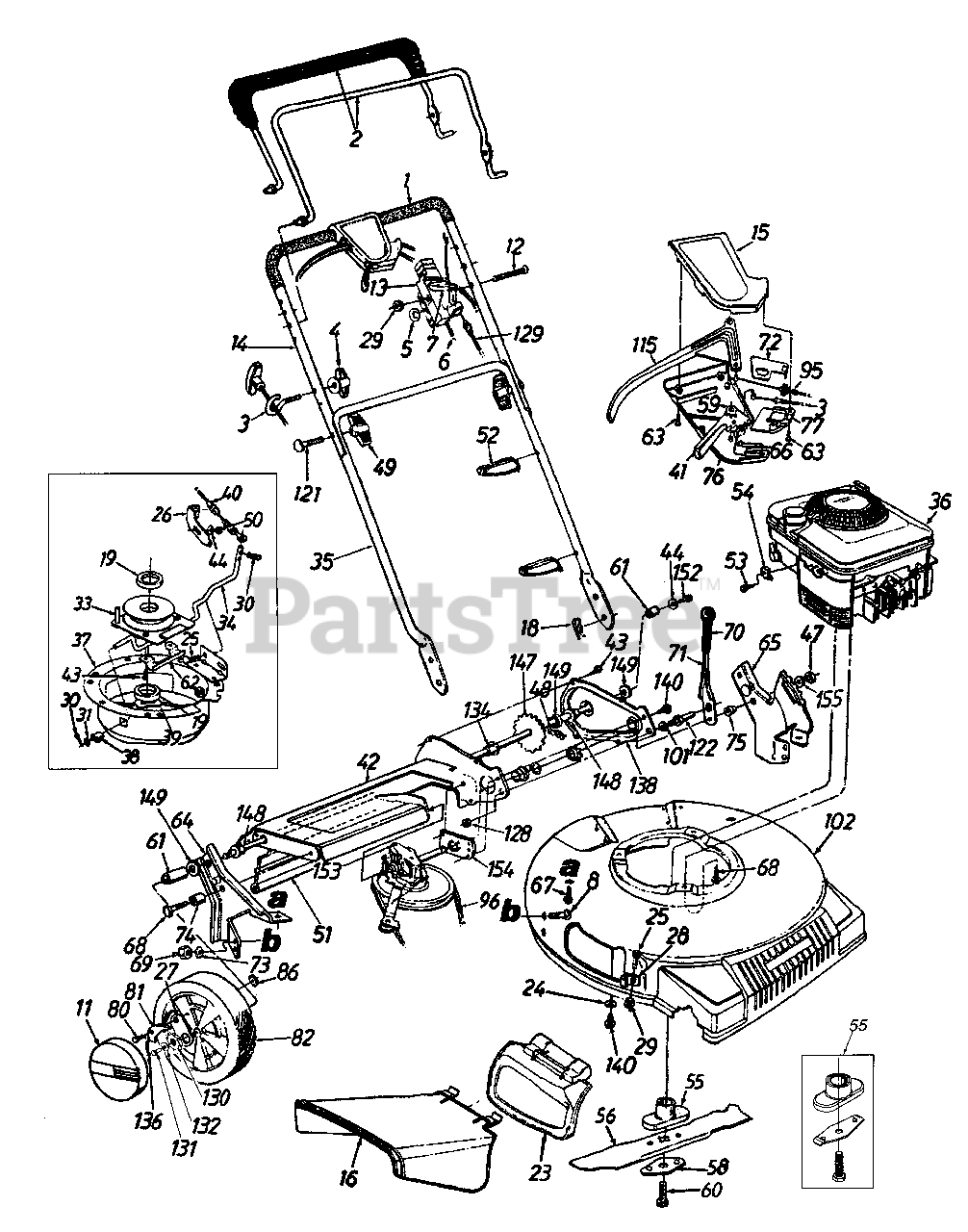

General Assembly Parts Diagram

  • Title

1

MTD 720-0225

Grip
(Superseded to 720-0294A)

Note: (Optional)

$7.49

$

In Stock, only 3 left!

0

2

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

3

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

4

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

5

MTD 736-0501

Curved Spring Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

6

MTD 1746-0843

Throttle Wire-55" Lg.

$

$

Currently unavailable

7

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

8

MTD 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

11

Hub Cap

$

$

Not available

MTD 731-0981A

Gray (5-1/2") Dia.
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

MTD 731-0982A

Beige (5-1/2") Dia.
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

MTD 731-1426

Yellow (5-1/2") Dia.
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

MTD 731-0249

Gray (3-1/2") Dia.

$

$

Currently unavailable

12

MTD 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 2 left!

0

13

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

14

MTD 749-0539B

Upper Handle
(Superseded to 749-0539C-0637)

Variations

MTD 749-0539B-0637

HANDLE-UPPER - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

15

MTD 731-0904

Upper Control Housing
(Superseded to 753-0717)

$

$

Not available

16

MTD 731-1409

Side Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

18

MTD 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

19

MTD 750-0968

Spacer .88" I.D.
(Superseded to 950-0968)

$5.99

$

Usually ships in 3-6 days

0

23

MTD 682-7000

Mulch Plug Ass'y.

$

$

Not available

24

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-0167

Carriage Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

26

MTD 17070

Adjustable Cable Bracket
(Superseded to 17070-0637)

Variations

MTD 17070-0637

BRACKET-ADJ CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 7

0

28

MTD 782-7009

Chute Stop Bracket

Variations

MTD 782-7009-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

30

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

31

MTD 736-0278

Fl-Wash. .328" I.D. x .68"

$5.99

$

Usually ships in 3-6 days

0

33

MTD 656-0612

Pulley Ass'y
(Superseded to 956-0612)

$138.99

$

Usually ships in 3-6 days

0

34

MTD 747-0882A

Shift Rod

$

$

Not available

35

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

36

Engine

$

$

Not available

37

MTD 682-7514

Housing Ass'y.

Variations

MTD 682-7514-0637

Housing Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

38

MTD 731-1137

Flanged Bushing
(Superseded to 931-1137)

$

$

Not available

39

MTD 736-0526

Wave Washer .88" I.D.

$6.99

$

Usually ships in 3-6 days

0

40

MTD 746-0706

6 Spd. Cable

$

$

Not available

41

MTD 731-0924

6 Spd. Shift Lever

$

$

Not available

42

MTD 682-7513

Chain-Axle Ass'y.
(Superseded to 982-7513)

Variations

MTD 682-7513-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 682-7513-0483

AXLE ASSY-CHAIN (6 - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-7513-0498

AXLE ASSY-CHAIN (6 - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-7513-0629

AXLE ASSY-CHAIN (6 - SILVER FLAKE (0629)

$

$

Not available

MTD 682-7513-0637

AXLE ASSY-CHAIN (6 - POWDER BLACK (0637)

$

$

Not available

MTD 682-7513-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-7513-0640

No Longer Available - CO-OP GREEN (0640)

$

$

Not available

MTD 682-7513-0648

AXLE ASSY-CHAIN (6 - TECH GRAY (0648)

$

$

Not available

MTD 682-7513-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 682-7513-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

43

MTD 710-0653

Hex Tap Scr. 1/4" x .38"

$4.49

$

In Stock, Qty 7

0

44

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

47

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

MTD 713-0361

#48 Chain .500" Pitch x 38 Links
(Superseded to 913-0361)

$

$

Not available

49

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 8

0

50

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

51

MTD 731-1483

Rear Flap 4.8" x 17.5" Lg.

$

$

Not available

52

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

53

MTD 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

54

MTD 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

55

MTD 748-0377B

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 1 left!

0

56

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

58

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

59

MTD 713-0397

Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

60

MTD 710-1257

Hex Bolt 3/8-24 x 2.5" Lg. (Gr. 8)

$7.99

$

In Stock, only 1 left!

0

61

MTD 748-0190

Spacer .513" I.D.

$6.49

$

In Stock, Qty 11

0

62

MTD 782-7563

Bracket-Shift Plate
(Superseded to 782-7563-0637)

Variations

MTD 782-7563-0637

BRACKET-SHIFT PLAT - POWDER BLACK (0637)

$

$

Not available

$

$

63

MTD 710-0841

C-Sunk Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

64

MTD 682-3006A

R.H. Handle Wheel Brkt. Ass'y.

Variations

MTD 682-3006A-0483

No Longer Available BRACKET AS - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-3006A-0498

No Longer Available BRACKET AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-3006A-0629

No Longer Available BRACKET AS - SILVER FLAKE (0629)

$

$

Not available

MTD 682-3006A-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

MTD 682-3006A-0638

No Longer Available BRACKET AS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-3006A-0662

No Longer Available BRACKET AS - OYSTER GRAY (0662)

$

$

Not available

MTD 682-3006A-0665

No Longer Available BRACKET AS - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

MTD 682-3007A

L.H. Handle Wheel Brkt. Ass'y.

Variations

MTD 682-3007A-0483

No Longer Available BRACKET AS - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-3007A-0498

No Longer Available BRACKET AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-3007A-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

MTD 682-3007A-0638

No Longer Available BRACKET AS - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

66

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

67

MTD 710-0607

Screw Tap

$6.99

$

In Stock, Qty 9

0

68

MTD 710-0654A

Hex TT-Tap Scr. 3/8-16

$4.49

$

In Stock, Qty 20+

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

71

MTD 732-0725

Height Adj. Lever

$

$

Not available

72

MTD 16864

6 Spd. Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0736

Spacer .383" I.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

MTD 750-0624

Shld. Spacer.5" Dia.

$

$

Not available

76

MTD 731-0905

Lower Control Housing
(Superseded to 753-0717)

$

$

Not available

77

MTD 731-0906

Cable Mounting Cap
(Superseded to 753-0717)

$

$

Not available

80

MTD 738-0137A

Shld. Scr. .342" Dia. x .268

$10.99

$

In Stock, Qty 10

0

81

MTD 748-0381

Pawl-R.H.

$11.99

$

Usually ships in 3-6 days

0

MTD 748-0188B

Pawl-L.H.
(Superseded to 948-0188B)

Note: (Not Shown)

$

$

Not available

82

MTD 734-1510B

Wheel Ass'y. Comp. (Gray Rim)
(Superseded to 734-1826)

$33.99

$

In Stock, Qty 9

0

MTD 734-1791

Wheel Ass'y. Comp. (Yellow Rim)

$

$

Not available

MTD 734-1514B

Wheel Ass'y. Comp. (Beige Rim)
(Superseded to 734-1826)

$33.99

$

In Stock, Qty 9

0

MTD 741-0486B

Wheel Bearing

$

$

Not available

86

MTD 712-0414

Weld Top L-Nut 1/4-20Thd.

$4.49

$

In Stock, Qty 20+

0

95

MTD 746-0710A

S.R Cable
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

96

MTD 754-0343

V-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, Qty 9

0

101

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

102

MTD 682-0023

21" Deck Ass'y.

Variations

MTD 682-0023-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0023-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0023-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0023-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0023-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

115

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

121

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

122

MTD 711-0805

Shld. Pin 1.43" Lg.

$

$

Not available

128

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

129

MTD 746-0550

Control Cable-39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

130

MTD 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 15

0

131

MTD 710-0751

Cap Screw HH 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

132

MTD 736-0270

Bell Washer .265 ID x .75

$3.99

$

In Stock, Qty 20+

0

134

MTD 741-0522

Hex Flange Bearing

$

$

Not available

136

MTD 10622B

Spring Nylon

$5.49

$

In Stock, Qty 20+

0

138

MTD 682-7506

Chain Cover Ass'y.

Variations

MTD 682-7506-0483

No Longer Available COVER ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-7506-0498

No Longer Available COVER ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-7506-0637

No Longer Available COVER ASM - POWDER BLACK (0637)

$

$

Not available

MTD 682-7506-0638

No Longer Available COVER ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

140

MTD 710-0599

Hex TT-Tap Scr. 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

147

MTD 738-0864

Rear Shaft Ass'y. 21.44" Lg.
(Superseded to 938-0864)

$

$

Not available

148

MTD 741-0324

Hex Flange Brg. .506" I.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

MTD 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

152

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

153

MTD 717-0417B

Transmission Comp.(See Breakdown)
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0

154

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

155

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0
