12972 - Ariens 26" Fairway Rear-Engine Rider, 6hp Tecumseh (SN: 000001 & Above) Mower Deck Parts Diagram

26" Fairway Rear-Engine Rider, 6hp Tecumseh

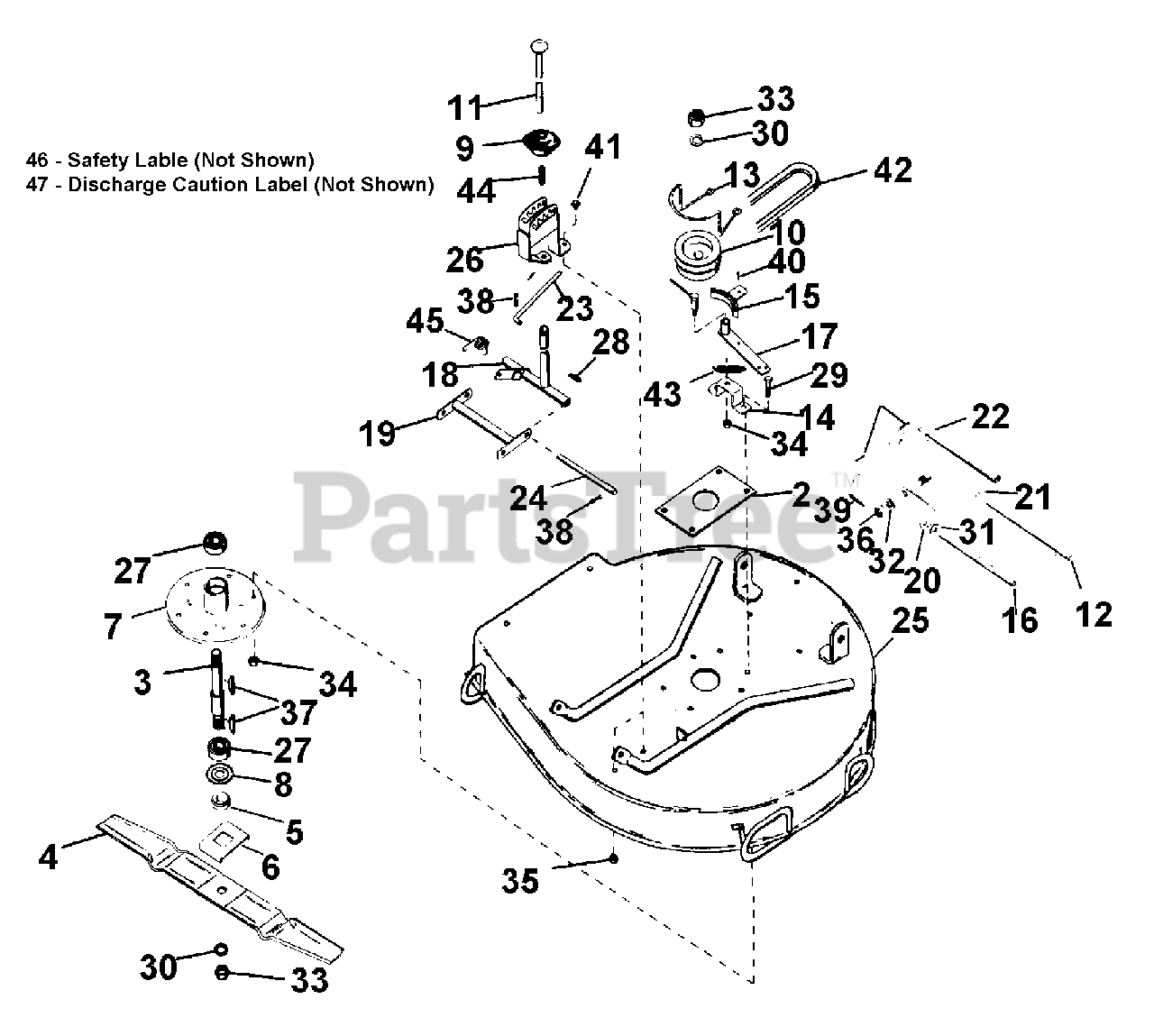

Mower Deck Parts Diagram

  • Title

1

Ariens 00301600

SHOULDER BOLT .50 X 1.75

$

$

Not available

2

Ariens 00311700

PLATE

$

$

Not available

3

Ariens 00312700

MOWER SPINDLE

$68.99

$

Usually ships in 4-12 days

0

4

Ariens 00316500

BLADE, MOWER

$67.99

$

In Stock, only 2 left!

0

5

Ariens 00316900

RETAINER HUB

$

$

Not available

6

Ariens 00317000

BLADE TRAY

$30.99

$

Usually ships in 4-12 days

0

7

Ariens 00317200

SPINDLE HOUSING

$

$

Not available

8

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

9

Ariens 01024800

SHIFT BALL

$

$

Not available

10

Ariens 01202500

MOWER SHEAVE

$

$

Not available

11

Ariens 01205600

HGHT CNTL PLNGR

$

$

Not available

12

Ariens 01205900

REAR BRACKET PIN

$

$

Not available

13

Ariens 01206100

MOWER BELT FINGER

$

$

Not available

14

Ariens 01206200

BLADE BRAKE SUPPORT

$

$

Not available

15

Ariens 01206300

BLADE BRAKE

$

$

Not available

16

Ariens 01206700

HANGER PIN

$

$

Not available

17

Ariens 01211100

BLADE BRAKE ARM

$

$

Not available

18

Ariens 01211200

HGHT CNTL ARM

$

$

Not available

19

Ariens 01211300

FLOATING LINK
(Superseded to 01229300)

$

$

Not available

20

Ariens 01211400

CLEVIS

$

$

Not available

21

Ariens 01211500

CLEVIS

$

$

Not available

22

Ariens 01211600

REAR RAISING BRACKET

$

$

Not available

23

Ariens 01211700

HGHT LINK ROD

$

$

Not available

24

Ariens 01212500

ADAPTER PIN

$

$

Not available

25

Ariens 01216500

MOWER PAN
(Superseded to 51202300)

$

$

Not available

26

Ariens 01217000

MWR HGHT QUAD

$

$

Not available

27

Ariens 05407300

BRG-BALL .751X1.78X.61
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

28

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

29

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

31

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

34

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06504900

NUT-JAM-SL .625-18

$

$

Not available

37

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 11

0

38

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

39

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 06801600

RVT .25X.50 RH ST

$

$

Not available

41

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

42

Ariens 07202900

V-BELT, 5L-RAW EDGE

$48.99

$

Usually ships in 4-12 days

0

46

Ariens 07802600

SAFETY LABEL

Note: (Not Shown)

$

$

Not available

47

Ariens 07802800

DISCHARGE CAUTION LABEL
(Superseded to 07729600)

Note: (Not Shown)

$25.99

$

Usually ships in 4-12 days

0

43

Ariens 08301000

SG-TENS .072X.51X5.31 WLD 25

$9.49

$

Usually ships in 4-12 days

0

44

Ariens 08301500

SG-COMP ??X.44X?? WLD 10

$5.99

$

Usually ships in 4-12 days

0

45

Ariens 08302700

SG-TORS .162X.75X.648

$

$

Not available
