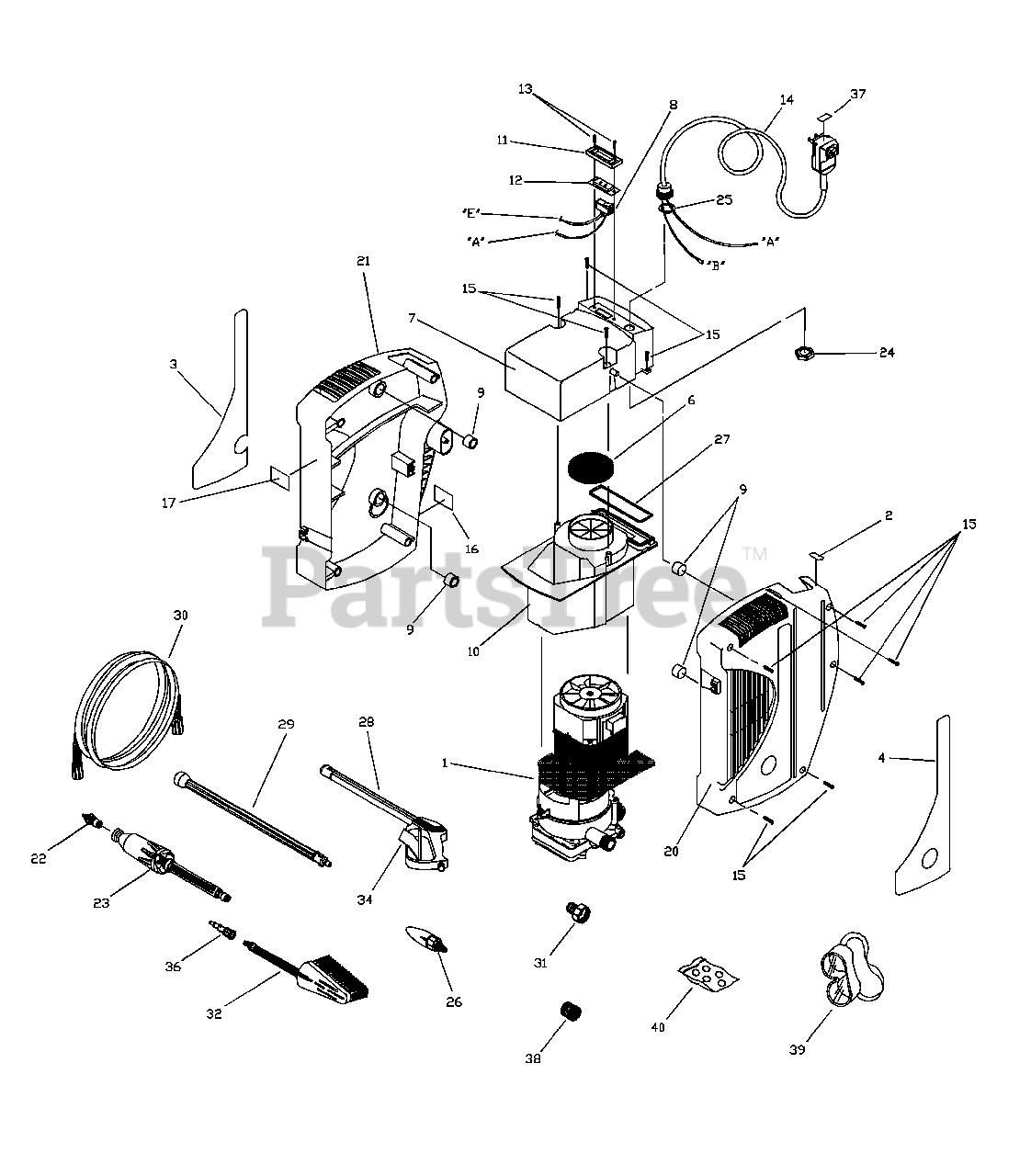

1297-0 - Generac 1,400 PSI Pressure Washer Main Unit Parts Diagram

1,400 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

~N/A

ASSY., Pump & Motor

Note: (See "Pump/Motor" illustration and parts list)

$

$

Not available

2

Briggs & Stratton B1415

DECAL, Branch Circuit
(Superseded to B1415GS)

$5.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 188646

DECAL, Unit

$

$

Currently unavailable

4

Briggs & Stratton 185945

DECAL, Instructions

$

$

Currently unavailable

6

Briggs & Stratton 98806

FOAM, Air In, Fan-end
(Superseded to 98806GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 97893

HOUSING, Switch and Cord
(Superseded to B1650GS)

$91.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 20984

SWITCH, Rocker

$

$

Not available

9

Briggs & Stratton 98801

MOUNT, Rubber
(Superseded to 98801GS)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B1566

COVER, Motor

$

$

Not available

11

Briggs & Stratton 20985

ENCLOSURE, Rocker Switch, Boot
(Superseded to 5020985)

$

$

Not available

12

Briggs & Stratton 20986

BOOT, Rocker Switch
(Superseded to 5020986)

$32.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 84543B

SCREW, 3.5mm x 12mm Plastite
(Superseded to 84543BGS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B5597

ASSY., Power Cord, w/GFCI
(Superseded to B5597GS)

$125.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84358

SCREW, #6-19 x .75" Plastite
(Superseded to 84358GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B3532

DECAL, User Guide
(Superseded to B3532GS)

$7.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B1053

DECAL, ETL
(Superseded to B1053GS)

$1.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 97694

HOUSING, Inlet
(Superseded to 97694GS)

$40.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 97695

HOUSING, Outlet

$

$

Not available

22

Briggs & Stratton B2433

NOZZLE, Foamer
(Superseded to B2433GS)

$9.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B2390

FOAMER
(Superseded to B2390GS)

$46.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1484

NUT, Strain Relief, Lock
(Superseded to A1484GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton A1485

SEAL RING, Strain Relief

$

$

Not available

26

Briggs & Stratton B1300G

NOZZLE
(Superseded to B1300GGS)

$26.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 97835

"O" RING, Housing Seal
(Superseded to 97835GS)

$3.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 21336

GUN, Spray

$

$

Currently unavailable

29

Briggs & Stratton 21337

LANCE
(Superseded to 21337GS)

$32.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton B3337

HOSE, High Pressure

$

$

Currently unavailable

31

Briggs & Stratton 21781

QUICK CONNECT, Pump

$

$

Not available

32

Briggs & Stratton 88185

BRUSH, Utility
(Superseded to 88185GS)

$77.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B1866

DECAL, EPW Gun
(Superseded to B1866GS)

$12.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B1051

ADAPTER, Bayonet
(Superseded to B1051GS)

$11.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 187118

DECAL, GFCI Reset

$

$

Currently unavailable

38

Briggs & Stratton 21782

QUICK CONNECT, Hose

$

$

Not available

39

Briggs & Stratton 87815

GOGGLES
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton B2735

KIT, O-Ring
(Superseded to B2735GS)

$12.99

$

Usually ships in 2-12 days

0
