1293-0 - Generac 2,700 PSI Pressure Washer Main Unit Parts Diagram

2,700 PSI Pressure Washer

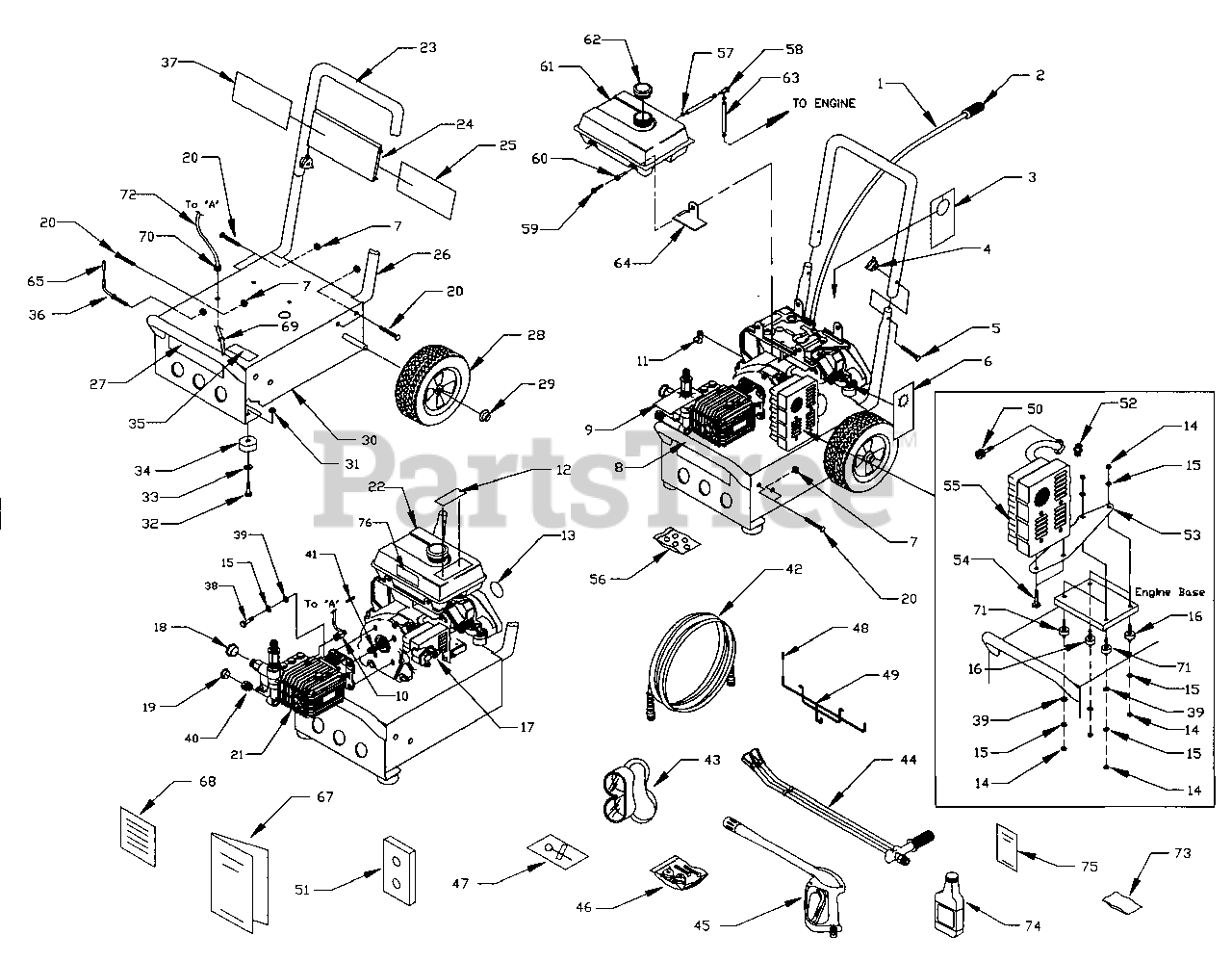

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton A1040D

HOSE, 4-1/2' Chemical Clear
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 70453

TAG, Warning Oil
(Superseded to 70453GS)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 97178

KNOB, Handle 1/4 - 20 PW
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 31669

BOLT, 1/4 - 20 x 1-3/4 Carriage
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

6

Briggs & Stratton B1210A

TAG, Start Instructions
(Superseded to B1210AGS)

$2.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 99583

NUT, Flange Lock 5/16-18
(Superseded to 99583GS)

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B1982

BUMPER
(Superseded to B1982GS)

$53.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 97054

TAG, Pres. Adjust

$

$

Not available

10

Briggs & Stratton B2727

VALVE, Thermal Relief

$

$

Currently unavailable

11

Briggs & Stratton B1232

CLAMP, Hose 7/16" Dia.
(Superseded to B1232GS)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 21786

DECAL, Danger
(Superseded to 21786GS)

$13.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 91682B

DECAL, Recoil

$

$

Not available

14

Briggs & Stratton 45771

NUT, M8-1.25 Hex

$

$

Not available

15

Briggs & Stratton 22129

LOCKWASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 21217

MOUNT, Rubber Shock M8
(Superseded to 21217GS)

$7.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton ~NSP

QT., liquid Neoprene

$

$

Currently unavailable

18

Briggs & Stratton 97100

CAP, H.P. Adapter
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 97098

CAP, Garden Hose Inlet
(Superseded to 97098GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B2043

BOLT, 5/16-18 x 1-3/4 Carriage
(Superseded to B2043GS)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B3169

ASSEMBLY, Pump
(Superseded to B3169GS)

$713.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton ~NSP

ENGINE ENGB2219C

$

$

Currently unavailable

23

Briggs & Stratton B1983

HANDLE
(Superseded to B1983GS)

$69.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B1631A

BILLBOARD, Plastic
(Superseded to B1631AGS)

$35.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B1932

DECAL, Instructions
(Superseded to B1932GS)

$15.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B1981

SUPPORT, Handle
(Superseded to CB1981GS)

$19.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B2192

DECAL, Generac
(Superseded to B2192GS)

$17.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B1760

ASSEMBLY, 10" Tire 8 Wheel
(Superseded to B1760GS)

$81.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 75402

PUSHNUT, .50 Dia.
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

30

Briggs & Stratton AB1770

BASE

$

$

Not available

31

Briggs & Stratton 52858

NUT, M8 1.25 Flange Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 42909

HHCS, M8 1.25 x 30
(Superseded to 42909GS)

$

$

Not available

33

Briggs & Stratton 50190

WASHER, M8 Flat
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 27007

MOUNT, Donut Type Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 9

0

35

Briggs & Stratton 20566

DECAL, Generac #1-800
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B2150

HOOK, Gun
(Superseded to B2150GS)

$4.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B3761

DECAL, Logo
(Superseded to B3761GS)

$11.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 22336

HHCS, 5/16 - 24 x 3/4

$

$

Not available

39

Briggs & Stratton 22145

FLATWASHER, M8 5/16

$

$

Not available

40

Briggs & Stratton 95320

CONNECTOR, Garden Hose
(Superseded to 95320GS)

$42.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 89241

KEY, 3/16 x 1/4" Hardened
(Superseded to 89241GS)

$3.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B3635

HOSE, High Pressure
(Superseded to 206192GS)

$103.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 87815

GOGGLES, Safety
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B2140C

LANCE, Dual
(Superseded to B2140CGS)

$148.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B3263

GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, Qty 7

0

46

Briggs & Stratton B2203

KIT, Handle Fastening
(Superseded to B2203GS)

$5.49

$

In Stock, only 1 left!

0

47

Briggs & Stratton B2508

KIT, Cleaning
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton B1460

CAP, Vinyl (black)
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton B2168

HANGER, Hose, Gun, Jug

$

$

Currently unavailable

50

Briggs & Stratton 40976

SHCS, M8 1.25 x 20

$

$

Not available

51

Briggs & Stratton B2431

VIDEO
(Superseded to B2431GS)

$13.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 89476

GASKET, Exhaust
(Superseded to 89476GS)

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 83208

BRACKET, Muffler
(Superseded to 83208GS)

$21.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 66476

HHCS, M6 1.0 x 12
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 83071

MUFFLER
(Superseded to 83071GS)

$

$

Not available

56

Briggs & Stratton B3062

KIT, Maintenance
(Superseded to 196002GS)

$18.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 48031C

CLAMP, Hose

$

$

Not available

58

Briggs & Stratton 96193

VALVE, Fuel Shut Off
(Superseded to 698181)

$11.99

$

In Stock, Qty 20+

0

59

Briggs & Stratton 96001

BOLT, M6-1.0 x 21 Lg. Shoulder

$

$

Not available

60

Briggs & Stratton 96002

BUSHING, Tank
(Superseded to 96002GS)

$5.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 94994

TANK, 1 Gal Fuel
(Superseded to 94994GS)

$

$

Not available

62

Briggs & Stratton 95549

CAP, Fuel
(Superseded to 95549GS)

$28.99

$

In Stock, only 1 left!

0

63

Briggs & Stratton 30340C

HOSE, Fuel-1/4" I.D.
(Superseded to 30340CGS)

$1.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 21545

SHIELD, Heat
(Superseded to 5021545)

$68.99

$

In Stock, only 2 left!

0

65

Briggs & Stratton B2516

CAP, Vinyl (black)
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton B3757

MANUAL
(Superseded to B3757GS)

$14.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 88681

CARD, Owner Registration

$

$

Currently unavailable

69

Briggs & Stratton 48031B

CLAMP, Hose 3/8"
(Superseded to 48031BGS)

$3.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 30809

GROMMET, Rubber
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton B3800

MOUNT, Rubber Shock, M8
(Superseded to 21217GS)

$7.49

$

Usually ships in 2-12 days

0

72

Briggs & Stratton B3107A

HOSE, Thermal Relief
(Superseded to B3107GS)

$12.99

$

In Stock, only 1 left!

0

73

Briggs & Stratton 85883

STA-BIL(R)
(Superseded to 85883GS)

$1.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton BB3061

OIL, 28 oz.
(Superseded to BB3061GS)

$13.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 83831

BROCHURE, Sta-Bil(R)
(Superseded to 83831GS)

$1.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 81886

DECAL, Sta-Bil(R)
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0
