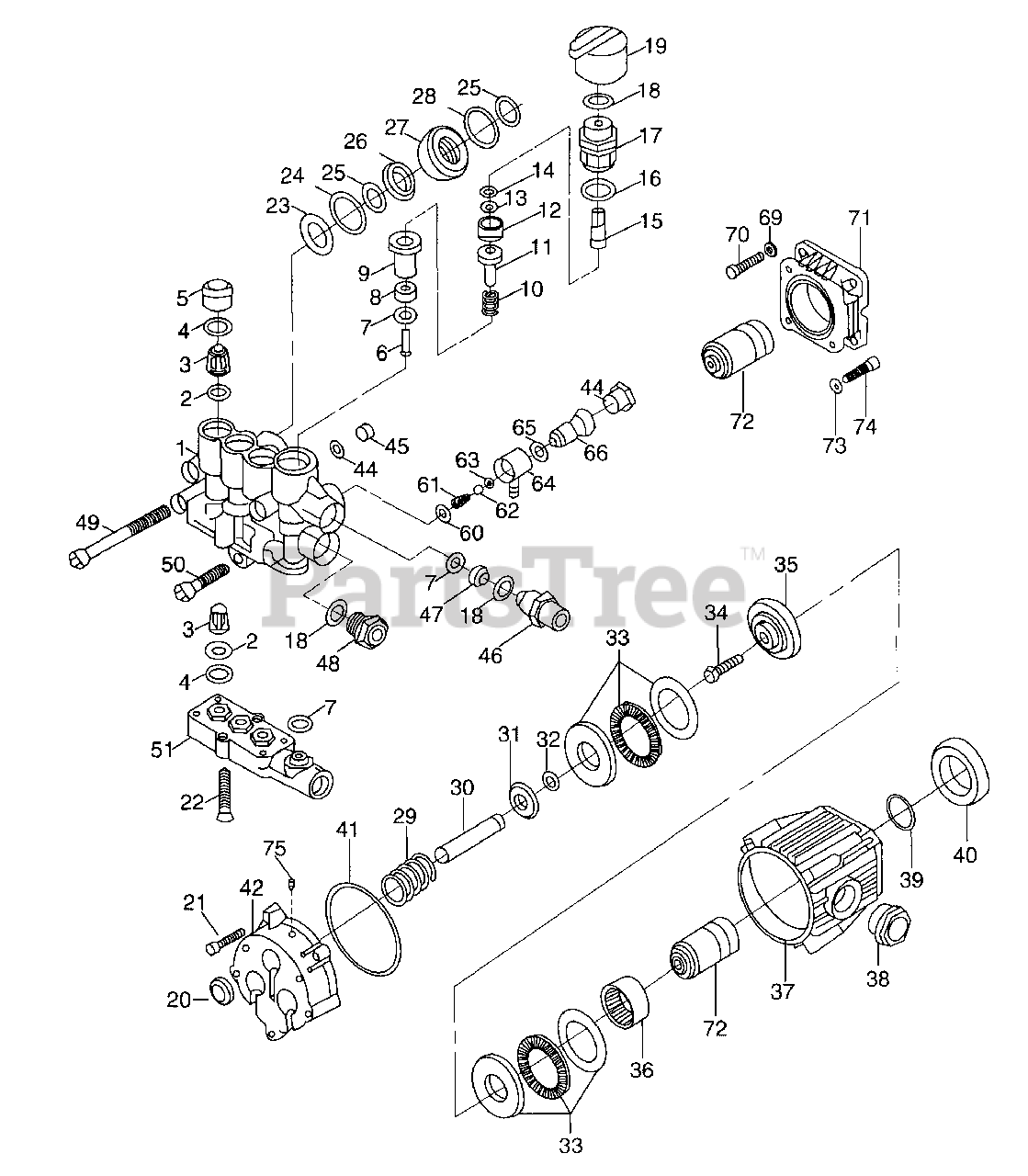

1292-3 - Generac 2,300 PSI Pressure Washer Pump Parts Diagram

2,300 PSI Pressure Washer

Pump Parts Diagram

  • Title
1

Briggs & Stratton 100B3699

MANIFOLD
(Superseded to 100B3699GS)

$284.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 165B3169

O-RING 12.42 X 1.78
(Superseded to 165B3169GS)

$4.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 102B3699

VALVE UNIT
(Superseded to 102B3699GS)

$18.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 103B3699

ORING 5.60 X 1.78
(Superseded to 103B3699GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 104B3699

VALVE CAP
(Superseded to 104B3699GS)

$13.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 105B3699

UNLOADER VALVE SCREW
(Superseded to 105B3699GS)

$20.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 106B3699

O-RING 9.92 X 2.62
(Superseded to 106B3699GS)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 107B3699

VALVE SEAT
(Superseded to 107B3699GS)

$40.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 108B3699

SPACER
(Superseded to 108B3699GS)

$8.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 109B3699

SPRING
(Superseded to 109B3699GS)

$4.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 110B3699

UNLOADER PISTON
(Superseded to 110B3699GS)

$63.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 187292

SEAL
(Superseded to 187292GS)

$7.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 112B3699

ORING
(Superseded to 112B3699GS)

$3.49

$

In Stock, only 1 left!

0

14

Briggs & Stratton 113B3699

ANTI-EXTRUSION RING
(Superseded to 113B3699GS)

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 114B3699

UNLOADER STEM
(Superseded to 114B3699GS)

$46.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 10892293P

O-RING
(Superseded to 10892293PGS)

$

$

Not available

17

Briggs & Stratton 116B3699

GUIDE
(Superseded to 116B3699GS)

$112.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 10292293P

O-RING
(Superseded to 10292293PGS)

$

$

Not available

19

Briggs & Stratton 118B3699

REGULATIONG KNOB
(Superseded to 118B3699GS)

$

$

Not available

20

Briggs & Stratton 119B3699

OIL SEAL
(Superseded to 119B3699GS)

$26.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 120B3699

SCREW, M6 X 30
(Superseded to 120B3699GS)

$5.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 12692294P

SCREW, M6 X 30
(Superseded to 12692294PGS)

$6.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 122B3699

HEAD RING
(Superseded to 122B3699GS)

$6.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 123B3699

O-RING
(Superseded to 123B3699GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 120B3169

O-RING
(Superseded to 120B3169GS)

$2.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 125B3699

PACKING
(Superseded to 125B3699GS)

$6.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 126B3699

RETAINER 15MM
(Superseded to 126B3699GS)

$47.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 119B3169

O-RING
(Superseded to 119B3169GS)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 128B3699

SPRING 33 X 56
(Superseded to 128B3699GS)

$86.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 129B3699

PISTON ASSEMBLY
(Superseded to 129B3699GS)

$136.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 130B3699

SPRING PLATE
(Superseded to 130B3699GS)

$39.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 131B3699

SPRING PLATER RETAINER
(Superseded to 131B3699GS)

$26.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 132B3699

ROLLER BEARING
(Superseded to 132B3699GS)

$148.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 148B3169

SCREW,M8 X 28
(Superseded to 148B3169GS)

$6.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 134B3699

WOBBLE PLATE
(Superseded to 134B3699GS)

$176.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 135B3699

BEARING BUSHING
(Superseded to 135B3699GS)

$96.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 136B3699

CRANKCASE
(Superseded to 136B3699GS)

$

$

Not available

38

Briggs & Stratton 100B3699A

BRASS PLUG W/O-RING
(Superseded to 100B3699AGS)

$50.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 138B3699

SNAP RING
(Superseded to 138B3699GS)

$8.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 139B3699

OIL SEAL
(Superseded to 139B3699GS)

$33.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 12092293P

O-RING
(Superseded to 12092293PGS)

$7.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 141B3699

PISTON GUIDE
(Superseded to 141B3699GS)

$188.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 142B3699

PLUG, M14 X 1.5 X 9MM

$

$

Currently unavailable

44

Briggs & Stratton 143B3699

PLUG, 10MM
(Superseded to 143B3699GS)

$18.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 144B3699

O-RING
(Superseded to 144B3699GS)

$4.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 100B3169A

NIPPLE, 3/8 NPT
(Superseded to 100B3169AGS)

$20.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 146B3699

ORFICE, 1.8MM
(Superseded to 146B3699GS)

$33.99

$

In Stock, only 1 left!

0

48

Briggs & Stratton 147B3699

PLUG, 3/8"
(Superseded to 147B3699GS)

$7.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 148B3699

SCREW,M8 X 70
(Superseded to 148B3699GS)

$10.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 149B3699

SCREW, M8 X 25
(Superseded to 149B3699GS)

$6.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 150B3699

INLET MANIFOLD
(Superseded to 150B3699GS)

$

$

Not available

60

Briggs & Stratton 177B3169

O-RING
(Superseded to 177B3169GS)

$

$

Not available

61

Briggs & Stratton 178B3169

SPRING, CONICAL
(Superseded to 178B3169GS)

$

$

Not available

62

Briggs & Stratton 179B3169

BALL, 7/32"
(Superseded to 179B3169GS)

$8.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 11492293P

O-RING
(Superseded to 11492293PGS)

$

$

Not available

64

Briggs & Stratton 197B3169

HOSE BARB
(Superseded to 197B3169GS)

$8.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 112B3169

O-RING
(Superseded to 112B3169GS)

$6.49

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 157B3699

INSPECTOR HOUSING
(Superseded to 157B3699GS)

$47.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 12792293P

WASHER
(Superseded to 93873GS)

$3.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 159B3699

SCREW
(Superseded to 159B3699GS)

$8.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 160B3699

GAS MOUNTING FLANGE
(Superseded to 160B3699GS)

$71.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 161B3699

CRANKSHAFT
(Superseded to 161B3699GS)

$341.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 10692293P

WASHER
(Superseded to 10692293PGS)

$2.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 12692293P

SCREW
(Superseded to 12692293PGS)

$2.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 164B3699

VENT PLUG
(Superseded to 164B3699GS)

$46.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201B3699

HIGH PRESSURE SEAL REPAIR KIT
(Superseded to 201B3699GS)

Note: ITEMS 23 - 28. ASSY'S IN KIT 1.

$54.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202B3699

CHECK VALVE C/O-RING REPAIR KIT
(Superseded to 202B3699GS)

Note: ITEMS 4 & 5. ASSY'S IN KIT 4.

$59.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203B3699

CHECK VALVE C/O-RING REPAIR KIT
(Superseded to 203B3699GS)

Note: ITEMS 2 & 3. ASSY'S IN KIT 6.

$96.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 204B3699

OIL SEAL REPAIR KIT
(Superseded to 204B3699GS)

Note: ITEM 20 INCLUDED. ASSY'S IN KIT 3.

$75.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 187293

UNLOADER
(Superseded to 187293GS)

Note: ITEMS 7 - 18. ASSY'S IN KIT 1.

$207.99

$

Usually ships in 2-12 days

0
