1292-2 - Generac 2,300 PSI Pressure Washer, Canada Main Unit Parts Diagram

2,300 PSI Pressure Washer, Canada

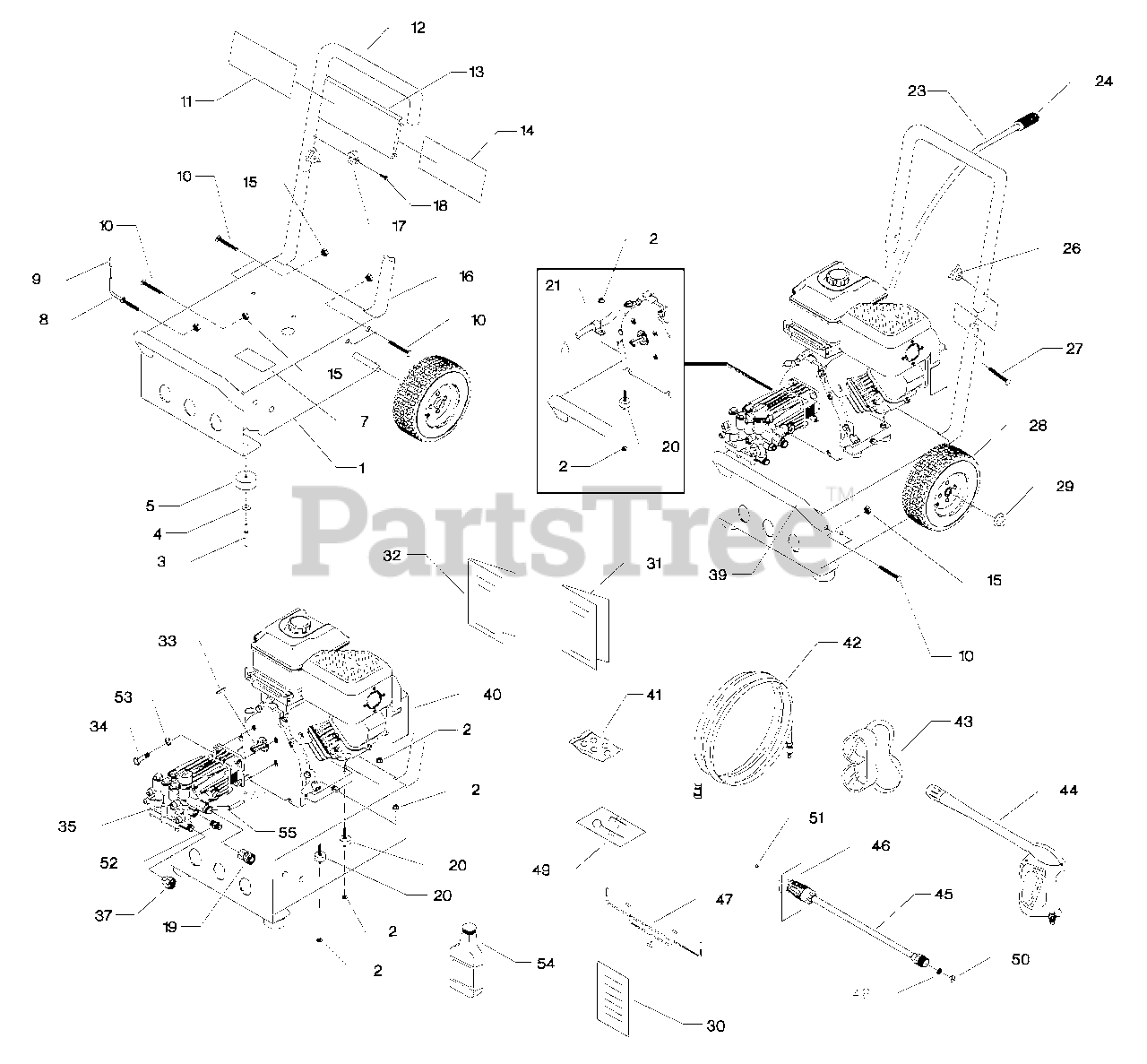

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton AB5721GS

BASE

$113.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 5

0

3

Briggs & Stratton 188194GS

RIVET, Blind

$

$

Not available

4

Briggs & Stratton 71693GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 27007GS

MOUNT, Vibe
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

7

Briggs & Stratton ~NSP

DECAL, IMP. Purge Air

$

$

Currently unavailable

8

Briggs & Stratton B2150GS

HOOK, Gun

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B2516GS

CAP, Vinyl

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B2043GS

BOLT, Carriage

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B5713GS

DECAL, Logo

$16.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B1983GS

HANDLE

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B1631AGS

BILLBOARD, Plastic

$35.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton ~NSP

DECAL, Instructions

$

$

Currently unavailable

15

Briggs & Stratton 99583GS

NUT, Lock

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B1981GS

SUPPORT, Handle
(Superseded to CB1981GS)

$19.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 65852AGS

SPRING CLIP, Holder

$

$

Not available

18

Briggs & Stratton 185954GS

SCREW

$

$

Not available

19

Briggs & Stratton 95458GS

QUICK CONNECT
(Superseded to 703824)

$

$

Not available

20

Briggs & Stratton 21217GS

MOUNT, Rubber Shock

$7.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B1232GS

CLAMP, Hose

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton A1040DGS

HOSE, Chemical Clear
(Superseded to 705076)

$12.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton A1041GS

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 97178GS

KNOB, Handle

$8.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 31669GS

BOLT, Carriage

$3.49

$

In Stock, only 2 left!

0

28

Briggs & Stratton B4966GS

ASSY, Wheel
(Superseded to 209636GS)

$93.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 190147GS

NUT, Push
(Superseded to 194062GS)

$4.49

$

In Stock, only 2 left!

0

30

Briggs & Stratton ~NSP

SHEET, Info

$

$

Currently unavailable

31

Briggs & Stratton B3297GS

MANUAL, Engine

$

$

Not available

32

Briggs & Stratton B5715XGS

MANUAL, Owners

$

$

Currently unavailable

33

Briggs & Stratton 23139BGS

KEY

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 95531GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 187264GS

ASSY, Pump
(Superseded to B3699AGS)

Note: (See "Pump" illustration and parts list)

$

$

Not available

37

Briggs & Stratton 89647AGS

CONNECTOR, Garden Hose
(Superseded to 194004GS)

$

$

Not available

39

Briggs & Stratton B1982GS

BUMPER

$53.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

41

Briggs & Stratton B5830GS

KIT, "O" Ring

$

$

Not available

42

Briggs & Stratton B5694GS

HOSE, High Pressure

$157.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 87815GS

GOGGLES, Safety

$12.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B3263AGS

GUN, High Pressure

$58.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B3335CGS

LANCE, Nozzle Hi/Lo
(Superseded to 188792CGS)

$

$

Not available

46

Briggs & Stratton 97566GS

TAG, Nozzle Instructions

$1.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B2168AGS

HANGER, Hose, Gun, Jug

$42.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$

$

Not available

49

Briggs & Stratton 188287GS

KIT, Nozzle Cleaning
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 97837GS

O-RING, Hi Pressure

$

$

Not available

51

Briggs & Stratton 92661GS

NOZZLE, Blue Replacement

$9.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton B3213GS

VALVE, Thermal Relief

$30.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 92479GS

WASHER, Lock

$3.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton BB3061BGS

OIL
(Superseded to 100005)

$8.99

$

In Stock, Qty 20+

0

55

Briggs & Stratton 48031GGS

CLAMP, Hose

$3.49

$

Usually ships in 2-12 days

0
