129-826B190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1989) Body Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

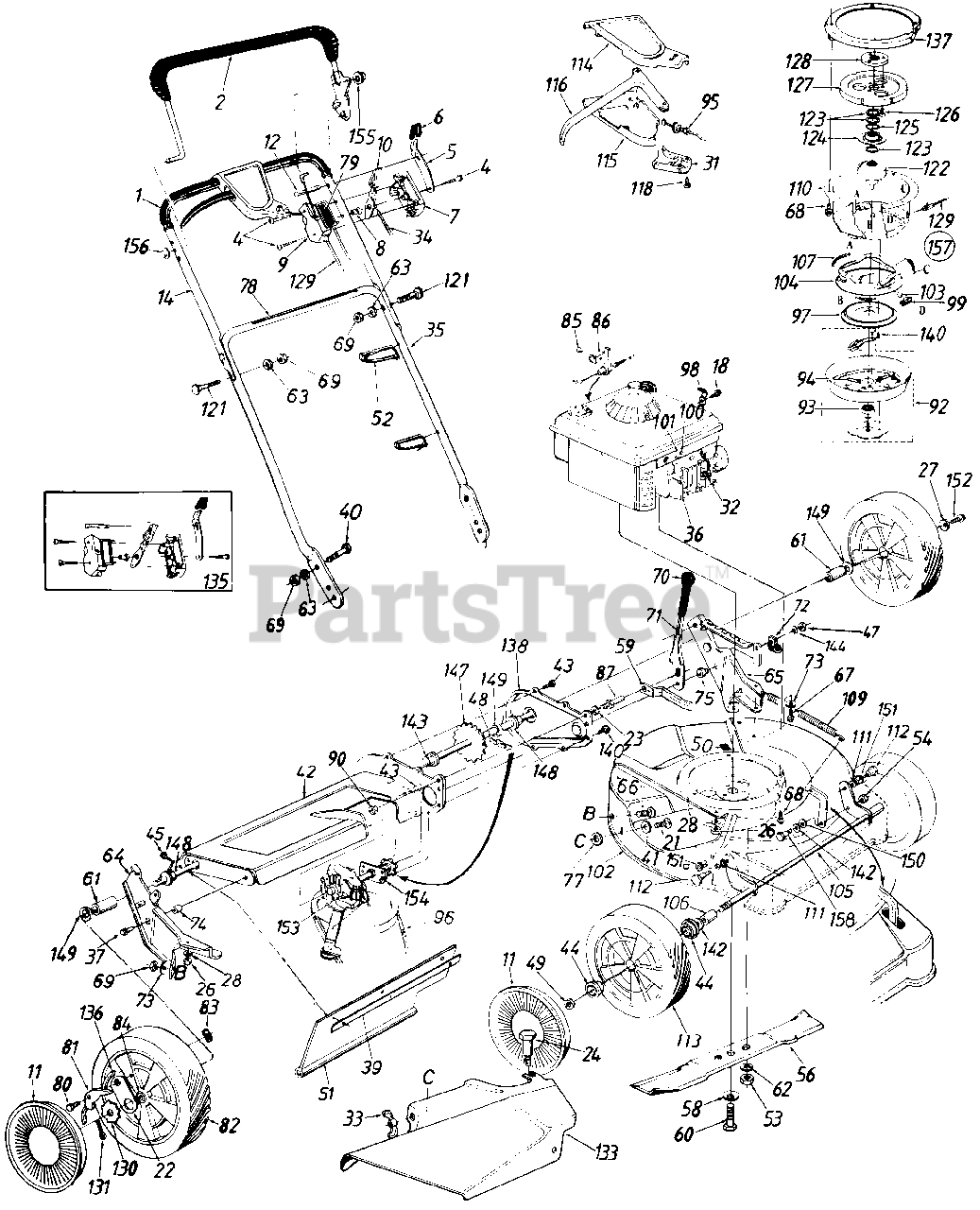

Body Assembly Parts Diagram

  • Title

1

White Outdoor 720-0225

Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

2

White Outdoor 731-0609

Control Handle Ass'y.-L.H.

$

$

Not available

4

White Outdoor 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

5

White Outdoor 732-0401

Lockout Spring

$

$

Not available

6

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

7

White Outdoor 731-0817

Control Panel Half
(Superseded to 731-0817A)

$

$

Not available

8

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

9

White Outdoor 731-0816

Clutch Panel Half

$

$

Not available

10

White Outdoor 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

12

White Outdoor 731-0607

Lock Pin 3/4" Dia. x 1.75"

$

$

Not available

14

White Outdoor 749-0439A

Upper Handle
(Superseded to 749-0439E-0637)

$47.99

$

In Stock, only 1 left!

0

18

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 16855

Pawl Plate

$6.49

$

In Stock, Qty 7

0

23

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 738-0704

Shoulder Bolt .312" Dia. x .18" Lg. Special

$17.99

$

Usually ships in 3-6 days

0

26

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

27

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

31

White Outdoor 731-1059

S.P. Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

32

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

33

White Outdoor 712-0388

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 746-0672

Throttle Control Wire 58" Lg.
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

White Outdoor 749-0504C

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

37

White Outdoor 710-0654A

Hex L-Wash. TT-Tap Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 4 left!

0

39

White Outdoor 14835

Retaining Strip

$

$

Not available

40

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

41

White Outdoor 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 17055B

Chain-Axle Ass'y.

Variations

White Outdoor 17055B-0483

No Longer Available Axle Assy-chain - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17055B-0498

AXLE ASSY-CHAIN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17055B-0629

No Longer Available Axle Assy-chain - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17055B-0648

No Longer Available AXLE ASSY-CHAIN - TECH GRAY (0648)

$

$

Not available

White Outdoor 17055B-0650

AXLE ASSY-CHAIN - RED METALLIC (0650)

$

$

Not available

White Outdoor 17055B-0662

No Longer Available Axle Assy-chain - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17055B-0665

AXLE ASSY-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17055B-0667

AXLE ASSY-CHAIN - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17055B-0691

AXLE ASSY-CHAIN - BLACK JACK (0691)

$

$

Not available

$

$

43

White Outdoor 710-0352

Hex B-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

44

White Outdoor 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

White Outdoor 713-0353

#48 Chain .500" Pitch x 30 0 Links
(Superseded to 913-0353)

$

$

Not available

49

White Outdoor 712-0346

Hex L-Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 6

0

50

White Outdoor 731-0564

Plug

$

$

Not available

51

White Outdoor 731-0672A

Rear Flap 3.75" x 17.30" Lg.

$31.99

$

Usually ships in 3-6 days

0

52

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 712-0328

Hex Nut 3/8-24 Thd. (Gr. 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

54

White Outdoor 712-0266

Hex Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

56

White Outdoor 742-0306

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

58

White Outdoor 736-0412

Bell-Wash. .46" I.D. x .88" O.D.

$

$

Not available

59

White Outdoor 16863

Height Adj. Connecting Arm

$

$

Not available

60

White Outdoor 710-1002

Hex Bolt 7/16-20 x 2.0" Lg. (Grade 5)

$6.99

$

Usually ships in 3-6 days

0

61

White Outdoor 748-0190

Spacer .513" I.D. x .703" O.D. x .69" Lg.

$6.49

$

In Stock, Qty 11

0

62

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

63

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

White Outdoor 16136A

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

White Outdoor 16137B

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62"*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

68

White Outdoor 710-1007

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.5" Lg.

$6.49

$

In Stock, only 1 left!

0

69

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

70

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

71

White Outdoor 732-0606

Height Adj. Lever

$

$

Not available

72

White Outdoor 726-0175

Clamp

$

$

Not available

73

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 750-0736

Spacer .383" I.D. x .503" O.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

White Outdoor 750-0624

Shld. Spacer .500" Dia. x .100"

$

$

Not available

77

White Outdoor 726-0233

Bolt Retainer 1/4 X .50" O.D.

$4.49

$

In Stock, Qty 20+

0

78

777-5815

Instruction Label

$

$

Not available

79

777-5813

Control Label

$

$

Not available

80

White Outdoor 738-0137

Shld. Scr. .342" Dia. x .268"

$

$

Not available

81

White Outdoor 748-0188B

Pawl
(Superseded to 948-0188B)

$

$

Not available

82

White Outdoor 734-1510A

Wheel Ass'y. Comp.-Rear 8 x 2.0"
(Superseded to 734-1826)

$33.99

$

In Stock, Qty 9

0

83

White Outdoor 712-0189

Flat Weld Nut 1/4-20 Thd.
(Superseded to 912-0414)

$

$

Not available

84

White Outdoor 741-0486B

Sleeve Bearing 1/2" I.D.

$

$

Not available

85

White Outdoor 728-0171

Pop Rivet .156" Dia. x .379"

$

$

Not available

86

White Outdoor 14924

Cable Bracket

$

$

Not available

87

White Outdoor 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

90

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

92

White Outdoor 14300

Clutch Blade Housing Ass'y.

$

$

Not available

93

White Outdoor 741-0124

Ball Brg. .669" I.D. x 1.574"
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

94

White Outdoor 732-0396

Comp. Spring .35" O.D. x 2.0" Lg.

$

$

Not available

95

White Outdoor 746-0710

S.P. Cable x 50" Lg.
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

96

White Outdoor 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 1 left!

0

97

White Outdoor 14304A

Clutch Cone

$

$

Not available

98

White Outdoor 12894A

Casing Clamp

$

$

Not available

99

White Outdoor 731-0520

Ball Block

$

$

Not available

100

White Outdoor 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

101

White Outdoor 751-0463

Casing Clamp

$

$

Not available

102

16859

483/N 21" Deck Ass'y.

$

$

Not available

103

White Outdoor 741-0326

Steel Ball .50" Dia.

$

$

Not available

104

719-0283

Brake Cup Cone

$

$

Not available

105

White Outdoor 16856

Front Axle Ass'y.
(Superseded to 982-7509-0637)

$

$

Not available

106

White Outdoor 711-0313

Sleeve .526" I.D. x .690" O.D. x .880" Lg.
(Superseded to 911-0313)

$

$

Not available

107

White Outdoor 732-0397

Ext. Spring 1.75" Lg.

$

$

Not available

White Outdoor 714-0104

Intern. Cotter Pin 5116" Dia.

$4.49

$

In Stock, Qty 20+

0

109

White Outdoor 732-0362

Extension Spring .75" O.D. x 8" Lg.
(Superseded to 932-0362)

$

$

Not available

110

14306

Clutch Housing

$

$

Not available

111

White Outdoor 736-0221

Intern. L-Wash. 3/8 I.D.

$

$

Not available

112

White Outdoor 738-0705

Shld. Bolt .623" Dia. x .425
(Superseded to 938-0705)

$

$

Not available

113

White Outdoor 734-1513A

Front-Wheel Ass'y. Comp. 8 x 2.0"
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

114

White Outdoor 731-1057

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

115

White Outdoor 731-0618A

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

116

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

118

White Outdoor 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

121

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

122

White Outdoor 756-0504

Fixed Pulley Adapter

$

$

Not available

123

White Outdoor 736-0409

Serrated Washer 1.0" I.D.
(Superseded to 936-0409)

$

$

Not available

124

White Outdoor 756-0503

Serrated Pulley Half

$7.99

$

Usually ships in 3-6 days

0

125

White Outdoor 736-0408

Wave Washer 1.005" I.D.
(Superseded to 936-0447)

$4.49

$

In Stock, Qty 20+

0

126

White Outdoor 710-0618

Flat HD Tap Scr. 1/4-20 x .625" Lg.

$

$

Not available

127

White Outdoor 748-0319

Flywheel

$

$

Not available

128

White Outdoor 748-0320

Flywheel Adapter

$

$

Not available

129

White Outdoor 746-0406

Control Cable-49" Lg.

$

$

Not available

130

White Outdoor 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 16

0

131

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1 00

$3.99

$

In Stock, only 2 left!

0

133

White Outdoor 731-0886

Side Chute Deflector Ass'y.

$

$

Not available

135

White Outdoor 753-0431

Kit-Control Housing Comp.

$

$

Not available

136

White Outdoor 10622B

Spring-Nylon

$5.49

$

In Stock, Qty 20+

0

137

White Outdoor 17176A

Engine Mounting Plate Cover

$

$

Not available

138

White Outdoor 17053A

Chain Cover

Variations

White Outdoor 17053A-0480

No Longer Available COVER-CHAIN - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17053A-0483

No Longer Available COVER-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17053A-0637

No Longer Available COVER-CHAIN - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17053A-0638

No Longer Available COVER-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17053A-0650

No Longer Available COVER-CHAIN - RED METALLIC (0650)

$

$

Not available

White Outdoor 17053A-0662

No Longer Available COVER-CHAIN - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17053A-0665

No Longer Available COVER-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17053A-0674

No Longer Available COVER-CHAIN - YARDMAN YELLOW (0674)

$

$

Not available

$

$

140

White Outdoor 710-0599

Hex Wash. S-Tap Scr. 1/4-20 0 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

142

White Outdoor 736-0108

Fl-Wash. .510" I.D. x .75" O.D.

$6.99

$

Usually ships in 3-6 days

0

143

White Outdoor 741-0522

Hex Flange Brg. .506" I.D.

$

$

Not available

144

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

147

White Outdoor 738-0719A

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

148

White Outdoor 741-0324

Hex Flange Bearing .506" I.D. Plastic
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

150

White Outdoor 736-0253

Bell-Wash. .515" I.D. x 1.0" O.D.

$3.99

$

In Stock, Qty 20+

0

151

White Outdoor 741-0491

Flanged Nyliner Brg.

$5.49

$

In Stock, only 3 left!

0

152

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

White Outdoor 717-0417A

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

White Outdoor 16500

Hex Bearing Cup
(Superseded to 16500A-0637)

$8.99

$

Usually ships in 3-6 days

0

155

White Outdoor 726-0245

Push Cap

$

$

Not available

156

White Outdoor 726-0135

Push Cap

$6.99

$

In Stock, only 1 left!

0

157

717-0845B

Blade Brake Clutch Ass'y. Comp.

$

$

Not available

158

White Outdoor 738-0234

Shld. Bolt .5" Dia. x .295"

$10.99

$

Usually ships in 3-6 days

0
