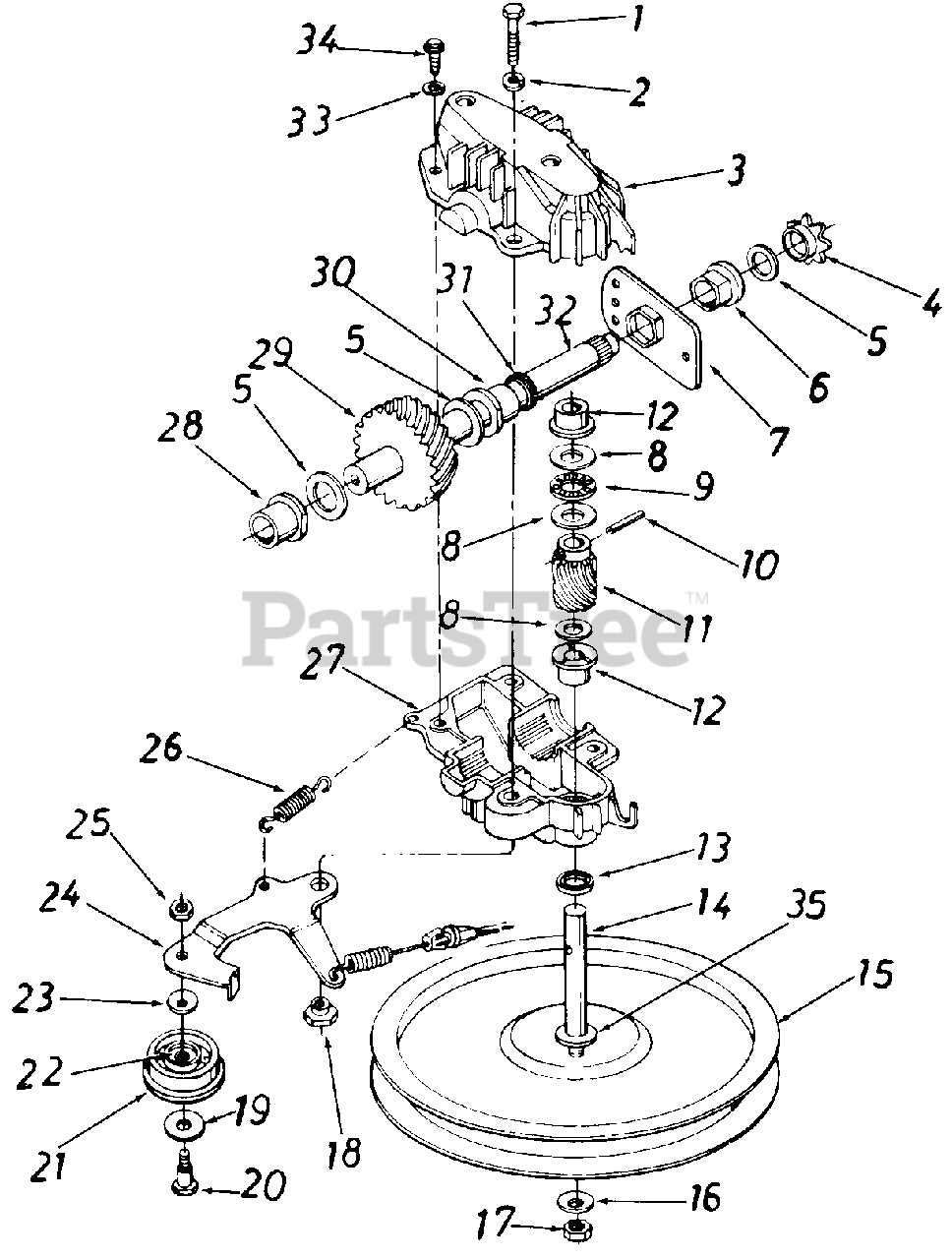

129-560B190 - White Outdoor Lawn Boss 26" Walk-Behind Mower (1989) Transmission Assembly Parts Diagram

Lawn Boss 26" Walk-Behind Mower

Transmission Assembly Parts Diagram

  • Title

1

White Outdoor 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.*

$3.99

$

In Stock, only 2 left!

0

2

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

3

White Outdoor 717-0418

Upper Transmission Hsg. Half
(Superseded to 717-0418A)

$

$

Not available

4

White Outdoor 713-0400

#48 Sprocket 7 Tooth x 1/2 Pitch

$

$

Not available

5

White Outdoor 736-0336

Fl-Wash. 5/8" I.D. x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

White Outdoor 741-0413

Hex Flange Brg. .631" I.D.

$9.99

$

Usually ships in 3-6 days

0

7

White Outdoor 16500

Hex Bearing Cup
(Superseded to 16500A-0637)

$8.99

$

Usually ships in 3-6 days

0

8

White Outdoor 736-0314

Thrust Wash. .382" I.D. x .70" O.D.

$6.99

$

Usually ships in 3-6 days

0

9

White Outdoor 741-0479

Thrust Bearing .375" I.D. x .812" O.D.

$11.99

$

Usually ships in 3-6 days

0

10

White Outdoor 715-0152

Spring Pin Spir. 1/8" x .62" Heavy

$

$

Not available

11

White Outdoor 717-0420

11 Tooth Helical Gear

$

$

Not available

12

White Outdoor 748-0208

Flange Bearing
(Superseded to 748-0208A)

$4.49

$

Usually ships in 3-6 days

0

13

White Outdoor 721-0212

Oil Seal

$

$

Not available

14

White Outdoor 738-0708

Pulley-Transmission Shaft .375 O.D.
(Superseded to 753-0448)

$

$

Not available

15

White Outdoor 756-0330

Fl-Pulley 5.06" O.D.
(Superseded to 756-0330A)

$

$

Not available

16

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-0351

Hex Lock Nut 1/4-28 LH Thd.
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0

18

White Outdoor 738-0440

Shld. Spacer .375" Dia. x .170

$5.99

$

In Stock, only 4 left!

0

19

White Outdoor 736-0344

Fl-Wash. .390" I.D. x 1.0"

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 738-0691

Shld. Bolt .375" Dia. x .40"
(Superseded to 938-0691)

$

$

Not available

21

White Outdoor 756-0447

Fl-ldler Plastic 1.50" Dia. x .48
(Superseded to 753-0518)

$27.99

$

Usually ships in 3-6 days

0

22

White Outdoor 741-0482

Needle Brg. .375" x .31
(Superseded to 741-0875)

$

$

Not available

23

White Outdoor 736-0270

Bell-Wash. .265" I.D. x 75"

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 16502

Idler Brk't. Ass'y.

$

$

Not available

25

White Outdoor 712-0138

Hex Patch L-Nut 1/4-28 Thd

$6.99

$

Usually ships in 3-6 days

0

26

White Outdoor 732-0357

Extension Spring 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, only 3 left!

0

27

White Outdoor 717-0419

Lower Transmission Hsg. Half
(Superseded to 717-0419B)

$

$

Not available

28

White Outdoor 741-0415

Flange Bearing .566 Dia.
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

White Outdoor 717-0422

33 Tooth Helical Gear
(Superseded to 717-0616A)

$

$

Not available

30

White Outdoor 741-0414

Flange Bearing .629 Dia.

$10.99

$

Usually ships in 3-6 days

0

31

White Outdoor 721-0213

Oil Seal .625 Dia.

$10.99

$

In Stock, only 1 left!

0

32

White Outdoor 738-0607

Gear Sprocket Shaft
(Superseded to 717-0616A)

$

$

Not available

33

White Outdoor 736-0722

L-Wash. #10

$6.99

$

Usually ships in 3-6 days

0

34

White Outdoor 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

35

White Outdoor 736-0410

Hex Washer .26" x .88"
(Superseded to 936-0410)

$

$

Not available

White Outdoor 717-0417

Transmission Comp.
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0
