129-476R190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1989) Height Adjustment Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

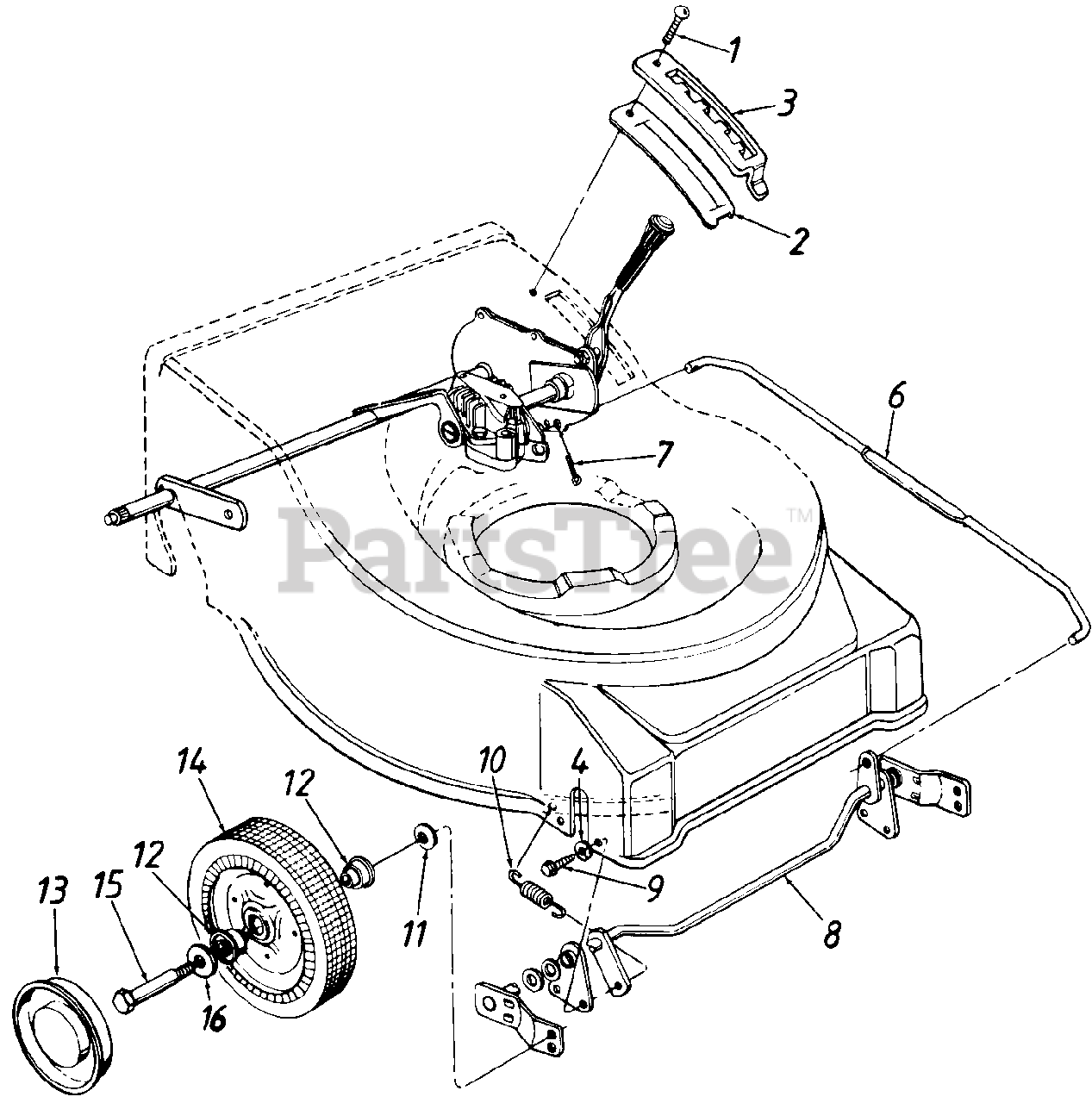

Height Adjustment Assembly Parts Diagram

  • Title

1

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 X .62" Lg.

$8.49

$

In Stock, Qty 9

0

2

White Outdoor 721-0216

Height Adjustment Support

$

$

Not available

3

White Outdoor 17323

Height Adjustment Plate

$

$

Not available

4

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

6

White Outdoor 747-0699

Height Adj. Connecting Rod

$

$

Not available

7

White Outdoor 714-0507

Cotter Pin 3/32" Dia.

$4.49

$

In Stock, Qty 12

0

8

White Outdoor 17022

Front Axle Ass'y.
(Superseded to 17022-0637)

Variations

White Outdoor 17022-0637

AXLE ASSEMBLY BLACK - POWDER BLACK (0637)

$136.99

$

Usually ships in 3-6 days

0

$136.99

$

Usually ships in 3-6 days

0

9

White Outdoor 710-0352

Hex L-Wash. Hd. AB-Tap Scr. 1/4 X .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

10

White Outdoor 732-0589

Extension Spring 2.39" Lg.

$

$

Not available

11

White Outdoor 736-0105

Bell-Wash. .380" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

13

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

14

White Outdoor 734-1513A

Wheel Ass'y. Comp.-Front
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

15

White Outdoor 738-0102

Shld. Bolt .498" Dia. x 1.45"

$9.99

$

In Stock, Qty 10

0

16

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0
