129-476B190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1989) Drive Assembly 476B Parts Diagram

Lawn Boss 21" Walk-Behind Mower

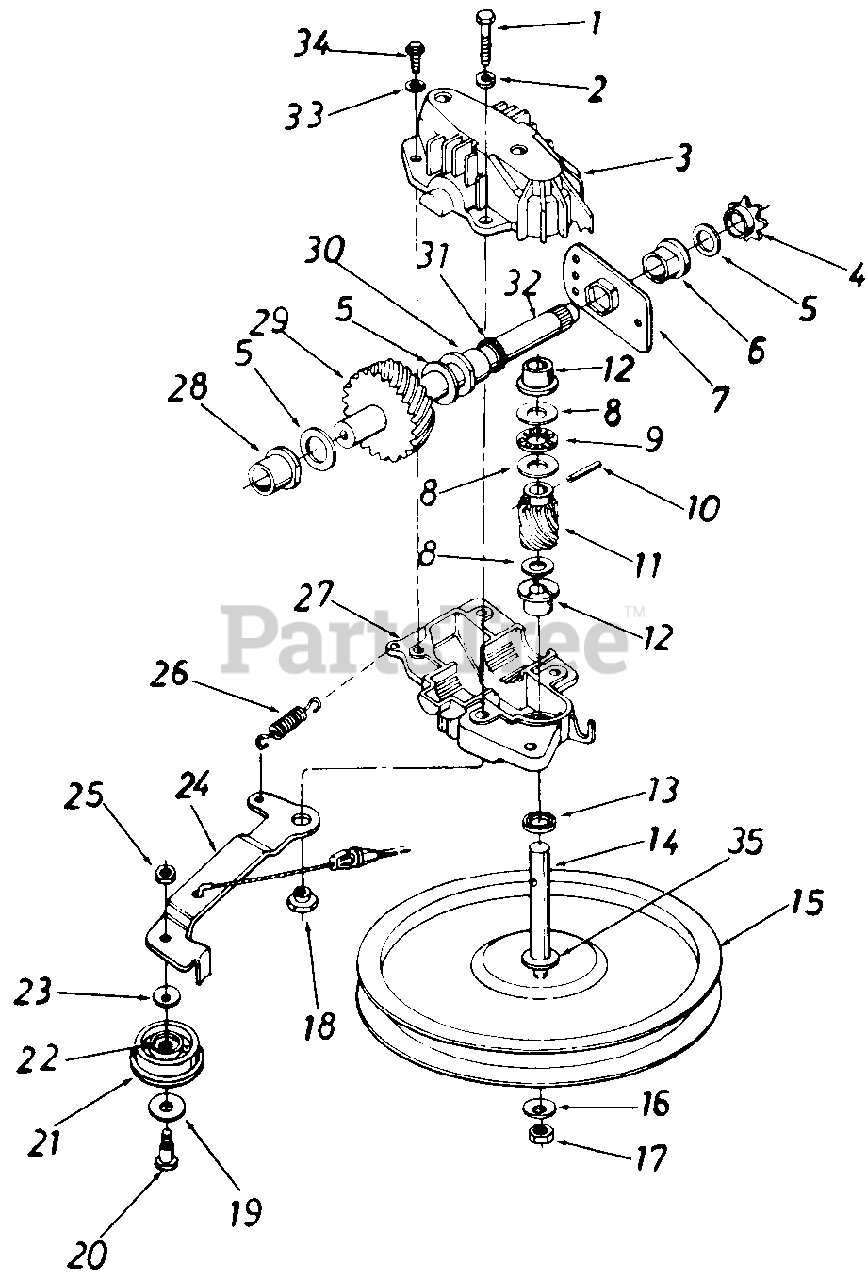

Drive Assembly 476B Parts Diagram

  • Title

1

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

2

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

3

MTD 717-0418A

Upper Hsg. Half

$

$

Not available

4

MTD 713-0400

#48 Sprocket 7 Tooth x 1/2 Pitch

$

$

Not available

5

MTD 936-0336

Fl-Wash. 518" I.D. x .030

$4.49

$

In Stock, Qty 7

0

6

MTD 941-0413

Hex Flange Brg. .631" I.D.

$10.99

$

Usually ships in 3-6 days

0

7

MTD 16500A-0637

Hex Bearing Cup

$8.99

$

Usually ships in 3-6 days

0

8

MTD 936-0314

Thrust Wash. .382" I.D. x .70" O.D.
(Superseded to 736-0314)

$

$

Not available

9

MTD 741-0479

Thrust Bearing .375" I.D. x .812" O.D.

$11.99

$

Usually ships in 3-6 days

0

10

MTD 715-0152

Spring Pin Spir. 1/8" x .62" Heavy

Note: NLA

$

$

Not available

11

MTD 717-0420

11 Tooth Helical Gear

Note: NLA

$

$

Not available

12

MTD 748-0208A

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

13

MTD 721-0212

Oil Seal

$

$

Not available

14

MTD 917-1216

Pulley-Transmission Shaft

$

$

Not available

15

MTD 756-0330A

Fl-Pulley 5.06" O.D.

$

$

Not available

16

MTD 736-0270

BellWash. .265" I.D. x 75"

$3.99

$

In Stock, Qty 20+

0

17

MTD 912-0351

Hex L-Nut 1/4-28 L.H. Thd.
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0

18

MTD 738-0440

Shld. Spacer .375" Dia. x . 170

$5.99

$

In Stock, only 4 left!

0

19

MTD 936-0344

Fl-Wash. .390" I.D. x 1.0"
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

20

MTD 938-0691

Shld. Bolt .375" Dia. x .40"

$

$

Not available

21

MTD 753-0518

Fl-ldler Plastic 1.50" Dia.

$27.99

$

Usually ships in 3-6 days

0

22

MTD 741-0875

Needle Brg. .375" x .31

$

$

Not available

23

MTD 736-0270

Bell-Wash. .265" I.D. x 75"

$3.99

$

In Stock, Qty 20+

0

24

MTD 17052A

Idler Brk't. Ass'y.

$

$

Not available

25

MTD 912-0138

Hex Patch L-Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

26

MTD 932-0357A

Extension Spring 1.12" Lg.
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

27

MTD 717-0419A

Lower Hsg. Half

Note: NLA

$

$

Not available

28

MTD 941-0415

Flange Bearing .566 Dia.

$10.99

$

Usually ships in 3-6 days

0

29

MTD 717-0616A

33 Tooth Helical Gear

$

$

Not available

30

MTD 741-0414

Flange Bearing .629 Dia.

$10.99

$

Usually ships in 3-6 days

0

31

MTD 721-0213

Oil Seal .625 Dia.

$10.99

$

In Stock, Qty 15

0

32

MTD 717-0616A

Gear Sprocket Shaft

$

$

Not available

33

MTD 936-0722

L-Wash. #10 I.D.
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

34

MTD 710-0651

Hex B-Tap Scr. #10 x .62"

$3.99

$

Usually ships in 3-6 days

0

35

MTD 936-0410

Hex Washer .26" x .88"

$

$

Not available

MTD 917-0417B

Transmission Comp.

$234.99

$

Usually ships in 3-6 days

0
