129-476B190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1989) Body Assembly 476B Parts Diagram

Lawn Boss 21" Walk-Behind Mower

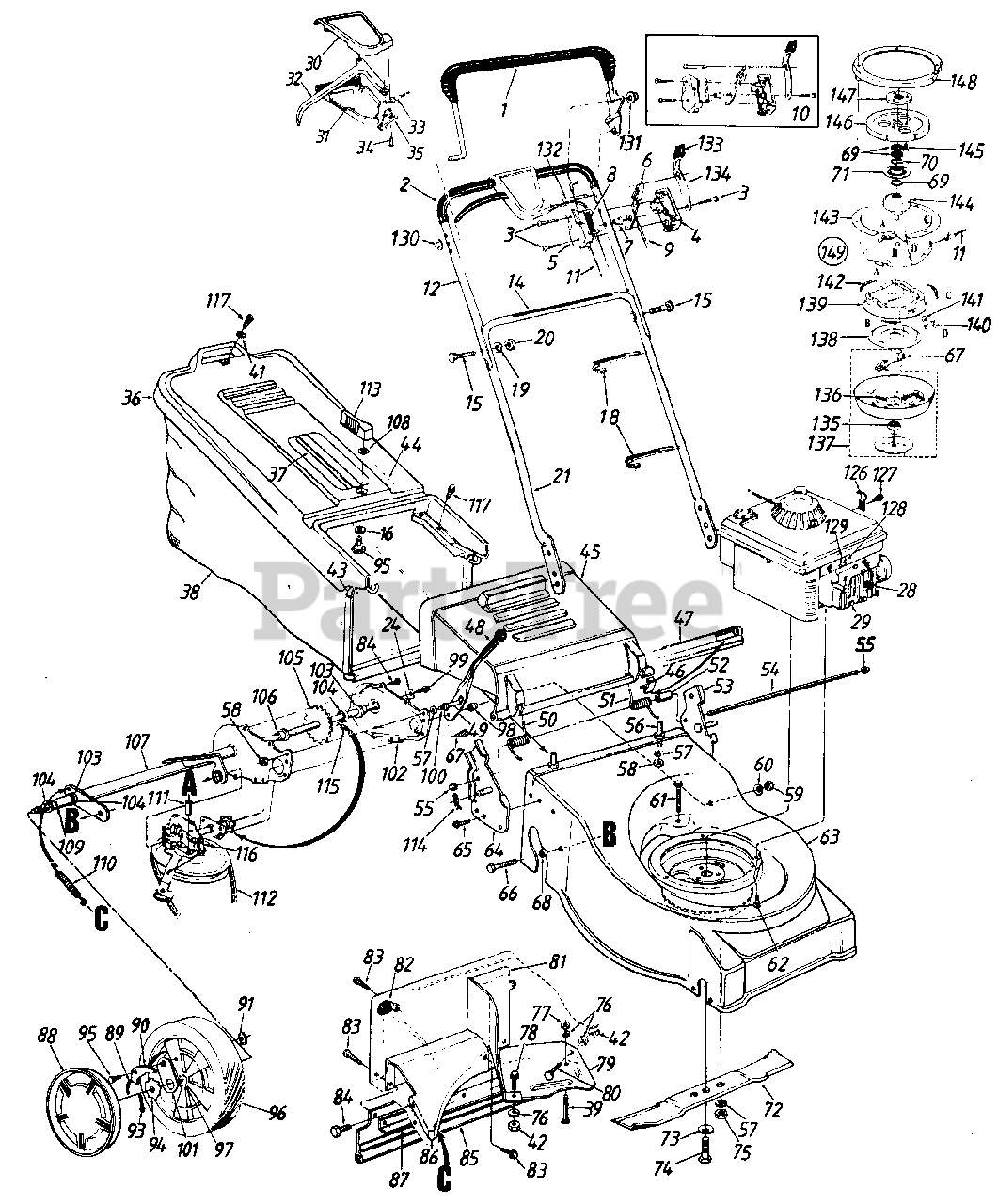

Body Assembly 476B Parts Diagram

  • Title

1

MTD 731-0609

Control Handle Ass'y.

Note: NLA

$

$

Not available

2

MTD 720-0294

Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, only 3 left!

0

3

MTD 710-0796

Truss Mach. B-Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

4

MTD 731-0817A

Control Panel Half

$

$

Not available

5

MTD 731-0816

Clutch Panel Half

Note: NLA

$

$

Not available

6

MTD 931-0972

Throttle Control Lever

$9.99

$

In Stock, Qty 13

0

7

MTD 731-0524

Control Disc Pin

Note: NLA

$

$

Not available

8

MTD 777-5811

Control Label-Throttle

$

$

Not available

9

MTD 946-0674A

Throttle Wire-58" Lg.

$18.99

$

In Stock, only 1 left!

0

10

MTD 753-0431

Control Housing Comp.

Note: NLA

$

$

Not available

11

MTD 946-0407

Control Cable-52" Lg.

$

$

Not available

12

MTD 749-0439E-0637

Upper Handle (Painted)

$47.99

$

In Stock, only 1 left!

0

14

MTD 777-5815

Instruction Label-Handle

Note: NLA

$

$

Currently unavailable

15

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

Note: NLA

$

$

Not available

16

MTD 936-0286

Bowed Washer

$6.99

$

In Stock, only 2 left!

0

18

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

19

MTD 936-0119

L-Wash. 5116" I.D.

$4.99

$

In Stock, Qty 20+

0

20

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

MTD 749-0907B

Lower Handle (Painted)

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

24

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

28

MTD 735-0639

Spark Plug Boot

$

$

Not available

29

Engine

$

$

Not available

30

MTD 731-0617A

Control Cover Half-Upper

$

$

Not available

31

MTD 753-0833

Control Cover Half-Lower

$50.99

$

In Stock, only 2 left!

0

32

MTD 731-0620A

Control Lever

$15.99

$

In Stock, only 1 left!

0

33

MTD 946-0651

Drive Cable-53" Lg.

$

$

Not available

34

MTD 710-0841

Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

35

MTD 731-0619A

Cable Mtg. Cap

Note: NLA

$

$

Not available

36

MTD 631-0003

Hardtop Bag Cover

$104.99

$

Usually ships in 3-6 days

0

37

MTD 631-0003

Hardtop Handle

$104.99

$

Usually ships in 3-6 days

0

38

MTD 964-0252

Grass Bag

$143.99

$

In Stock, only 1 left!

0

39

MTD 710-0166A

Truss Mach. Scr. 1/4-20 x 1.0" Lg.

$7.49

$

In Stock, only 1 left!

0

41

MTD 936-0463

Fl-Wash. .281" I.D. x .62"
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

42

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

In Stock, only 1 left!

0

43

MTD 764-0411-0637

Front Catcher Frame

$41.99

$

Usually ships in 3-6 days

0

44

MTD 749-0736B

Rear Catcher Frame

Note: NLA

Variations

MTD 749-0736B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 931-0859A

Chute Deflector

$120.99

$

Usually ships in 3-6 days

0

46

MTD 731-0970B

Deflector Plug

$

$

Not available

47

MTD 731-0858

Seal-Extrusion

$

$

Not available

48

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

49

MTD 732-0580

Spring Lever

$7.99

$

In Stock, only 1 left!

0

50

MTD 732-0578B

Torsion Spring-R.H.

$

$

Not available

51

MTD 932-0577B

Torsion Spring-L.H.

$

$

Not available

52

MTD 750-0566A

Spacer.255" I.D.

$9.99

$

In Stock, only 1 left!

0

53

MTD 12297B-0637

Handle Brkt. Ass'y.-L.H.

$

$

Not available

54

MTD 747-0698B

Hinge Pin 17.75" Lg.

$

$

Not available

55

MTD 926-0106

Cap Speed Nut
(Superseded to 726-0106)

$

$

Not available

56

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

57

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

58

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

59

MTD 912-0296

Hex L-Nut 3/8-24 Thd.

$2.99

$

In Stock, only 1 left!

0

60

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

61

MTD 710-0778

Hex Wash. Hd. Tap Scr. 1/4-20 X 1.5" Lg.

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-1007

Hex L-Wash. Hd. Scr. 3/8-16 x 1.5" Lg.

$6.49

$

Usually ships in 3-6 days

0

63

MTD 16997

483 21" Deck Ass'y.

Note: NLA

$

$

Currently unavailable

64

MTD 12296B-0637

Handle Brkt. Ass'y.-R.H.

$

$

Not available

65

MTD 910-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.

$

$

Not available

66

MTD 910-1006

Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg.

$

$

Not available

67

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

68

MTD 950-0736

Spacer.383" I.D.

$5.49

$

Usually ships in 3-6 days

0

69

MTD 936-0409

Serrated Washer 1.0" I.D.

$

$

Not available

70

MTD 936-0447

Wave Washer 1.005" I.D.
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

71

MTD 756-0503

Serrated Pulley Half

$7.99

$

Usually ships in 3-6 days

0

72

MTD 942-0621

21" Blade

$29.99

$

In Stock, only 1 left!

0

73

MTD 736-0412

Bell-Wash. .46" I.D. x .88"

Note: NLA

$

$

Not available

74

MTD 710-1002

Hex Bolt 7/16-20 x 2.0" Lg. (Gr. 5)

$6.99

$

Usually ships in 3-6 days

0

75

MTD 712-0328

Hex Nut 3/8-24 Thd. (Gr. 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

76

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 9

0

77

MTD 912-0298

Hex Jam Nut 1/4-20 Thd.

$6.49

$

Usually ships in 3-6 days

0

78

MTD 710-3015

Hex Bolt 1/4-20 x .85" Lg.

$3.99

$

In Stock, Qty 20+

0

79

MTD 17013

Rear Belt Baffle

Note: NLA

$

$

Not available

80

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

81

MTD 17006

Rear Panel Baffle

Note: NLA

Variations

MTD 17006-0637

No Longer Available BAFFLE-RR- - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 731-0931

Corner Plug

Note: NLA

$

$

Not available

83

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

84

MTD 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

85

MTD 731-0669

Rear Flap

$50.99

$

Usually ships in 3-6 days

0

86

MTD 17008-0637

Rear Chute Baffle

$

$

Not available

87

MTD 14847-0637

Retaining Strip

$

$

Not available

88

MTD 731-0981C

Hub Cap

$10.99

$

In Stock, only 2 left!

0

89

MTD 10622BP

Plastic Spring
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

90

MTD 948-0188B

Pawl.345" I.D.

$

$

Not available

91

MTD 912-0414

Weld Nut 1/4-20 Thd.
(Superseded to 712-0414)

$4.49

$

In Stock, Qty 20+

0

93

MTD 914-0115

Cotter Pin 1/8" Dia.
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

94

MTD 948-0318

Ratchet Wheel 1.62" O.D.

$10.99

$

In Stock, Qty 15

0

95

MTD 738-0137

Shld. Bolt .342" Dia. x .268

Note: NLA

$

$

Not available

96

MTD 734-1826

Wheel Ass'y. Comp.-Rear

$33.99

$

In Stock, Qty 9

0

97

MTD 741-0486B

Sleeve Bearing 1/2" I.D.

Note: NLA

$

$

Not available

98

MTD 750-0624

Shld. Spacer .50" Dia.

$

$

Not available

99

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

100

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

101

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 7

0

102

MTD 17053A

Chain Cover Ass'y.

Note: NLA

Variations

MTD 17053A-0480

No Longer Available COVER-CHAI - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17053A-0483

No Longer Available COVER-CHAI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17053A-0637

No Longer Available COVER-CHAI - POWDER BLACK (0637)

$

$

Not available

MTD 17053A-0638

No Longer Available COVER-CHAI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17053A-0650

No Longer Available COVER-CHAI - RED METALLIC (0650)

$

$

Not available

MTD 17053A-0662

No Longer Available COVER-CHAI - OYSTER GRAY (0662)

$

$

Not available

MTD 17053A-0665

No Longer Available COVER-CHAI - YARDMAN GREEN (0665)

$

$

Not available

MTD 17053A-0674

No Longer Available COVER-CHAI - YARDMAN YELLOW (0674)

$

$

Not available

$

$

103

MTD 741-0324A

Hex Flange Brg. .506" I.D.

$7.99

$

In Stock, Qty 5

0

104

MTD 936-0160

Fl-Wash. .531" I.D. x .93"

$4.49

$

In Stock, only 1 left!

0

105

MTD 938-0719A

Rear Axle Ass'y.

$

$

Not available

106

MTD 941-0522

Hex Flange Bearing
(Superseded to 741-0522)

$

$

Not available

107

MTD 17009

Chain Axle Ass'y.

Note: NLA

Variations

MTD 17009-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

108

MTD 736-0498

Internal L-Wash. 1/4" I.D.

$4.49

$

Usually ships in 3-6 days

0

109

MTD 748-0190

Spacer.513" I.D.

$6.49

$

In Stock, Qty 11

0

110

MTD 932-0481

Extension Spring 3.8" Lg.

$

$

Not available

111

MTD 950-0589

Spacer.325" I.D.

$6.49

$

Usually ships in 3-6 days

0

112

MTD 954-0346

V-Belt

$28.99

$

In Stock, Qty 20+

0

113

MTD 920-0224

Grass Catcher Locking Knob

$

$

Not available

114

MTD 914-0104

Internal Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

115

MTD 913-0353

#48 Chain .50" Pitch x 30 Links

$

$

Not available

116

MTD 917-0417B

Transmission Comp.

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

117

MTD 910-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 X .62" Lg.

$

$

Not available

126

MTD 12894A

Cable Clamp

Note: NLA

$

$

Not available

127

MTD 910-0429

Hex B-Tap Scr. #10 x .38" Lg.

$3.99

$

Usually ships in 3-6 days

0

128

MTD 710-0651

Hex B-Tap Scr. #10 x .62" Lg.

$3.99

$

Usually ships in 3-6 days

0

129

MTD 751-0463

Cable Clamp

Note: NLA

$

$

Not available

130

MTD 726-0135

Push Cap

$6.99

$

In Stock, only 1 left!

0

131

MTD 726-0245

Push Cap

Note: NLA

$

$

Not available

132

MTD 731-0607

Lock Pin .314 Dia. x 1.75"

Note: NLA

$

$

Not available

133

MTD 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

134

MTD 732-0401

Lockout Spring

Note: NLA

$

$

Not available

135

MTD 941-0600

Ball Brg. .669" I.D. x 1.574"

$25.99

$

In Stock, Qty 20+

0

136

MTD 732-0396

CoLmp. Spring .35 O.D. x 2.0

Note: NLA

$

$

Not available

137

MTD 14300

Clutch Blade Housing Ass'y.

Note: NLA

$

$

Not available

138

MTD 14304

Clutch Cone

Note: NLA

$

$

Not available

139

MTD 719-0283

Brake Cup Cone

Note: NLA

$

$

Currently unavailable

140

MTD 731-0520

Ball Block

Note: NLA

$

$

Not available

141

MTD 741-0326

Steel Ball .50" Dia.

Note: NLA

$

$

Not available

142

MTD 732-0397

Ext. Spring 1.75" Lg.

Note: NLA

$

$

Not available

143

MTD 14309

Clutch Housing

Note: NLA

$

$

Currently unavailable

144

MTD 756-0504

Fixed Pulley Adapter

Note: NLA

$

$

Not available

145

MTD 710-0618

Flat Hd. Tap Scr. 1/4-20 x .625" Lg.

Note: NLA

$

$

Not available

146

MTD 748-0319

Flywheel

Note: NLA

$

$

Not available

147

MTD 748-0320

Flywheel Adapter

Note: NLA

$

$

Not available

148

MTD 17176

Engine Mounting Plate Cover

Note: NLA

$

$

Not available

149

MTD 717-0846B

Blade Brake Clutch Ass'y. Comp.

Note: NLA

$

$

Not available
