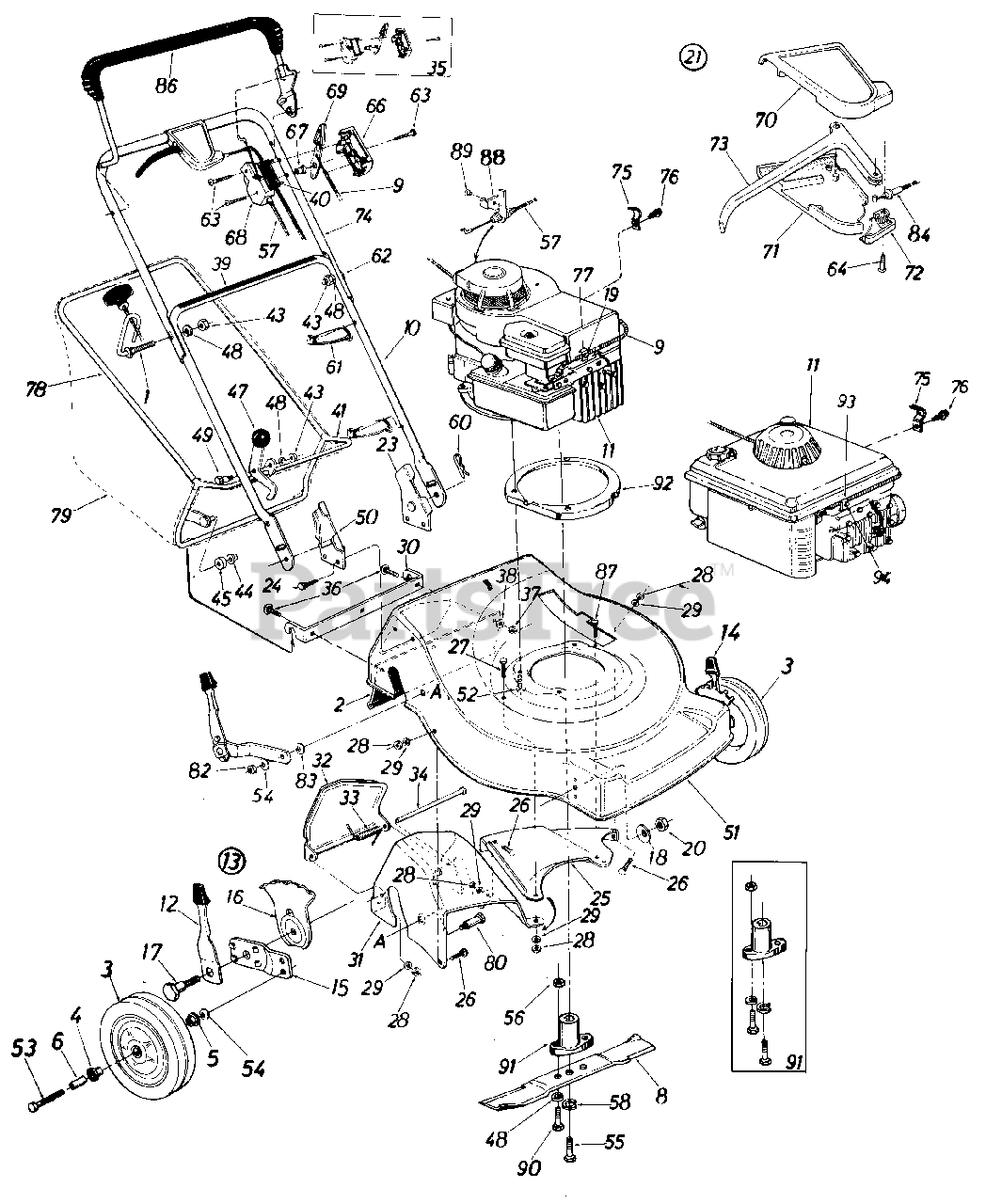

129-352R000 - MTD Walk-Behind Mower (1989) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 710-0842B

Rope Guide Bolt

$

$

Not available

2

MTD 731-0665

Rear Flap Ass'y.

$

$

Not available

3

MTD 734-0636

Front Wheel Ass'y. Comp.

$

$

Currently unavailable

4

MTD 741-0484

Flanged Ball Brg. 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

5

MTD 741-0267

Flanged Ball Brg. 3/8" I.D.

$

$

Not available

6

MTD 750-0434

Spacer 3/8" I.D.

$6.99

$

Usually ships in 3-6 days

0

8

MTD 742-0123B

20" Blade

$

$

Not available

9

MTD 746-0672

Throttle Control Wire-58"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

10

MTD 749-0504C

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

11

Engine

$

$

Not available

12

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

13

MTD 14578

Height Adjust. Ass'y.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

14

MTD 14579

Height Adjust. Ass'y.-L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

15

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

16

MTD 15261A

Index Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

17

MTD 738-0507B

Shld. Bolt .50" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

19

MTD 710-0227

Hex Self-Tap Scr. #8 x .38" Lg.

Note: (352R)

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

21

MTD 753-0362

Clutch Control Housing Comp.

$

$

Not available

23

MTD 12297

Handle Brkt. Ass'y.-L.H.

$

$

Not available

24

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4n x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

25

MTD 13405A

Rear Baffle-L.H.

$

$

Not available

26

MTD 710-0167

Carriage Bolt 1/4-20 x .50"*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

27

MTD 710-0206

Hex Bolt 1/4-20 x .88" Lg.

$4.49

$

Usually ships in 3-6 days

0

28

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

29

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

30

MTD 14012

Grass Catcher Hitch Brkt.

$

$

Not available

31

MTD 14235

Rear Chute Baffle Ass'y.

$

$

Not available

32

MTD 13407

Chute Door

$

$

Not available

33

MTD 732-0346

Torsion Spring

$

$

Not available

34

MTD 738-0386

Hinge Pin

$

$

Not available

35

MTD 753-0430

Kit-Control Housing Comp.

$

$

Not available

36

MTD 710-0703

Carriage Bolt 1/4-20 x .75"*

$4.49

$

In Stock, Qty 20+

0

37

MTD 712-0271

Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

38

MTD 736-0211

Fl-Wash. .285" I.D. x 1.25" O.D.

$6.99

$

In Stock, only 3 left!

0

39

MTD 777-5776

Instruction Label

$

$

Currently unavailable

40

MTD 777-5773

Control Label

$

$

Currently unavailable

41

MTD 13924

Grass Catcher Lower Frame Ass'y.

$

$

Not available

43

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

44

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 18

0

45

MTD 731-0430

Plastic Roller

$

$

Not available

47

MTD 13435

Cam Lever Ass'y.

$

$

Not available

48

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

49

MTD 738-0140

Shld. Bolt .437" Dia. x .180"

$5.99

$

In Stock, Qty 15

0

50

MTD 12296

Handle Brkt. Ass'y.-R.H.
(Superseded to 12296B-0637)

$

$

Not available

51

MTD 16109

20" Deck Ass'y.

Variations

MTD 16109-0498

No Longer Available DECK ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16109-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16109-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

52

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

54

MTD 736-0105

Bell-Wash. .44" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

55

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

$6.99

$

In Stock, Qty 7

0

56

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

57

MTD 746-0477A

Control Cable
(Superseded to 946-0477A)

$

$

Not available

58

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 6

0

60

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

61

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

62

MTD 710-0671

Curved Hd. Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

63

MTD 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

Usually ships in 3-6 days

0

64

MTD 710-0841

Flat "C"-Sunk Hd. Scr. #10 x 1.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

66

MTD 731-0817

Control Panel Half

$

$

Not available

67

MTD 731-0524

Control Disc Pin

$

$

Not available

68

MTD 731-0816

Clutch Panel Half

$

$

Not available

69

MTD 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

70

MTD 731-0617A

Control Cover Half-Upper

$

$

Not available

71

MTD 731-0618A

Control Cover Half-Lower
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

72

MTD 731-0619

Cable Mtg. Cap

$

$

Not available

73

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

74

MTD 749-0439A

Upper Handle
(Superseded to 749-0439E-0637)

$47.99

$

In Stock, only 1 left!

0

75

MTD 12894A

Casing Clamp

$

$

Not available

76

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

77

MTD 751-0369

Casing Clamp

Note: (352R)

$

$

Not available

78

MTD 749-0278

Grass Catcher Upper Frame

$

$

Not available

79

MTD 764-0170B

Grass Catcher Bag

$

$

Not available

80

MTD 738-0430

Shld. Bolt .500" Dia. x .685"

$11.99

$

In Stock, only 2 left!

0

82

MTD 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

83

MTD 736-0219

Bell-Wash. .400" I.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

84

MTD 746-0463A

Clutch Cable-50"

$

$

Not available

86

MTD 731-0609

Control Handle Ass'y.-L.H.

$

$

Not available

87

MTD 710-0642

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 14924

Cable Brkt.

$

$

Not available

89

MTD 728-0171

Pop Rivet

$

$

Not available

90

MTD 710-0888

Hex Bolt 5/16-24 x 1.0" Lg. Special

$4.49

$

In Stock, Qty 20+

0

91

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

92

MTD 13773A

Engine Mount Cover

$

$

Currently unavailable

93

MTD 751-0463

Casing Clamp

Note: (359R)

$

$

Not available

94

MTD 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

Note: (359R)

$3.99

$

Usually ships in 3-6 days

0

MTD 190-006-000

Grass Catcher Comp.

$

$

Not available
