129 (2050220U) - Cub Cadet Garden Tractor Engine Driven Power Take-Off-SN481999 & Below Parts Diagram

Garden Tractor

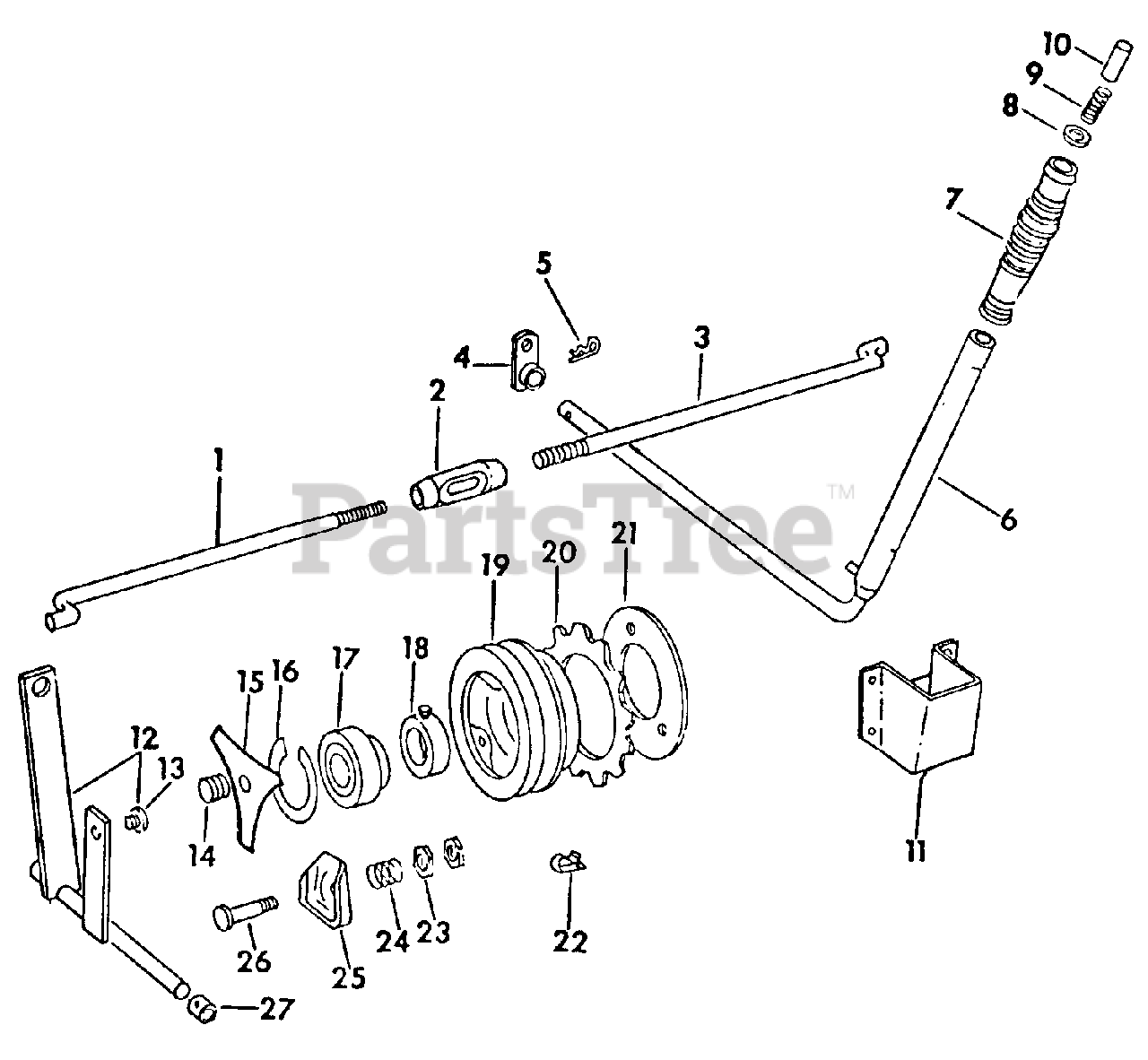

Engine Driven Power Take-Off-SN481999 & Below Parts Diagram

  • Title

1

Cub Cadet IH-473484-R1

Rod, Clutch

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4-20 Znd Hex

$4.99

$

In Stock, Qty 19

0

2

Cub Cadet IH-473589-R1

Turnbuckle, Rod

$

$

Not available

3

Cub Cadet IH-544140-R1

Rod, Rear Clutch

$

$

Not available

Cub Cadet 736-0173

Washer, 9/32 X 3/4 X 16 Ga C-Z

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet IH-543872-R1

Lever Assy, Pivot

$

$

Not available

Cub Cadet IH-19313-R1

Pin, 5/32 X 7/8 Med Coiled Spring

$

$

Not available

5

Cub Cadet IH-475579-R1

Pin, Quick Attachable Cotter
(Superseded to 714-3020)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet IH-544141-R3

Handle Assy, PTO

$

$

Not available

7

Cub Cadet IH-543878-R1

Grip

$

$

Not available

8

Cub Cadet IH-376308-R1

Retainer, Release Rod Spring

$

$

Not available

9

Cub Cadet 732-3005

Spring
(Superseded to 932-3005)

$9.49

$

In Stock, only 1 left!

0

10

Cub Cadet IH-376307-R2

Pin, Handle Release Rod

$

$

Not available

11

Cub Cadet IH-544143-R2

Bracket Assy, PTO Handle

$

$

Not available

Cub Cadet 736-0722

Washer, No. 10 Znd Reg Lock

$6.99

$

Usually ships in 3-6 days

0

Screw, 10-24 X 5/8 Znd Cr-Rec-Pan-Hd Type F Tap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

12

Cub Cadet IH-544137-R91

Rockshaft Assy, PTO Clutch

$

$

Not available

Pin, 3/16 X 1-1/4 Cotter

Note: (Common Hardware, Purchase Locally)

$

$

Not available

13

Cub Cadet IH-473483-R1

Button, Wear

$10.99

$

In Stock, Qty 20+

0

14

Cub Cadet IH-473477-R2

Button, Thrust

$15.99

$

In Stock, Qty 8

0

15

Cub Cadet IH-543969-R1

Spring, Pressure

$28.99

$

Usually ships in 3-6 days

0

16

Cub Cadet IH-473475-R1

Ring, Snap 2.197 O.D., for Pulley

$10.99

$

In Stock, only 1 left!

0

17

Cub Cadet IH-60071-C91

Bearing, Ball
(Superseded to IH-60071-C92)

$60.99

$

In Stock, Qty 5

0

Cub Cadet IH-60072-C1

Snap Ring for Bearing

$

$

Not available

18

Cub Cadet IH-455102-R21

Collar w/Set Screw & Lock Nut, Bearing
(Superseded to IH-455102-R22)

$

$

Not available

19

Cub Cadet IH-59983-C1

Pulley, Mower Actuating
(Superseded to IH-59983-C3)

$189.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-23025-R1

Screw, 1/4-20 X 1/2 Hex Soc Hd Cone Pt Set

$17.99

$

In Stock, only 1 left!

0

Cub Cadet IH-23026-R1

Screw, 1/4-20 X 1/4 Hex Soc Hd F Pt Set

$

$

Not available

20

Disc, Friction

Note: (Order 759-3489)

$

$

Not available

21

Cub Cadet IH-473471-R1

Plate, Pressure

$158.99

$

Usually ships in 3-6 days

0

22

Cub Cadet IH-531978-R1

Spring, Disc
(Superseded to IH-531978-R2)

$10.99

$

In Stock, only 3 left!

0

23

Cub Cadet IH-25930-R1

Nut, 1/4-28 Hex Jam
(Superseded to IH-25930-R2)

$4.99

$

In Stock, Qty 12

0

24

Cub Cadet IH-27452-D

Spring, Compression

$6.99

$

In Stock, Qty 19

0

25

Cub Cadet IH-473478-R1

Lever, Throw-Out

$12.99

$

In Stock, Qty 20+

0

26

Cub Cadet IH-473472-R1

Screw, Special Machine
(Superseded to IH-473472-R2)

$11.99

$

In Stock, only 2 left!

0

27

Cub Cadet IH-544146-R1

Bushing, Rockshaft

$

$

Not available

Cub Cadet IH-546775-R92

Kit, Heavy Duty PTO Clutch

Note: (For tractors w/serial no. 481999 & below)

$

$

Not available

Cub Cadet 759-3489

Kit, PTO Clutch Disc & Spring

$127.99

$

In Stock, Qty 5

0
