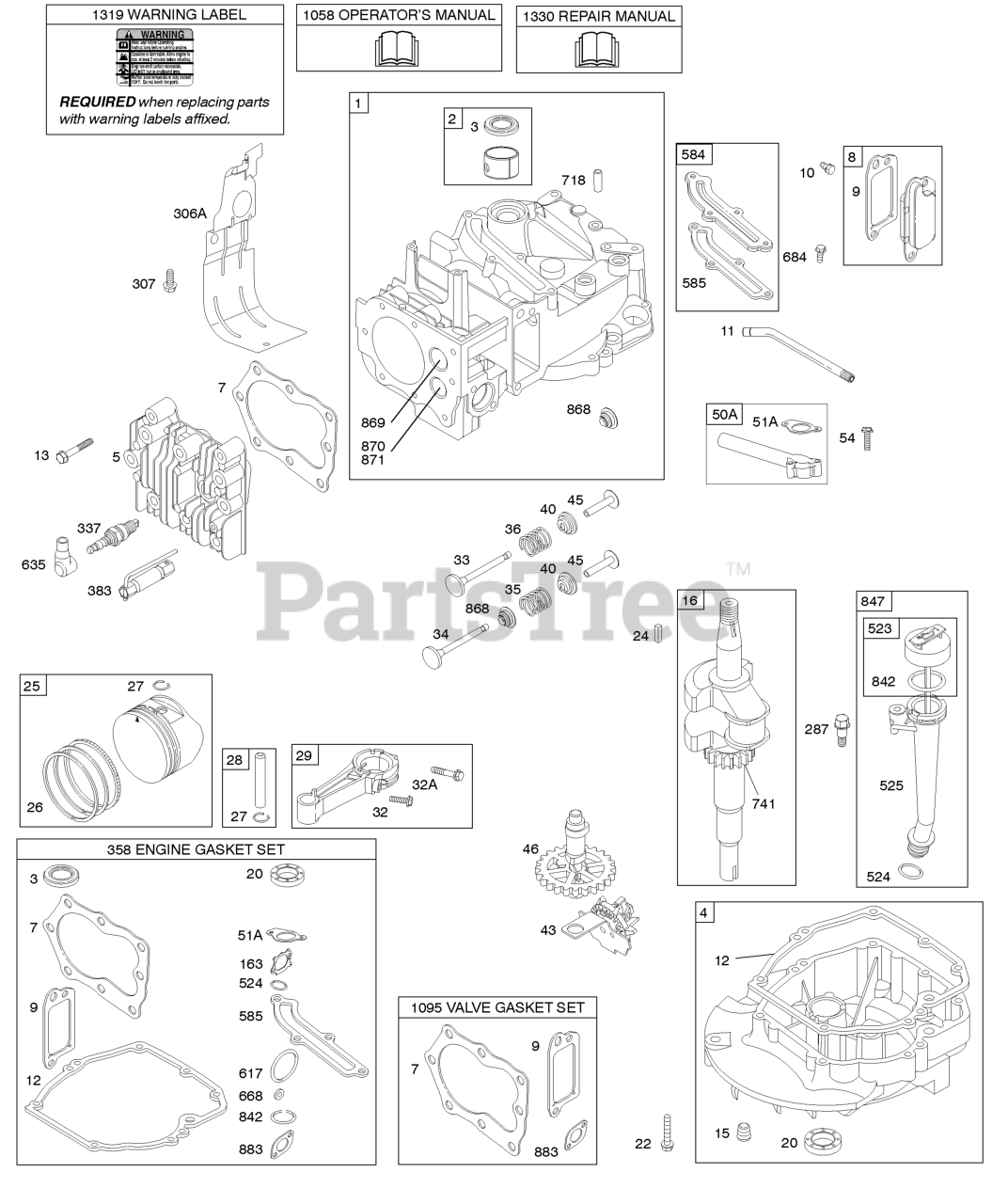

128L02-3120-F1 - Briggs & Stratton Vertical Engine Camshaft, Crankshaft, Cylinder, Engine Sump, Lubrication, Piston Group, Valves Parts Diagram

Vertical Engine

Camshaft, Crankshaft, Cylinder, Engine Sump, Lubrication, Piston Group, Valves Parts Diagram

  • Title

1

Briggs & Stratton 590401

Cylinder Assembly
(Superseded to 592645)

Note: Used After Code Date 11063000

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 796961

Kit-Bushing/Seal

Note: (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 13

0

4

Briggs & Stratton 493279

Sump, Engine

$120.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 691160

Head-Cylinder
(Superseded to 594989)

Note: Used Before Code Date 11070100

$55.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 590411

Head-Cylinder

Note: Used After Code Date 11063000

$45.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 692249

Gasket-Cylinder Head

Note: Used Before Code Date 11070100

$8.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 799875

Gasket-Cylinder Head

Note: Used After Code Date 11063000

$13.99

$

In Stock, Qty 13

0

8

Briggs & Stratton 590395

Breather Assembly

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 699833

Gasket-Breather

$5.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691125

Screw

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691781

Tube-Breather

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 692232

Gasket-Crankcase

$5.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 690912

Screw

Note: (Cylinder Head) Used Before Code Date 11070100

$3.99

$

In Stock, Qty 19

0

13

Briggs & Stratton 590422

Screw

Note: (Cylinder Head) Used After Code Date 11063000

$3.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

Note: (Square Socket)

$5.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 696009

Crankshaft
(Superseded to 590807)

$179.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 399781S

Seal-Oil

Note: (PTO Side)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691092

Screw

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 797303

Piston Assembly
(Superseded to 590405)

Note: (.020" Oversize) Used After Code Date 09041600 Used Before Code Date 11070100

$116.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 799064

Piston Assembly

Note: (.020" Oversize) Used Before Code Date 09041700

$120.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 590404

Piston Assembly

Note: (Standard) Used After Code Date 07090300

$71.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 590405

Piston Assembly
(Superseded to 590407)

Note: (.020" Oversize) Used After Code Date 11063000

$116.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 795429

Piston Assembly
(Superseded to 799063)

Note: (Standard) Used Before Code Date 07090400

$91.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 795432

Ring Set

Note: (.020" Oversize) Used Before Code Date 09041700

$52.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 797304

Ring Set
(Superseded to 590404)

Note: (Standard) Used After Code Date 09041600 Used Before Code Date 11070100

$71.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 797305

Ring Set
(Superseded to 590405)

Note: (.020" Oversize) Used After Code Date 09041600 Used Before Code Date 11070100

$116.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 590402

Ring Set

Note: (Standard) Used After Code Date 11063000

$49.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 590403

Ring Set

Note: (.020" Oversize) Used After Code Date 11063000

$52.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 795431

Ring Set

Note: (Standard) Used Before Code Date 09041700

$49.99

$

In Stock, only 4 left!

0

27

Briggs & Stratton 691588

Lock-Piston Pin

Note: Used After Code Date 09041600

$4.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 691866

Lock-Piston Pin

Note: Used Before Code Date 09041700

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

Note: (Standard) Used Before Code Date 09041700

$9.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

Note: (Standard) Used After Code Date 09041600

$8.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

Note: (Standard) Used Before Code Date 09041700

$87.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 797306

Rod-Connecting

Note: (Standard) Used After Code Date 09041600

$61.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw

Note: (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 590394

Valve-Exhaust

$24.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 590393

Valve-Intake

$21.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691270

Spring-Valve

Note: (Intake)

$5.49

$

In Stock, Qty 7

0

36

Briggs & Stratton 691270

Spring-Valve

Note: (Exhaust)

$5.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 692194

Retainer-Valve

$5.99

$

In Stock, Qty 9

0

43

Briggs & Stratton 691997

Slinger-Governor/Oil

$25.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 690548

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 691449

Camshaft

Note: Used Before Code Date 11051700

$73.99

$

In Stock, only 1 left!

0

46

Briggs & Stratton 590463

Camshaft

Note: Used After Code Date 11051600

$73.99

$

Usually ships in 2-12 days

0

50A

Briggs & Stratton 794305

Manifold-Intake

$

$

Not available

51A

Briggs & Stratton 794306

Gasket-Intake

$4.49

$

In Stock, only 1 left!

0

54

Briggs & Stratton 691650

Screw

Note: (Intake Manifold)

$2.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 795629

Gasket-Air Cleaner

$3.49

$

In Stock, Qty 20+

0

287

Briggs & Stratton 690940

Screw

Note: (Dipstick Tube)

$3.99

$

In Stock, Qty 5

0

306A

Briggs & Stratton 790836

Shield-Cylinder

$20.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw

Note: (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 591868

Plug-Spark

Note: Used After Code Date 11063000

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 796112S

Plug-Spark

Note: Used Before Code Date 11070100

$4.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 590508

Gasket Set-Engine

$37.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838S

Wrench-Spark Plug

$6.49

$

In Stock, only 4 left!

0

523

Briggs & Stratton 499621

Dipstick

$17.99

$

In Stock, only 4 left!

0

524

Briggs & Stratton 692296

Seal-Dipstick Tube

$4.99

$

In Stock, only 2 left!

0

525

Briggs & Stratton 495265

Tube-Dipstick

$

$

Not available

584

Briggs & Stratton 697734

Cover-Breather Passage

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 691879

Gasket-Breather Passage

$6.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 270344S

Seal-O Ring

Note: (Intake Manifold)

$3.49

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 5

0

668

Briggs & Stratton 493823

Spacer

Note: (Includes 2)

$6.49

$

In Stock, only 1 left!

0

684

Briggs & Stratton 690345

Screw

Note: (Breather Passage Cover)

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 797521

Gear-Timing

Note: (Metal) Used After Code Date 08021700

$13.99

$

In Stock, only 3 left!

0

741

Briggs & Stratton 794388

Gear-Timing

Note: (Use Without Woodruff Key) Used Before Code Date 08021800

$15.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 692047

Dipstick/Tube Assembly

$

$

Not available

868

Briggs & Stratton 697338

Seal-Valve

Note: Used Before Code Date 11070100

$13.99

$

In Stock, only 4 left!

0

868

Briggs & Stratton 590410

Seal-Valve

Note: Used After Code Date 11063000

$12.99

$

In Stock, only 2 left!

0

869

Briggs & Stratton 691155

Seat-Valve

Note: (Intake)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 690380

Seat-Valve

Note: (Exhaust)

$

$

Not available

871

Briggs & Stratton 262001

Bushing-Valve Guide

Note: (Exhaust) Used Before Code Date 11070100

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Valve Guide

Note: (Intake) Used Before Code Date 11070100

$14.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 590409

Bushing-Valve Guide

Note: Used After Code Date 11063000

$13.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691881

Gasket-Exhaust

$8.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 380567TRI

Operator's Manual

$

$

Not available

1095

Briggs & Stratton 590507

Gasket Set-Valve

$26.99

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 270962

Repair Manual

$35.99

$

In Stock, Qty 8

0
