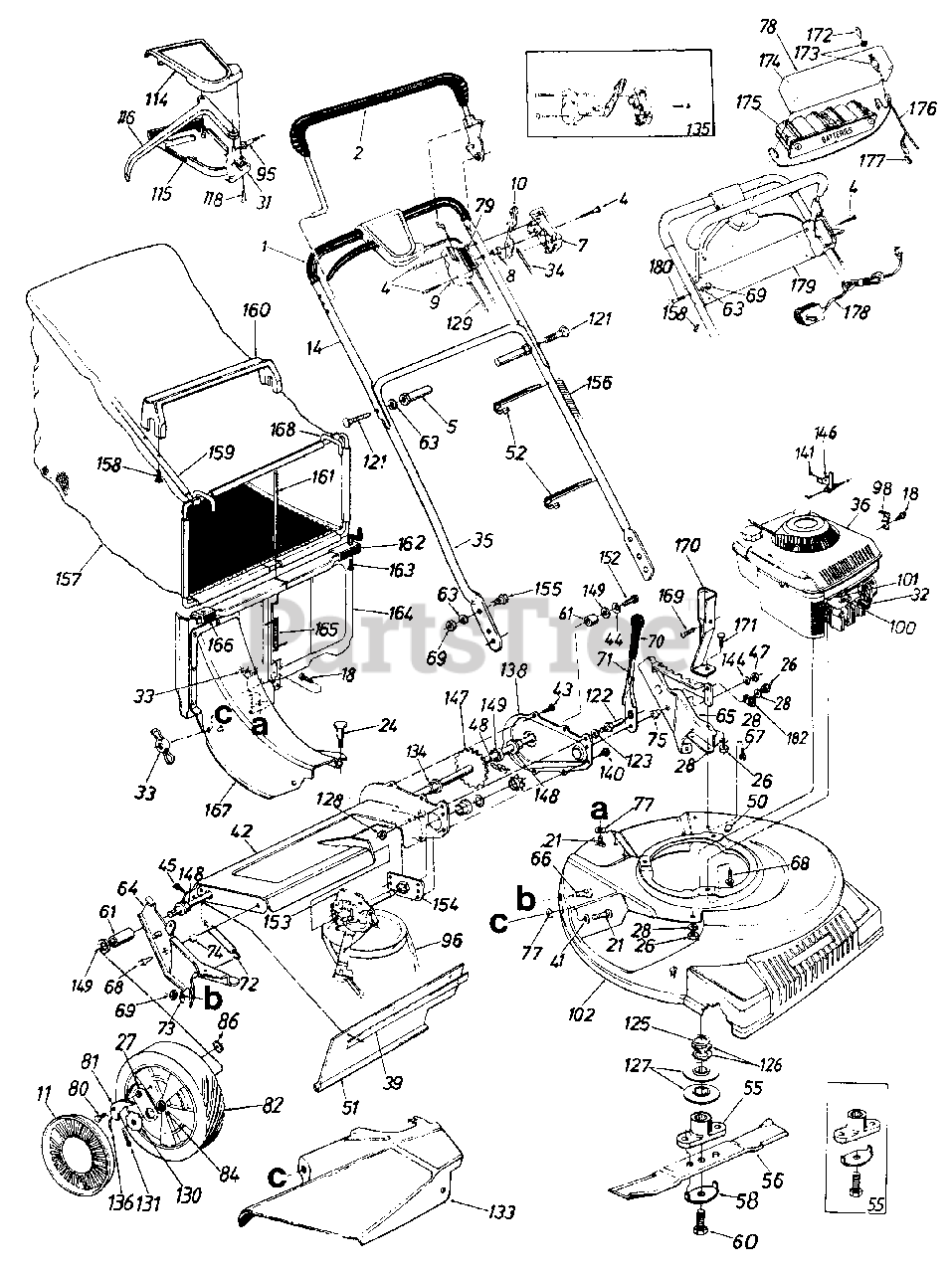

12886E-9 - MTD Walk-Behind Mower (1989) 21" Parts Diagram

Walk-Behind Mower

21" Parts Diagram

  • Title

1

MTD 720-0225

Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

2

MTD 731-0609

Control Handle Ass'y. L.H.

$

$

Not available

4

MTD 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

5

MTD 711-0807

Catcher Support Pin

$

$

Not available

7

MTD 731-0817

Control Panel Half

$

$

Not available

8

MTD 731-0524

Control Disc Pin

$

$

Not available

9

MTD 731-0816

Clutch Panel Half

$

$

Not available

10

MTD 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

MTD 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

14

MTD 749-0439A

Upper Handle
(Superseded to 749-0439E-0637)

$47.99

$

In Stock, only 1 left!

0

18

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

24

MTD 738-0704

Shoulder Bolt .312 Dia. x .18 Lg. Special

$17.99

$

Usually ships in 3-6 days

0

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

MTD 16855

Pawl Plate

$6.49

$

In Stock, Qty 6

0

28

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

31

MTD 731-0619A

S.P. Control Cover

$

$

Not available

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 712-0388

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 746-0672

Throttle Control Wire 58"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

MTD 749-0725

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

39

MTD 14835

Retaining Strip

$

$

Not available

41

MTD 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 7

0

42

MTD 17055B

Chain Axle Ass'y.

Variations

MTD 17055B-0483

No Longer Available Axle ASM- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17055B-0498

No Longer Available AXLE ASM- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17055B-0629

No Longer Available Axle ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

MTD 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17055B-0648

No Longer Available AXLE ASM- - TECH GRAY (0648)

$

$

Not available

MTD 17055B-0650

No Longer Available AXLE ASM- - RED METALLIC (0650)

$

$

Not available

MTD 17055B-0662

No Longer Available Axle ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 17055B-0665

AXLE ASSY-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

MTD 17055B-0667

No Longer Available AXLE ASM- - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17055B-0691

No Longer Available AXLE ASM- - BLACK JACK (0691)

$

$

Not available

$

$

43

MTD 710-0352

Hex B-Tap Scr. 1/41 X .38"

$4.99

$

Usually ships in 3-6 days

0

44

MTD 736-0270

Bell-Wash. 1/41' I.D.

$3.99

$

In Stock, Qty 20+

0

45

MTD 710-0776A

Hex AB-Tap Scr. 1/4 X .6211
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

47

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

MTD 713-0353

#48 Chain .500" Pitch x .30 Links
(Superseded to 913-0353)

$

$

Not available

50

MTD 731-0564

Plug

$

$

Not available

51

MTD 731-0672A

Rear Flap 3.75" x 17.30" Lg.

$31.99

$

Usually ships in 3-6 days

0

52

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

55

MTD 753-0463

Blade Adapter Kit
(Superseded to 753-0485)

$46.99

$

Usually ships in 3-6 days

0

56

MTD 742-0306A

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

58

MTD 736-0415

Blade Bell-Wash. .45" I.D.
(Superseded to 753-0525)

$

$

Not available

60

MTD 710-0757

Hex Bolt 7/16-20 x 1.5"

$9.99

$

In Stock, only 1 left!

0

61

MTD 748-0190

Spacer.513" I.D.

$6.49

$

In Stock, only 1 left!

0

63

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 16136A

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

MTD 16137A

L.H. Handle Wheel Brkt. Ass'y.

$

$

Currently unavailable

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16

$4.49

$

In Stock, only 3 left!

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

71

MTD 732-0606

Height Adj. Lever

$

$

Not available

72

MTD 732-0481

Extension Spring 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0736

Spacer.383" I.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

MTD 750-0624

Shld. Spacer .5" Dia.

$

$

Not available

77

MTD 726-0233

Bolt Retainer 1/4 X .501 O.D.

$4.49

$

In Stock, only 3 left!

0

78

MTD 777-5902

Instruction Label

$

$

Currently unavailable

79

MTD 777-5812

Control Label

$

$

Not available

80

MTD 738-0137

Shld. Scr. .342" Dia. x .268

$

$

Not available

81

MTD 748-0188B

Pawl
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

82

MTD 734-1514A

Wheel Ass'y. Comp. Rear
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

84

MTD 741-0486B

Sleeve Bearing 1/2" I.D.

$

$

Not available

86

MTD 712-0189

Flat Nut 1/4-20 Thd.

$

$

Not available

95

MTD 746-0650

S.P. Cable x 50" Lg.
(Superseded to 946-0650)

$47.99

$

Usually ships in 3-6 days

0

96

MTD 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

98

MTD 12894A

Casing Clamp

$

$

Not available

100

MTD 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

101

MTD 751-0463

Casing Clamp

$

$

Not available

102

MTD 17051

21" Deck Ass'y.

Variations

MTD 17051-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17051-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

114

MTD 731-0617A

Self-Propelled Control Cover

$

$

Not available

115

MTD 731-0618A

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

116

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

118

MTD 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

121

MTD 710-0405

Curved Carr. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

122

MTD 711-0805

Shld. Pin 1.43" Lg.

$

$

Not available

123

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

125

MTD 736-0409

Serrated Wash. 1.0" I.D.
(Superseded to 936-0409)

$

$

Not available

126

MTD 736-0408

Wave Wash. 1.005" I.D.
(Superseded to 936-0447)

$4.49

$

In Stock, Qty 20+

0

127

MTD 756-0502

Serrated Pulley Half
(Superseded to 956-0502)

$

$

Not available

128

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

129

MTD 746-0480A

Control Cable 46"

$

$

Not available

130

MTD 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

131

MTD 714-0115

Cotter Pin 1/8" Dia. x 1"

$3.99

$

Usually ships in 3-6 days

0

133

MTD 731-0885

Side Chute Deflector Ass'y.

$

$

Not available

134

MTD 741-0522

Flange Bearing

$

$

Not available

135

MTD 753-0430

Kit Control Housing Comp.

$

$

Not available

136

MTD 10622B

Spring Nylon

$5.49

$

In Stock, Qty 20+

0

138

MTD 17053A

Chain Cover

Variations

MTD 17053A-0480

No Longer Available COVER-CHAI - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17053A-0483

No Longer Available COVER-CHAI - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17053A-0637

No Longer Available COVER-CHAI - POWDER BLACK (0637)

$

$

Not available

MTD 17053A-0638

No Longer Available COVER-CHAI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17053A-0650

No Longer Available COVER-CHAI - RED METALLIC (0650)

$

$

Not available

MTD 17053A-0662

No Longer Available COVER-CHAI - OYSTER GRAY (0662)

$

$

Not available

MTD 17053A-0665

No Longer Available COVER-CHAI - YARDMAN GREEN (0665)

$

$

Not available

MTD 17053A-0674

No Longer Available COVER-CHAI - YARDMAN YELLOW (0674)

$

$

Not available

$

$

140

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

141

MTD 728-0171

Pop Rivet

$

$

Not available

144

MTD 736-0300

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

146

MTD 14924

Cable Bracket

$

$

Not available

147

MTD 738-0719A

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

148

MTD 741-0324

Hex Flange Brg. .506" I.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

MTD 736-0160

Fl-Wash. .531" I.D. x .930"

$4.49

$

In Stock, only 2 left!

0

152

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

MTD 717-0417A

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

MTD 16500

Hex Bearing Cup
(Superseded to 16500A-0637)

$8.99

$

Usually ships in 3-6 days

0

155

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

156

MTD 731-0759

Plastic Tubing

$

$

Not available

157

MTD 764-0259

Grass Bag

$

$

Not available

158

MTD 710-1025

Hex AB-Tap Scr. #12 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

159

MTD 749-0723C

Rear Catcher Frame

$

$

Currently unavailable

160

MTD 731-0801

Bag Handle

$

$

Not available

161

MTD 747-0547

Chute Rod .188" Dia.

$

$

Not available

162

MTD 731-0882

Door Clip

$

$

Not available

163

MTD 710-0895

Hex AB-Tap Scr. 1/4 x .75" Lg.

$6.49

$

In Stock, Qty 5

0

164

MTD 17062

Chute Door

$

$

Not available

165

MTD 732-0558

Torsion Spring

$

$

Currently unavailable

166

MTD 731-0880

Panel Clip

$3.99

$

Usually ships in 3-6 days

0

167

MTD 731-0864

Top Discharge Chute Ass'y.

$

$

Not available

168

MTD 747-0707

Front Catcher Frame

$

$

Not available

169

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

170

MTD 17061A

Grass Catcher Bracket

$

$

Currently unavailable

171

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

172

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

173

MTD 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

174

MTD 731-0891

Battery Tray
(Superseded to 731-0891A)

$

$

Not available

175

MTD 725-1276

Battery Pack
(Superseded to 925-1276)

$185.99

$

Usually ships in 3-6 days

0

176

MTD 725-1283A

Wire Harness

$

$

Currently unavailable

177

MTD 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

178

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0

179

MTD 16542A

Lower Battery Tray

$

$

Currently unavailable

180

MTD 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

182

MTD 726-0175

Clamp

$

$

Not available
