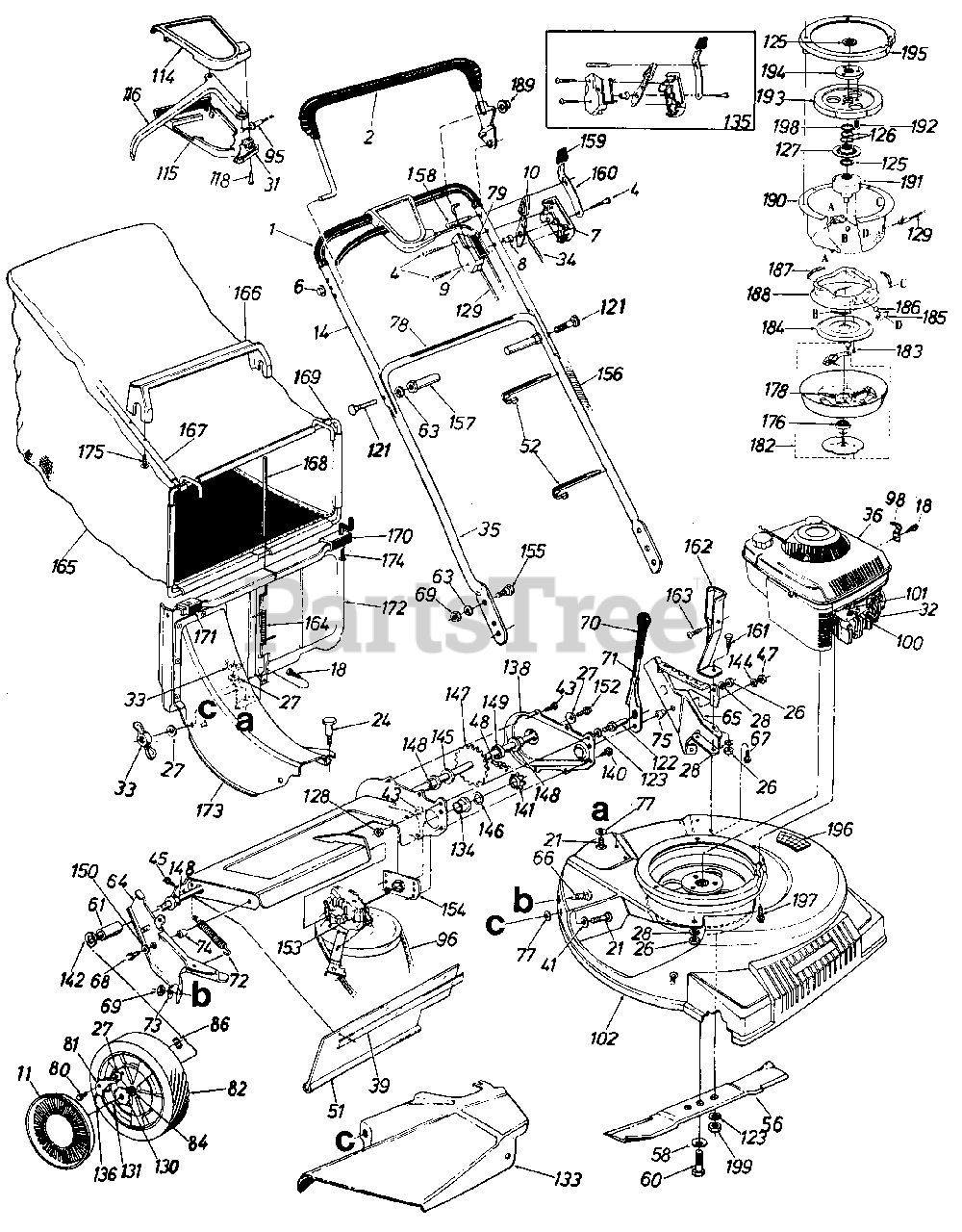

12884-8 - MTD Walk-Behind Mower (1988) 21" Parts Diagram

Walk-Behind Mower

21" Parts Diagram

  • Title

1

MTD 718-0145

Grip

$

$

Currently unavailable

2

MTD 16739

Control Handle Ass'y. L.H.

$

$

Not available

4

MTD 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

6

MTD 726-0135

Push Cap

$6.99

$

In Stock, only 1 left!

0

7

MTD 731-0817

Control Panel Half

$

$

Not available

8

MTD 731-0524

Control Disc Pin

$

$

Not available

9

MTD 731-0816

Clutch Panel Half

$

$

Not available

10

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

MTD 731-0982

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

14

MTD 749-0437

Upper Handle Chrome

$

$

Currently unavailable

18

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

24

MTD 738-0704

Shoulder Bolt .312 Dia. x .18 Lg. Special

$17.99

$

Usually ships in 3-6 days

0

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

31

MTD 731-0619

S.P. Control Cover

$

$

Not available

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 712-0109

Wing Nut

$

$

Not available

34

MTD 746-0672

Throttle Control Wire 58"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

MTD 749-0726

Lower Handle Chrome

$

$

Not available

36

Engine

$

$

Not available

39

MTD 14835

Retaining Strip

$

$

Not available

41

MTD 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 7

0

MTD 17055

Chain Axle Ass'y.
(Superseded to 17055B)

$

$

Not available

43

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

45

MTD 710-0776

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

47

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

MTD 713-0353

#48 Chain .500" Pitch x .30 Links
(Superseded to 913-0353)

$

$

Not available

51

MTD 731-0672

Rear Flap 3.75" x 17.30" Lg.
(Superseded to 731-0672A)

$31.99

$

Usually ships in 3-6 days

0

52

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

56

MTD 742-0306

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

58

MTD 736-0412

Bell-Wash. .460" I.D. x .880"

$

$

Not available

60

MTD 710-1002

Hex Bolt 7/16-20 x 2.0"

$6.99

$

Usually ships in 3-6 days

0

61

MTD 748-0190

Spacer.513" I.D.

$6.49

$

In Stock, only 1 left!

0

63

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 16136

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

MTD 16137

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/1 6-1 8

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-1 6
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0143

Grip

$

$

Not available

71

MTD 732-0473

Height Adj. Lever
(Superseded to 732-0473B)

$

$

Not available

72

MTD 732-0481

Extension Spring 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0526

Spacer.385" I.D.

$4.99

$

In Stock, only 1 left!

0

75

MTD 750-0624

Shld. Spacer.5" Dia.

$

$

Not available

77

MTD 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, only 3 left!

0

78

MTD 777-5815

Instruction Label

$

$

Currently unavailable

79

MTD 777-5813

Control Label

$

$

Currently unavailable

80

MTD 738-0137

Shld. Scr. .342" Dia. x .268

$

$

Not available

81

MTD 748-0188

Pawl
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

82

MTD 734-1514

Wheel Ass'y. Comp. Rear
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

84

MTD 741-0486

Sleeve Bearing .503" I.D.

$

$

Not available

86

MTD 712-0189

Flat Nut 1/4-20 Thd.

$

$

Not available

95

MTD 746-0650

S.P. Cable 50" Lg.
(Superseded to 946-0650)

$47.99

$

Usually ships in 3-6 days

0

96

MTD 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

98

MTD 12894

Casing Clamp

$

$

Not available

100

MTD 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

101

MTD 751-0463

Casing Clamp

$

$

Not available

102

MTD 17051

21" Deck Ass'y.

Variations

MTD 17051-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17051-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

114

MTD 731-0617

Self-Propelled Control Cover
(Superseded to 731-0617A)

$

$

Not available

115

MTD 731-0618

Self-Propelled Control Cover
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

116

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

118

MTD 710-0841

Fl-"C"-Sunk Hd.-Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

121

MTD 710-0405

Curved Carr. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

122

MTD 711-0805

Shld. Pin 1.43" Lg.

$

$

Not available

123

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

125

MTD 736-0409

Serrated Wash. 1.0" I.D.
(Superseded to 936-0409)

$

$

Not available

126

MTD 736-0408

Wave Wash. 1.005" I.D.
(Superseded to 936-0447)

$4.49

$

In Stock, Qty 20+

0

127

MTD 756-0503

Serrated Pulley Half

$7.99

$

Usually ships in 3-6 days

0

128

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

129

MTD 746-0406

Clutch Cable 49"

$

$

Not available

130

MTD 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

131

MTD 714-0115

Cotter Pin 1/8" Dia. x 1"

$3.99

$

Usually ships in 3-6 days

0

133

MTD 731-0885

Side Chute Deflector Ass'y.

$

$

Not available

134

MTD 741-0413

Flange Bearing

$9.99

$

Usually ships in 3-6 days

0

135

MTD 753-0431

Kit Control Housing Comp.

$

$

Not available

136

MTD 10622

Spring Nylon
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

138

MTD 17053

Chain Cover

$

$

Not available

140

MTD 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

141

MTD 713-0400

Sprocket Shaft Ass'y.

$

$

Not available

142

MTD 736-0326

Fl-Wash. .510" I.D. x 1.0"

$4.49

$

In Stock, only 4 left!

0

144

MTD 736-0300

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

145

MTD 736-0326

Fl-Wash. .51 " I.D. x 1.0"

$4.49

$

In Stock, only 4 left!

0

146

MTD 736-0336

Fl-Wash. 3/8" I.D.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

147

MTD 738-0719

Rear Shaft Ass'y. 21.94" Lg.
(Superseded to 938-0719A)

$

$

Not available

148

MTD 741-0324

Hex Flange Brg. .506" I.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

MTD 736-0160

Fl-Wash. .531" I.D. x .9301'

$4.49

$

In Stock, only 2 left!

0

150

MTD 736-0179

Fl-Wash. .531" I.D.

$4.99

$

In Stock, only 2 left!

0

152

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

MTD 717-0417

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

MTD 16500

Hex Bearing Cup
(Superseded to 16500A-0637)

$8.99

$

Usually ships in 3-6 days

0

155

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

156

MTD 731-0759

Plastic Tubing

$

$

Not available

157

MTD 711-0807

Catcher Support Pin

$

$

Not available

158

MTD 731-0607

Lock Pin .314" Dia. x 1.75"

$

$

Not available

159

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

160

MTD 732-0401

Lockout Spring

$

$

Not available

161

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

162

MTD 17061

Grass Catcher Bracket

$

$

Not available

163

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

164

MTD 732-0558

Torsion Spring

$

$

Currently unavailable

165

MTD 764-0259

Grass Bag

$

$

Not available

166

MTD 731-0801

Bag Handle

$

$

Not available

167

MTD 749-0723

Rear Catcher Frame

Variations

MTD 749-0723-0637

No Longer Available FRAME-CATC - POWDER BLACK (0637)

$

$

Not available

$

$

168

MTD 747-0547

Chute Rod .188" Dia.

$

$

Not available

169

MTD 747-0707

Front Catcher Frame

$

$

Not available

170

MTD 731-0882

Door Clip

$

$

Not available

171

MTD 731-0883

Panel Bag Clip

$

$

Not available

172

MTD 17062

Chute Door

$

$

Not available

173

MTD 731-0864

Top Discharge Chute Ass'y.

$

$

Not available

174

MTD 710-0895

Hex AB-Tap Scr. 1/4 X .75"

$6.49

$

In Stock, Qty 5

0

175

MTD 710-1025

Hex AB-Tap Scr. #12 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

176

MTD 741-0124

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

178

MTD 732-0396

Compression Spring

$

$

Not available

182

MTD 717-0889

Clutch Blade Housing Ass'y.

Note: (Incl. Ref. Nos. 184 & 191)

$

$

Currently unavailable

183

MTD 710-0875

Hex Wash. TT-Tap Scr 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

184

MTD 14305

Brake Cup Cone

$

$

Currently unavailable

185

MTD 731-0520

Ball Block

$

$

Not available

186

MTD 741-0326

Steel Ball

$

$

Not available

187

MTD 732-0397

Ext. Spring 1.75" Lg.

$

$

Not available

188

MTD 14304

Clutching Cone

$

$

Not available

189

MTD 726-0245

Push Cap

$

$

Not available

190

MTD 14309

Clutch Housing

$

$

Currently unavailable

191

MTD 756-0504

Fixed Pulley Adapter

$

$

Not available

192

MTD 710-0618

Flat Hd. B-Scr. 1/4-20 x .62"

$

$

Not available

193

MTD 748-0319

Flywheel

$

$

Not available

194

MTD 748-0320

Flywheel Adapter

$

$

Not available

195

MTD 17176

Engine Mtg. Cover Plate Ass'y.

$

$

Not available

196

MTD 731-0756

Rubber Foot Pad

$

$

Currently unavailable

197

MTD 710-1007

Hex Wash. Hd. Tap Scr. 3/8-16 x 1.50" Lg.

$6.49

$

In Stock, only 1 left!

0

198

MTD 736-0405

Serrated Wash. 1.0" I.D.

$

$

Not available

199

MTD 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

MTD 8884-400-8

Hardware Pack

$

$

Currently unavailable
