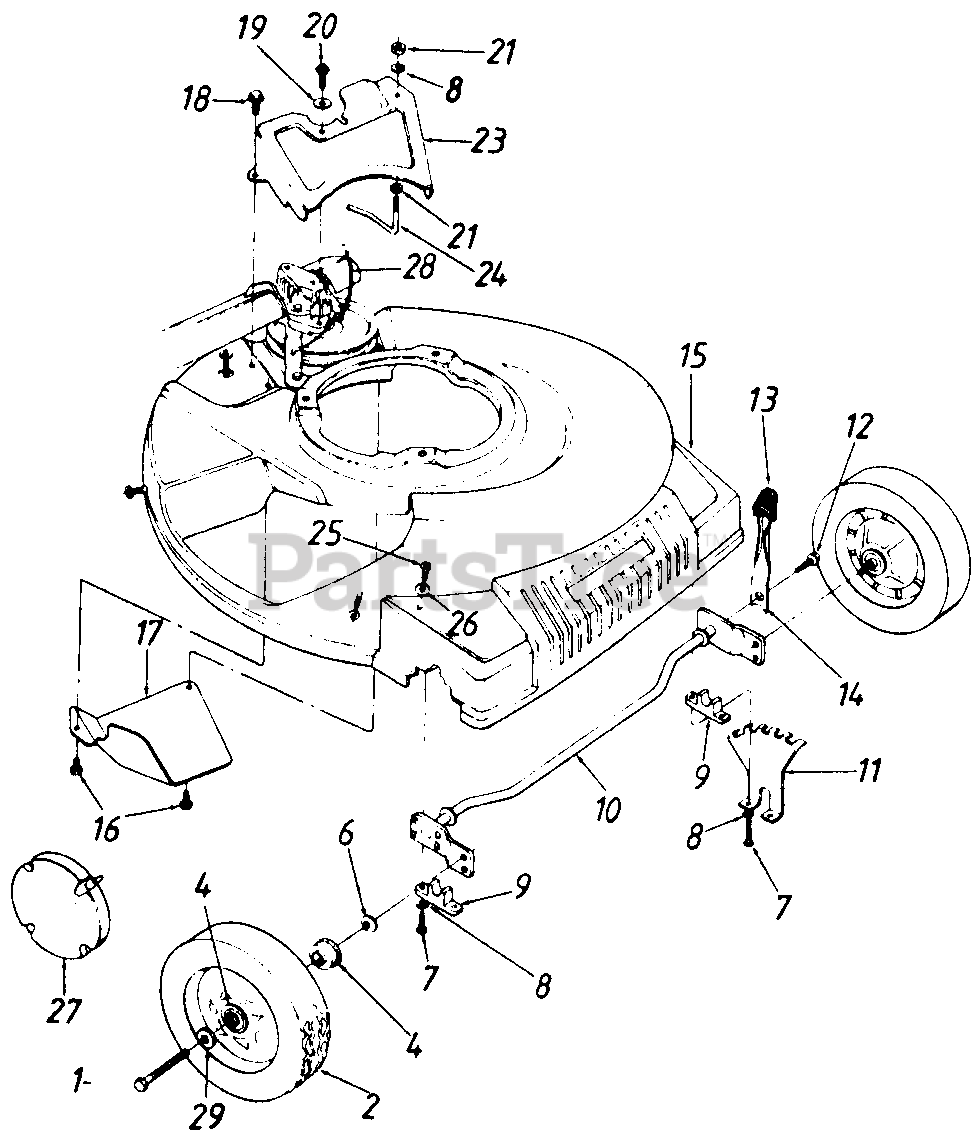

12879R-9 - MTD Walk-Behind Mower (1989) 21" Parts Diagram

Walk-Behind Mower

21" Parts Diagram

  • Title
1

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

2

MTD 734-1517A

Wheel Ass'y. Comp. 8 x 2"
(Superseded to 734-1517B)

$68.99

$

Usually ships in 3-6 days

0

4

MTD 741-0180

Flange Ball Brg. .501" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

6

MTD 736-0242

Bell-Wash. .345" I.D. x .88

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0588

Hex Wash. Hd. B-Tap Scr. 1/4-20
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

8

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

9

MTD 741-0492

Block Bushing
(Superseded to 741-0492A)

$6.49

$

In Stock, Qty 9

0

10

MTD 17060

Axle Ass'y.

$

$

Not available

11

MTD 17059

Height Adj. Bracket

$

$

Not available

12

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

13

MTD 720-0190

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

14

MTD 732-0553

Spring Lever

$

$

Currently unavailable

15

MTD 731-0865

Plastic Front End
(Superseded to 931-0865C)

$

$

Not available

16

MTD 710-0352

Hex B-Tap Scr. 1/4-.38"

$4.99

$

Usually ships in 3-6 days

0

17

MTD 17064

Belt Cover

Variations

MTD 17064-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 710-0599

Hex Wash. Hd. TT-Scr. 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-0896

Hex Wash. Hd. B-Tap Scr. 1/4 x.62"

Note: (Spec.)

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

23

MTD 17058

Transmission Belt Guard
(Superseded to 17058A-0637)

$

$

Not available

24

MTD 747-0549

S.P. Belt Guard

$

$

Not available

25

MTD 710-1001

Truss B-Tap Scr. 5/16 x .75"
(Superseded to 710-1242)

$4.99

$

In Stock, Qty 19

0

26

MTD 736-0271

Bell-Wash. 5/16" I.D. x 5/8
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

27

MTD 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

28

MTD 746-0650

S.P. Cable 50" Lg.
(Superseded to 946-0650)

$47.99

$

Usually ships in 3-6 days

0

29

MTD 736-0160

Fl-Wash. .531" I.D.

$4.49

$

In Stock, only 2 left!

0
