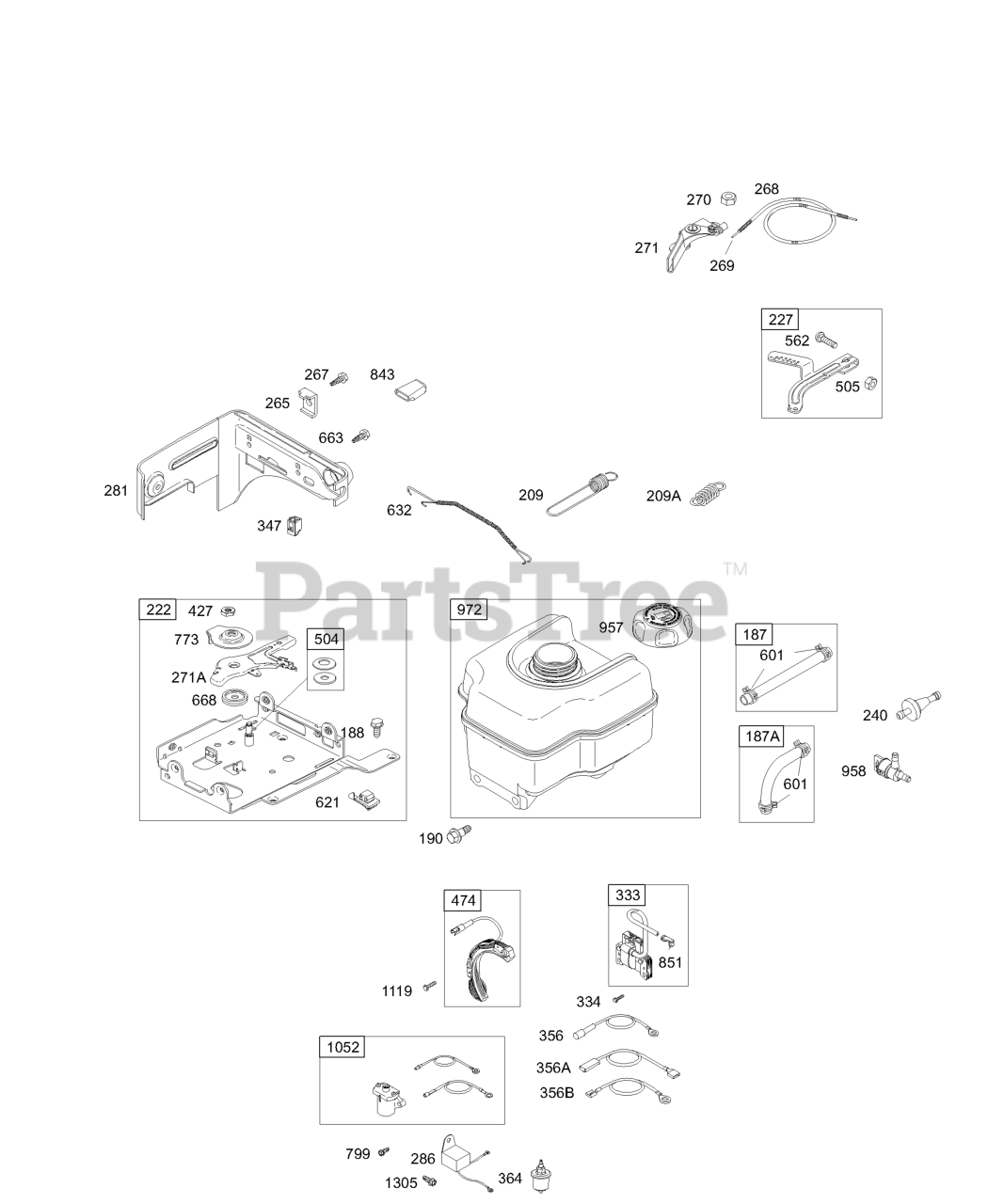

128437-0050-E1 - Briggs & Stratton Horizontal Engine Controls, Fuel Tank, Governor Spring, Ignition Parts Diagram

Horizontal Engine

Controls, Fuel Tank, Governor Spring, Ignition Parts Diagram

  • Title

187

Briggs & Stratton 691050

Line-Fuel
(Superseded to 791766)

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 694486

Line-Fuel
(Superseded to 791866)

Note: (Molded)

$24.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 690877

Screw

Note: (Control Bracket)

$3.99

$

In Stock, only 3 left!

0

190

Briggs & Stratton 692127

Screw

Note: (Fuel Tank)

$6.49

$

In Stock, only 2 left!

0

209

Briggs & Stratton 692571

Spring-Governor

Note: (Silver)

$7.49

$

In Stock, only 1 left!

0

209A

Briggs & Stratton 691278

Spring-Governor

$7.99

$

In Stock, only 2 left!

0

222

Briggs & Stratton 694253

Bracket-Control
(Superseded to 793107)

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 692573

Lever-Governor Control
(Superseded to 794367)

$16.99

$

In Stock, Qty 6

0

240

Briggs & Stratton 694485

Filter-Fuel
(Superseded to 595824)

$15.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 692577

Screw

Note: (Casing Clamp)

$3.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

271A

Briggs & Stratton 694256

Lever-Control

Note: (Control Bracket)

$19.99

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 694252

Panel-Control
(Superseded to 793122)

$35.99

$

Usually ships in 2-12 days

0

286

Briggs & Stratton 698611

Module-Oil Sensor
(Superseded to 794185)

$61.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 695711

Armature-Magneto
(Superseded to 796964)

$55.99

$

In Stock, Qty 9

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

347

Briggs & Stratton 697854

SWITCH, Rocker

$13.99

$

In Stock, only 1 left!

0

356

Briggs & Stratton 693650

Wire-Stop

$8.99

$

Usually ships in 2-12 days

0

364

Briggs & Stratton 695693

Terminal-Oil Plug

$13.99

$

Usually ships in 2-12 days

0

427

Briggs & Stratton 694255

Nut

Note: (Control Bracket)

$3.49

$

In Stock, only 1 left!

0

474

Briggs & Stratton 694457

Alternator
(Superseded to 793640)

$67.99

$

Usually ships in 2-12 days

0

504

Briggs & Stratton 694254

Washer Set-Friction
(Superseded to 695383)

$10.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

632

Briggs & Stratton 693408

Spring/Link-Mechanical Governor

$8.99

$

In Stock, only 3 left!

0

663

Briggs & Stratton 694593

Screw
(Superseded to 691693)

Note: (Control Panel)

$3.99

$

In Stock, Qty 8

0

668

Briggs & Stratton 694257

Spacer

$4.99

$

In Stock, only 1 left!

0

773

Briggs & Stratton 694258

Retainer

Note: (Control Bracket)

$4.49

$

In Stock, only 1 left!

0

799

Briggs & Stratton 693609

Screw

Note: (Oil Sensor)

$2.99

$

Usually ships in 2-12 days

0

843

Briggs & Stratton 695588

SLEEVE, Lever

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

957

Briggs & Stratton 694261

Cap-Fuel Tank
(Superseded to 792647)

Note: (Plastic)

$10.99

$

In Stock, Qty 20+

0

958

Briggs & Stratton 698180

Valve-Fuel Shut Off

Note: (Plastic)

$11.99

$

In Stock, Qty 20+

0

972

Briggs & Stratton 694260

Tank-Fuel
(Superseded to 799863)

Note: (Plastic) (4 Quart)

$89.99

$

In Stock, Qty 9

0

1052

Briggs & Stratton 698674

Sensor-Oil
(Superseded to 790141)

$61.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0

1305

Briggs & Stratton 691140

Screw

Note: (Oil Sensor Module)

$3.99

$

Usually ships in 2-12 days

0
