128432-0035-E1 - Briggs & Stratton Horizontal Engine Electric Starter, Gear Reducer Parts Diagram

Horizontal Engine

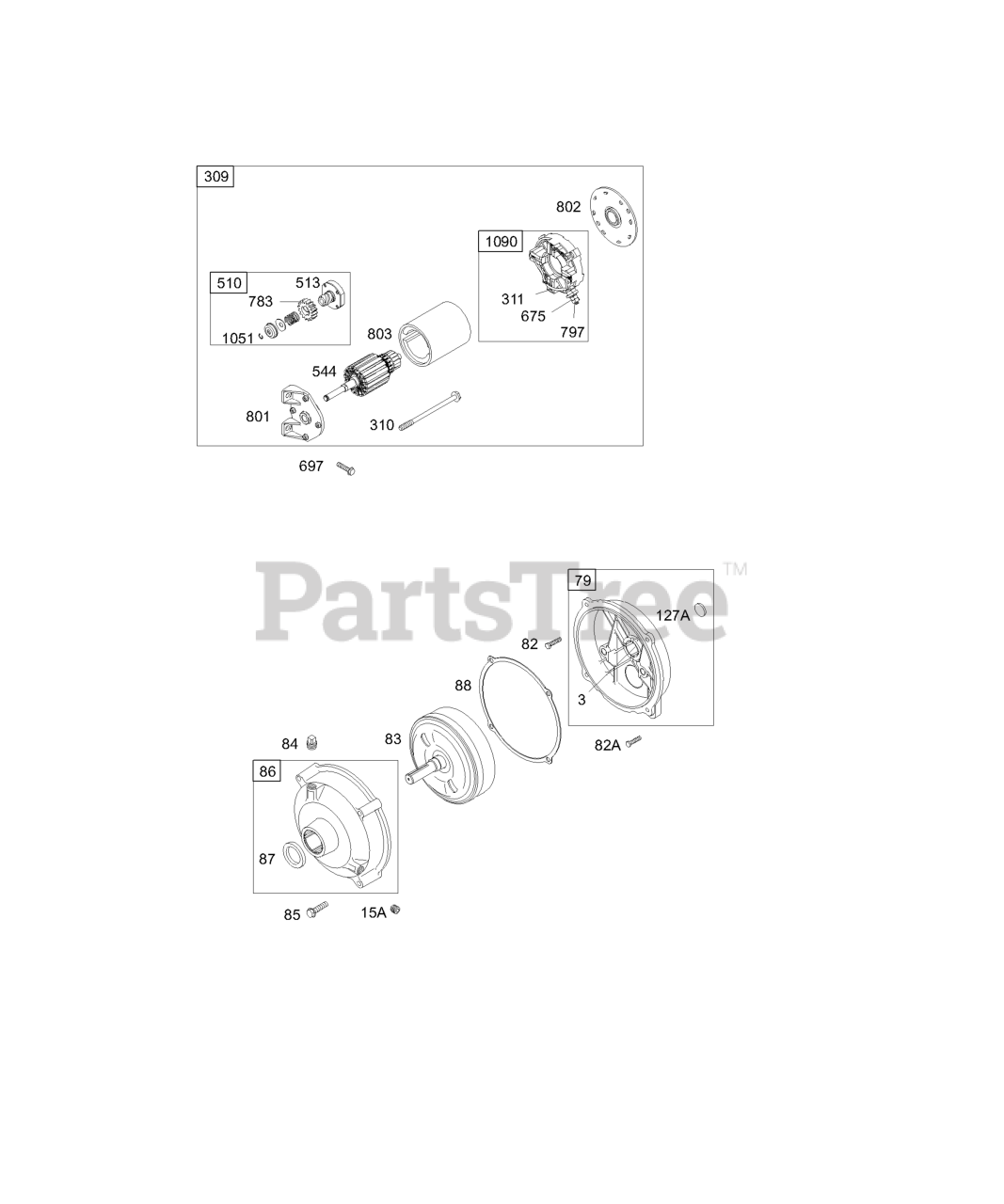

Electric Starter, Gear Reducer Parts Diagram

  • Title
3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 17

0

15A

Briggs & Stratton 691682

Plug-Oil Drain

Note: (Flush)

$5.49

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 694511

Case-Gear Reduction

$116.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 690369

Screw

Note: (Gear Reduction Case) (7/8" Long)

$5.99

$

Usually ships in 2-12 days

0

82A

Briggs & Stratton 691122

Screw
(Superseded to 699164)

Note: (Gear Reduction Case) (1-1/2" Long)

$3.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 690374

Shaft-Auxilary Drive

$242.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 691121

Plug-Breather

Note: (Gear Reduction)

$5.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 692551

Screw

Note: (Gear Cover to Gear Reduction Case)

$3.99

$

In Stock, only 2 left!

0

86

$73.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 691582

Seal-Gear Reduction

$12.99

$

In Stock, only 1 left!

0

88

Briggs & Stratton 691600

Gasket-Gear Reduction Cover

$11.99

$

Usually ships in 2-12 days

0

127A

$6.99

$

In Stock, Qty 5

0

309

Briggs & Stratton 694504

Motor-Starter

$375.99

$

In Stock, only 1 left!

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

$27.99

$

In Stock, only 3 left!

0

510

Briggs & Stratton 499308

Drive-Starter

$80.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 692966

Armature-Starter

$70.99

$

Usually ships in 2-12 days

0

675

Briggs & Stratton 691261

WASHER

Note: (Brush Retainer)

$3.99

$

In Stock, only 3 left!

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Drive Cap)

$3.99

$

In Stock, Qty 6

0

783

$23.99

$

Usually ships in 2-12 days

0

797

Briggs & Stratton 691029

NUT

Note: (Brush Retainer)

$5.49

$

Usually ships in 2-12 days

0

801

$83.99

$

Usually ships in 2-12 days

0

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693757

Housing-Starter

$25.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0
