128432-0035-E1 - Briggs & Stratton Horizontal Engine Carburetor, Kits/Gaskets - Carburetor Parts Diagram

Horizontal Engine

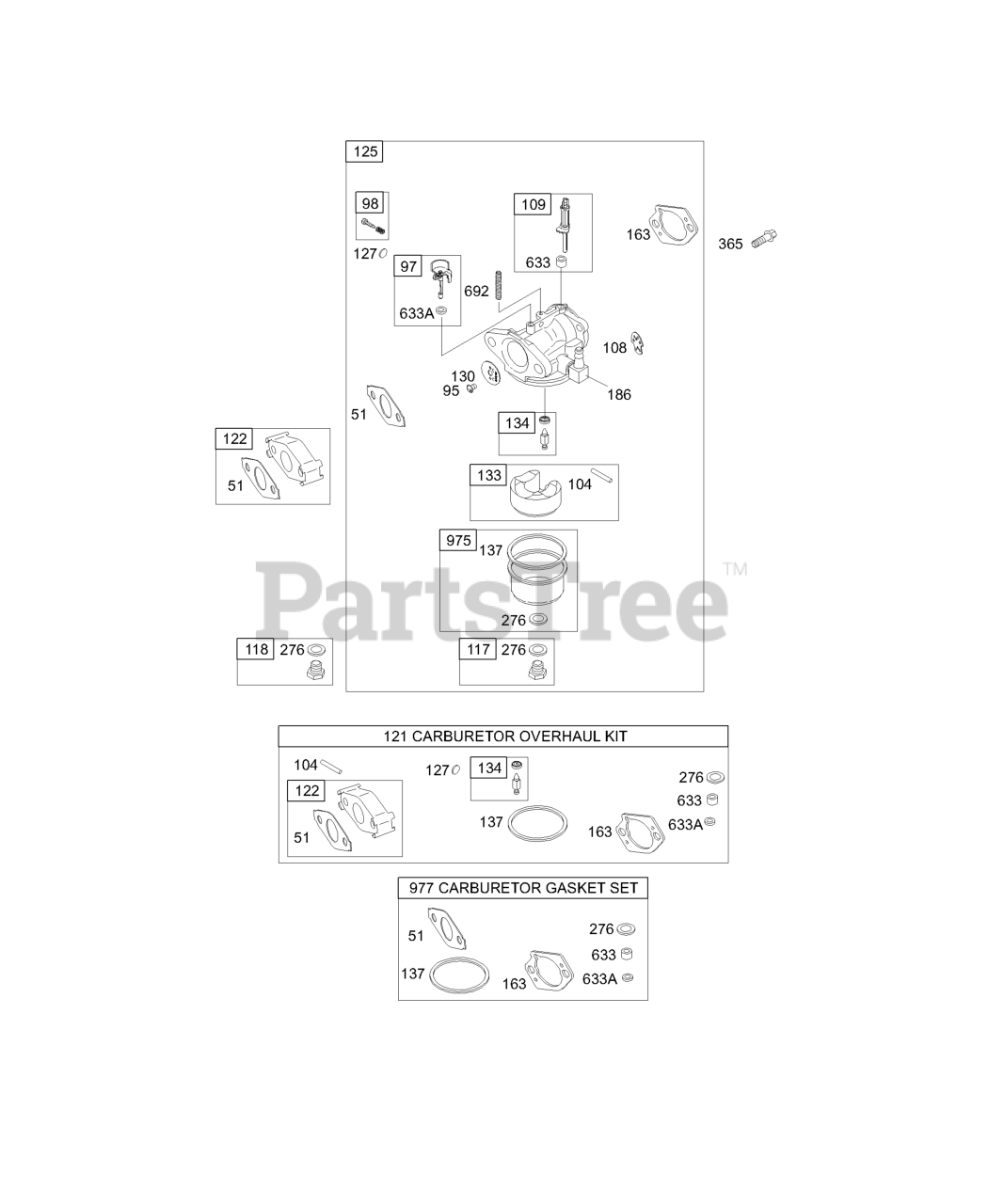

Carburetor, Kits/Gaskets - Carburetor Parts Diagram

  • Title
51

Briggs & Stratton 692555

Gasket-Intake

Note: (2 Required)

$3.99

$

In Stock, Qty 9

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 690024

Shaft-Throttle

$27.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Kit-Idle Speed

Note: (Carburetor)

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

108

$9.49

$

Usually ships in 2-12 days

0

109

$28.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 498978

Jet-Main

Note: (Standard)

$

$

Not available

118

Briggs & Stratton 497466

Jet-Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 696998

Kit-Carburetor Overhaul
(Superseded to 792006)

$28.99

$

In Stock, Qty 20+

0

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

$13.99

$

In Stock, Qty 10

0

125

Briggs & Stratton 697028

Carburetor
(Superseded to 592679)

$

$

Not available

127

$4.49

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 696979

Gasket-Air Cleaner
(Superseded to 792870)

$6.49

$

In Stock, only 4 left!

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 6

0

365

Briggs & Stratton 692568

Screw

Note: (Carburetor)

$3.99

$

In Stock, only 1 left!

0

633

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

$4.99

$

In Stock, only 2 left!

0

633A

Briggs & Stratton 691321

Seal-Choke/Throttle Shaft

$4.99

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: (Carburetor)

$5.49

$

In Stock, Qty 11

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$

$

Not available

977

Briggs & Stratton 697001

Gasket Set-Carburetor
(Superseded to 792006)

$28.99

$

In Stock, Qty 20+

0
