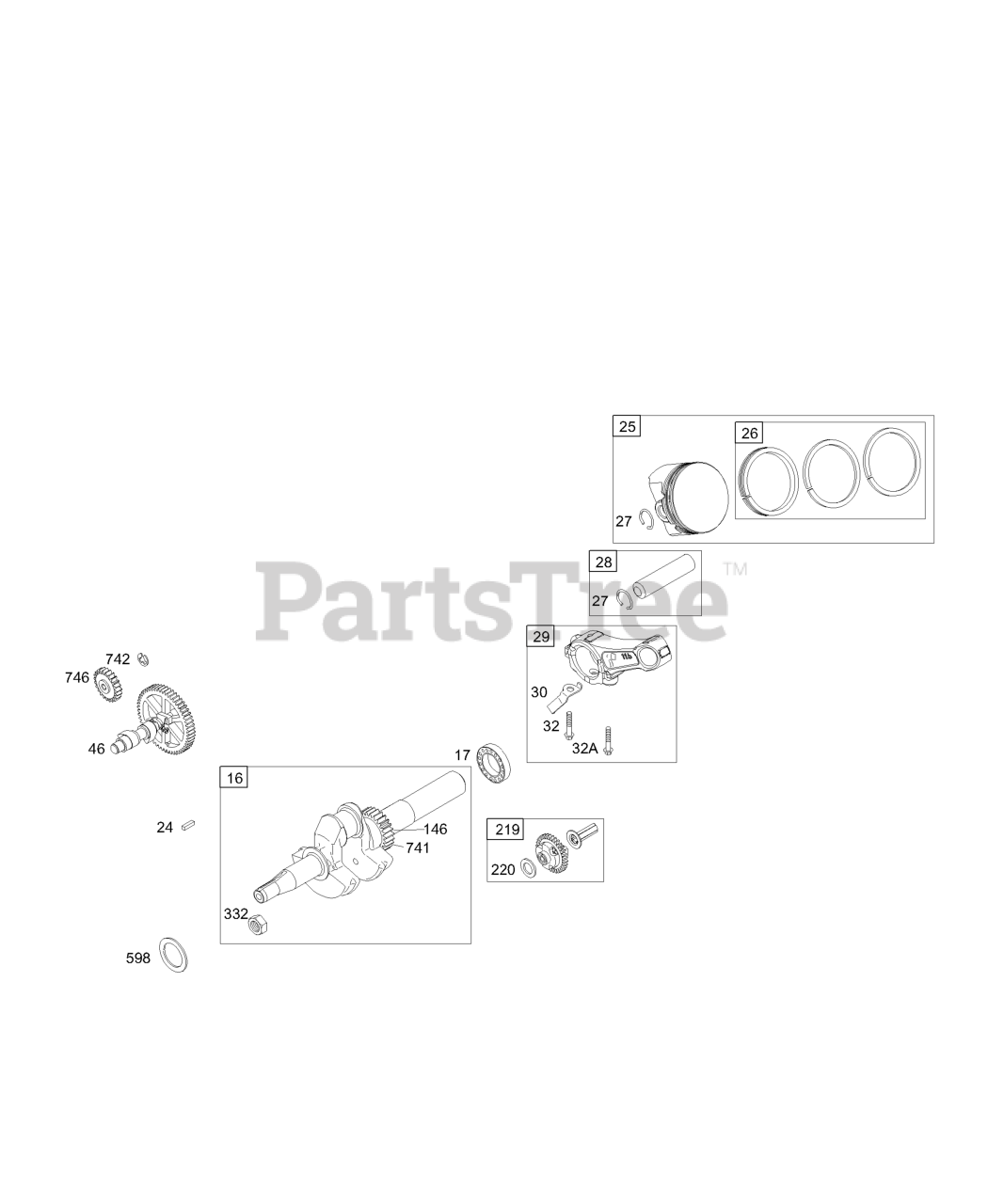

128432-0035-E1 - Briggs & Stratton Horizontal Engine Cams, Crankshaft, Piston Group Parts Diagram

Horizontal Engine

Cams, Crankshaft, Piston Group Parts Diagram

  • Title

16

Briggs & Stratton 699441

Crankshaft
(Superseded to 797078)

Note: Used After Code Date 03060800

$185.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 693594

Crankshaft
(Superseded to 797078)

Note: Used Before Code Date 03060900

$185.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 692517

Bearing-Ball
(Superseded to 798538)

$31.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 692788

Piston Assembly

Note: (.010" Oversize)

$55.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 692789

Piston Assembly
(Superseded to 799064)

Note: (.020" Oversize)

$120.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 692790

Piston Assembly

Note: (.030" Oversize)

$65.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499627

Piston Assembly
(Superseded to 799063)

Note: (Standard)

$91.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 692785

Ring Set

Note: (.010" Oversize)

$

$

Not available

26

Briggs & Stratton 692786

Ring Set

Note: (.020" Oversize)

$55.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 692787

Ring Set

Note: (.030" Oversize)

$26.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499631

Ring Set

Note: (Standard)

$53.99

$

In Stock, only 4 left!

0

27

Briggs & Stratton 691866

Lock-Piston Pin

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 690124

Rod-Connecting
(Superseded to 798813)

$43.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 692562

Dipper-Connecting Rod
(Superseded to 791584)

$6.49

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)

$4.49

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 695759

Screw

Note: (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 693404

Camshaft

$73.99

$

In Stock, Qty 5

0

146

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 7

0

219

Briggs & Stratton 693578

GEAR, Governor

$26.99

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 691724

Washer

Note: (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

332

Briggs & Stratton 699359

Nut
(Superseded to 591988)

Note: (Flywheel) Used After Code Date 03060800

$5.49

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 690662

Nut

Note: (Flywheel) Used Before Code Date 03060900

$5.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 695087

Gear-Timing

$18.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 692564

RETAINER, E Ring

Note: (Idler Gear)

$4.49

$

In Stock, only 2 left!

0

746

Briggs & Stratton 692566

Gear-Idler
(Superseded to 790278)

$17.99

$

Usually ships in 2-12 days

0
