1280 E (1694442) - Simplicity 32" Snow Thrower, 12hp Engine and Frame Group - 12HP Electric Start Parts Diagram

32" Snow Thrower, 12hp

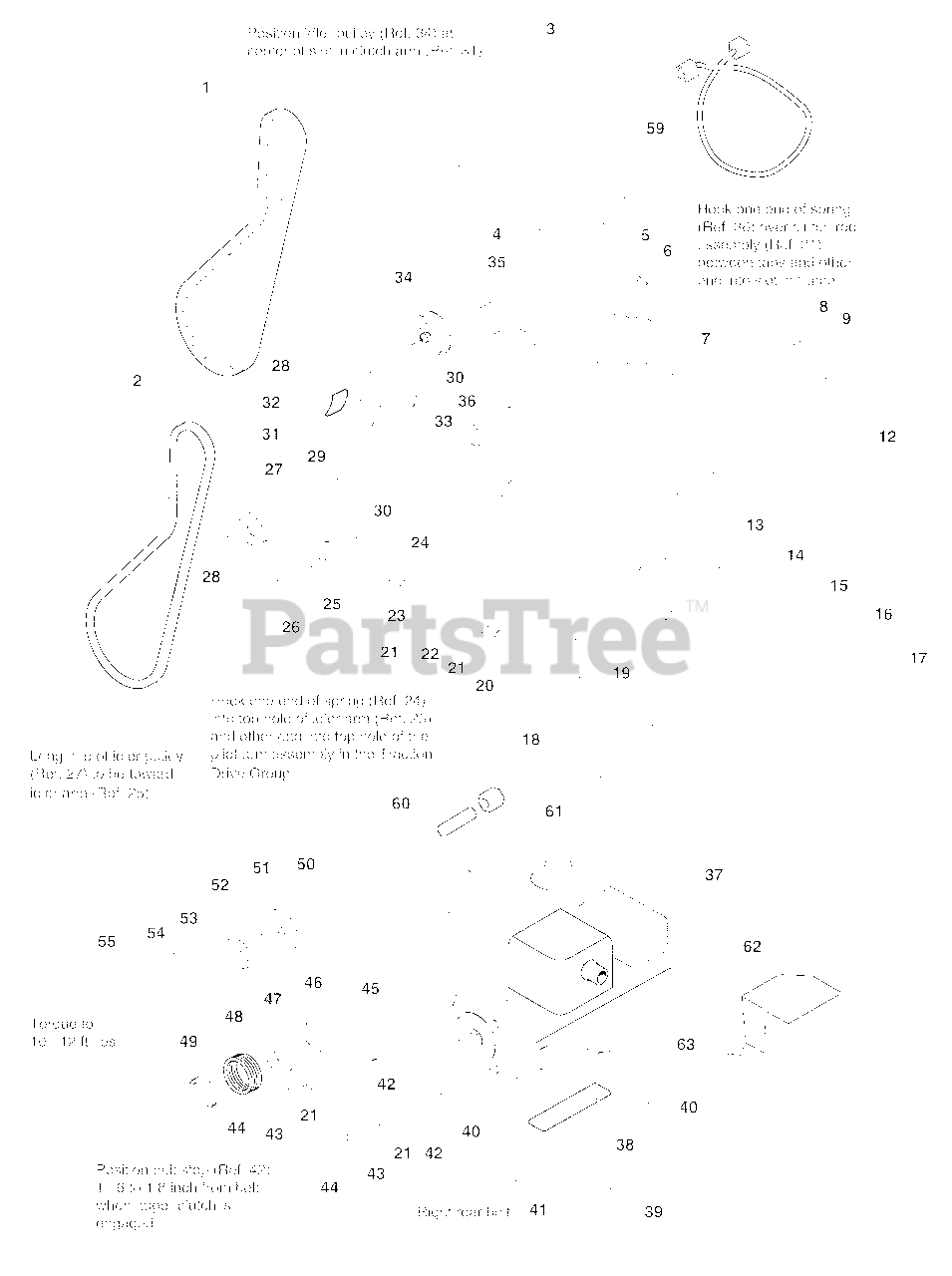

Engine and Frame Group - 12HP Electric Start Parts Diagram

  • Title

1

Simplicity 1676460SM

BELT, Auger Drive

$29.99

$

In Stock, only 2 left!

0

2

Simplicity 1700415SM

BELT, Traction

$24.99

$

In Stock, Qty 6

0

3

Simplicity 1725287SM

GUARD, Belt
(Superseded to 706414)

$

$

Not available

4

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 2 left!

0

5

Simplicity 2820426SM

LOCKWASHER, Ext. Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 1918249SM

SCREW, Truss Head, 5/16-18 x 3/4

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1725270SM

FRAME, Main

$148.99

$

Usually ships in 2-12 days

0

8

Simplicity 1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4
(Superseded to 703101)

$3.99

$

In Stock, only 1 left!

0

9

Simplicity 1720404ASM

SUPPORT, Clutch Cable
(Superseded to 1720404BMYP)

$12.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960685SM

NUT, Hex Washer 1/4-20
(Superseded to 703061)

$3.49

$

In Stock, Qty 11

0

13

Simplicity 1930591SM

CAPSCREW, Hex Head, Whizlock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

14

Simplicity 1664847SM

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/8
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1666374SM

COVER, Bottom

$

$

Not available

16

Simplicity 1926018SM

NUT, Speed, 1/4-20

$4.49

$

In Stock, Qty 12

0

17

Simplicity 1925003SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

18

Simplicity 1669198ASM

SUPPORT, Tie Bar
(Superseded to 1727004BMYP)

$14.99

$

Usually ships in 2-12 days

0

19

Simplicity 1930595SM

CAPSCREW, Hex Head, Whizlock, 5/16-18 x 1-1/4

$3.99

$

In Stock, Qty 5

0

20

Simplicity 1927557SM

NUT, Hex, Whizlock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

21

Simplicity 1919326SM

WASHER, 11/32 x 3/4

$4.49

$

In Stock, Qty 6

0

22

Simplicity 1702969SM

GUIDE, Belt

$6.49

$

In Stock, only 1 left!

0

23

Simplicity 1923362SM

NUT, Hex, Centerlock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

24

Simplicity 1727149SM

SPRING, Idler
(Superseded to 703146)

$

$

Not available

25

Simplicity 1703046ASM

ARM, Idler, Traction

$10.99

$

Usually ships in 2-12 days

0

26

Simplicity 1665994SM

PIN
(Superseded to 703145)

$3.99

$

In Stock, only 3 left!

0

27

Simplicity 1668477SM

PULLEY, Idler

$23.99

$

In Stock, Qty 20+

0

28

Simplicity 1928352SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

29

Simplicity 1960647SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2

$7.49

$

Usually ships in 2-12 days

0

30

Simplicity 1722460SM

PIN, Hair 5/64 x 1-1/8
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

31

Simplicity 1727058ASM

CLUTCH ROD & BRAKE ASSEMBLY
(Superseded to 1729646BMYP)

$117.99

$

Usually ships in 2-12 days

0

32

Simplicity 1669313SM

PAD, Brake

$14.99

$

In Stock, Qty 5

0

33

Simplicity 2825160SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

34

Simplicity 1726348SM

ASSEMBLY, Auger Drive Pulley

$24.99

$

In Stock, only 4 left!

0

35

Simplicity 2860709SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

36

Simplicity 1724503SM

SPRING, Extension

$20.99

$

In Stock, Qty 6

0

37

ENGINE, Briggs & Stratton, 12 H.P. Electric Start - Engine Model #20G4140111E1

$

$

Not available

38

Simplicity 1725326C

SUPPORT, Engine Riser
(Superseded to 1725326ASM)

$12.99

$

Usually ships in 2-12 days

0

39

Simplicity 1935159SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2, Black

$2.49

$

Usually ships in 2-12 days

0

40

Simplicity 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

41

Simplicity 2860551SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2, Black

$4.99

$

Usually ships in 2-12 days

0

42

Simplicity 1702970SM

GUIDE, Belt
(Superseded to 2167032SM)

$31.99

$

Usually ships in 2-12 days

0

43

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

44

Simplicity 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 1672129SM

KEY, Parallel, 3/16 x 13/16 x 7/8

$3.99

$

In Stock, only 1 left!

0

46

Simplicity 1724454SM

PULLEY, Traction

$34.99

$

Usually ships in 2-12 days

0

47

Simplicity 1701818SM

WASHER, Thrust

$6.99

$

In Stock, only 1 left!

0

48

Simplicity 1702425SM

SPRING, Compression

$12.99

$

Usually ships in 2-12 days

0

49

Simplicity 1701849SM

SPRING, Compression

$14.99

$

Usually ships in 2-12 days

0

50

Simplicity 1685366SM

WICK, Oil

$13.99

$

In Stock, only 1 left!

0

51

Simplicity 1726863SM

PULLEY, Drive

$46.99

$

In Stock, only 1 left!

0

52

Simplicity 1726864SM

PULLEY, Drive

$

$

Not available

53

Simplicity 1922755SM

WASHER, 13/32 x 1
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

54

Simplicity 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

55

Simplicity 1922128SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/2

$4.49

$

Usually ships in 2-12 days

0

56

Simplicity 1725399SM

DECAL, 12HP Briggs & Stratton (Not Shown)

$

$

Not available

59

CORD, Electric, 3 Prong (Not a Service Part)

$

$

Not available

60

Simplicity 1724455SM

PIPE, Oil Drain

$9.49

$

Usually ships in 2-12 days

0

61

Simplicity 1724456SM

CAP, Hex, 1/2 x 18 NPT

$3.99

$

Usually ships in 2-12 days

0

62

Simplicity 1725664ASM

GUARD, Muffler

$25.99

$

Usually ships in 2-12 days

0

63

Simplicity 1929477SM

CAPSCREW, Hex Washer Head, Taptite, #10-24 x 1/2

$4.49

$

Usually ships in 2-12 days

0
