128 RJ (952715754) - Husqvarna String Trimmer, Canada (2010-08) SHAFT & HANDLE Parts Diagram

String Trimmer, Canada

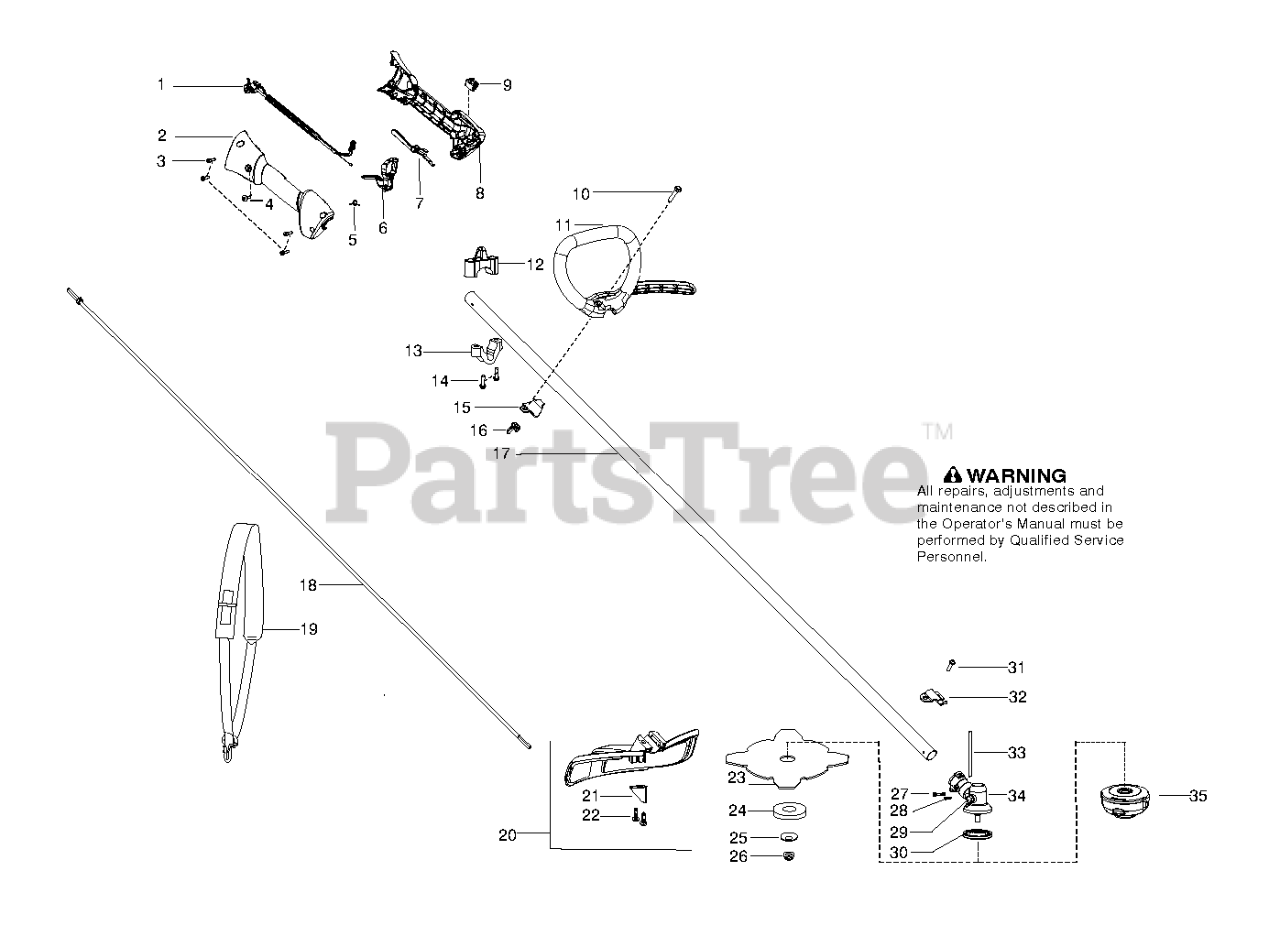

SHAFT & HANDLE Parts Diagram

  • Title

12

Husqvarna 545113301

CLAMP HARNESS UPPER

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 530059185

CLAMP ASSIST HANDLE

$6.49

$

In Stock, only 1 left!

0

31

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

13

Husqvarna 545056601

CLAMP HARNESS LOWER

$4.99

$

In Stock, only 3 left!

0

34

Husqvarna 530096295

ASSY GEARBOX

$80.99

$

In Stock, only 2 left!

0

16

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

5

Husqvarna 530016454

SPRING TRIGGER

$6.49

$

In Stock, Qty 7

0

10

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 545223001

HSG THROTTLE RIGHT HVA

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$11.99

$

In Stock, only 2 left!

0

20

Husqvarna 545030901

KIT COBI SHIELD

$34.99

$

In Stock, Qty 8

0

8

Husqvarna 545223201

HSG THROTTLE LEFT HVA

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$6.99

$

In Stock, only 1 left!

0

9

Husqvarna 545049309

SWITCH
(Superseded to 545049311)

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

$6.49

$

In Stock, only 2 left!

0

24

Husqvarna 503890101

SUPPORTING CUP

$26.99

$

In Stock, only 1 left!

0

17

Husqvarna 575776001

KIT - DRIVESHAFT
(Superseded to 545006068)

$113.99

$

Usually ships in 3-10 days

0

28

Husqvarna 545003902

SCREW

$4.99

$

In Stock, Qty 7

0

7

Husqvarna 574355401

THROTTLE LOCKOUT HVA ORANGE

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$5.99

$

In Stock, only 1 left!

0

21

Husqvarna 530052286

Limiter - Line

$

$

Not available

14

Husqvarna 530015940

SCREW

$6.49

$

In Stock, Qty 8

0

11

Husqvarna 545139701

ASSY HANDLE JBAR

$27.99

$

Usually ships in 3-10 days

0

35

Husqvarna 537338306

T25 TRIM HEAD 10MM LH
(Superseded to 537338310)

$31.99

$

In Stock, Qty 10

0

26

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, only 1 left!

0

3

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$6.49

$

In Stock, only 2 left!

0

1

Husqvarna 576139401

ASSY CABLE / WIRE HARNESS

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$22.99

$

In Stock, Qty 5

0

19

Husqvarna 537216201

Harness-w/o warning
(Superseded to 537216202)

$20.99

$

In Stock, only 1 left!

0

27

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

25

Husqvarna 537285601

SUPPORT FLANGE

$

$

Not available

29

Husqvarna 575724601

PLUG GREASE 9MM

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 502285901

LOCKING PIN

$8.99

$

In Stock, only 1 left!

0

22

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

23

Husqvarna 504001303

Blade - Grass
(Superseded to 596278001)

$36.99

$

Usually ships in 3-10 days

0

4

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 574355301

TRIGGER THROTTLE HVA ORANGE

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$5.99

$

Usually ships in 3-10 days

0

30

Husqvarna 537234901

DRIVE DISC

$40.99

$

Usually ships in 3-10 days

0

18

Husqvarna 545007507

FLEXSHAFT 57"

$34.99

$

In Stock, only 1 left!

0
