128 R - Husqvarna Brush Cutter, Canada (Original) SHAFT & HANDLE Parts Diagram

Brush Cutter, Canada

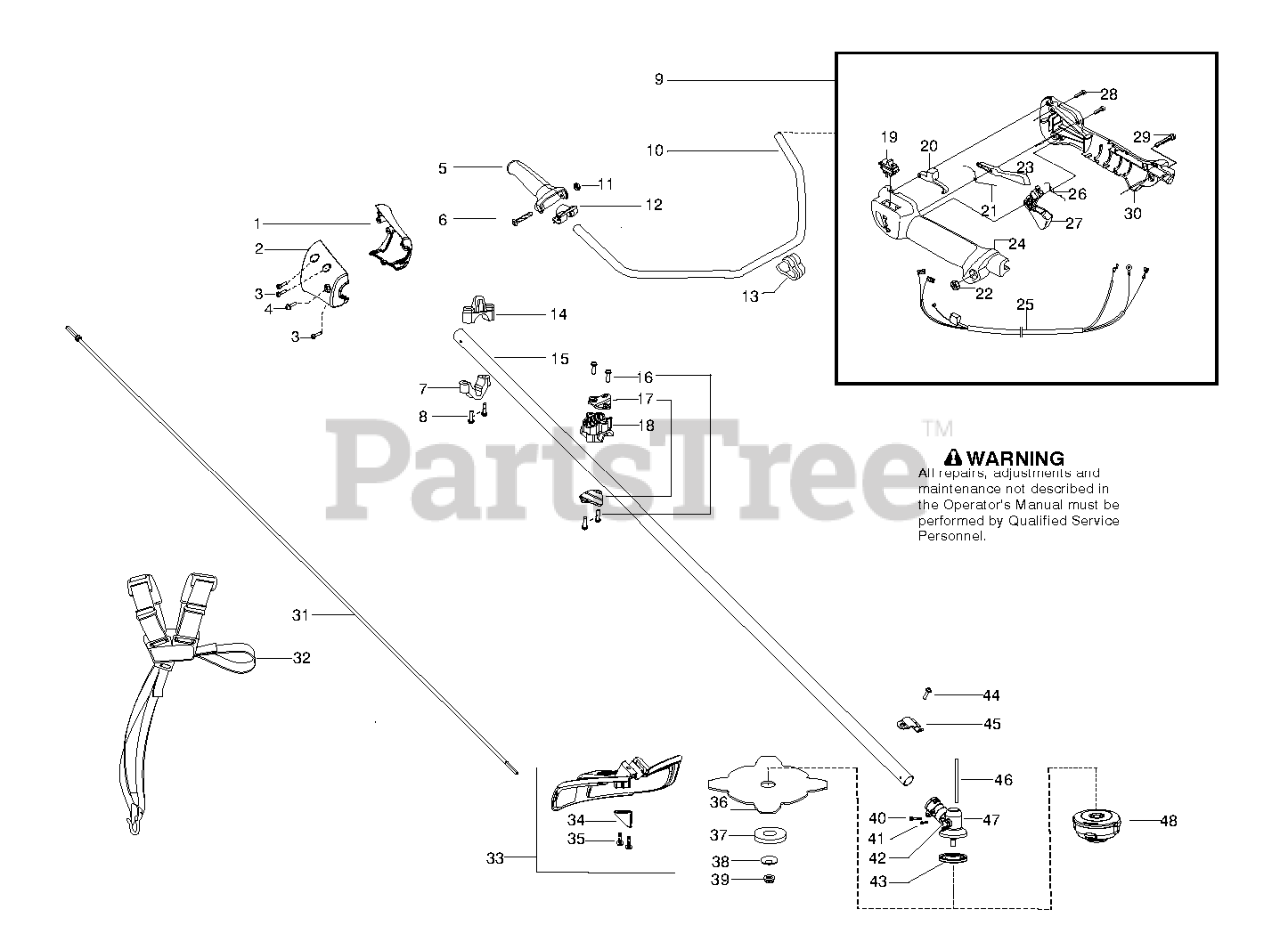

SHAFT & HANDLE Parts Diagram

  • Title

31

Husqvarna 545007507

FLEXSHAFT 57"

$34.99

$

In Stock, only 1 left!

0

47

Husqvarna 530096295

ASSY GEARBOX

$80.99

$

In Stock, only 2 left!

0

44

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

3

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$6.49

$

In Stock, only 2 left!

0

5

Husqvarna 537172802

HANDLE

$7.99

$

Usually ships in 3-10 days

0

16

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

30

Husqvarna 537160301

HANDLE

$30.99

$

Usually ships in 3-10 days

0

14

Husqvarna 545113301

CLAMP HARNESS UPPER

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 530015940

SCREW

$6.49

$

In Stock, Qty 8

0

25

Husqvarna 545125801

ASSY CABLE WIRE HARNESS

$31.99

$

In Stock, only 1 left!

0

15

Husqvarna 575776001

KIT - DRIVESHAFT
(Superseded to 545006068)

Note: For 952715752

$113.99

$

Usually ships in 3-10 days

0

17

Husqvarna 530058563

CLAMP BRACKET

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 502199503

HANDLE

$48.99

$

In Stock, only 1 left!

0

38

Husqvarna 537285601

SUPPORT FLANGE

$

$

Not available

39

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, only 1 left!

0

21

Husqvarna 537174301

SPRING

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 503216618

SCREW

$7.49

$

In Stock, Qty 5

0

43

Husqvarna 537234901

DRIVE DISC

$40.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506495001

THROTTLE CONTROL

$5.99

$

Usually ships in 3-10 days

0

35

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

34

Husqvarna 530052286

Limiter - Line

$

$

Not available

45

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 503221013

NUT

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 545056601

CLAMP HARNESS LOWER

$4.99

$

In Stock, only 3 left!

0

48

Husqvarna 537338306

T25 TRIM HEAD 10MM LH
(Superseded to 537338310)

$31.99

$

In Stock, Qty 10

0

29

Husqvarna 503200735

SCREW
(Superseded to 503200782)

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 574810701

NOSE CONE B/H LH HVA 25.4MM

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 537174201

SPRING

$6.49

$

In Stock, only 4 left!

0

32

Husqvarna 537216301

HARNESS DUO

$

$

Not available

9

Husqvarna 545125501

ASSY THROTTLE HOUSING

$56.99

$

Usually ships in 3-10 days

0

19

Husqvarna 537419001

STOP BUTTON

$9.49

$

In Stock, only 2 left!

0

33

Husqvarna 545030901

KIT COBI SHIELD

$34.99

$

In Stock, Qty 8

0

23

Husqvarna 506495101

THROTTLE LOCKOUT

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 545058501

CLAMP

$17.99

$

Usually ships in 3-10 days

0

24

Husqvarna 537160203

HANDLE

$34.99

$

In Stock, only 1 left!

0

42

Husqvarna 575724601

PLUG GREASE 9MM

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 545003902

SCREW

$4.99

$

In Stock, Qty 7

0

2

Husqvarna 574810301

CONE

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$4.99

$

Usually ships in 3-10 days

0

40

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

13

Husqvarna 502211201

GROMMET

$7.49

$

In Stock, only 2 left!

0

11

Husqvarna 731231401

NUT

$2.49

$

In Stock, only 1 left!

0

15

Husqvarna 575775901

Kit-Driveshaft

Note: For 952711949

$

$

Currently unavailable

12

Husqvarna 537172901

BRACKET

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 575776101

NEEDS DESCRIPTION

Note: For 952715758

$

$

Currently unavailable

36

Husqvarna 504001303

Blade - Grass
(Superseded to 596278001)

$36.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503200245

SCREW

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$6.49

$

In Stock, only 1 left!

0

46

Husqvarna 502285901

LOCKING PIN

$8.99

$

In Stock, only 1 left!

0

37

Husqvarna 503890101

SUPPORTING CUP

$26.99

$

In Stock, only 1 left!

0

20

Husqvarna 537160703

STARTER THROTTLE LOCK

$5.99

$

Usually ships in 3-10 days

0
