128 LDX - Husqvarna String Trimmer (2009-03) 128LDX Parts Diagram

String Trimmer

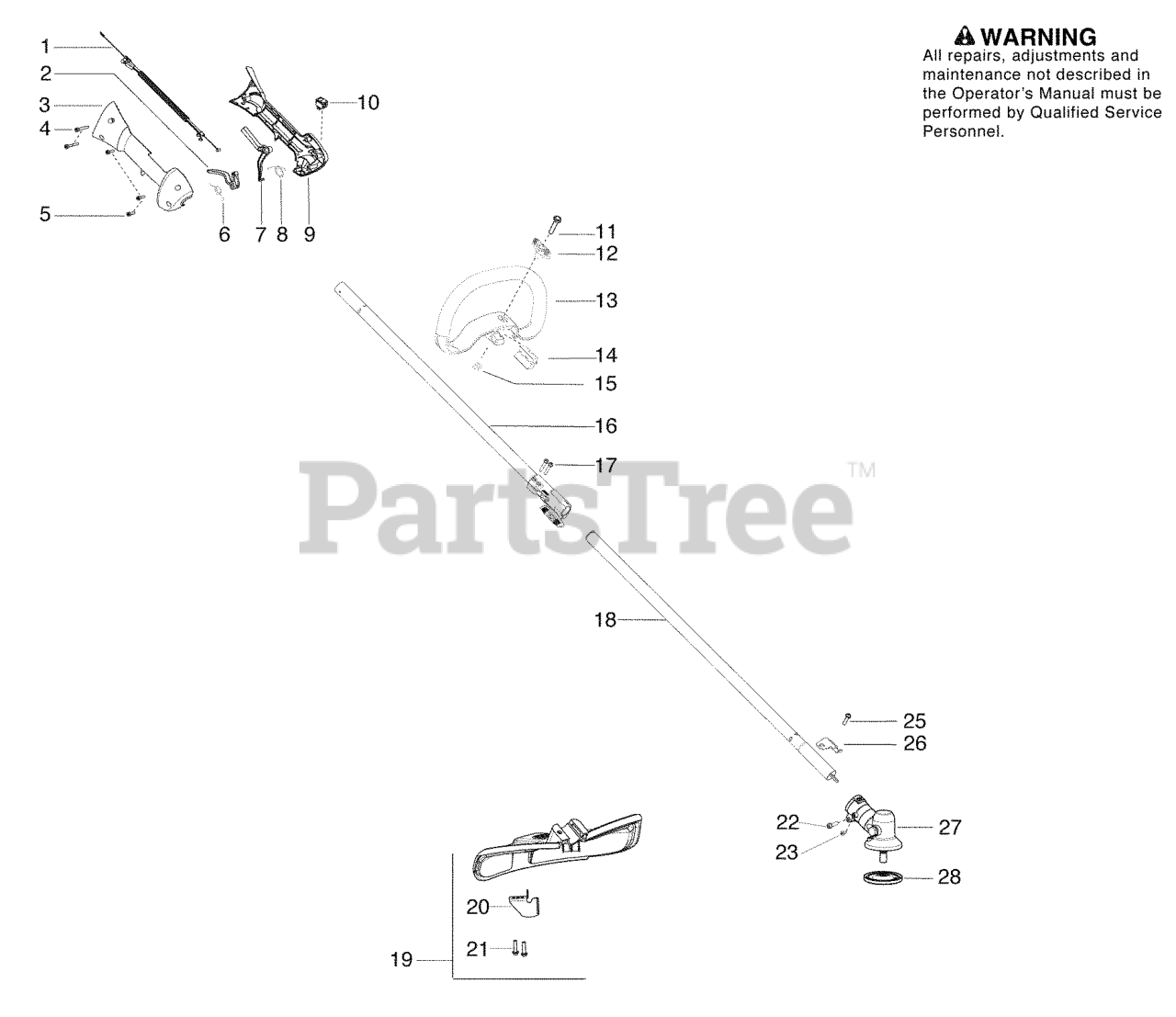

128LDX Parts Diagram

  • Title

1

Husqvarna 545125301

Assy-Cable/Wire Harness

$37.99

$

In Stock, only 3 left!

0

2

Husqvarna 545066001

Trigger

$

$

Not available

3

Husqvarna 545062001

Housing-Throttle (RH)

$

$

Not available

4

Husqvarna 530016448

Screw

$6.49

$

In Stock, only 4 left!

0

5

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 530016454

Spring-Trigger

$6.49

$

In Stock, Qty 7

0

7

Husqvarna 530059804

Lockout-Throttle

$

$

Not available

8

Husqvarna 545045601

Spring-Lockout

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 545067001

Housing-Throttle (LH)

$

$

Not available

10

Husqvarna 545030601

Kit-Switch
(Superseded to 545049301)

$10.99

$

In Stock, Qty 10

0

11

Husqvarna 725238051

Screw

$3.49

$

In Stock, only 1 left!

0

12

Husqvarna 503879001

Knob

$6.99

$

In Stock, only 1 left!

0

13

Husqvarna 545144303

Assy - Loop Handle
(Superseded to 545180809)

$39.99

$

Usually ships in 3-10 days

0

14

Husqvarna 503940301

Spacer

$11.99

$

In Stock, only 1 left!

0

15

Husqvarna 502197101

Nut - Square M6

$8.99

$

Usually ships in 3-10 days

0

16

Husqvarna 545006074

Kit-Driveshaft Upper

Note: (Incl. 17, & flex)

$120.99

$

In Stock, only 1 left!

0

17

Husqvarna 503200725

Screw

$4.99

$

In Stock, Qty 11

0

18

Husqvarna 545180849

Kit-Lower Shaft

Note: (incl. flex,22,23,26,27)

$120.99

$

In Stock, only 1 left!

0

19

Husqvarna 545030901

Kit-Shield

Note: (Incl. 20,21,25)

$34.99

$

In Stock, Qty 8

0

20

Husqvarna 530052286

Limiter-Line

$

$

Not available

21

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

22

Husqvarna 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 545003902

Screw

$4.99

$

In Stock, Qty 7

0

25

Husqvarna 530015771

Screw

$6.49

$

In Stock, Qty 6

0

26

Husqvarna 530057554

Bracket-Shield

$6.49

$

In Stock, only 2 left!

0

27

Husqvarna 530096295

Assy-Gearbox

$80.99

$

In Stock, only 2 left!

0

28

Husqvarna 537234901

Driver Disc

$40.99

$

Usually ships in 3-10 days

0
