128 LDX (966589201) - Husqvarna String Trimmer (2010-05) Shaft and Handle Parts Diagram

String Trimmer

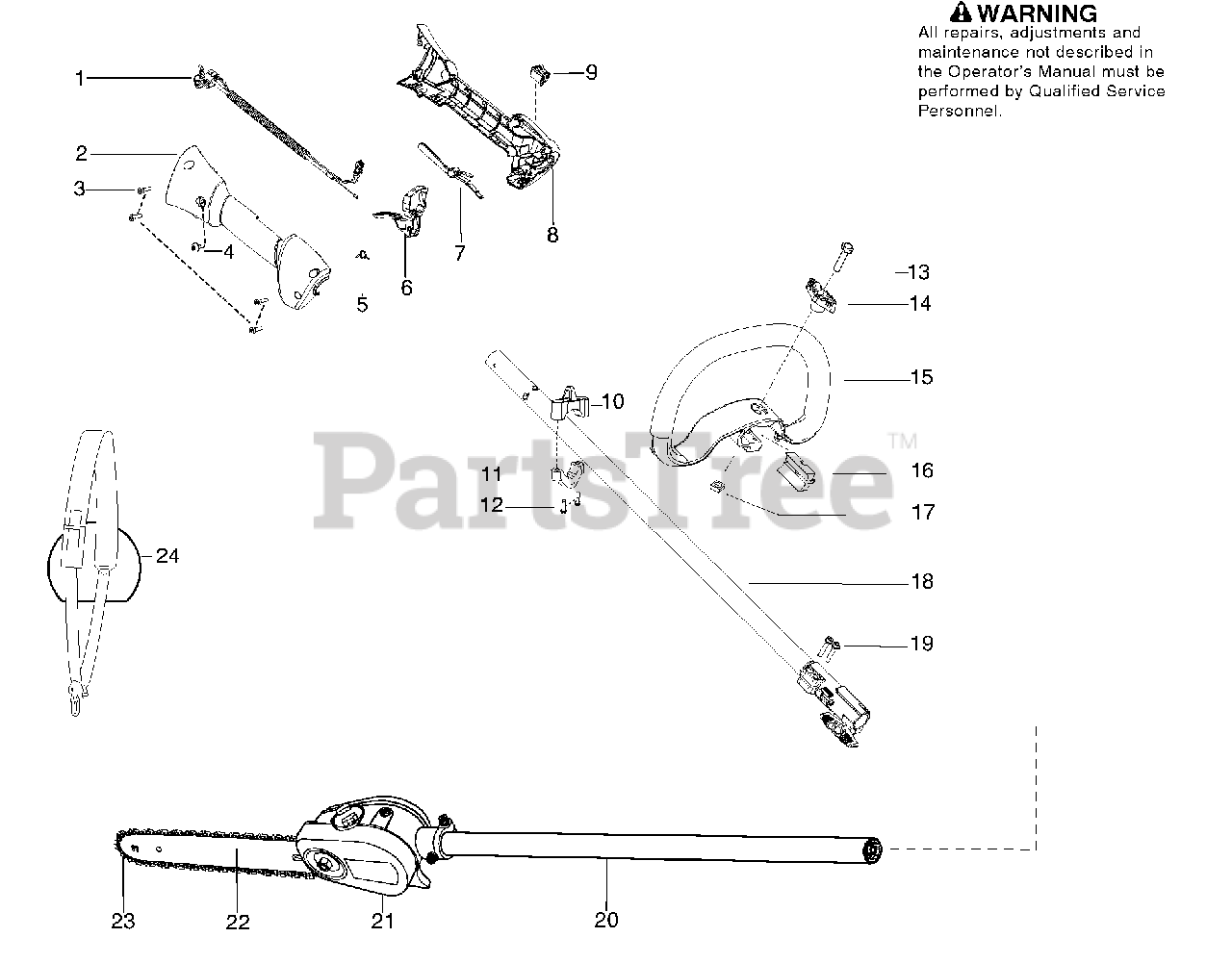

Shaft and Handle Parts Diagram

  • Title

1

Husqvarna 576139401

Assy-Cable/Wire Harness

$22.99

$

In Stock, Qty 5

0

2

Husqvarna 545223001

Housing-Throttle (RH)

$11.99

$

In Stock, only 2 left!

0

3

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 530015805

Screw

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 530016454

Spring-Trigger

$6.49

$

In Stock, Qty 7

0

6

Husqvarna 574355301

Trigger

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 574355401

Lockout-Throttle

$5.99

$

In Stock, only 1 left!

0

8

Husqvarna 545223201

Housing-Throttle (LH)

$6.99

$

In Stock, only 1 left!

0

9

Husqvarna 545049309

Kit-Switch
(Superseded to 545049311)

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 545113301

Clamp - Upper Harness

$6.49

$

Usually ships in 3-10 days

0

11

Husqvarna 545056601

Clamp - Lower Harness

$4.99

$

In Stock, only 3 left!

0

12

Husqvarna 530015940

Screw

$6.49

$

In Stock, Qty 8

0

13

Husqvarna 725238151

Screw

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 503879001

Knob

$6.99

$

In Stock, only 1 left!

0

15

Husqvarna 545144303

Assy - Loop Handle
(Superseded to 545180809)

$39.99

$

Usually ships in 3-10 days

0

16

Husqvarna 503940301

Spacer

$11.99

$

Usually ships in 3-10 days

0

17

Husqvarna 502197101

Nut - Square M6

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 545006074

Kit-Driveshaft Upper

Note: (Incl. 19, & flex)

$120.99

$

In Stock, only 1 left!

0

19

Husqvarna 503200725

Screw

$4.99

$

In Stock, Qty 11

0

20

Husqvarna 576495801

Kit-Pruner Drive Shaft

$569.99

$

Usually ships in 3-10 days

0

21

Husqvarna 537247101

Assy-Pruner Gearbox
(Superseded to 537247103)

$363.99

$

Usually ships in 3-10 days

0

22

Husqvarna 501959245

Bar - 12"
(Superseded to 596009745)

$43.99

$

In Stock, only 1 left!

0

23

Husqvarna 503306845

Chain - 12"

$

$

Not available

24

Husqvarna 537216202

Harness - Diagonal with sign

$20.99

$

In Stock, only 1 left!

0

Husqvarna 115366427

Manual

Note: Not Shown

$

$

Not available
