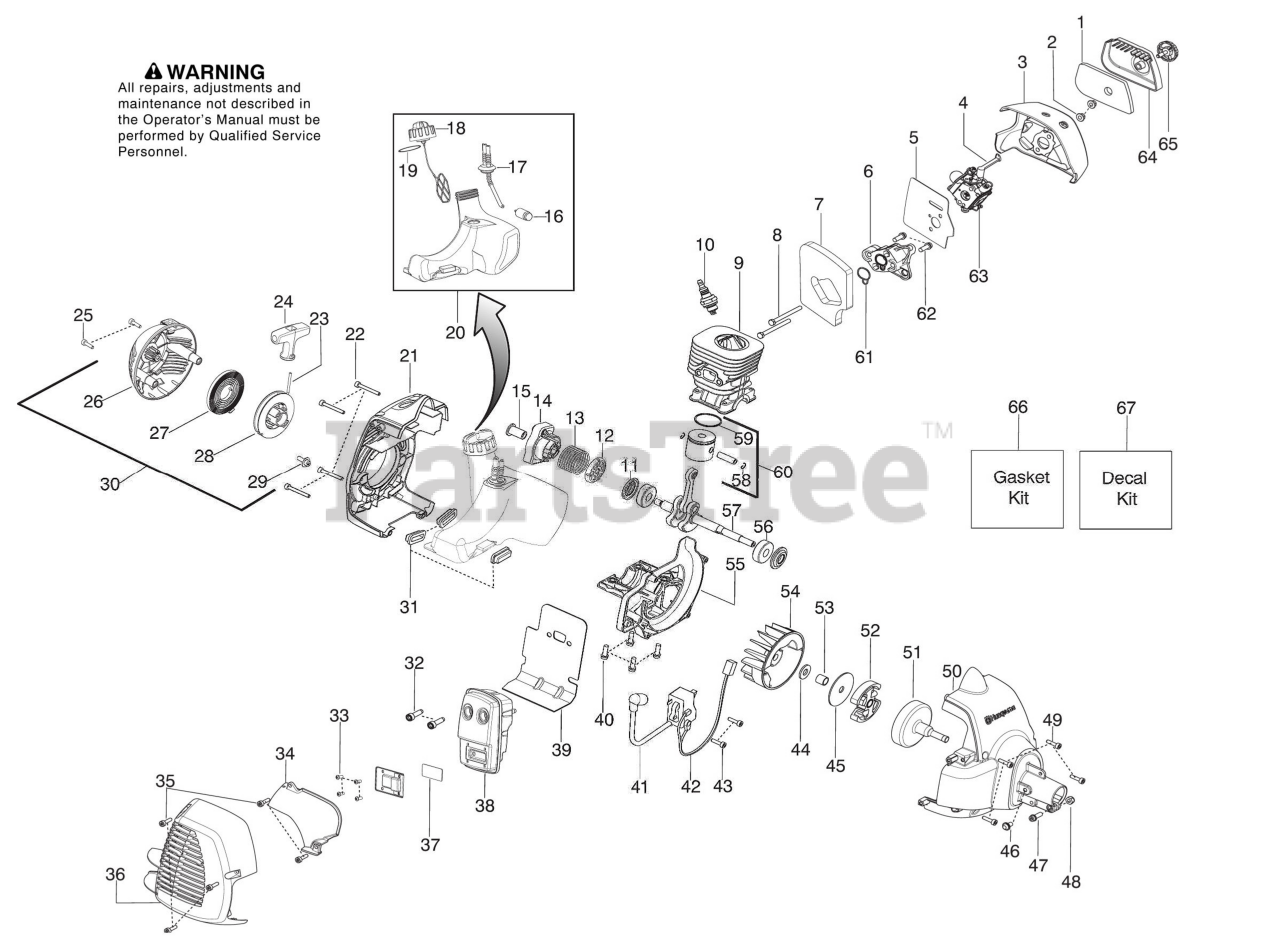

128 LD - Husqvarna String Trimmer (2008-11) (Lowes) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Husqvarna 530150253

Filter

$3.99

$

In Stock, only 4 left!

0

2

Husqvarna 530016101

Nut - Carb. Screw

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 545084601

Air Box
(Superseded to 576459001)

$7.99

$

In Stock, only 2 left!

0

4

Husqvarna 530057844

Lever - Choke

$8.99

$

In Stock, Qty 7

0

5

Husqvarna 545050402

Kit-Carb. Gasket

Note: (Incl 7,61)

$18.99

$

In Stock, Qty 9

0

6

Husqvarna 530035596

Adaptor - Carb.

$12.99

$

In Stock, only 1 left!

0

7

Husqvarna 545081898

Kit - Gasket
(Superseded to 545008084)

Note: (foam)

$26.99

$

In Stock, only 1 left!

0

8

Husqvarna 530016400

Bolt

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 545001001

Cylinder
(Superseded to 545003378)

$34.99

$

In Stock, only 4 left!

0

10

Husqvarna 952030201

Plug - Spark
(Superseded to 503235112)

Note: (RCJ-8Y)

$3.99

$

In Stock, Qty 11

0

11

Husqvarna 545050403

Kit - Crankshaft seal

$9.99

$

In Stock, only 4 left!

0

12

Husqvarna 530016475

Washer - Starter

$7.49

$

In Stock, Qty 7

0

13

Husqvarna 545160301

Spring - Starter Cup

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 545102303

Assy - Starter Cup

$17.99

$

In Stock, Qty 18

0

15

Husqvarna 530059800

Coupling - Starter
(Superseded to 545180844)

$37.99

$

In Stock, only 4 left!

0

16

Husqvarna 530095646

Assy - Fuel Filter

$6.99

$

In Stock, Qty 20+

0

17

Husqvarna 545081897

Kit - Fuel Line

$18.99

$

In Stock, Qty 11

0

18

Husqvarna 530150350

Assy - Cap w/ret.
(Superseded to 578931503)

Note: (Incl. 19)

$7.99

$

In Stock, only 3 left!

0

19

Husqvarna 545081898

Kit Gasket O-ring - Fuel Cap
(Superseded to 545008084)

$26.99

$

In Stock, only 1 left!

0

20

Husqvarna 545105105

Assy - Fuel Tank
(Superseded to 545105107)

Note: (Incl. 16,17,18,19)

$

$

Not available

21

Husqvarna 530057851

Shroud - Rear
(Superseded to 576153201)

$13.99

$

In Stock, only 4 left!

0

22

Husqvarna 530016448

Screw

$6.49

$

In Stock, only 4 left!

0

23

Husqvarna 545029901

Kit - Rope

$14.99

$

In Stock, only 2 left!

0

24

Husqvarna 530150318

Handle - Starter

$6.49

$

In Stock, Qty 18

0

25

Husqvarna 530016426

Screw

$6.49

$

In Stock, only 2 left!

0

26

Husqvarna 545029603

Starter Hsg. w/eyelet

$

$

Not available

27

Husqvarna 545029801

Kit - Starter Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

28

Husqvarna 545029701

Kit - Starter Pulley

$18.99

$

In Stock, Qty 10

0

29

Husqvarna 530016468

Screw

$6.49

$

In Stock, Qty 7

0

30

Husqvarna 545106301

Assy - Starter Hsg

Note: (Incl. 23,24,26,27,28,29)

$26.99

$

Usually ships in 3-10 days

0

31

Husqvarna 530059780

Isolator - Tank

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 530058982

Bolt - Muffler

$4.99

$

In Stock, Qty 7

0

33

Husqvarna 530015241

Screw
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

34

Husqvarna 530150440

Shield - Heat

$8.99

$

In Stock, only 1 left!

0

35

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

36

Husqvarna 545104901

Guard - Muffler
(Superseded to 576215001)

$14.99

$

In Stock, Qty 13

0

37

Husqvarna 545030501

Kit - Spark Arrestor

Note: (Incl. 33)

$8.99

$

In Stock, only 1 left!

0

38

Husqvarna 545057501

Assy - Muffler
(Superseded to 574031502)

$40.99

$

In Stock, only 1 left!

0

39

Husqvarna 545081898

Kit - Gasket-paper met
(Superseded to 545008084)

$26.99

$

In Stock, only 1 left!

0

40

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

41

Husqvarna 545046701

Module - Ignition

$56.99

$

In Stock, only 1 left!

0

42

Husqvarna 530039227

Assy - Leadwire

$8.99

$

In Stock, only 3 left!

0

43

Husqvarna 530016456

Screw

$6.49

$

In Stock, only 2 left!

0

44

Husqvarna 530016463

Washer

$6.99

$

In Stock, only 3 left!

0

45

Husqvarna 530094189

Washer - Clutch

$6.99

$

In Stock, only 1 left!

0

46

Husqvarna 530016469

Screw

$

$

Not available

47

Husqvarna 530016470

Screw

$

$

Not available

48

Husqvarna 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

49

Husqvarna 530016456

Screw

$6.49

$

In Stock, only 2 left!

0

50

Husqvarna 545017501

Assy - Fan Housing

$

$

Not available

51

Husqvarna 530150039

Assy - Clutch Drum
(Superseded to 587126401)

$28.99

$

In Stock, only 4 left!

0

52

Husqvarna 545050405

Kit - Clutch Assy.
(Superseded to 525472901)

$12.99

$

Usually ships in 3-10 days

0

53

Husqvarna 530057852

Spacer

$10.99

$

In Stock, only 2 left!

0

54

Husqvarna 530039242

Flywheel

$44.99

$

In Stock, only 1 left!

0

55

Husqvarna 545054601

Crankcase

$27.99

$

Usually ships in 3-10 days

0

56

Husqvarna 545013401

Bearing

$10.99

$

Usually ships in 3-10 days

0

57

Husqvarna 545030001

Kit - Crankshaft

$60.99

$

Usually ships in 3-10 days

0

58

Husqvarna 530015162

Retainer - Piston Pin

$6.49

$

In Stock, only 1 left!

0

59

Husqvarna 530019283

Ring - Piston
(Superseded to 575227901)

$7.49

$

In Stock, only 4 left!

0

60

Husqvarna 545030301

Kit - Piston

Note: (Incl. 58,59)

$60.99

$

Usually ships in 3-10 days

0

61

Husqvarna 545081898

Kit - Gasket
(Superseded to 545008084)

Note: (adaptor seal)

$26.99

$

In Stock, only 1 left!

0

62

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

63

Husqvarna 545081850

Kit - Carb.

Note: (Incl. 4,5)

$

$

Not available

64

Husqvarna 530057846

Cover - Air Box

$9.49

$

In Stock, Qty 11

0

65

Husqvarna 530059796

Assy - Knob

$5.99

$

In Stock, Qty 12

0

66

Husqvarna 545081898

Kit - Gasket
(Superseded to 545008084)

Note: (Incl. 5,7,11,19,39,61)

$26.99

$

In Stock, only 1 left!

0

67

Husqvarna 545003321

Kit - Decal

$5.99

$

In Stock, only 1 left!

0

Husqvarna 530058709

Bulb-Purge

Note: Not Shown

$7.99

$

In Stock, only 1 left!

0
