128 L (545011599) - Husqvarna String Trimmer (2008-11) Repair Parts Parts Diagram

String Trimmer

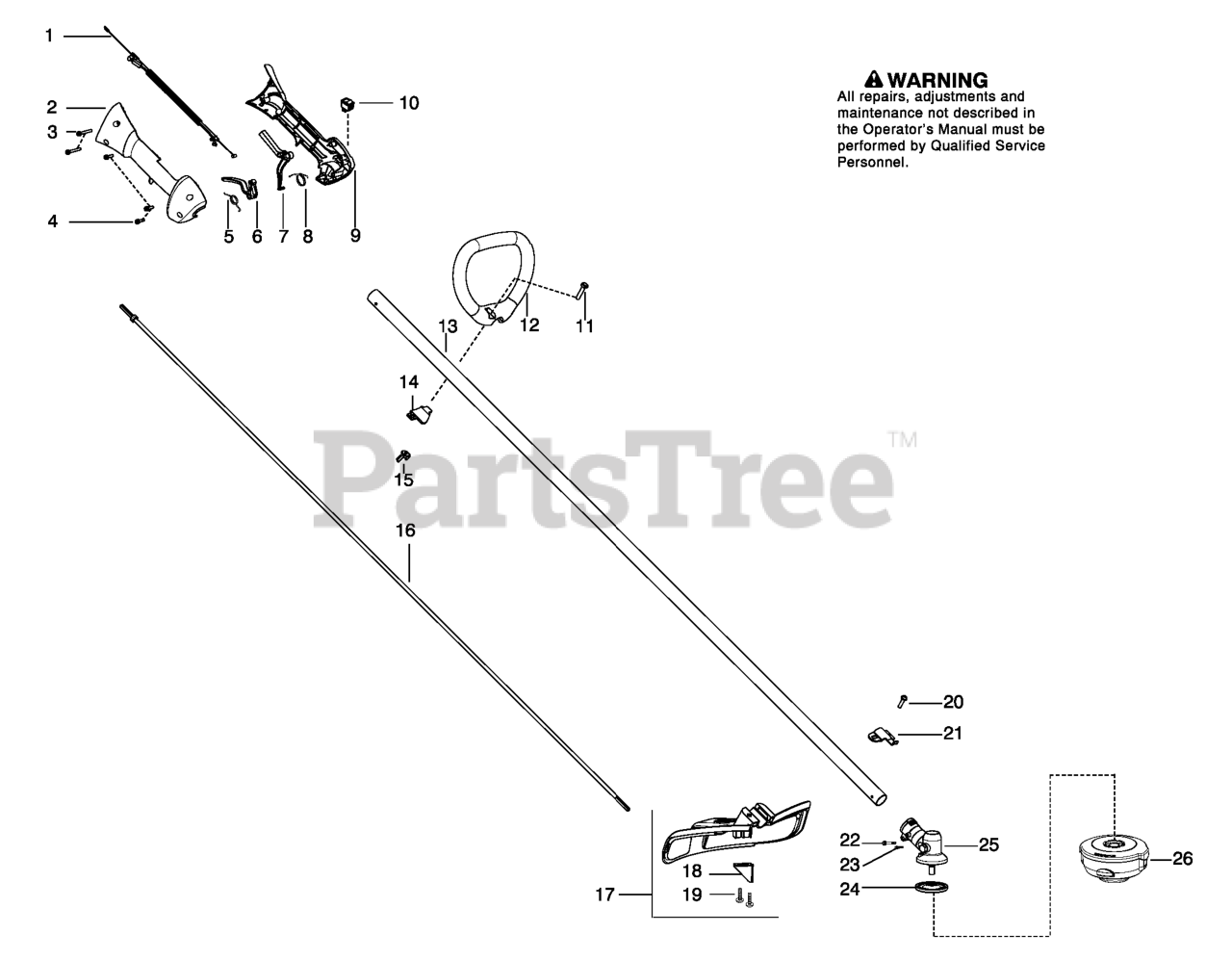

Repair Parts Parts Diagram

  • Title

1

Husqvarna 545125301

Assy-Cable/Wire Harness

$37.99

$

In Stock, only 3 left!

0

2

Husqvarna 545062001

Housing-Throttle (RH)

$

$

Not available

3

Husqvarna 530016448

Screw

$6.49

$

In Stock, only 4 left!

0

4

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

5

Husqvarna 530016454

Spring-Trigger

$6.49

$

In Stock, Qty 7

0

6

Husqvarna 545066001

Trigger

$

$

Not available

7

Husqvarna 530059804

Lockout-Throttle

$

$

Not available

8

Husqvarna 545045601

Spring-Lockout

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 545067001

Housing-Throttle (LH)

$

$

Not available

10

Husqvarna 545030601

Kit-Switch
(Superseded to 545049301)

$10.99

$

In Stock, Qty 10

0

11

Husqvarna 530015820

Bolt

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 545042201

Handle-Assist

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 545008081

Kit-Driveshaft SST

Note: (Incl. decal, 21,22,23,25

$109.99

$

Usually ships in 3-10 days

0

14

Husqvarna 530059185

Clamp-Handle

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

16

Husqvarna 545007507

Flex shaft

$34.99

$

In Stock, only 1 left!

0

17

Husqvarna 545030901

Kit-Shield

Note: (Incl. 18,19,20)

$34.99

$

In Stock, Qty 8

0

18

Husqvarna 530052286

Limiter-Line

$

$

Not available

19

Husqvarna 530015814

Screw

$6.49

$

In Stock, Qty 16

0

20

Husqvarna 530015771

Screw

$6.49

$

In Stock, Qty 6

0

21

Husqvarna 530057554

Bracket-Shield

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

23

Husqvarna 545003902

Screw

$4.99

$

In Stock, Qty 7

0

24

Husqvarna 537234901

Driver Disc

$40.99

$

Usually ships in 3-10 days

0

25

Husqvarna 530096295

Assy-Gearbox

$80.99

$

In Stock, only 2 left!

0

26

Husqvarna 537338306

Assy-T25 Cutting Head
(Superseded to 537338310)

$31.99

$

In Stock, Qty 10

0
