128 DJX (966712501) - Husqvarna String Trimmer (2011-01) SHAFT HANDLE Parts Diagram

String Trimmer

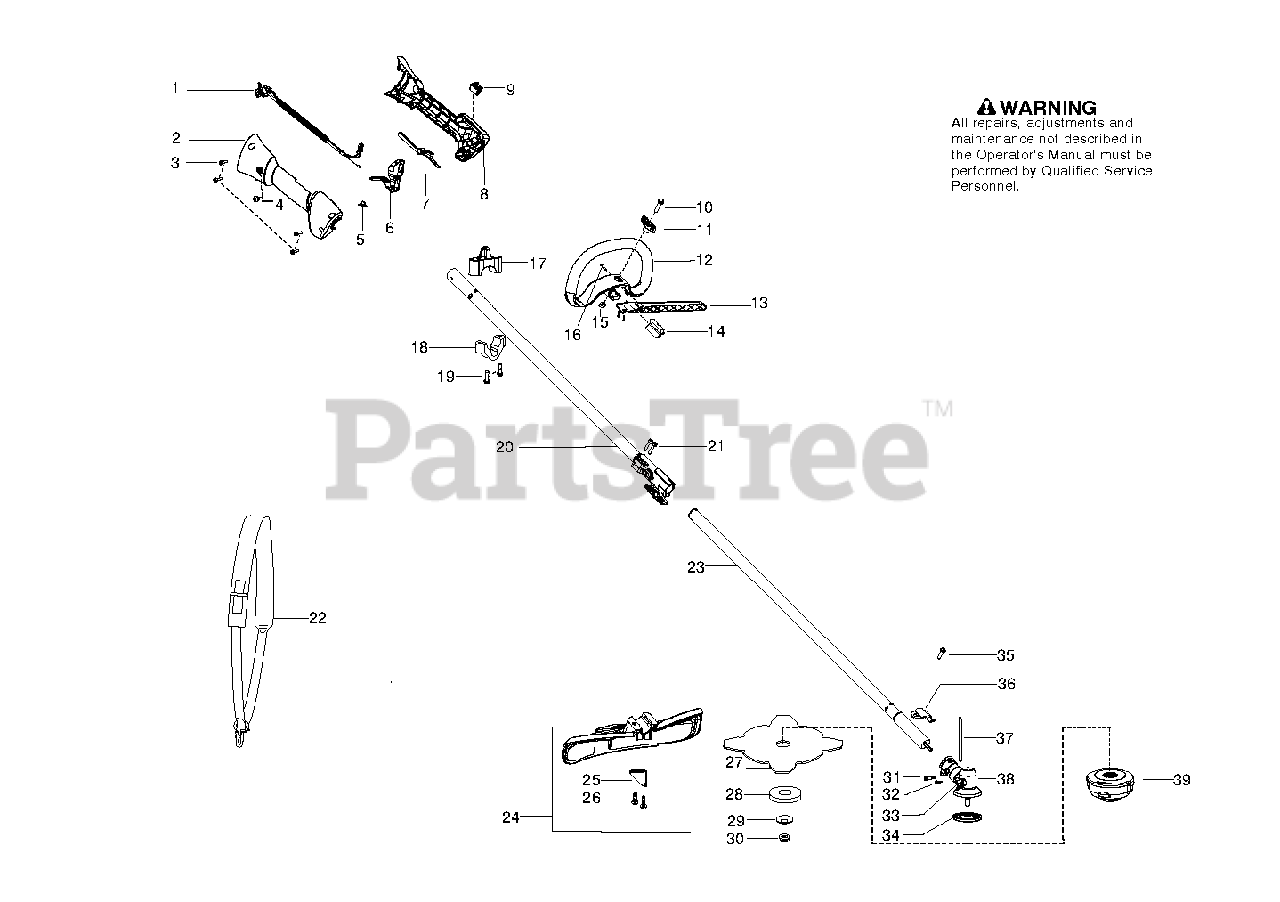

SHAFT HANDLE Parts Diagram

  • Title
1

Husqvarna 576139401

ASSY CABLE / WIRE HARNESS

$22.99

$

In Stock, Qty 5

0

2

Husqvarna 545223001

HSG THROTTLE RIGHT HVA

$11.99

$

In Stock, only 2 left!

0

3

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, only 2 left!

0

4

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 530016454

SPRING TRIGGER

$6.49

$

In Stock, Qty 7

0

6

Husqvarna 574355301

TRIGGER THROTTLE HVA ORANGE

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 574355401

THROTTLE LOCKOUT HVA ORANGE

$5.99

$

In Stock, only 1 left!

0

8

Husqvarna 545223201

HSG THROTTLE LEFT HVA

$6.99

$

In Stock, only 1 left!

0

9

Husqvarna 545049309

SWITCH
(Superseded to 545049311)

$6.99

$

Usually ships in 3-10 days

0

10

Husqvarna 725238051

SCREW M6X50

$3.49

$

In Stock, only 1 left!

0

$6.99

$

In Stock, only 1 left!

0

12

Husqvarna 503871907

HANDLE LOOP

$14.99

$

Usually ships in 3-10 days

0

$17.99

$

In Stock, only 1 left!

0

14

Husqvarna 503940301

SPACER PLASTIC

$11.99

$

Usually ships in 3-10 days

0

$8.99

$

Usually ships in 3-10 days

0

16

Husqvarna 574181501

SCREW IHSCFTO

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 545113301

CLAMP HARNESS UPPER

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 545056601

CLAMP HARNESS LOWER

$4.99

$

In Stock, only 3 left!

0

$6.49

$

In Stock, Qty 8

0

20

Husqvarna 545006074

DRIVESHAFT

$120.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, Qty 11

0

22

Husqvarna 537216202

Shoulder Strap with Sign

$20.99

$

In Stock, only 1 left!

0

23

Husqvarna 545180849

KIT LOWER SHAFT

$120.99

$

In Stock, only 1 left!

0

24

Husqvarna 545030901

KIT COBI SHIELD

Note: . 25 26 35

$34.99

$

In Stock, Qty 8

0

25

Husqvarna 530052286

LINE LIMITER

$

$

Not available

$6.49

$

In Stock, Qty 16

0

27

Husqvarna 504001303

Blade, 8" 4 Tooth (20mm and 1")
(Superseded to 596278001)

$36.99

$

Usually ships in 3-10 days

0

28

Husqvarna 503890101

SUPPORTING CUP

$26.99

$

In Stock, only 1 left!

0

29

Husqvarna 537285601

SUPPORT FLANGE

$

$

Not available

30

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, only 1 left!

0

31

Husqvarna 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

$4.99

$

In Stock, Qty 7

0

33

Husqvarna 575724601

PLUG GREASE 9MM

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 537234901

DRIVE DISC

$40.99

$

Usually ships in 3-10 days

0

35

Husqvarna 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

36

Husqvarna 530057554

BRACKET SHIELD STRAIGHT SHAFT

Note: SHIELD BRACKET

$6.49

$

In Stock, only 2 left!

0

37

Husqvarna 502285901

LOCKING PIN

$8.99

$

In Stock, only 1 left!

0

38

Husqvarna 530096295

ASSY GEARBOX

$80.99

$

In Stock, only 2 left!

0

39

Husqvarna 537338306

Trimmer Head, T25 10mm LH
(Superseded to 537338310)

$31.99

$

In Stock, Qty 10

0
