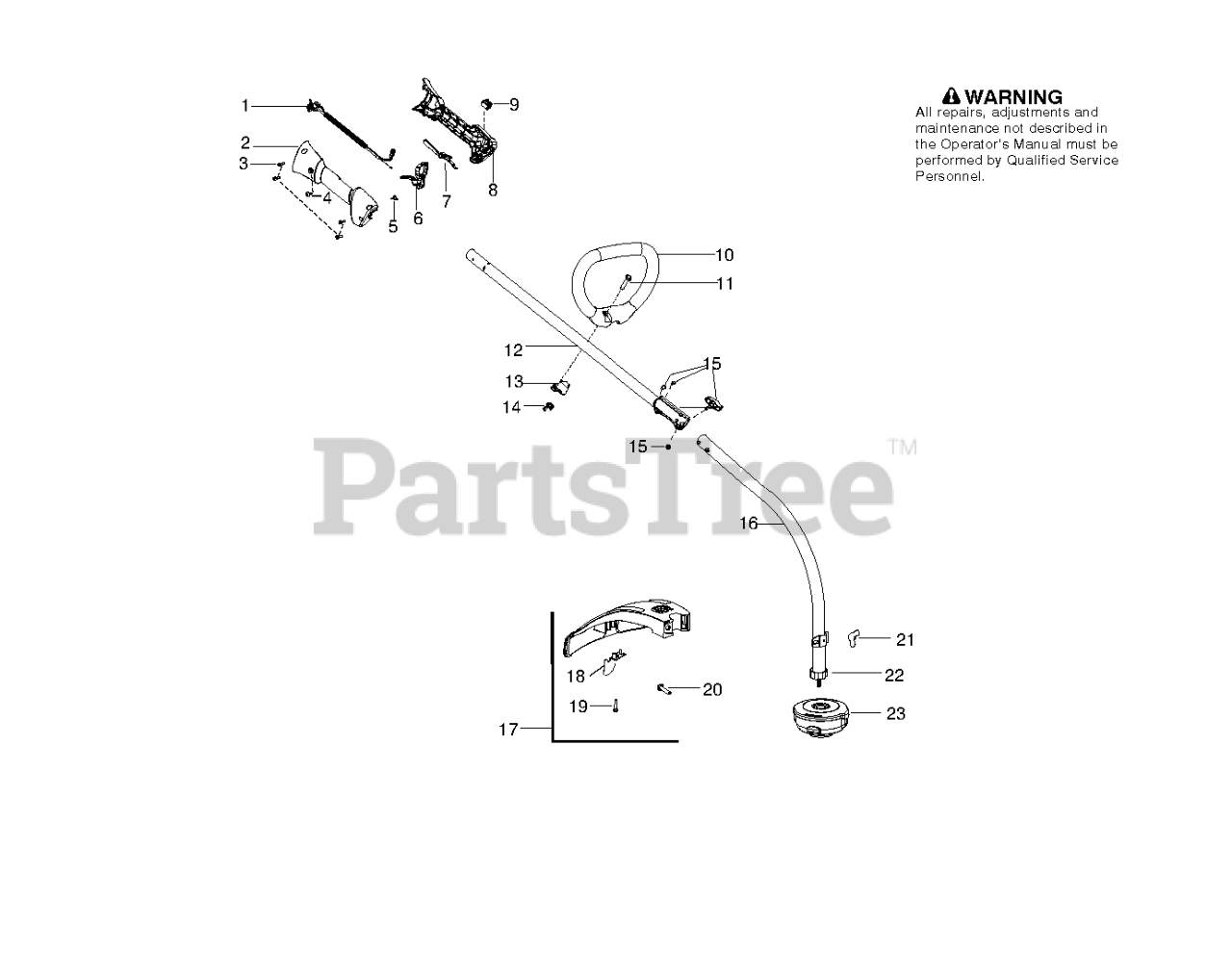

128 CD (952711952) - Husqvarna String Trimmer SHAFT Parts Diagram

String Trimmer

SHAFT Parts Diagram

  • Title
20

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 537338307

T25 TRIM HEAD RH

Note: 2009-213N AND HIGHER, SERVICE REFERENCE

$

$

Not available

15

Husqvarna 575291801

ASSY COUPLER BLACK
(Superseded to 587119302)

$8.99

$

In Stock, only 1 left!

0

22

Husqvarna 545017403

DUST CUP

Note: 2009-213N AND HIGHER, SERVICE REFERENCE

$7.49

$

Usually ships in 3-10 days

0

6

Husqvarna 574355301

TRIGGER THROTTLE HVA ORANGE

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$5.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, Qty 16

0

7

Husqvarna 574355401

THROTTLE LOCKOUT HVA ORANGE

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$5.99

$

In Stock, only 1 left!

0

14

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

2

Husqvarna 545223001

HSG THROTTLE RIGHT HVA

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$11.99

$

In Stock, only 2 left!

0

3

Husqvarna 530016449

SCREW M4 X 1.75 PT 16MM

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$6.49

$

In Stock, only 2 left!

0

17

Husqvarna 545031101

TRIMMER GUARD 128C

$31.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530059185

CLAMP ASSIST HANDLE

$6.49

$

In Stock, only 1 left!

0

11

Husqvarna 530015820

BOLT, TYPE 2

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 530015805

SCREW-10-14 X 1/2 PLASTITE

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$6.49

$

In Stock, only 1 left!

0

8

Husqvarna 545223201

HSG THROTTLE LEFT HVA

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$6.99

$

In Stock, only 1 left!

0

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 575262501

KIT UPPER SHAFT SILVER
(Superseded to 575261201)

Note: "UPPER SHAFT, INCL. FLEX "

$47.99

$

In Stock, only 2 left!

0

1

Husqvarna 576139401

ASSY CABLE / WIRE HARNESS

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$22.99

$

In Stock, only 4 left!

0

9

Husqvarna 545049309

SWITCH
(Superseded to 545049311)

Note: 2010-72N AND LOWER, SEE SERVICE REFERENCE

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 545180847

KIT DRIVESHAFT

$56.99

$

Usually ships in 3-10 days

0

5

Husqvarna 530016454

SPRING TRIGGER

$6.49

$

In Stock, Qty 7

0
