128 C - Husqvarna String Trimmer (2010-03) Shaft & Handle Parts Diagram

String Trimmer

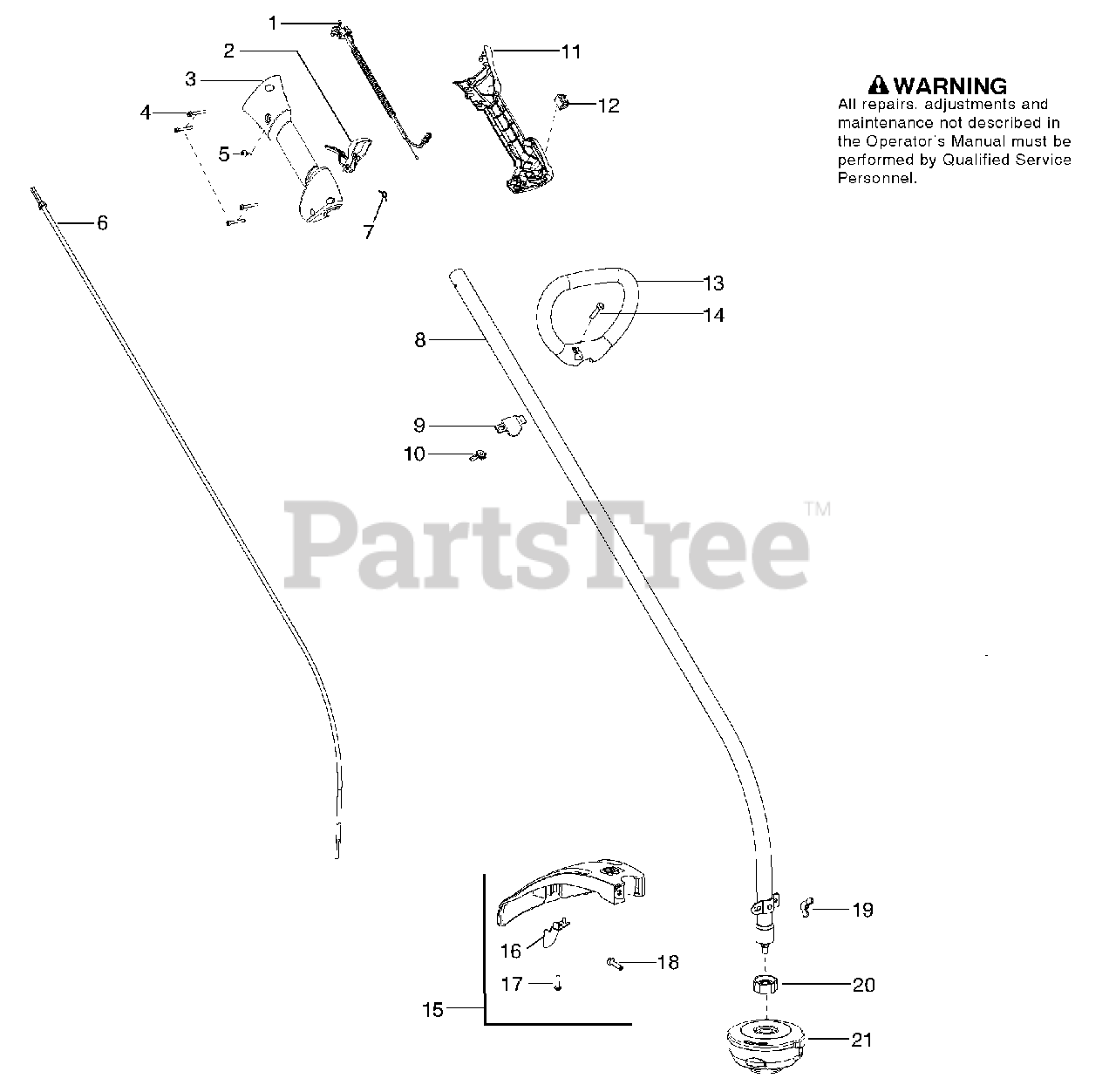

Shaft & Handle Parts Diagram

  • Title
1

Assy-Cable/Wire Harness

$

$

Not available

2

Trigger

$

$

Not available

3

Housing-Throttle (RH)

$

$

Not available

4

Screw

$

$

Not available

5

Screw

$

$

Not available

6

$22.99

$

Usually ships in 3-10 days

0

7

Husqvarna 530016454

Spring-Trigger

$6.49

$

In Stock, Qty 7

0

8

Husqvarna 575755601

Kit-Driveshaft
(Superseded to 580446609)

$74.99

$

Usually ships in 3-10 days

0

9

Husqvarna 530059185

Clamp-Handle

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

11

Housing-Throttle (LH)

$

$

Not available

12

Kit-Switch

$

$

Not available

13

Husqvarna 545042201

Handle-Assist

$17.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

15

Husqvarna 545031101

Kit-Shield

Note: (Incl. 16,17,18,19)

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 545081862

Kit - Limiter-Line

$6.99

$

In Stock, only 2 left!

0

$6.49

$

In Stock, Qty 16

0

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

20

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 537338307

Assy-T25 Cutting Head

$

$

Not available

Husqvarna 545196750

Manual

Note: Not Shown

$

$

Not available
