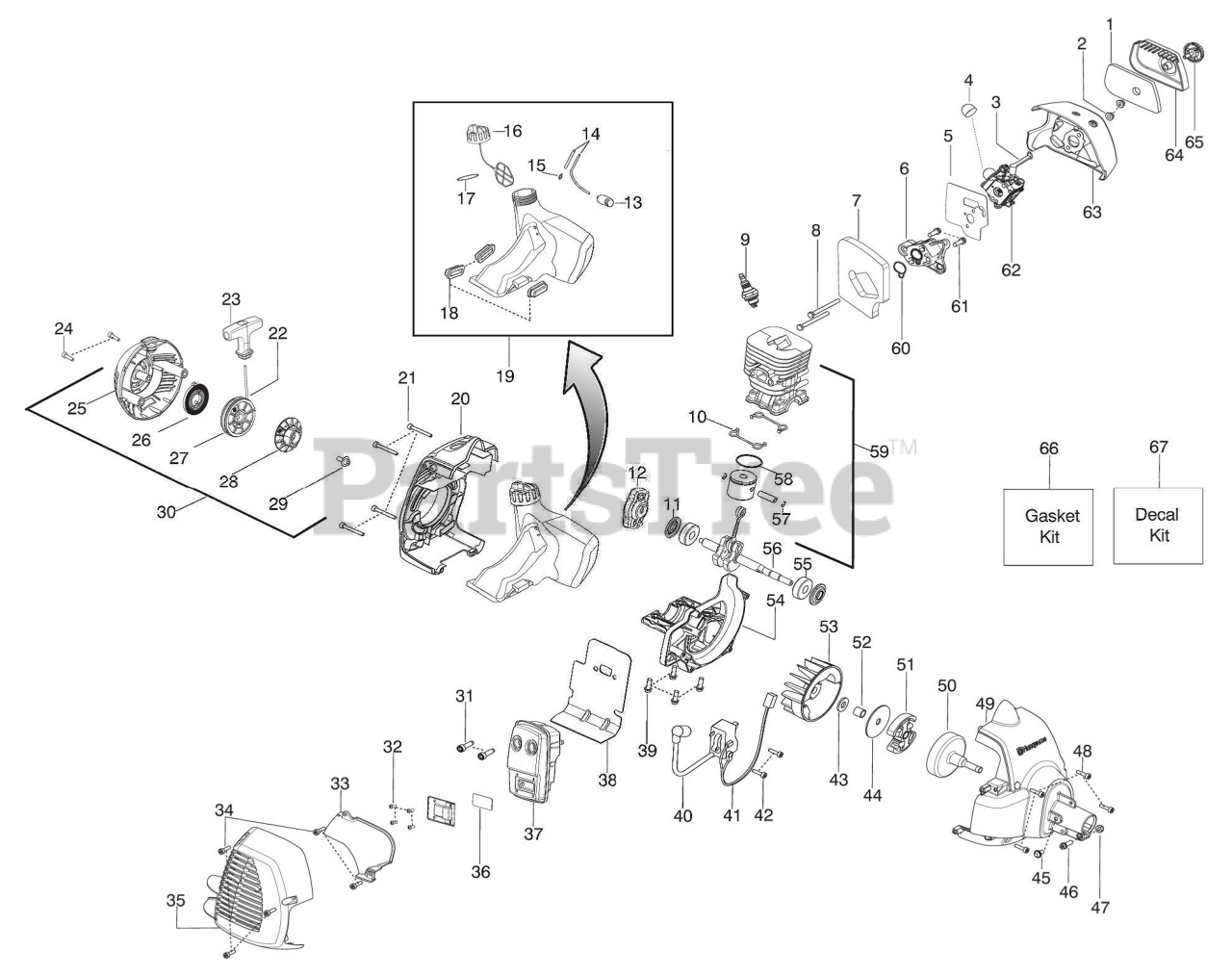

128 C (545012636) - Husqvarna String Trimmer (2008-12) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Husqvarna 530150253

Filter

$3.99

$

In Stock, only 1 left!

0

2

Husqvarna 530016101

Nut-Carb. Screw

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 530057844

Lever - Choke

$8.99

$

In Stock, Qty 7

0

4

Husqvarna 530058709

Bulb-Purge

$7.99

$

In Stock, only 1 left!

0

5

Husqvarna 545008086

Kit-Carb. Gasket

Note: (Incl 7,60)

$18.99

$

In Stock, only 1 left!

0

6

Husqvarna 530035596

Adaptor-Carb.

$12.99

$

In Stock, only 1 left!

0

7

Husqvarna 545008084

Foam-Gasket

Note: (kit)

$26.99

$

In Stock, only 1 left!

0

8

Husqvarna 530016400

Bolt

$6.49

$

In Stock, only 1 left!

0

9

Husqvarna 952030249

Plug-Spark (RCJ-6Y)
(Superseded to 530030179)

$7.49

$

In Stock, only 1 left!

0

10

Husqvarna 545008084

Seal-Cylinder

Note: (kit)

$26.99

$

In Stock, only 1 left!

0

11

Husqvarna 545008084

Seal-Crankshaft

Note: (kit)

$26.99

$

In Stock, only 1 left!

0

12

Husqvarna 503873305

Assy-Starter Pawl

$26.99

$

Usually ships in 3-10 days

0

13

Husqvarna 530095646

Assy-Fuel Filter

$6.99

$

In Stock, Qty 16

0

14

Husqvarna 530069599

Kit-Fuel Line

Note: (Incl. 15)

$7.49

$

In Stock, only 2 left!

0

15

Husqvarna 530023877

Fitting-Fuel Line

$5.99

$

In Stock, Qty 17

0

16

Husqvarna 530150350

Assy-Cap w/ret.
(Superseded to 578931503)

Note: (Incl. 17)

$7.99

$

In Stock, only 3 left!

0

17

Husqvarna 545008084

O-ring - Fuel Cap

Note: (kit)

$26.99

$

In Stock, only 1 left!

0

18

Husqvarna 530059780

Isolator-Tank

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 545180870

Kit-Fuel Tank Assy.

Note: (Incl. 13,14,15,16,17,18)

$44.99

$

In Stock, only 2 left!

0

20

Husqvarna 530057851

Shroud-Rear
(Superseded to 576153201)

$13.99

$

In Stock, only 4 left!

0

21

Husqvarna 530016448

Screw

$6.49

$

In Stock, only 4 left!

0

22

Husqvarna 545008079

Kit-Rope
(Superseded to 531127903)

$2.49

$

Usually ships in 3-10 days

0

23

Husqvarna 545043204

Handle-Starter

$7.99

$

In Stock, only 3 left!

0

24

Husqvarna 530016426

Screw

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 545186502

Starter Hsg. w/eyelet
(Superseded to 579066901)

$34.99

$

In Stock, only 3 left!

0

26

Husqvarna 545008080

Kit-Starter Spring
(Superseded to 545008087)

$9.49

$

In Stock, only 1 left!

0

27

Husqvarna 545008078

Kit-Starter Pulley
(Superseded to 585530301)

$11.99

$

In Stock, only 1 left!

0

28

Husqvarna 544038702

Pulley-Driver
(Superseded to 579366201)

$6.99

$

In Stock, only 1 left!

0

29

Husqvarna 530016468

Screw

$6.49

$

In Stock, Qty 7

0

30

Husqvarna 545186501

Assy-Starter Hsg.
(Superseded to 579063101)

Note: (Incl. 22,23,25,26,27,28,29)

$26.99

$

Usually ships in 3-10 days

0

31

Husqvarna 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 7

0

32

Husqvarna 530015241

Screw
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 530150440

Shield-Heat

$8.99

$

In Stock, only 1 left!

0

34

Husqvarna 530016449

Screw

$6.49

$

In Stock, only 2 left!

0

35

Husqvarna 545104901

Guard-Muffler
(Superseded to 576215001)

$14.99

$

In Stock, Qty 13

0

36

Husqvarna 545030501

Kit-Spark Arrestor

Note: (Incl. 32)

$8.99

$

In Stock, only 1 left!

0

37

Husqvarna 545057501

Assy-Muffler
(Superseded to 574031502)

$40.99

$

In Stock, only 1 left!

0

38

Husqvarna 545008084

Gasket-Paper Met.

Note: (kit)

$26.99

$

In Stock, only 1 left!

0

39

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

40

Husqvarna 530039224

Module
(Superseded to 545046701)

$56.99

$

In Stock, only 1 left!

0

41

Husqvarna 530039227

Assy-Leadwire

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 530016456

Screw

$6.49

$

In Stock, only 2 left!

0

43

Husqvarna 530016463

Washer

$6.99

$

In Stock, only 3 left!

0

44

Husqvarna 530094189

Washer-Clutch

$6.99

$

In Stock, only 1 left!

0

45

Husqvarna 530016469

Screw

$

$

Not available

46

Husqvarna 530016470

Screw

$

$

Not available

47

Husqvarna 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

48

Husqvarna 530016456

Screw

$6.49

$

In Stock, only 2 left!

0

49

Husqvarna 545017501

Assy-Fan Housing

$

$

Not available

50

Husqvarna 530150039

Assy-Clutch Drum
(Superseded to 587126401)

$28.99

$

In Stock, only 4 left!

0

51

Husqvarna 545050405

Kit-Clutch Assy.
(Superseded to 525472901)

$12.99

$

Usually ships in 3-10 days

0

52

Husqvarna 530057852

Spacer

$10.99

$

In Stock, only 2 left!

0

53

Husqvarna 530039242

Flywheel

$44.99

$

In Stock, only 1 left!

0

54

Husqvarna 545195601

Crankcase-Cast
(Superseded to 577929502)

$39.99

$

Usually ships in 3-10 days

0

55

Husqvarna 545013401

Bearing

$10.99

$

Usually ships in 3-10 days

0

56

Husqvarna 545195202

Assy-Crankshaft
(Superseded to 585415404)

$24.99

$

Usually ships in 3-10 days

0

57

Husqvarna 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

58

Husqvarna 530019283

Ring-Piston
(Superseded to 575227901)

$7.49

$

In Stock, only 4 left!

0

59

Husqvarna 545008082

Kit-Piston/Cyl.

Note: (Incl. 57,58)

$45.99

$

In Stock, only 1 left!

0

60

Husqvarna 545008084

Seal-adaptor

Note: (kit)

$26.99

$

In Stock, only 1 left!

0

61

Husqvarna 530015897

Screw

$6.49

$

In Stock, Qty 19

0

62

Husqvarna 545081850

Kit-Carb.

Note: (Incl. 3,4,5)

$

$

Not available

63

Husqvarna 545084601

Air box
(Superseded to 576459001)

$7.99

$

In Stock, only 2 left!

0

64

Husqvarna 530057846

Cover-Air Box

$9.49

$

In Stock, Qty 11

0

65

Husqvarna 530059796

Assy-Knob

$5.99

$

In Stock, Qty 12

0

66

Husqvarna 545008084

Kit-Gasket

Note: (Incl. 5,7,10,11,17,38,60)

$26.99

$

In Stock, only 1 left!

0

67

Husqvarna 545008089

Kit-Decal

$

$

Not available
