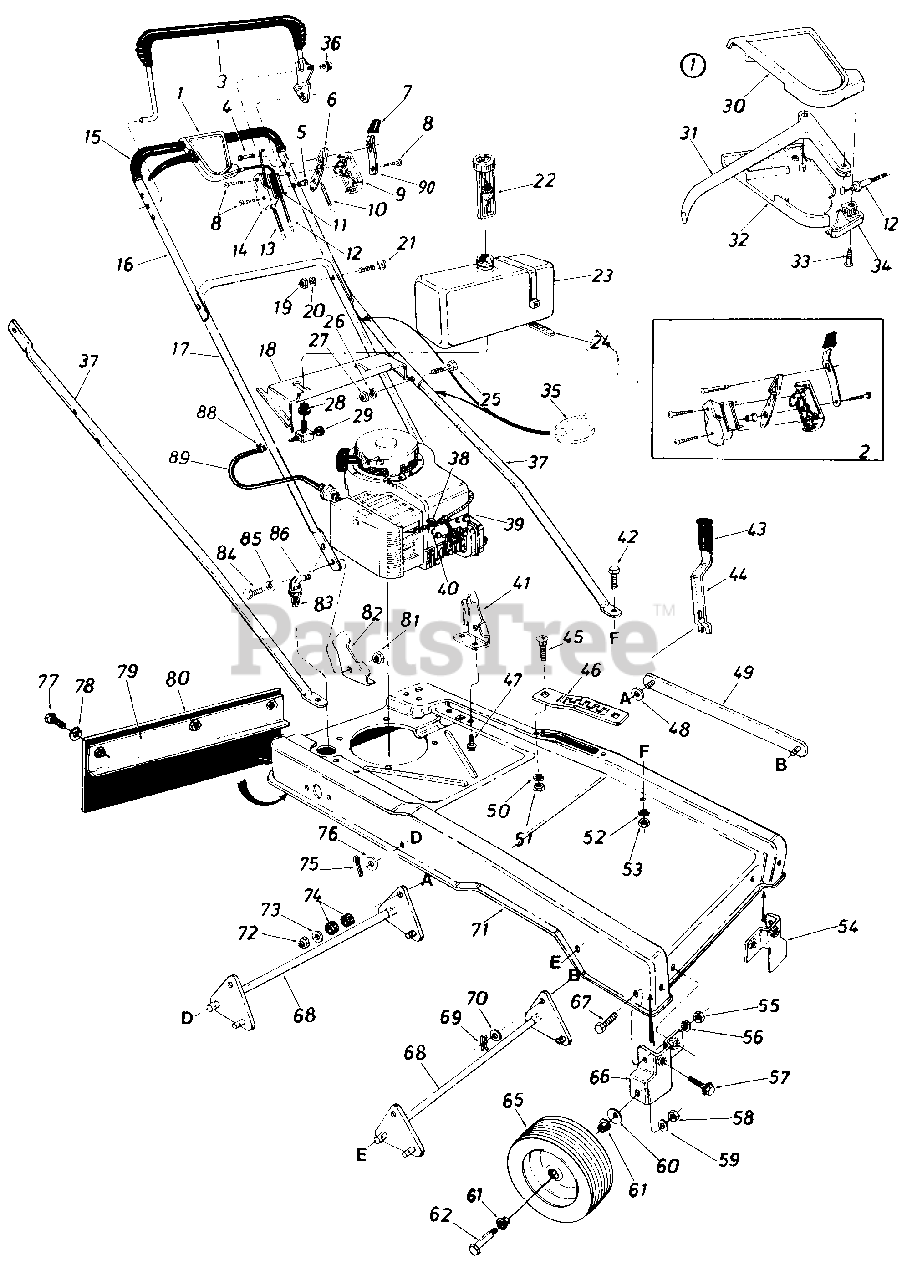

128-560B190 - White Outdoor Lawn Boss 26" Walk-Behind Mower (1988) Mower Assembly Parts Diagram

Lawn Boss 26" Walk-Behind Mower

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 753-0362

Clutch Control Housing Comp.

$

$

Not available

2

White Outdoor 753-0431

Control Housing Comp.

$

$

Not available

3

White Outdoor 16739

Control Handle Ass'y.

$

$

Not available

4

White Outdoor 731-0607

Lock Pin

$

$

Not available

5

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

6

White Outdoor 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

7

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

8

White Outdoor 710-0796

Truss Mach. Hi-B 0 Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

9

White Outdoor 731-0817

Control Panel Half
(Superseded to 731-0817A)

$

$

Not available

10

White Outdoor 746-0631

Throttle Control Wire 43" Lg.
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

11

777-5772

Control Label-Throttle

$

$

Not available

12

White Outdoor 746-0650

Self-Propelled Cable 50" Lg.
(Superseded to 946-0650)

$47.99

$

Usually ships in 3-6 days

0

13

White Outdoor 746-0405

IDrive Clutch Cable-46" Lg.
(Superseded to 946-0405)

$53.99

$

Usually ships in 3-6 days

0

14

White Outdoor 731-0816

Clutch Panel Half

$

$

Not available

15

718-0145

Grip 22" Lg.

$

$

Not available

16

749-0437

Upper Handle

$

$

Not available

17

White Outdoor 749-0505

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

18

White Outdoor 14426

Gas Tank Mounting Brk't.

$

$

Not available

19

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.'
(Superseded to 912-3010)

$

$

Not available

20

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 710-0262

Carriage Bolt 5/16-18 x 1.50" Lg.

$3.99

$

In Stock, Qty 13

0

22

White Outdoor 723-0155

Gas Gauge 13/4-6 x 5.50" Lg.

$

$

Not available

23

White Outdoor 751-0225

Gas Tank

$

$

Not available

24

White Outdoor 726-0209

Cable Tie 30.6" Lg.
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

25

White Outdoor 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 19

0

26

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

27

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

28

White Outdoor 735-0149

Bushing-Gas Tank
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

29

White Outdoor 751-0171

Fuel Shut-Off Valve w/Screen
(Superseded to 951-0171)

$20.99

$

In Stock, only 1 left!

0

30

White Outdoor 731-0617

Control Cover Half-Upper
(Superseded to 731-0617A)

$

$

Not available

31

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

32

White Outdoor 731-0618

Control Cover Half-Lower
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

33

White Outdoor 710-0841

Flat "C" Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

34

White Outdoor 731-0619

Cable Mounting Cap

$

$

Not available

35

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

36

White Outdoor 726-0245

Push Cap

$

$

Not available

37

749-0697

Strut .75" O.D. x 43.44" Lg.

$

$

Not available

38

White Outdoor 710-0436

Hex Sems Scr. #10-32 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

39

Engine-5 H.P.

$

$

Not available

40

White Outdoor 751-0442

Casing Clamp

$

$

Not available

41

12577

Handle Mount Brk't.-L.H.

$

$

Not available

42

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.'
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 720-0142

Grip-Black

$3.99

$

Usually ships in 3-6 days

0

44

White Outdoor 15342

Lift Handle

$

$

Not available

45

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62 Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 16507

Lift Handle Support Brk't.

$

$

Not available

47

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50

$4.99

$

Usually ships in 3-6 days

0

48

White Outdoor 736-0235

Fl-Wash. .406" I.D x 1.25" O.D.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 16

0

49

White Outdoor 15331

Connecting Link Ass'y.

$

$

Not available

50

White Outdoor 736-0119

L-Wash. 5/16' I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

52

White Outdoor 736-0119

L-Wash. 5/16" I.D.'
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.'
(Superseded to 912-3010)

$

$

Not available

54

10293

Wheel Brk't. Ass'y.-L.H.

$

$

Not available

55

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.'
(Superseded to 912-3010)

$

$

Not available

56

White Outdoor 736-0119

L-Wash. 5/16" I.D.'
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

White Outdoor 710-0198

Hex Sems Bolt 5/16-18 x .75 " Lg .
(Superseded to 910-0198)

$

$

Not available

58

White Outdoor 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

59

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

60

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 741-0180

Flanged Ball Brg.1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

62

White Outdoor 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

White Outdoor 741-0484

Flanged Ball Brg. .501" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

White Outdoor 750-0434

Spacer .375" I.D. x .505 O.D. x 1" Lg.

$6.99

$

Usually ships in 3-6 days

0

65

Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

White Outdoor 734-1260

Front Wheel Ass'y. (8 x 1.75)

$

$

Not available

White Outdoor 734-1513

Front Wheel Ass'y. (8 x 2)
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

66

10294

Wheel Brk't. Ass'y.-R.H.

$

$

Not available

67

White Outdoor 710-0198

Hex Sems Bolt 5/16-18 x .75 " Lg .
(Superseded to 910-0198)

$

$

Not available

68

White Outdoor 16497

Lift Brk't. Shaft Ass'y.

$

$

Not available

69

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

70

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

71

16505

Hi-Wheel Frame

$

$

Not available

72

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

73

White Outdoor 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 735-0126

Rubber Wash. .33" I.D. x .87" O.D.
(Superseded to 735-0126A)

$

$

Not available

75

White Outdoor 714-0115

Cotter Pin 1/8" Dia. x 1" Lg.

$3.99

$

Usually ships in 3-6 days

0

76

White Outdoor 736-0272

Fl-Wash. .510" I.D. x 1.0 O.D.

$4.99

$

In Stock, Qty 20+

0

77

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

78

White Outdoor 736-0329

L-Wash. 1/4" I.D.'
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

79

White Outdoor 16563

Retaining Strip Ass'y. 2" x 15" Lg.

$

$

Not available

80

White Outdoor 731-0811

Rear Flap 7.5 x 20" Lg.

$

$

Not available

81

White Outdoor 712-0342

Hex Nut 3/8-16 Thd.'
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

82

White Outdoor 12578

Handle Mount Brk't.

$

$

Not available

83

Part of Engine

$

$

Not available

84

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75" Lg.'

$4.49

$

In Stock, Qty 16

0

85

White Outdoor 736-0169

L-Wash. 3/8" I.D.'

$3.99

$

In Stock, Qty 20+

0

86

White Outdoor 737-0125

90 Deg. Elbow Male to Female 3/8

$

$

Not available

88

White Outdoor 726-0207

Hose Clamp-.406" Dia.

$

$

Not available

89

White Outdoor 751-0173

Fuel Line 15" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

90

White Outdoor 732-0401

Lockout Lever

$

$

Not available
