128-560B190 - White Outdoor Lawn Boss 26" Walk-Behind Mower (1988) Drive Assembly Parts Diagram

Lawn Boss 26" Walk-Behind Mower

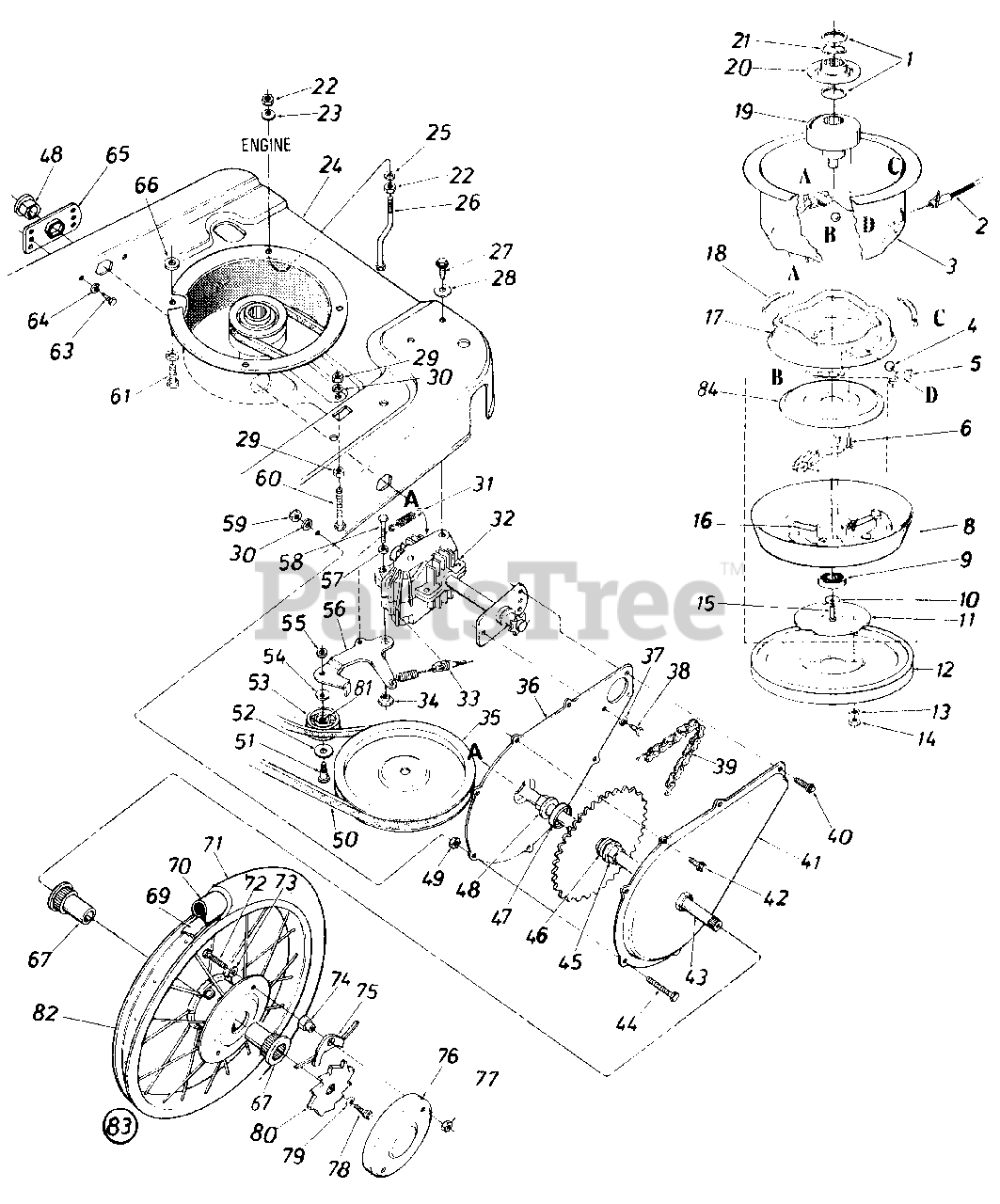

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 736-0409

Washer 1.0" I.D. x 1.2" O.D.
(Superseded to 936-0409)

$

$

Not available

2

White Outdoor 746-0405

BBC Clutch Cable 46" Lg.
(Superseded to 946-0405)

$53.99

$

Usually ships in 3-6 days

0

3

White Outdoor 16509

Clutch Housing

$

$

Not available

4

White Outdoor 741-0326

Steel Ball .500" Dia.

$

$

Not available

5

White Outdoor 731-0520

Ball Block

$

$

Not available

6

White Outdoor 710-0599

Hex Wash. TT-Tap Cl. Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

8

717-0889

Clutch Blade Housing Ass'y.

Note: (Also Incl. Ref. 19)

$

$

Not available

9

White Outdoor 741-0124

Ball Brg. .669" I.D. x 1.574" O.D.
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0412

Bell-Wash. .44" I.D. x .87" O.D.

$

$

Not available

11

14302

Blade Disc.

$

$

Not available

12

White Outdoor 756-0483

5/8"V"-Pulley 1.58" I.D. x 8.0" O.D.

$

$

Not available

13

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-0328

Hex Nut 3/8-24 Thd.
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

15

White Outdoor 710-1002

Hex Bolt 7/16-20 x 2.0" Lg.-Gr. 5

$6.99

$

Usually ships in 3-6 days

0

16

White Outdoor 732-0527

Comp. Spring .33" O.D. x 2.05" Lg.

$

$

Not available

17

14305

Brake Cup Cone

$

$

Not available

18

White Outdoor 732-0545

Extension Spring .35" O.D. x 1.80" Lg.
(Superseded to 932-0545)

$

$

Not available

19

White Outdoor 756-0504

Fixed Pulley MBC 0 Adapter

$

$

Not available

20

White Outdoor 756-0503

Movable Pulley Half

$7.99

$

Usually ships in 3-6 days

0

21

White Outdoor 736-0408

Wave Wash. .164 High x 1.005" I.D.
(Superseded to 936-0447)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

23

White Outdoor 736-0242

Bell-Wash. .336" I.D. x .860" O.D.

$4.49

$

In Stock, Qty 20+

0

24

16505

Hi-Wheel Frame

$

$

Not available

25

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 710-0973

Belt Guard 5/16" Bolt

$

$

Not available

27

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

28

White Outdoor 736-0219

Bell-Wash. .400" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

29

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

30

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

31

White Outdoor 732-0357

Extension Spring .33" I.D. x 1.12" Lg.
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

32

White Outdoor 717-0417

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

33

White Outdoor 746-0650

Self-Propelled Cable x 50" Lg .-Black
(Superseded to 946-0650)

$47.99

$

Usually ships in 3-6 days

0

34

White Outdoor 738-0440

Shld. Spacer .375" Dia. x .170

$5.99

$

In Stock, only 4 left!

0

35

White Outdoor 756-0330

Fl-Pulley 5.06" O.D.
(Superseded to 756-0330A)

$

$

Not available

36

White Outdoor 16504

45 Tooth Chain Cover

$

$

Not available

37

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

38

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

39

White Outdoor 713-0257

#48 Chain .500" Pitch x 52 Links
(Superseded to 713-0135)

$

$

Not available

40

White Outdoor 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 16503

45 Tooth Chain Case

$

$

Not available

42

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

43

White Outdoor 713-0402

Rear Axle Ass'y. 26.82" Lg.

$

$

Not available

44

White Outdoor 710-0281

Hex Bolt 1/4-28 x .88" Lg.

$6.49

$

Usually ships in 3-6 days

0

45

741-0481

Hex Flange Brg. .631" I.D. x .320

$

$

Not available

46

White Outdoor 736-0256

Fl-Wash. .635" I.D. x 1.0" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

47

White Outdoor 748-0313

Spacer .630" I.D. x 1.250" O.D.

$3.99

$

Usually ships in 3-6 days

0

48

White Outdoor 741-0413

Hex Flange Brg. .631" I.D. x .720

$9.99

$

Usually ships in 3-6 days

0

49

White Outdoor 712-0314

Hex Jam Nut 1/4-28 Thd.

$3.99

$

Usually ships in 3-6 days

0

50

White Outdoor 754-0327

"V"-Belt
(Superseded to 954-0327)

$

$

Not available

51

White Outdoor 738-0691

Shld. Bolt .375" Dia. x .400 Lg.
(Superseded to 938-0691)

$

$

Not available

52

White Outdoor 736-0344

Fl-Wash. .390" I.D. x 1.00" O.D.

$4.99

$

In Stock, Qty 20+

0

53

White Outdoor 756-0447

Fl-ldler Plastic 1.50" Dia. x .48
(Superseded to 753-0518)

$27.99

$

Usually ships in 3-6 days

0

54

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75 O.D.

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

56

White Outdoor 16502

Idler Brk't. Ass'y.

$

$

Not available

57

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

58

White Outdoor 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

59

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

60

White Outdoor 710-0501

Hex Bolt 1/4-20 x 2.00" Lg.

$7.49

$

Usually ships in 3-6 days

0

61

White Outdoor 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 4 left!

0

63

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

64

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

65

White Outdoor 16500

Hex Bearing Cup
(Superseded to 16500A-0637)

$8.99

$

Usually ships in 3-6 days

0

66

White Outdoor 736-0185

Fl-Wash. .406" I.D. x .734" O.D.

$3.99

$

In Stock, Qty 20+

0

67

White Outdoor 741-0485

Flange Bearing .630" I.D. x 2.83" Lg.
(Superseded to 941-0485)

$

$

Not available

69

White Outdoor 734-1400

Rimstrip 16 x 7/8

$

$

Not available

70

White Outdoor 734-1397

Inner Tube 16 x 2.12

$

$

Not available

71

White Outdoor 734-1396

Chevron Tire 16 x 2.125

$

$

Not available

72

White Outdoor 710-0376

Hex Bolt Special 5/16-18 x 1.0" Lg.

$3.99

$

In Stock, Qty 5

0

73

White Outdoor 736-0104

Intern. L-Wash. 5/16 I.D.
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

74

White Outdoor 712-0329

Special Hex Nut 5/16-18 Thd.

$

$

Not available

75

White Outdoor 748-0315

Pawl and Spring Ass'y.

$15.99

$

Usually ships in 3-6 days

0

76

White Outdoor 14967

Wheel Cover 4.75" I.D.

$

$

Not available

77

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

78

White Outdoor 710-0782

Hex Wash. Hd. Self-Tap Screw 1/4" x 3/4" Lg.

$

$

Not available

79

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75 O.D.

$3.99

$

In Stock, Qty 20+

0

80

White Outdoor 748-0312

Wheel Ratchet 2.92" O.D.

$

$

Not available

81

White Outdoor 741-0482

Needle Brg. .375" x .31"
(Superseded to 741-0875)

$

$

Not available

82

White Outdoor 734-1399

Rim Ass'y. Only 16.0" x 2.1

$

$

Not available

83

White Outdoor 734-1398

Wheel Ass'y. Comp. 16 x 2.12

$

$

Not available

84

White Outdoor 14304

Clutching Cone

$

$

Not available
