128-476B190 - White Outdoor Lawn Boss 22" Walk-Behind Mower (1988) Mower Assembly Parts Diagram

Lawn Boss 22" Walk-Behind Mower

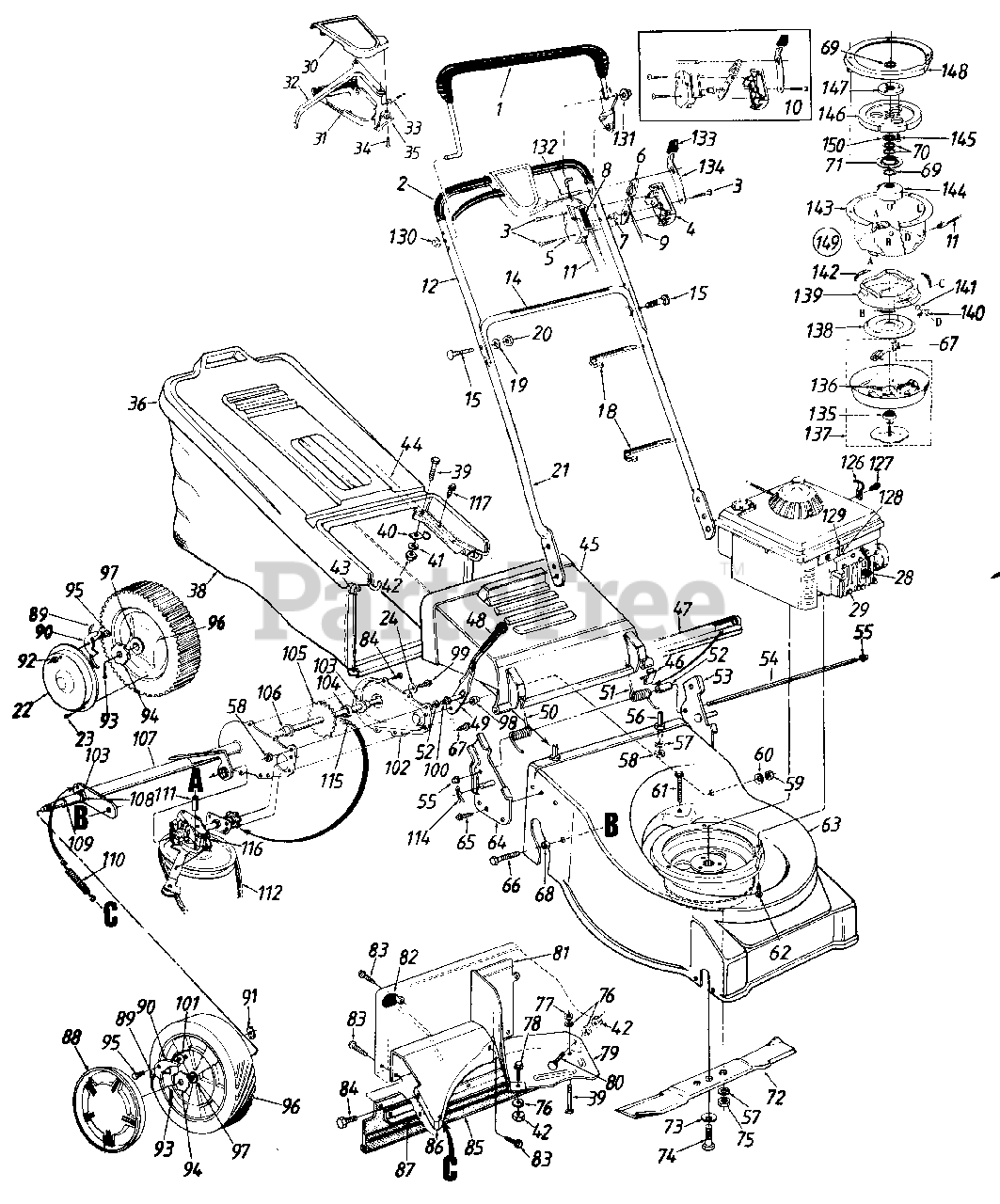

Mower Assembly Parts Diagram

  • Title

1

White Outdoor 16739

Control Handle Ass'y.

$

$

Not available

2

White Outdoor 720-0225

Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, only 3 left!

0

3

White Outdoor 710-0796

Truss Mach. B-Tap Scr. #12 x 1.5" Lg.

$5.49

$

Usually ships in 3-6 days

0

4

White Outdoor 731-0817

Control Panel Half
(Superseded to 731-0817A)

$

$

Not available

5

White Outdoor 731-0816

Clutch Panel Half

$

$

Not available

6

White Outdoor 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

7

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

8

777-5772

Control Label-Throttle

$

$

Not available

9

White Outdoor 746-0672

Throttle Wire-58" Lg.
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

10

White Outdoor 753-0431

Control Housing Comp.

$

$

Not available

11

White Outdoor 746-0407

Control Cable-52" Lg.
(Superseded to 946-0407)

$

$

Not available

12

749-0437

Upper Handle

$

$

Not available

14

777-5775

Instruction Label-Handle

$

$

Not available

15

White Outdoor 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

18

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0119

L-Wash. 5/16" I.D.'
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

21

White Outdoor 749-0505

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

22

White Outdoor 10647

Hub Cap

$

$

Not available

23

White Outdoor 710-0748

Pan Hd. Tap Scr. #12 x .50" Lg.

Note: (Used w/Ref. #22)

$

$

Not available

24

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

29

Engine

$

$

Not available

30

White Outdoor 731-0617

Control Cover Half-Upper
(Superseded to 731-0617A)

$

$

Not available

31

White Outdoor 731-0618

Control Cover Half-Lower
(Superseded to 753-0833)

$50.99

$

In Stock, only 2 left!

0

32

White Outdoor 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

33

White Outdoor 746-0651

Drive Cable-53" Lg.
(Superseded to 946-0651)

$

$

Not available

34

White Outdoor 710-0841

Flat C-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

35

White Outdoor 731-0619

Cable Mtg. Cap

$

$

Not available

36

White Outdoor 731-0857

Hardtop Bag Cover
(Superseded to 631-0003)

$104.99

$

Usually ships in 3-6 days

0

38

White Outdoor 764-0252

Grass Bag
(Superseded to 964-0252)

$143.99

$

In Stock, only 1 left!

0

39

White Outdoor 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

40

White Outdoor 12894

Mounting Clamp

$

$

Not available

41

White Outdoor 736-0463

Fl-Wash. .281" I.D. x .62"

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

43

White Outdoor 747-0693

Front Catcher Frame
(Superseded to 764-0411-0637)

$41.99

$

Usually ships in 3-6 days

0

44

White Outdoor 749-0736

Rear Catcher Frame

$

$

Not available

45

White Outdoor 731-0859

Chute Deflector
(Superseded to 931-0859A)

$120.99

$

Usually ships in 3-6 days

0

46

White Outdoor 731-0970

Deflector Plug
(Superseded to 731-0970B)

$

$

Not available

47

White Outdoor 731-0858

Seal-Extrusion

$

$

Not available

48

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

49

White Outdoor 732-0580

Spring Lever

$7.99

$

In Stock, only 1 left!

0

50

White Outdoor 732-0578

Torsion Spring-R.H.
(Superseded to 732-0578B)

$

$

Not available

51

White Outdoor 732-0577

Torsion Spring-L.H.
(Superseded to 932-0577B)

$

$

Not available

52

White Outdoor 750-0566

Spacer.255" I.D.
(Superseded to 750-0566A)

$9.99

$

In Stock, only 1 left!

0

53

White Outdoor 12297

Handle Brkt. Ass'y.-L.H.
(Superseded to 12297B-0637)

$

$

Not available

54

White Outdoor 747-0698

Hinge Pin 17.75" Lg.
(Superseded to 747-0698B)

$

$

Not available

55

White Outdoor 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

56

White Outdoor 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

57

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

59

White Outdoor 712-0296

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

60

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

61

White Outdoor 710-0778

Hex Wash. Hd. Tap Scr. 1/4-20 x 1.5" Lg.

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 710-1007

Hex L-Wash. Hd. Scr. 3/8-16 x 1.5" Lg.

$6.49

$

Usually ships in 3-6 days

0

63

16997

21" Deck Ass'y.

$

$

Not available

64

White Outdoor 12296

Handle Brkt. Ass'y.-R.H.
(Superseded to 12296B-0637)

$

$

Not available

65

White Outdoor 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

66

White Outdoor 710-1006

Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

67

White Outdoor 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg

$4.49

$

In Stock, Qty 20+

0

68

White Outdoor 750-0526

Spacer.385" I.D.

$4.99

$

In Stock, only 1 left!

0

69

White Outdoor 736-0409

Serrated Washer 1.0" I.D.
(Superseded to 936-0409)

$

$

Not available

70

White Outdoor 736-0408

Wave Washer 1.005" I.D.
(Superseded to 936-0447)

$4.49

$

In Stock, Qty 20+

0

71

White Outdoor 756-0503

Serrated Pulley Half

$7.99

$

Usually ships in 3-6 days

0

72

White Outdoor 742-0306

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

73

White Outdoor 736-0412

Bell-Wash. .46" I.D. x .88"

$

$

Not available

74

White Outdoor 710-1002

Hex Bolt 7/16-20 x 2.0" Lg. (Gr. 5)

$6.99

$

Usually ships in 3-6 days

0

75

White Outdoor 712-0328

Hex Nut 3/8-24 Thd. (Gr. 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

76

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

77

White Outdoor 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

78

White Outdoor 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

79

White Outdoor 17013

Rear Belt Baffle

$

$

Not available

80

White Outdoor 710-0167

Carr. Bolt lh-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

81

White Outdoor 17006

Rear Panel Baffle

Variations

White Outdoor 17006-0637

No Longer Available BAFFLE-RR-PANEL - POWDER BLACK (0637)

$

$

Not available

$

$

82

White Outdoor 731-0931

Corner Plug

$

$

Not available

83

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

84

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

85

Rear Flap

$

$

Not available

86

White Outdoor 17008

Rear Chute Baffle
(Superseded to 17008-0637)

Variations

White Outdoor 17008-0637

BAFFLE-RR-CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

87

White Outdoor 14847

Retaining Strip

Variations

White Outdoor 14847-0637

STRIP-RETAINING - POWDER BLACK (0637)

$

$

Not available

$

$

88

White Outdoor 731-0975

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

89

White Outdoor 10622

Plastic Spring
(Superseded to 10622BP)

$5.49

$

In Stock, Qty 20+

0

90

White Outdoor 748-0188

Pawl.345" I.D.
(Superseded to 948-0188B)

$

$

Not available

91

White Outdoor 712-0189

Weld Nut 1/4-20 Thd.
(Superseded to 912-0414)

Note: (Used w/Ref. #88)

$

$

Not available

92

White Outdoor 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

Note: (Used w/Ref. #22)

$3.99

$

In Stock, Qty 16

0

93

White Outdoor 714-0115

Cotter Pin 1/8" Dia.

$3.99

$

In Stock, only 2 left!

0

94

White Outdoor 748-0318

Ratchet Wheel 1.62" O.D.
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 15

0

95

White Outdoor 738-0137

Shld. Bolt .342" Dia. x .268"

$

$

Not available

96

** Wheel Ass'y. Comp.-Rear

$

$

Not available

White Outdoor 734-1412

Wheel Ass'y. (8 x 1.75)

$

$

Not available

White Outdoor 734-1510

Wheel Ass'y. (8 x 2)
(Superseded to 734-1826)

$33.99

$

In Stock, Qty 9

0

97

** Flange Ball bearing 1/2" I.D.

$

$

Not available

White Outdoor 741-0180

Wheel Brgs. (8 x 1.75)
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

White Outdoor 741-0486

Wheel Brgs. (8 x 2)

$

$

Not available

98

White Outdoor 750-0624

Shld. Spacer .50" Dia.

$

$

Not available

99

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" Lg. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

100

White Outdoor 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

101

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

Note: (Used w/Ref. #88)

$3.99

$

In Stock, Qty 20+

0

102

White Outdoor 17053

Chain Cover Ass'y.

$

$

Not available

103

White Outdoor 741-0324

Hex Flange Brg. .506" I.D.
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

104

White Outdoor 736-0160

Fl-Wash. .531" I.D. x 93"

$4.49

$

In Stock, only 2 left!

0

105

White Outdoor 738-0719

Rear Axle Ass'y.
(Superseded to 938-0719A)

$

$

Not available

106

White Outdoor 741-0522

Hex Flange Bearlng

$

$

Not available

107

White Outdoor 17009

Chain Axle Ass'y.

Variations

White Outdoor 17009-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

108

White Outdoor 736-0326

Fl-Wash. .510" I.D. x 1.0"

$4.49

$

In Stock, only 2 left!

0

109

White Outdoor 748-0190

Spacer.513" I.D.

$6.49

$

In Stock, Qty 11

0

110

White Outdoor 732-0481

Extension Spring 3.8" Lg.
(Superseded to 932-0481)

$

$

Not available

111

White Outdoor 750-0589

Spacer.325" I.D.
(Superseded to 950-0589)

$6.49

$

Usually ships in 3-6 days

0

112

White Outdoor 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

114

White Outdoor 714-0104

Internal Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

115

White Outdoor 713-0353

#48 Chain .50" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

116

White Outdoor 717-0417

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

117

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

126

White Outdoor 12894

Cable Clamp

$

$

Not available

127

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

128

White Outdoor 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

129

White Outdoor 751-0463

Cable Clamp

$

$

Not available

130

White Outdoor 726-0135

Push Cap

$6.99

$

In Stock, only 1 left!

0

131

White Outdoor 726-0245

Push Cap

$

$

Not available

132

White Outdoor 731-0607

Lock Pin .314" Dia. x 1.75"

$

$

Not available

133

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

134

White Outdoor 732-0401

Lockout Spring

$

$

Not available

135

White Outdoor 741-0124

Ball Brg. .669" I.D. x 1.574"
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

136

White Outdoor 732-0396

Comp. Spring .35" O.D. x 2.0" Lg.

$

$

Not available

137

White Outdoor 14300

Clutch Blade Housing Ass'y.

$

$

Not available

138

White Outdoor 14304

Clutch Cone

$

$

Not available

139

14305

Brake Cup Cone

$

$

Not available

140

White Outdoor 731-0520

Ball Block

$

$

Not available

141

White Outdoor 741-0326

Steel Ball .50" Dia.

$

$

Not available

142

White Outdoor 732-0397

Ext. Spring 1.75" Lg.

$

$

Not available

143

14309

Clutch Housing

$

$

Not available

144

White Outdoor 756-0504

Fixed Pulley Adapter

$

$

Not available

145

White Outdoor 710-0618

Flat Hd. Tap Scr. 1/4-20 x .625" Lg.

$

$

Not available

146

White Outdoor 748-0319

Flywheel

$

$

Not available

147

White Outdoor 748-0320

Flywheel Adapter

$

$

Not available

148

White Outdoor 17176

Engine Mounting Plate Cover

$

$

Not available

149

White Outdoor 717-0846

Blade Brake Clutch Ass'y. Comp.

$

$

Not available

150

White Outdoor 736-0405

Serrated Washer l" I.D.

$

$

Not available
